2024 Volkswagen Golf Estate dimensions and size guide
2024 Volkswagen Golf Estate
Add comparisonExterior dimensions
2024 Volkswagen Golf Estate exterior dimensions
The 2024 Volkswagen Golf Estate is slightly smaller than the average estate in length and width, while being almost exactly average in height. Its 463.1cm body is around 11cm, or 2%, shorter, and its 178.9cm width excluding mirrors is approximately 5cm, or 3%, narrower. At 148.7cm tall, it is only about 1cm, or 1%, higher than the class norm. Its 266.9cm wheelbase is around 11cm, or 4%, shorter than average. Its footprint is approximately 8.3m², roughly 0.5m², or 5%, smaller than the typical estate, without having any dimensions that are unusually compact.
Measurements
Length
463.1 cm
Width (excluding mirrors)
178.9 cm
Height
148.7 cm
Wheelbase
266.9 cm
Footprint
DriveSize footprint is overall length multiplied by body width excluding mirrors.
8.3 m²
How the 2024 Volkswagen Golf Estate's exterior dimensions compare with the average Estate
Length
11.4 cm shorter than the average Estate
Width (excluding mirrors)
5.2 cm narrower than the average Estate
Height
1.4 cm taller than the average Estate
Wheelbase
10.8 cm shorter wheelbase than the average Estate
DriveSize footprint score
DriveSize footprint score compares this car's footprint with the average footprint for the same class.
A score near 100% means it is close to class average size. Lower scores mean it sits further from that average, either smaller or larger.
95%
5% smaller than the average Estate
Fast facts
Fast facts
Everyday VDA cargo space is 11% above average
With all five seats upright and in place, the Golf Estate provides 611 litres, around 63 litres more than the estate norm, roughly the space occupied by two carry-on bags.
Its footprint is 5% smaller than average
The Golf Estate occupies around 0.5m² less ground space than the typical-sized estate, which can help in compact garages and parking spaces.
Combined cargo efficiency is 13% above average
Taking seats-up and maximum cargo capacity into account, the Golf Estate provides about 117 litres per square metre of ground space.
Six regional spaces provide comfortable access
All eight standard parking spaces tested by DriveSize physically fit the Golf Estate, while six leave comfortable surrounding room.

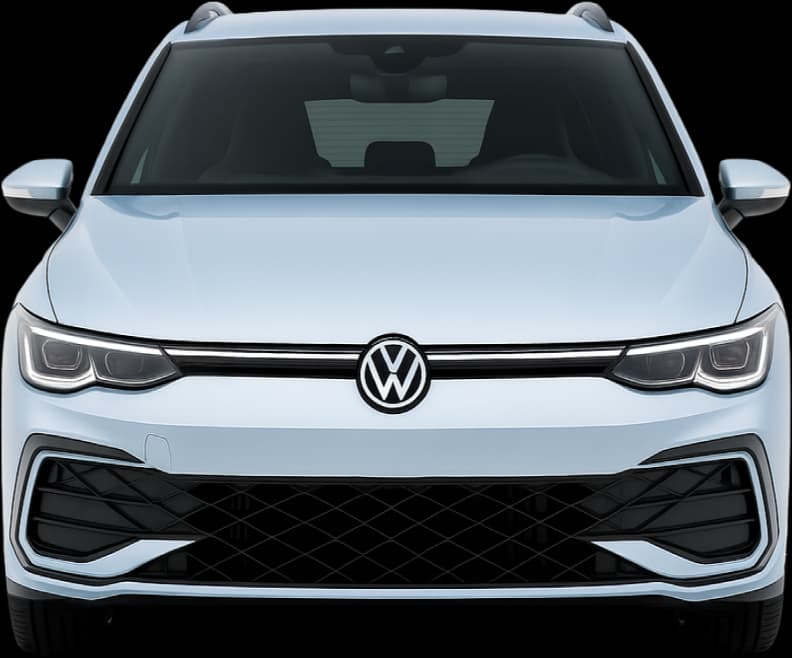

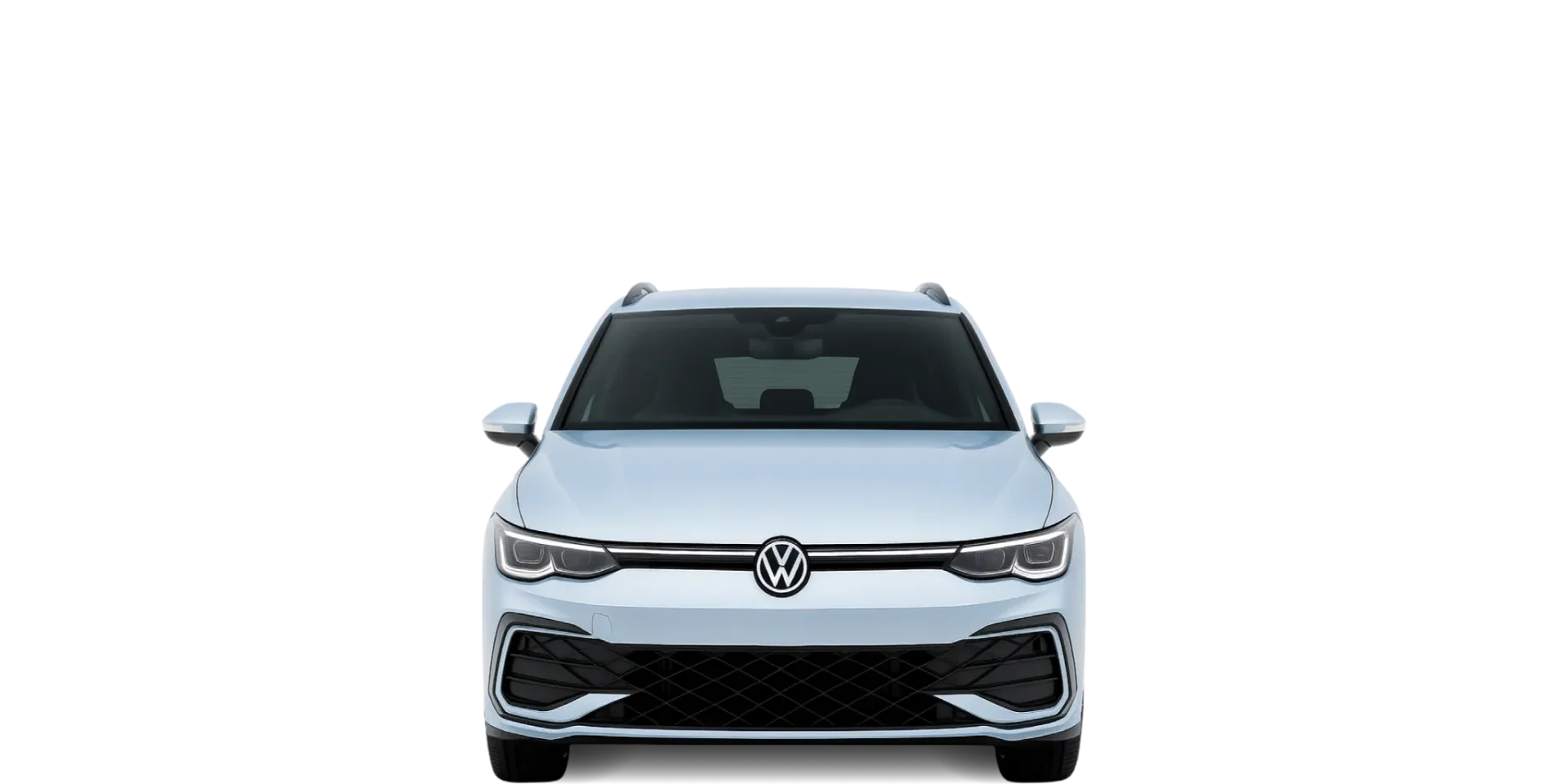

2024 Volkswagen Golf Estate front view
Cargo space & efficiency
2024 Volkswagen Golf Estate cargo capacity and space efficiency
Keeping all five seats upright and available, the Golf Estate provides 611 litres of published VDA cargo capacity. That is around 63 litres, or 11%, more than the average estate. Under VDA, maximum capacity reaches 1,642 litres, approximately 73 litres, or 5%, above average. Allowing for both its seats-up and maximum cargo capacity, the Golf Estate provides about 117 litres per square metre of ground space. That is roughly 13% above average for an estate, meaning it provides more combined cargo capacity for each square metre of ground space than the class norm.
Measurements
Standard cargo capacity (VDA)
The standard cargo capacity using VDA, the method commonly used globally.
This is the manufacturer's normal published figure; it does not imply a particular seat configuration.
611 L
Largest cargo capacity (VDA)
The largest cargo capacity using VDA, the method commonly used globally.
If only one VDA figure is published, the standard and largest values are the same.
1,642 L
Cargo space vs length
This DriveSize metric divides blended cargo volume by overall vehicle length.
Blended cargo uses 65% of the standard figure and 35% of the largest figure, using VDA where available and SAE otherwise.
209.9 L per m
Cargo space vs footprint
This DriveSize metric divides blended cargo volume by footprint.
Blended cargo uses 65% of the standard figure and 35% of the largest figure, using VDA where available and SAE otherwise.
It helps show how efficiently a car turns exterior area into usable cargo space.
117.3 L per m²
How the 2024 Volkswagen Golf Estate's cargo space and efficiency compare with the average Estate
Standard cargo capacity (VDA)
The standard cargo capacity using VDA, the method commonly used globally.
This is the manufacturer's normal published figure; it does not imply a particular seat configuration.
63 L more cargo volume than the average Estate
Largest cargo capacity (VDA)
The largest cargo capacity using VDA, the method commonly used globally.
If only one VDA figure is published, the standard and largest values are the same.
73 L more cargo volume than the average Estate
DriveSize space efficiency score (VDA)
DriveSize space efficiency compares blended cargo volume per square meter of footprint with the class average.
Blended cargo uses 65% of the standard figure and 35% of the largest figure within the selected cargo measurement method.
VDA scores compare with VDA class averages, and SAE scores compare with SAE class averages. Around 100% means in line with class average.
113%
Above class average (+13%)
Parking
Will the 2024 Volkswagen Golf Estate fit in a standard parking space?
All eight standard regional parking spaces tested by DriveSize can physically fit the Golf Estate, with six also providing comfortable surrounding room. Being 2% shorter and 3% narrower helps it fit between the lines in every region. The more accommodating results come from China, India, Japan, Australia, the Middle East and USA/Canada. The tighter results are in the United Kingdom and European Union, where the car nevertheless fits physically.
DriveSize parking fit score
DriveSize compares the car's width and length with typical parking-space sizes by region.
Vehicle dimensions are rounded up and available side or length clearance is rounded down.
Side clearance is based on body width excluding mirrors where available; real spaces can vary because of mirrors, walls, pillars, kerbs, bay markings, and nearby cars.
For an average USA / Canada space: body side clearance is 48 cm per side (excluding mirrors), and length clearance is 43 cm at each end.
Body side clearance (excluding mirrors)
48 cm
Length clearance (at each end)
43 cm
Usability
2024 Volkswagen Golf Estate usability & manoeuvrability
At 11.3m, the Golf Estate's turning circle is around 0.1m, or just 1%, wider than the average estate, so it needs broadly the usual amount of room for full turns and changing direction. Its exterior footprint is 5% smaller than average, making its modest ground-space size more distinctive than its turning circle.
Measurements
Doors
5
Max seats
5
Turning circle
11.3 m
How the 2024 Volkswagen Golf Estate's usability and manoeuvrability compare with the average Estate
Turning circle
0.1 m larger turning circle than the average Estate
DriveSize manoeuvrability score
DriveSize manoeuvrability score combines turning circle and footprint, with turning circle weighted more heavily.
Around 100% means in line with the class average; higher scores indicate better manoeuvrability relative to similar cars.
101%
1% more manoeuvrable than the average Estate

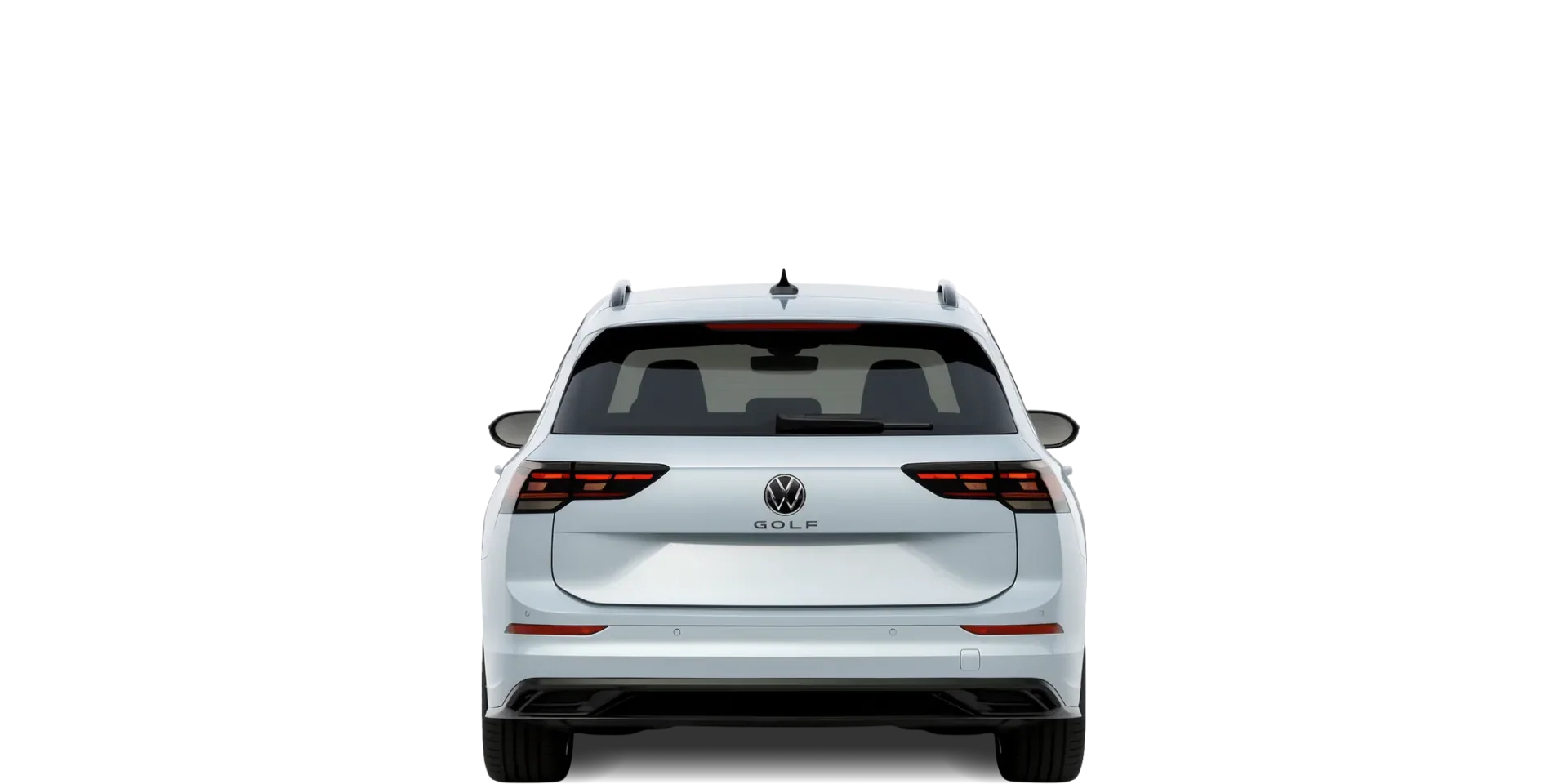

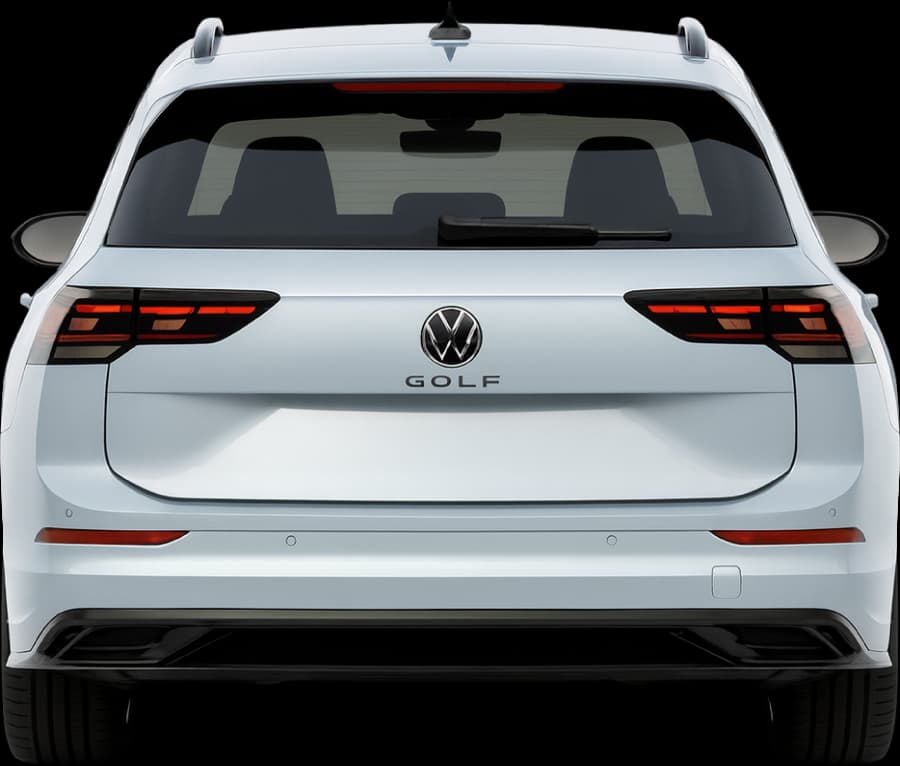

2024 Volkswagen Golf Estate rear view
DriveSize overview: 2024 Volkswagen Golf Estate
Judging by its dimensions and capacities, the 2024 Volkswagen Golf Estate may suit drivers who want an estate that's slightly smaller-than-average with above-average VDA cargo capacity. Seats-up capacity is 11% above the estate norm, maximum capacity is 5% above and combined cargo efficiency is 13% higher.
It physically fits all eight regional parking spaces tested by DriveSize, with six providing comfortable access, and its turning circle is almost exactly average.
The 2023 Toyota Corolla Touring Sports is its closest estate match for both exterior dimensions and boot space.
More Estates
FAQs
Frequently asked questions
Vehicle specifications on this page are sourced from official Volkswagen documentation. All DriveSize comparisons are calculated from manufacturer-published specifications.
