2018 Jeep Wrangler dimensions and size guide
2018 Jeep Wrangler
Add comparisonExterior dimensions

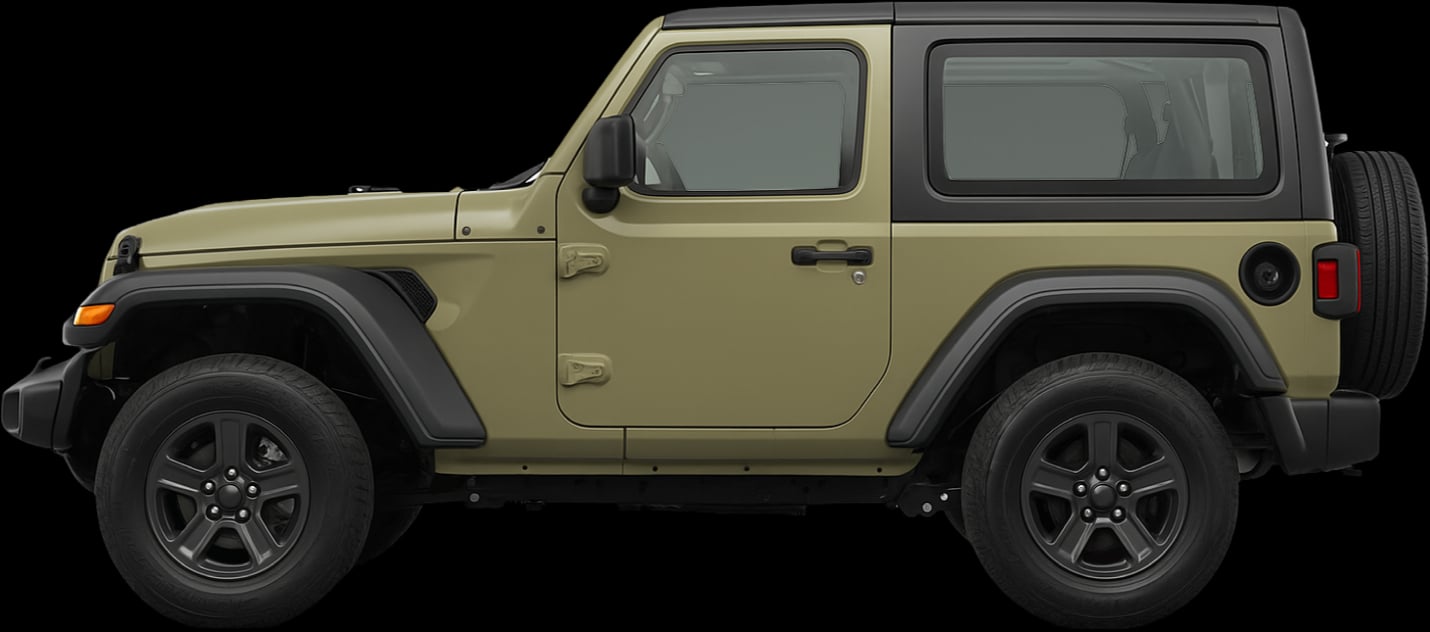

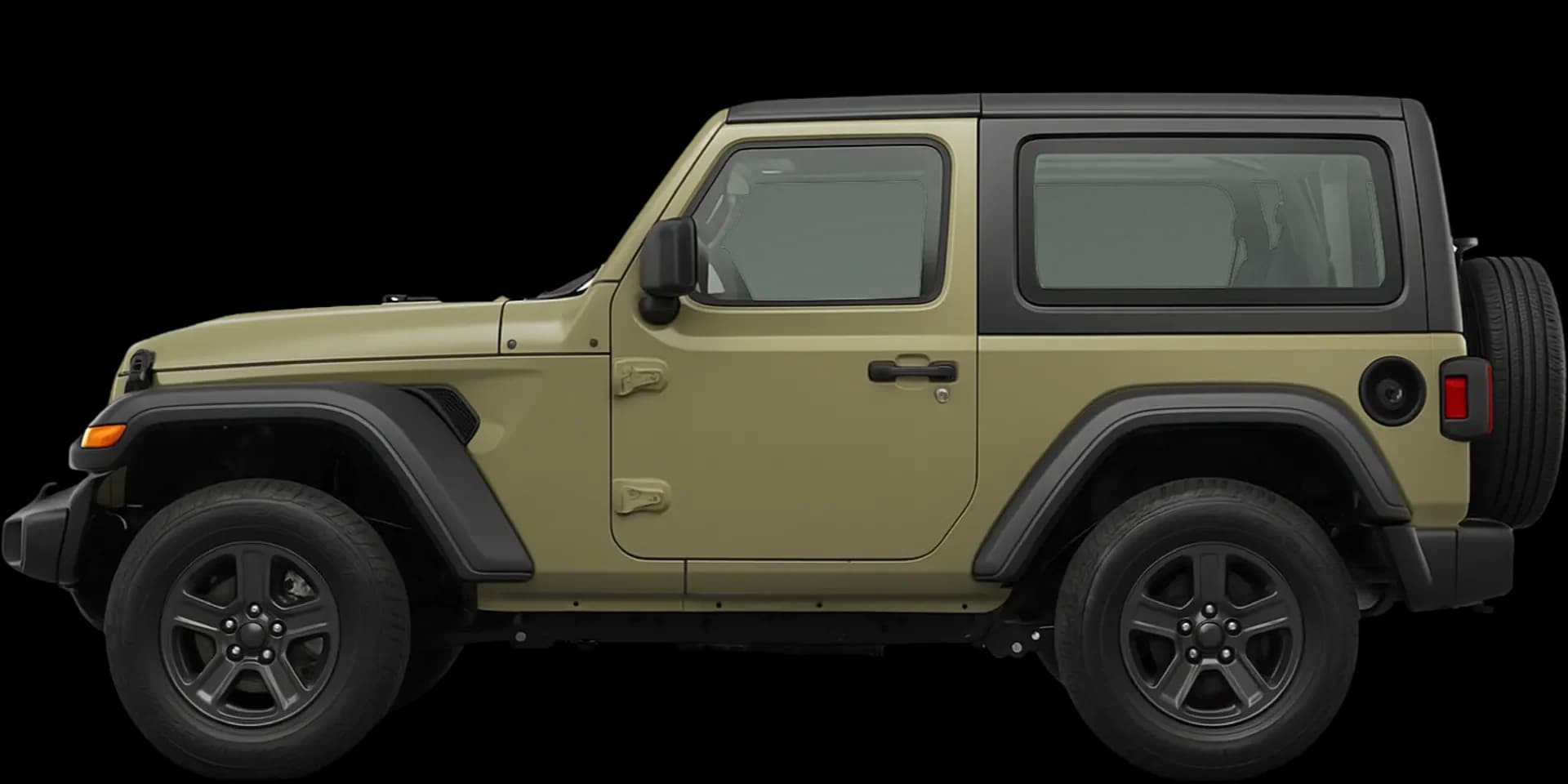

2018 Jeep Wrangler exterior dimensions
The two-door 2018 Jeep Wrangler is much shorter than the average SUV. Its 423.7cm length is around 72cm, or 14%, below the class norm, while its 187.5cm body is approximately 8cm, or 4%, narrower. The large difference in length should make it easier to accommodate in shorter garages and parking spaces. At 186.8cm tall, the Wrangler is only around 3cm lower than average, but its 246cm wheelbase is roughly 44cm, or 15%, shorter. Its compact length and width create a 7.9m² footprint, approximately 1.8m², or 18%, smaller than the average SUV.
Measurements
Length
423.7 cm
Width (excluding mirrors)
187.5 cm
Height
186.8 cm
Wheelbase
246 cm
Ground clearance
24.6 cm
Footprint
DriveSize footprint is overall length multiplied by body width excluding mirrors.
7.9 m²
How the 2018 Jeep Wrangler's exterior dimensions compare with the average SUV
Length
71.7 cm shorter than the average SUV
Width (excluding mirrors)
8.2 cm narrower than the average SUV
Height
3.3 cm shorter than the average SUV
Wheelbase
44.1 cm shorter wheelbase than the average SUV
Ground clearance
2.1 cm more ground clearance than the average SUV
DriveSize footprint score
DriveSize footprint score compares this car's footprint with the average footprint for the same class.
A score near 100% means it is close to class average size. Lower scores mean it sits further from that average, either smaller or larger.
82%
18% smaller than the average SUV
Fast facts
Fast facts
Ground clearance is 9% above average
There is 24.6cm between the underside and the ground, around 2.1cm more than the SUV norm, providing extra room when navigating bumpy roads and steep driveways with less chance of scraping the bottom.
Its turning circle is 12% tighter than average
At 10.5m, the Wrangler needs roughly 1.5m less room to turn than the typical SUV, which is useful for U-turns and tight manoeuvres.
Around 72cm shorter than the average SUV
The Wrangler's 423.7cm length leaves considerably more front-to-back room than usual when fitting it into a garage or parking space.
It fits all eight regional parking spaces
Every standard space used by DriveSize can physically accommodate the Wrangler, and five provide comfortable surrounding room for getting in and out.

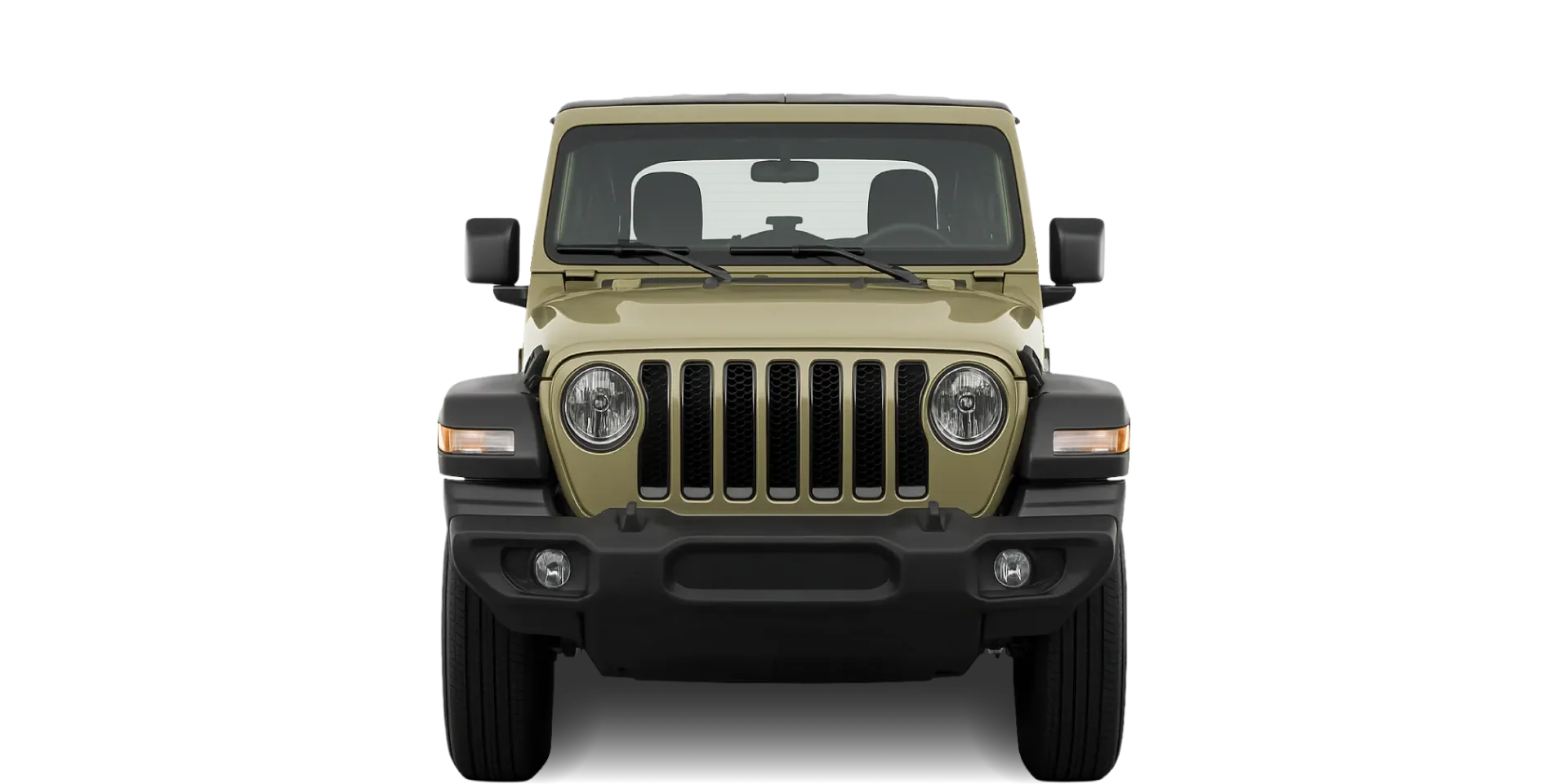

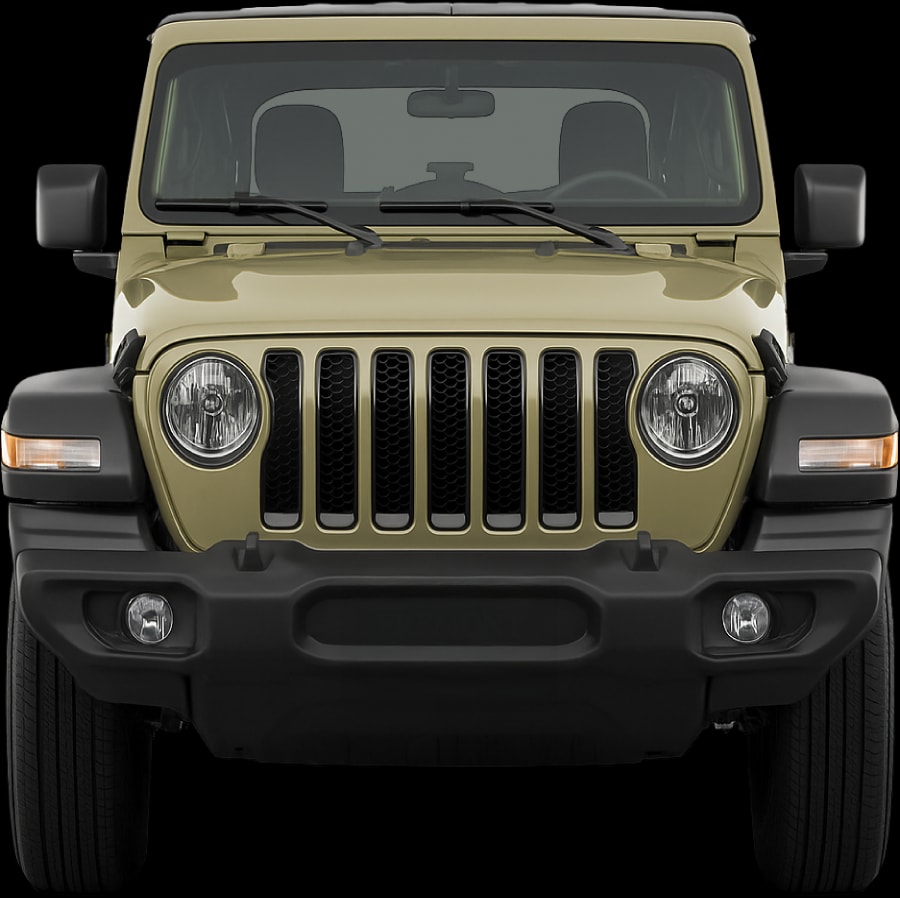

2018 Jeep Wrangler front view
Cargo space & efficiency
2018 Jeep Wrangler cargo capacity and space efficiency
The two-door Wrangler combines seating for four with a 7.9m² footprint, around 1.8m², or 18%, smaller than that of the average SUV. Its compact exterior therefore takes up considerably less ground space than usual for the class. Its 423.7cm length and 246cm wheelbase account for much of that difference. Both are substantially below the SUV norm, creating a short, compact package rather than the elongated proportions of many larger SUVs.
Parking
Will the 2018 Jeep Wrangler fit in a standard parking space?
The Wrangler physically fits within all eight standard regional parking spaces used by DriveSize, and five provide comfortable room around it. Its much shorter-than-average body gives it useful front-to-back flexibility, although its width is closer to the SUV norm. The United Kingdom, European Union and Australia are the tighter results, where getting in or out may require more care. China, India, Japan, USA/Canada and the Middle East all provide comfortable access.
DriveSize parking fit score
DriveSize compares the car's width and length with typical parking-space sizes by region.
Vehicle dimensions are rounded up and available side or length clearance is rounded down.
Side clearance is based on body width excluding mirrors where available; real spaces can vary because of mirrors, walls, pillars, kerbs, bay markings, and nearby cars.
For an average USA / Canada space: body side clearance is 43.5 cm per side (excluding mirrors), and length clearance is 63 cm at each end.
Body side clearance (excluding mirrors)
43.5 cm
Length clearance (at each end)
63 cm
Usability
2018 Jeep Wrangler usability & manoeuvrability
With a 10.5m turning circle, the Wrangler needs around 1.5m, or 12%, less room to turn than the average SUV. Its 246cm wheelbase is also roughly 44cm shorter than usual, helping its compact exterior change direction within a smaller area. At 1,801kg, it is approximately 646kg, or 26%, lighter than the SUV norm. Ground clearance is 24.6cm, around 2.1cm, or 9%, above average, giving the underside additional space above uneven tracks and pronounced ridges.
Measurements
Doors
2
Max seats
4
Turning circle
10.5 m
Curb weight
1,801 kg
How the 2018 Jeep Wrangler's usability and manoeuvrability compare with the average SUV
Turning circle
1.5 m smaller turning circle than the average SUV
Curb weight
646 kg lighter than the average SUV
DriveSize manoeuvrability score
DriveSize manoeuvrability score combines turning circle and footprint, with turning circle weighted more heavily.
Around 100% means in line with the class average; higher scores indicate better manoeuvrability relative to similar cars.
115%
15% more manoeuvrable than the average SUV

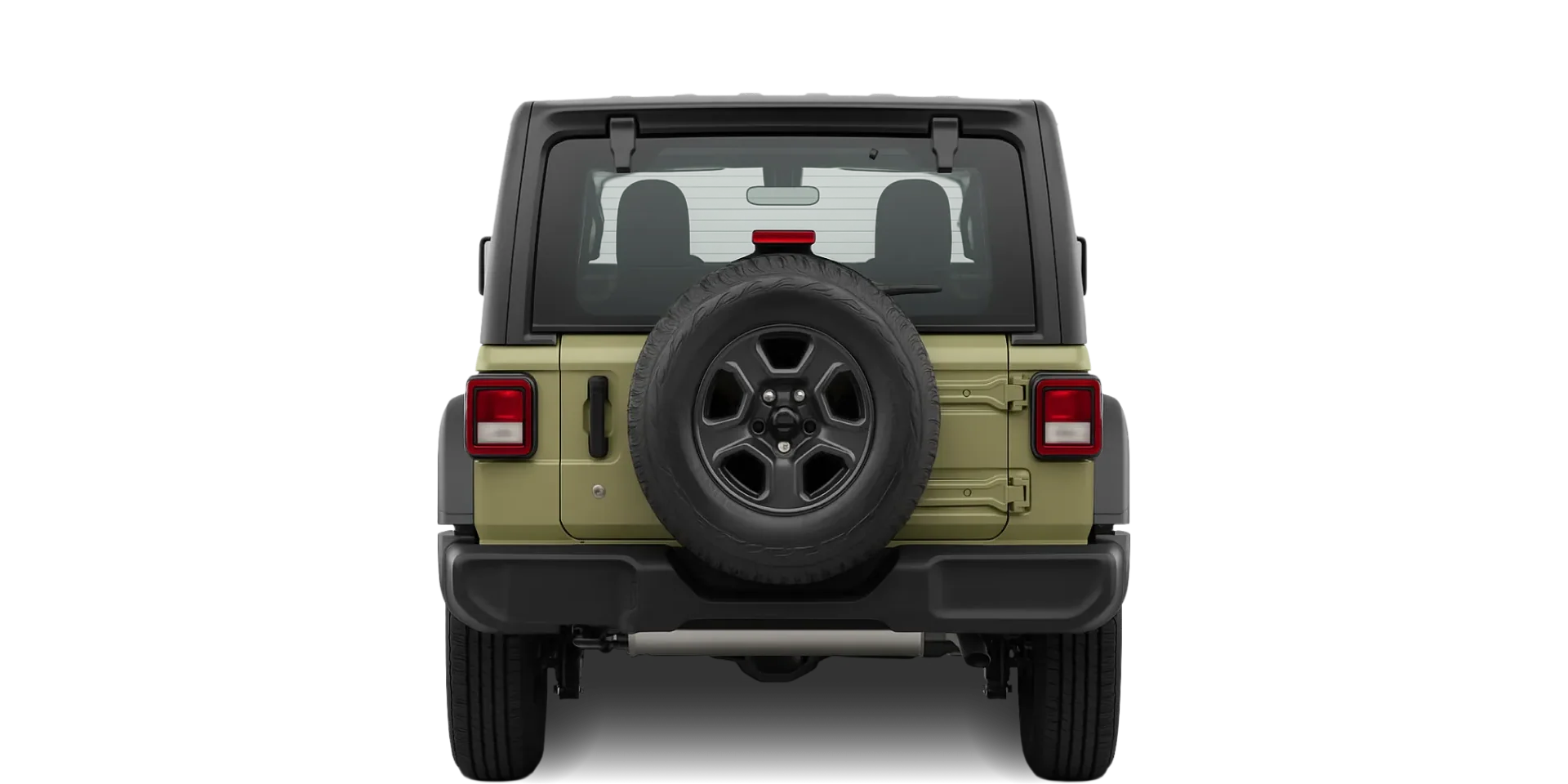

2018 Jeep Wrangler rear view
DriveSize overview: 2018 Jeep Wrangler
Considering its dimensions, the two-door Jeep Wrangler may suit drivers who want an SUV with a substantially smaller footprint and tighter turning circle than average. It is around 72cm shorter than the class norm, needs 12% less turning room and fits all eight regional parking spaces used by DriveSize.
Its four-seat, two-door layout is a different proposition from a larger family SUV, but its compact footprint and above-average ground clearance could appeal to drivers who prioritise manoeuvrability and extra space beneath the vehicle.

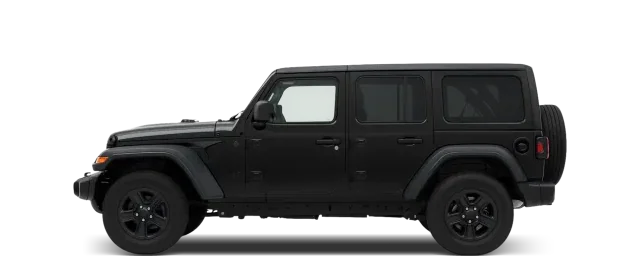

For a longer, five-seat take on the same SUV, see the 2018 Jeep Wrangler Unlimited.
Articles featuring this car
What Is Wheelbase? Car Wheelbase Meaning & Why It Matters
Learn what wheelbase means, how it affects ride comfort, handling, turning circle and interior space, and why it matters when choosing your next car.
What Is Ground Clearance? Why does it matter for SUVs, and which have the most
Clear explanation of SUV ground clearance, how much you really need, and which SUVs offer the most — using real measurements you can compare side-by-side on Drivesize.
FAQs
Frequently asked questions
Vehicle specifications on this page are sourced from official Jeep documentation. All DriveSize comparisons are calculated from manufacturer-published specifications.
