2021 Jeep Wrangler 4xe dimensions and size guide
2021 Jeep Wrangler 4xe
Add comparisonExterior dimensions
2021 Jeep Wrangler 4xe exterior dimensions
The 2021 Jeep Wrangler 4xe is shorter and narrower than the average SUV. Its 478.6cm length is around 17cm, or 3%, below the class norm, while its 187.5cm body is approximately 8cm, or 4%, narrower. Together, these dimensions create a footprint of about 9m², roughly 8% smaller than average. Its 186.8cm height is close to the SUV norm, but the 300.8cm wheelbase is around 11cm, or 4%, longer. Because the wheelbase is longer despite the body being shorter, the front and rear overhangs combined extend about 28cm less beyond the wheels than on the average SUV.
Measurements
Length
478.6 cm
Width (excluding mirrors)
187.5 cm
Height
186.8 cm
Wheelbase
300.8 cm
Ground clearance
25.7 cm
Footprint
DriveSize footprint is overall length multiplied by body width excluding mirrors.
9 m²
How the 2021 Jeep Wrangler 4xe's exterior dimensions compare with the average SUV
Length
16.8 cm shorter than the average SUV
Width (excluding mirrors)
8.2 cm narrower than the average SUV
Height
3.3 cm shorter than the average SUV
Wheelbase
10.7 cm longer wheelbase than the average SUV
Ground clearance
3.2 cm more ground clearance than the average SUV
DriveSize footprint score
DriveSize footprint score compares this car's footprint with the average footprint for the same class.
A score near 100% means it is close to class average size. Lower scores mean it sits further from that average, either smaller or larger.
92%
8% smaller than the average SUV
Fast facts
Fast facts
Ground clearance is 14% above average
At 25.7cm, the Wrangler 4xe provides around 3.2cm more space beneath the car than the average SUV, useful over uneven ground.
Everyday SAE cargo space is 4% above average
With all five seats in use, its 784-litre published SAE capacity is around 29 litres more than the SUV norm, providing a little additional space for daily bags.
A shorter body surrounds a longer wheelbase
The Wrangler 4xe is around 17cm shorter than the average SUV, yet its wheelbase is roughly 11cm longer. This means the majority of its additional length is from the stretched wheelbase and less of its overall length extends beyond the front and rear wheels.
It fits every regional parking space
All eight standard spaces used by DriveSize can physically accommodate the Wrangler 4xe, although only three provide comfortable surrounding room.

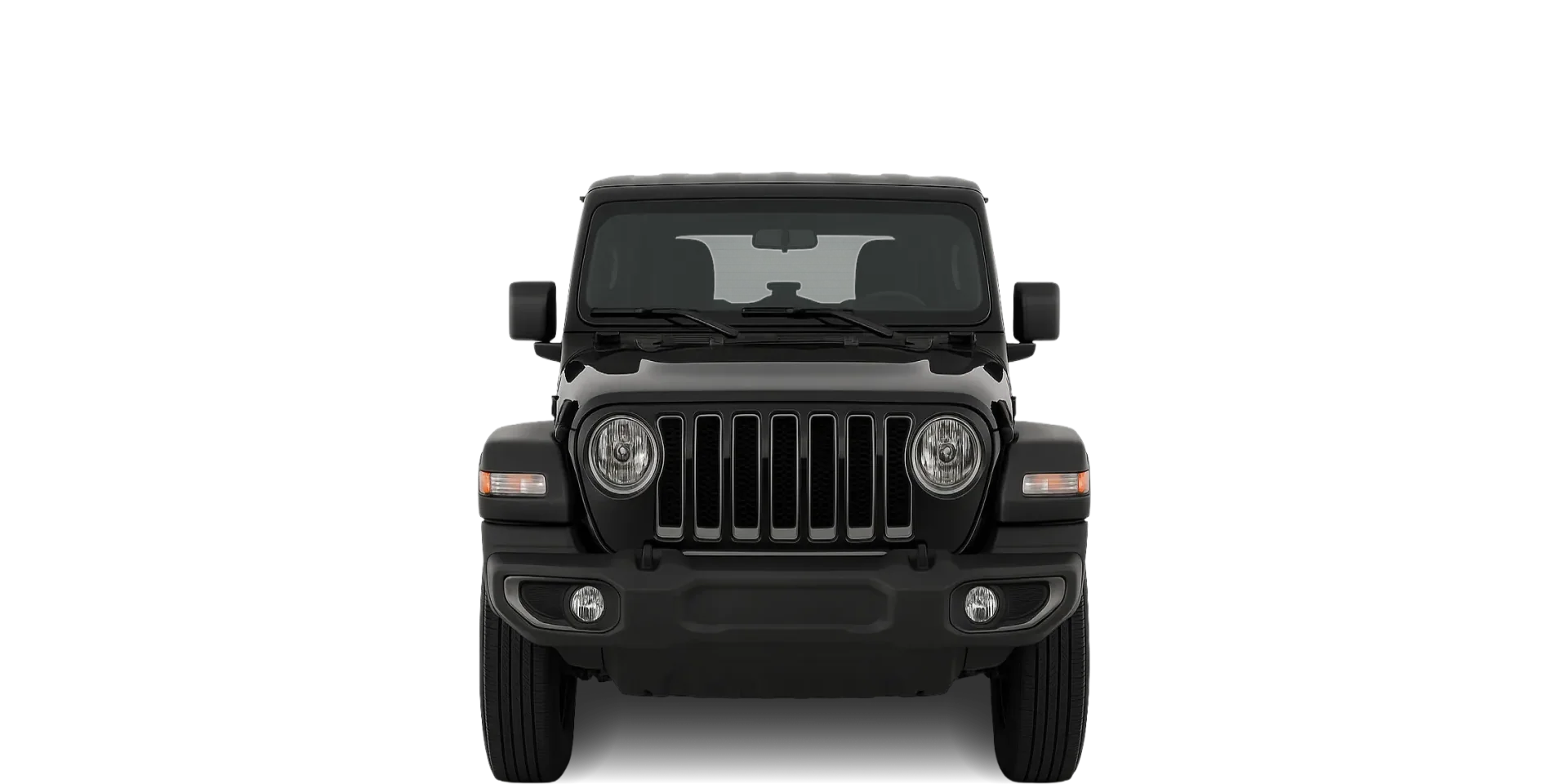

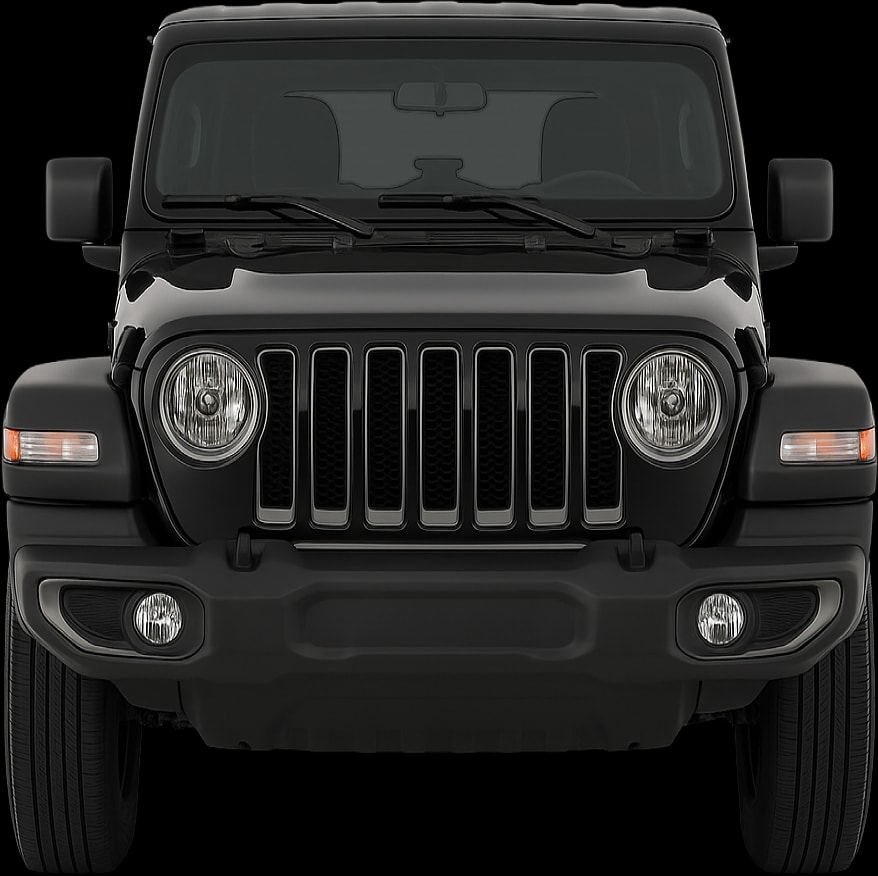

2021 Jeep Wrangler 4xe front view
Cargo space & efficiency
2021 Jeep Wrangler 4xe cargo capacity and space efficiency
When all five seats are in use, the Wrangler 4xe offers 784 litres of published SAE cargo capacity. That is around 29 litres, or 4%, more than the average SUV, giving its everyday boot a slight advantage over the class norm. Fold the back seats and maximum SAE capacity rises to 1,909 litres. This is approximately 829 litres, or 30%, below the average SUV, so the Wrangler 4xe compares more strongly with the seats up than when configured for its largest load. Taking both its seats-up and maximum cargo capacity into account, it provides about 131 litres per square metre of ground space under SAE. That is roughly 5% below the SUV average, meaning its smaller footprint does not fully offset the lower maximum cargo figure.
Measurements
Standard cargo capacity (SAE)
The standard cargo capacity using SAE, the method commonly used in the US.
This is the manufacturer's normal published figure; it does not imply a particular seat configuration.
784 L
Largest cargo capacity (SAE)
The largest cargo capacity using SAE, the method commonly used in the US.
If only one SAE figure is published, the standard and largest values are the same.
1,909 L
Cargo space vs length
This DriveSize metric divides blended cargo volume by overall vehicle length.
Blended cargo uses 65% of the standard figure and 35% of the largest figure, using VDA where available and SAE otherwise.
246.1 L per m
Cargo space vs footprint
This DriveSize metric divides blended cargo volume by footprint.
Blended cargo uses 65% of the standard figure and 35% of the largest figure, using VDA where available and SAE otherwise.
It helps show how efficiently a car turns exterior area into usable cargo space.
131.2 L per m²
How the 2021 Jeep Wrangler 4xe's cargo space and efficiency compare with the average SUV
Standard cargo capacity (SAE)
The standard cargo capacity using SAE, the method commonly used in the US.
This is the manufacturer's normal published figure; it does not imply a particular seat configuration.
29 L more cargo volume than the average SUV
Largest cargo capacity (SAE)
The largest cargo capacity using SAE, the method commonly used in the US.
If only one SAE figure is published, the standard and largest values are the same.
829 L less cargo volume than the average SUV
DriveSize space efficiency score (SAE)
DriveSize space efficiency compares blended cargo volume per square meter of footprint with the class average.
Blended cargo uses 65% of the standard figure and 35% of the largest figure within the selected cargo measurement method.
VDA scores compare with VDA class averages, and SAE scores compare with SAE class averages. Around 100% means in line with class average.
95%
Below class average (-5%)
Parking
Will the 2021 Jeep Wrangler 4xe fit in a standard parking space?
The Wrangler 4xe physically fits all eight standard regional parking spaces used by DriveSize, with comfortable surrounding room in three. Its shorter and narrower body helps it fit between the boundaries, although its dimensions are not compact enough to provide easy access in every region. China, USA/Canada and the Middle East provide a comfortable fit. The United Kingdom, European Union, India, Japan and Australia are tighter, where positioning the vehicle or getting in and out may require more care.
DriveSize parking fit score
DriveSize compares the car's width and length with typical parking-space sizes by region.
Vehicle dimensions are rounded up and available side or length clearance is rounded down.
Side clearance is based on body width excluding mirrors where available; real spaces can vary because of mirrors, walls, pillars, kerbs, bay markings, and nearby cars.
For an average USA / Canada space: body side clearance is 43.5 cm per side (excluding mirrors), and length clearance is 35.5 cm at each end.
Body side clearance (excluding mirrors)
43.5 cm
Length clearance (at each end)
35.5 cm
Usability
2021 Jeep Wrangler 4xe usability & manoeuvrability
At 12m, the Wrangler 4xe's turning circle is almost identical to the average SUV, differing by only around 4cm. Its 300.8cm wheelbase is roughly 11cm longer than usual, so the typical turning result is useful given the extra distance between its axles. Its 2,268kg kerb weight is around 179kg, or 7%, below the SUV norm. Ground clearance is 25.7cm, approximately 3.2cm, or 14%, above average, so it can drive on bumpy roads with less chance of damaging the car's underside compared to the average SUV.
Measurements
Doors
4
Max seats
5
Turning circle
12 m
Curb weight
2,268 kg
How the 2021 Jeep Wrangler 4xe's usability and manoeuvrability compare with the average SUV
Turning circle
0 m larger turning circle than the average SUV
Curb weight
179 kg lighter than the average SUV
DriveSize manoeuvrability score
DriveSize manoeuvrability score combines turning circle and footprint, with turning circle weighted more heavily.
Around 100% means in line with the class average; higher scores indicate better manoeuvrability relative to similar cars.
101%
1% more manoeuvrable than the average SUV

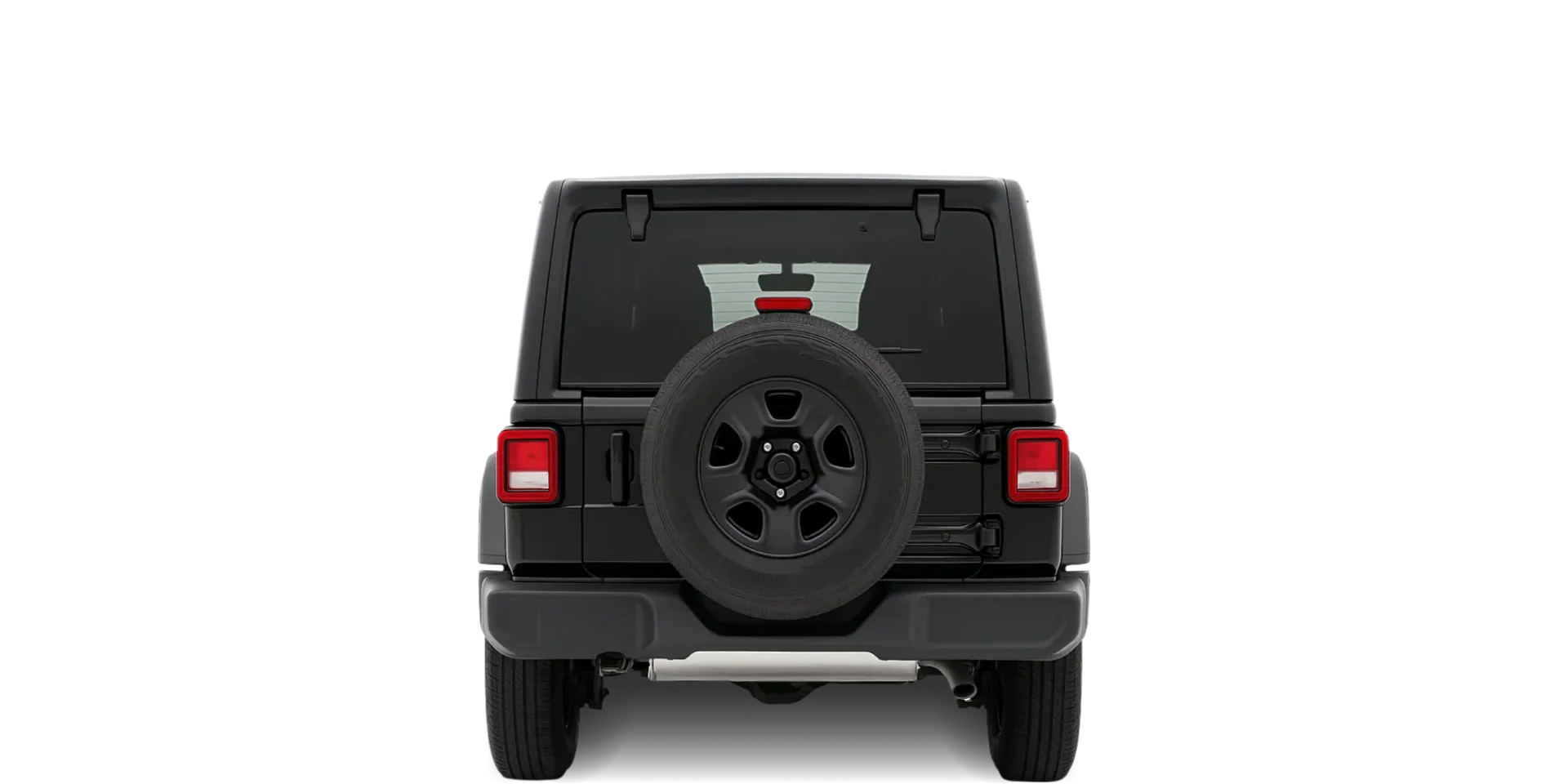

2021 Jeep Wrangler 4xe rear view
DriveSize overview: 2021 Jeep Wrangler 4xe
Its dimensions and capacities suggest that the Jeep Wrangler 4xe may suit drivers who want a five-seat SUV with a slightly smaller-than-average footprint, above-average ground clearance and everyday SAE cargo space close to the class norm. It fits all eight regional parking spaces and its turning circle is almost exactly average.
Its most distinctive proportion is a longer-than-average wheelbase within a shorter-than-average body, leaving less length beyond the wheels. Maximum SAE cargo capacity is the main compromise, sitting around 30% below the SUV norm.

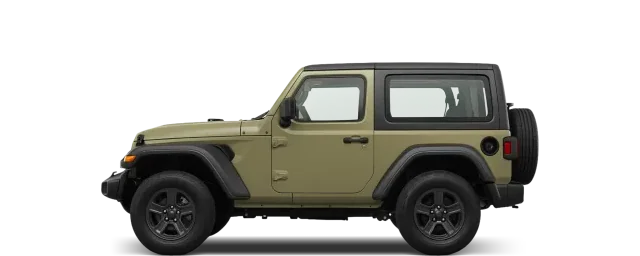

The combustion-powered 2018 Jeep Wrangler Unlimited is virtually identical in exterior size.
FAQs
Frequently asked questions
Vehicle specifications on this page are sourced from official Jeep documentation. All DriveSize comparisons are calculated from manufacturer-published specifications.
