2023 Volkswagen ID.3 dimensions and size guide
2023 Volkswagen ID.3
Add comparisonExterior dimensions
2023 Volkswagen ID.3 exterior dimensions
The 2023 Volkswagen ID.3 is modestly longer and wider than the average hatchback, but its extra height is the clearest difference. Its 426.4cm body is around 11cm, or 3%, longer, while its 180.9cm body width is approximately 4cm, or 2%, wider. For width including mirrors, it measures 207cm across, around 8cm, or 4%, above the class norm. At 156.4cm tall, the ID.3 stands roughly 9cm, or 6%, higher than average. Its 277cm wheelbase is around 18cm, or 7%, longer, while its length and body width create a footprint of approximately 7.7m², roughly 0.4m², or 5%, larger than the typical hatchback.
Measurements
Length
426.4 cm
Body width
180.9 cm
Width including mirrors
207 cm
Height
156.4 cm
Wheelbase
277 cm
Footprint
DriveSize footprint is overall length multiplied by body width.
7.7 m²
How the 2023 Volkswagen ID.3's exterior dimensions compare with the average Hatchback
Length
11.2 cm longer than the average Hatchback
Body width
4.4 cm wider than the average Hatchback
Width including mirrors
7.5 cm wider than the average Hatchback
Height
8.5 cm taller than the average Hatchback
Wheelbase
17.9 cm longer wheelbase than the average Hatchback
DriveSize footprint
DriveSize footprint compares this car's footprint with the average footprint for the same class.
A positive percentage means a larger footprint and a negative percentage means a smaller footprint. About average means the rounded difference is 0%.
+5%
Larger footprint than the average Hatchback
Fast facts
Fast facts
It stands 6% taller than average
At 156.4cm, the ID.3 is around 9cm taller than the hatchback norm, making height its most distinctive exterior measurement.
Maximum VDA cargo space is 13% above average
At its maximum, the ID.3 provides 1,267 litres, around 149 litres more than the hatchback norm, roughly the space occupied by two large suitcases.
Combined cargo efficiency is 8% above average
Taking seats-up and maximum cargo capacity into account, the ID.3 provides about 90 litres per square metre of ground space.
Five regional spaces provide comfortable access
All eight standard parking spaces tested below by DriveSize physically fit the ID.3, while five leave comfortable surrounding room.

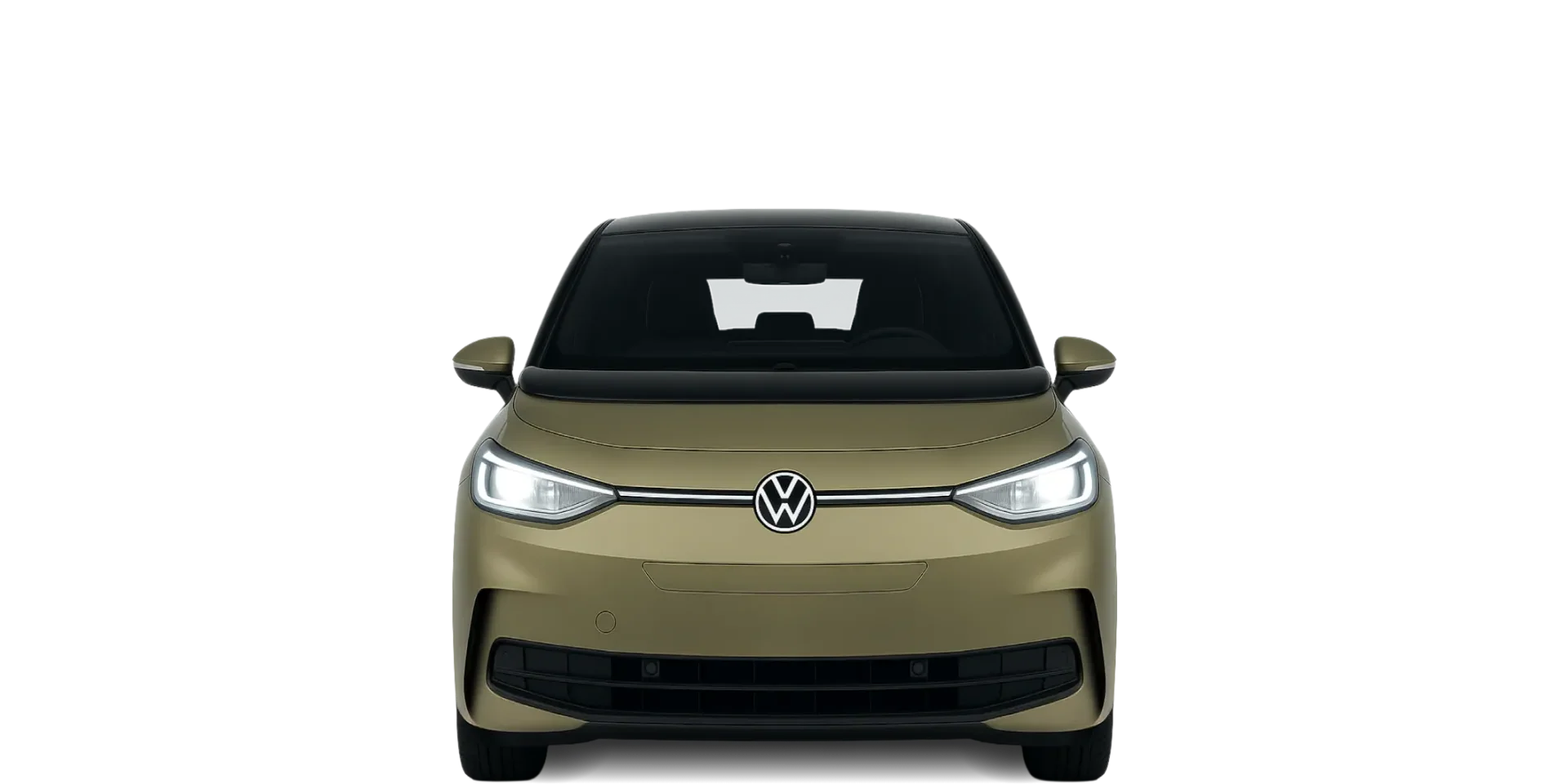

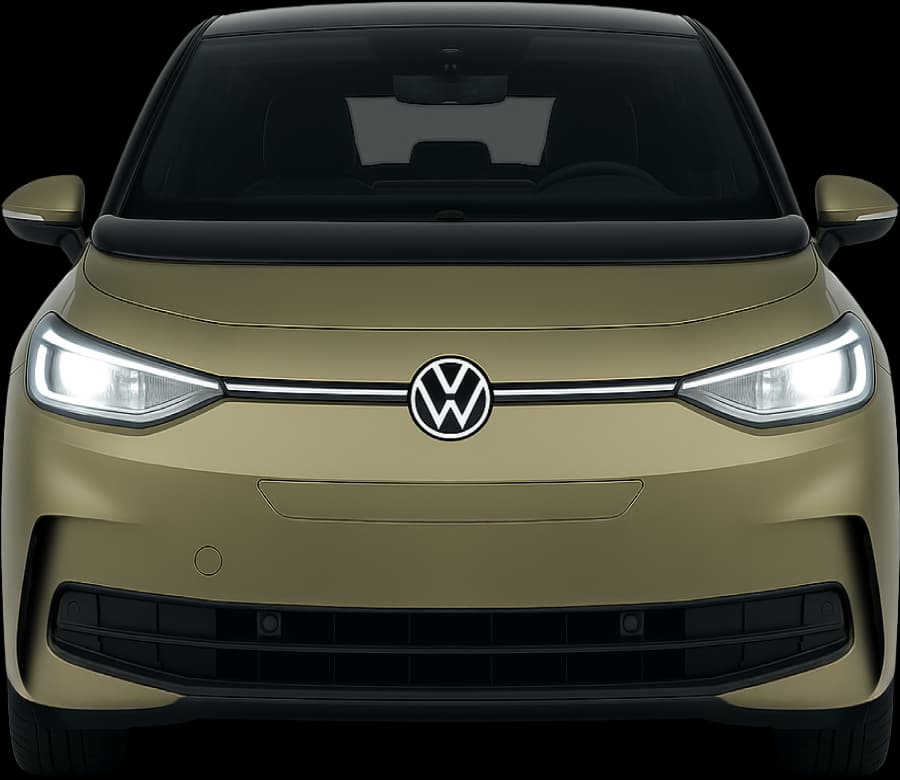

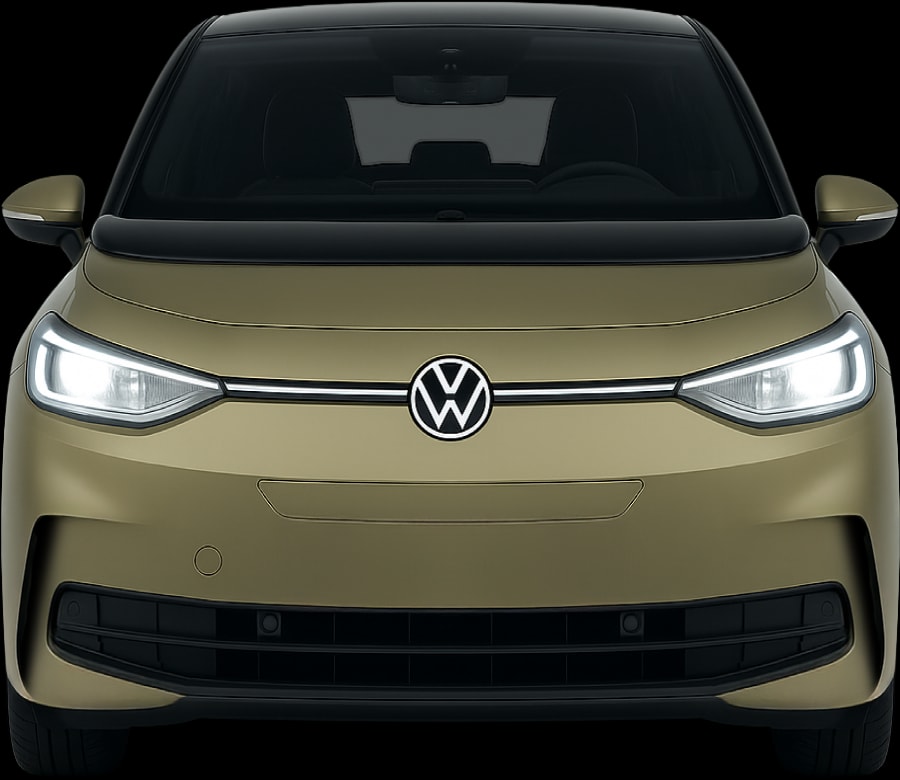

2023 Volkswagen ID.3 front view
Cargo space & efficiency
2023 Volkswagen ID.3 cargo capacity and space efficiency
With all five seats in use, the ID.3 provides 385 litres of published VDA cargo capacity. That is around 42 litres, or 12%, more than the average hatchback, giving it useful additional room for shopping or everyday luggage. Maximum VDA capacity reaches 1,267 litres, approximately 149 litres, or 13%, above average. The difference is roughly equivalent to the space occupied by two large suitcases. Using both its seats-up and maximum cargo capacities, the ID.3 provides about 90 litres per square metre of ground space. That is roughly 8% above average for a hatchback, so each square metre provides more combined cargo capacity than the class norm.
Measurements
Standard cargo capacity (VDA)
The standard cargo capacity using VDA, the method commonly used globally.
This is the manufacturer's normal published figure; it does not imply a particular seat configuration.
385 L
Largest cargo capacity (VDA)
The largest cargo capacity using VDA, the method commonly used globally.
If only one VDA figure is published, the standard and largest values are the same.
1,267 L
Cargo space vs length
This DriveSize metric divides blended cargo volume by overall vehicle length.
Blended cargo uses 65% of the standard figure and 35% of the largest figure, using VDA where available and SAE otherwise.
162.7 L per m
Cargo space vs footprint
This DriveSize metric divides blended cargo volume by footprint.
Blended cargo uses 65% of the standard figure and 35% of the largest figure, using VDA where available and SAE otherwise.
It helps show how efficiently a car turns exterior area into usable cargo space.
89.9 L per m²
How the 2023 Volkswagen ID.3's cargo space and efficiency compare with the average Hatchback
Standard cargo capacity (VDA)
The standard cargo capacity using VDA, the method commonly used globally.
This is the manufacturer's normal published figure; it does not imply a particular seat configuration.
42 L more cargo volume than the average Hatchback
Largest cargo capacity (VDA)
The largest cargo capacity using VDA, the method commonly used globally.
If only one VDA figure is published, the standard and largest values are the same.
149 L more cargo volume than the average Hatchback
DriveSize space efficiency (VDA)
DriveSize space efficiency compares blended cargo volume per square meter of footprint with the class average.
Blended cargo uses 65% of the standard figure and 35% of the largest figure within the selected cargo measurement method.
VDA values compare with VDA class averages, and SAE values compare with SAE class averages. Positive percentages indicate more space efficiency and negative percentages indicate less.
+8%
More space efficient than the average Hatchback
Parking
Will the 2023 Volkswagen ID.3 fit in a standard parking space?
The ID.3 fits in all eight standard regional parking spaces tested by DriveSize, with five also providing comfortable surrounding room to enter and exit the car once parked. Its body is only 3% longer than the hatchback norm, although its width including mirrors is 4% greater and becomes the more relevant constraint in narrower spaces. China, India, Japan, the Middle East and USA/Canada are the regions that provide a comfortable fit. The United Kingdom, European Union and Australia are tighter, although each could still physically contain the car.
DriveSize parking fit score
DriveSize compares the car's width and length with typical parking-space sizes by region.
Vehicle dimensions are rounded up and available side or length clearance is rounded down.
Side clearance is based on body width where available; real spaces can vary because of mirrors, walls, pillars, kerbs, bay markings, and nearby cars.
For an average USA / Canada space: body side clearance is 47 cm per side, and length clearance is 61.5 cm at each end.
Body side clearance
47 cm
Length clearance (at each end)
61.5 cm
Usability
2023 Volkswagen ID.3 usability & manoeuvrability
The ID.3 has an almost average turning circle for a hatchback, and at 10.3m it is only around 0.1m, or 1%, tighter than the class norm. It therefore needs broadly the usual amount of room for full turns and changing direction in confined spaces. Its 6% additional height is a more noticeable difference from the hatchback norm than its turning circle.
Measurements
Doors
5
Max seats
5
Turning circle
10.3 m
How the 2023 Volkswagen ID.3's usability and manoeuvrability compare with the average Hatchback
Turning circle
0.1 m smaller turning circle than the average Hatchback
DriveSize manoeuvrability
DriveSize manoeuvrability combines turning circle and footprint, with turning circle weighted more heavily.
A positive percentage means more manoeuvrable than the class average and a negative percentage means less manoeuvrable.
-1%
Less manoeuvrable than the average Hatchback

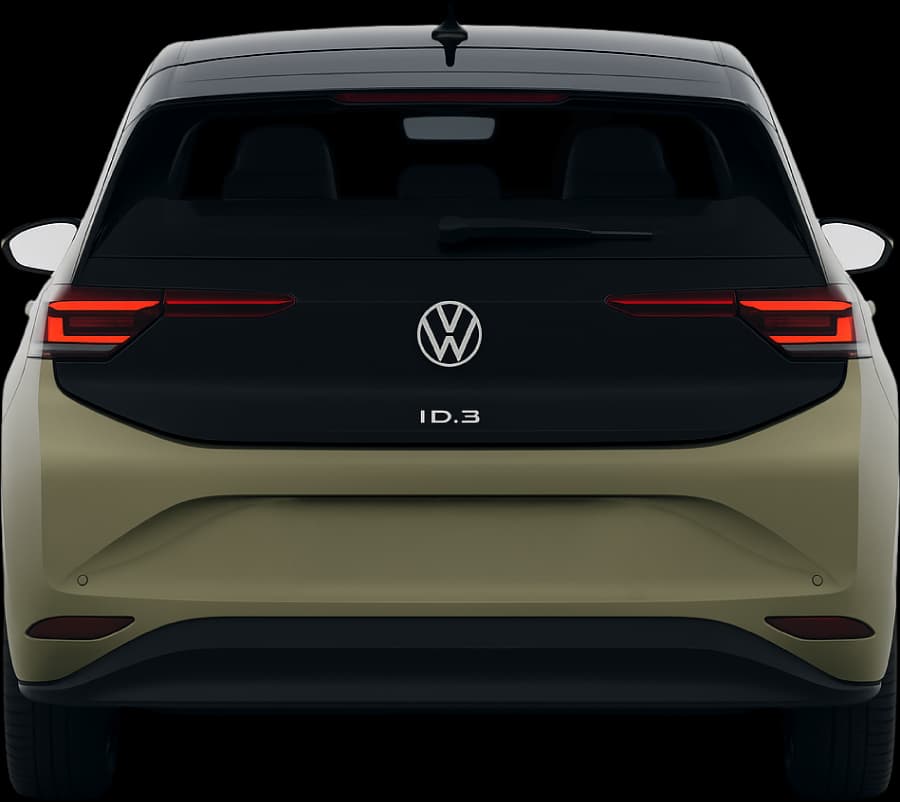

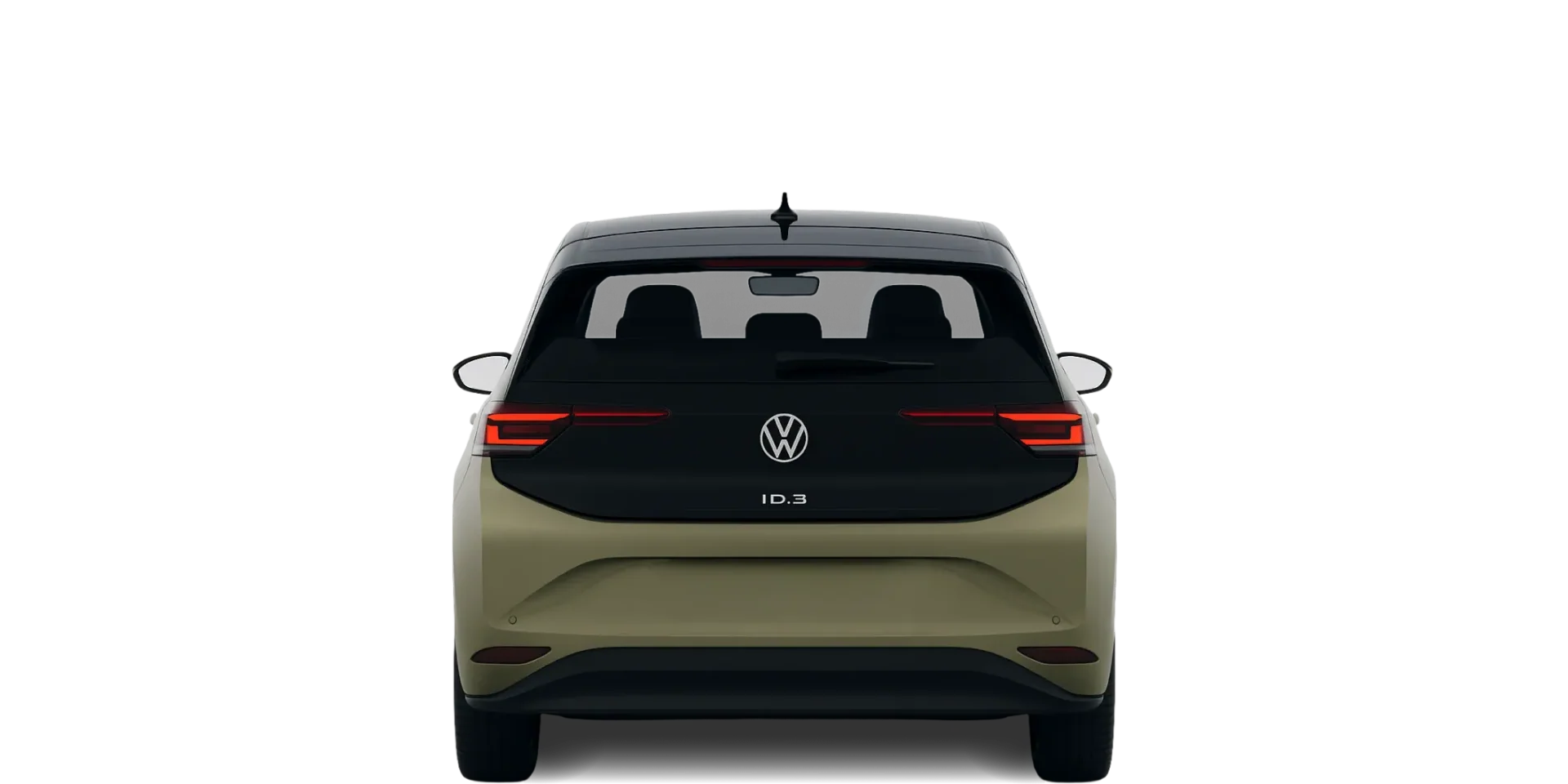

2023 Volkswagen ID.3 rear view
DriveSize overview: 2023 Volkswagen ID.3
Considering its dimensions and capacities, the 2023 Volkswagen ID.3 may suit drivers who want a hatchback with above-average VDA cargo space and a near-average turning circle. Seats-up capacity is 12% above the hatchback norm, maximum capacity is 13% above and combined cargo efficiency is 8% higher.
It physically fits into all eight regional parking spaces tested by DriveSize, with five providing comfortable access. Its 6% additional height and 4% greater width including mirrors are the clearest exterior differences from the average hatchback.
The combustion-powered 2024 Volkswagen Golf occupies almost exactly the same footprint.
FAQs
Frequently asked questions
Vehicle specifications on this page are sourced from official Volkswagen documentation. Unless the page identifies a specific trim, body style, powertrain or market version, DriveSize uses manufacturer-published specifications for the base model as its default reference. DriveSize standardises the published measurements and calculates the comparisons and derived figures shown. Figures can vary by market, model year, trim, powertrain, wheels, tyres and measurement method. How DriveSize sources and calculates these figures.
