2022 Chevrolet Equinox dimensions and size guide

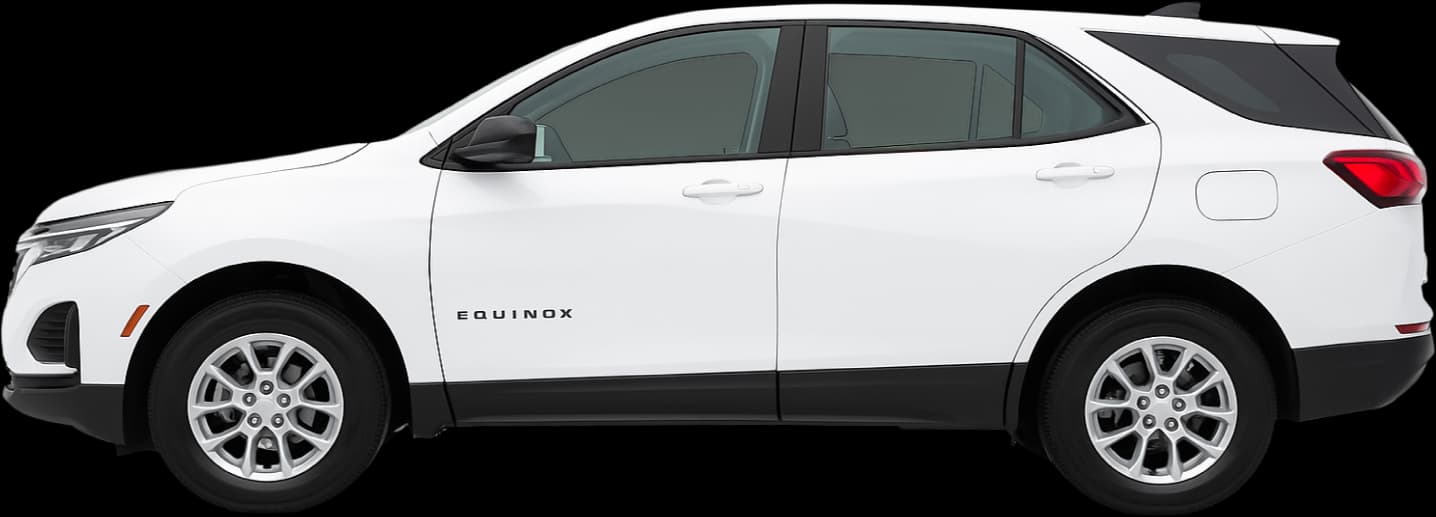

2022 Chevrolet Equinox
Add comparisonExterior dimensions

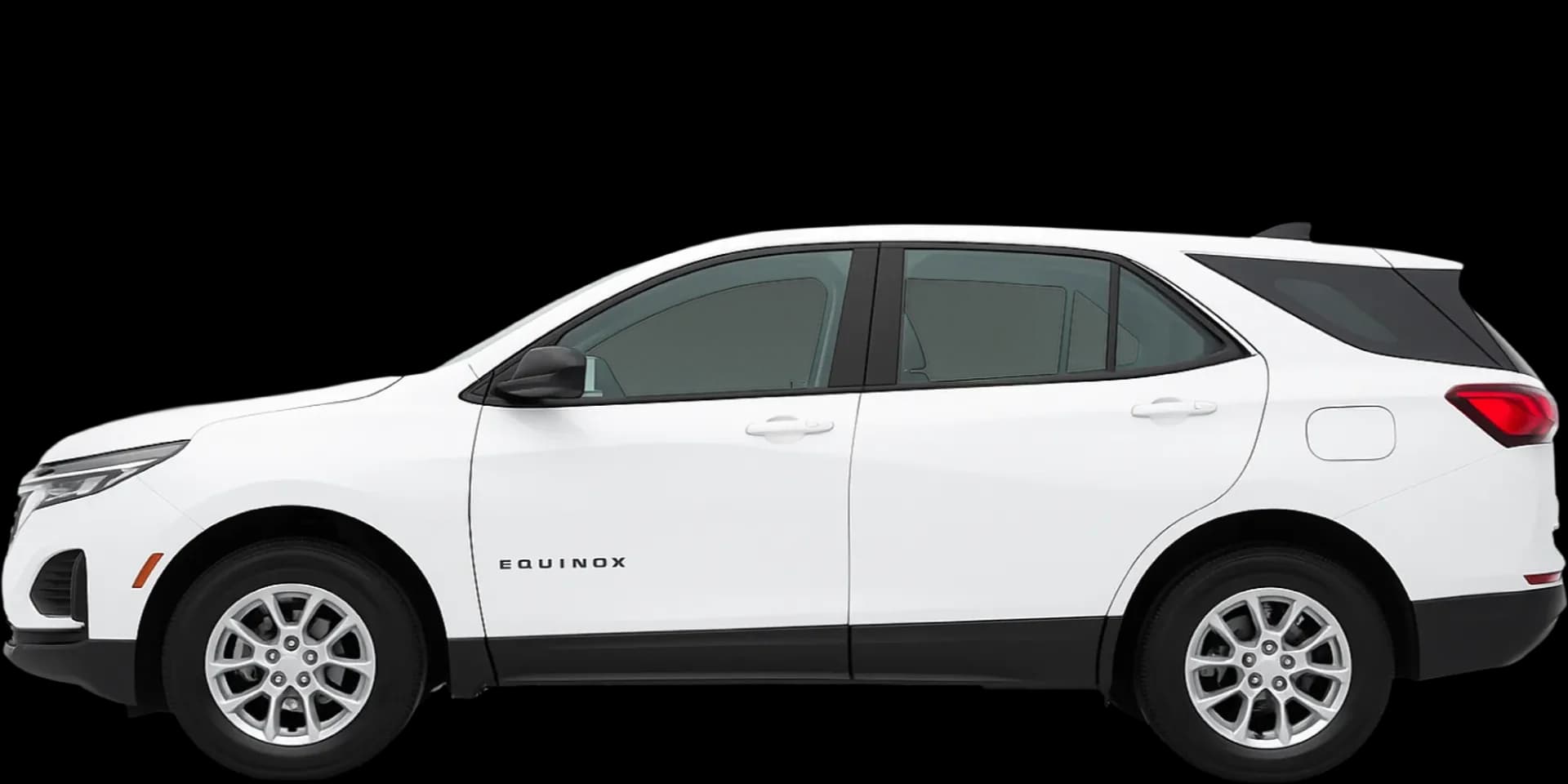

2022 Chevrolet Equinox exterior dimensions
The 2022 Chevrolet Equinox measures 465.1cm long, 184.4cm wide excluding mirrors and 166.1cm tall. That makes it nearly 13cm longer and about 3cm taller than the average crossover, while its width is almost exactly average. When parking, you are more likely to notice the extra length than the width. Its 272.5cm wheelbase is also very close to average. Overall, the Equinox takes up around 8.6m² of ground space, roughly 2% more than the average crossover.
Measurements
Length
465.1 cm
Width (excluding mirrors)
184.4 cm
Height
166.1 cm
Wheelbase
272.5 cm
Ground clearance
19.3 cm
Footprint
DriveSize footprint is overall length multiplied by body width excluding mirrors.
8.6 m²
How the 2022 Chevrolet Equinox's exterior dimensions compare with the average Crossover
Length
12.5 cm longer than the average Crossover
Width (excluding mirrors)
0.5 cm narrower than the average Crossover
Height
3.3 cm taller than the average Crossover
Wheelbase
0.1 cm longer wheelbase than the average Crossover
Ground clearance
1.2 cm more ground clearance than the average Crossover
DriveSize footprint score
DriveSize footprint score compares this car's footprint with the average footprint for the same class.
A score near 100% means it is close to class average size. Lower scores mean it sits further from that average, either smaller or larger.
98%
2% larger than the average Crossover
Fast facts
Fast facts
Nearly 13cm longer than the average crossover
The Equinox is nearly 13cm longer than the average crossover, but almost exactly the same width. When parking, you will need to think more about the space in front and behind than squeezing between the lines.
Around 107 litres more boot space with the seats up
With all five seats in use, the Equinox has 846 litres of boot space. That is around 107 litres, or 14%, more than the average crossover, giving you extra room for shopping, luggage or a pushchair without having to fold the back seats.
It physically fits every regional bay
The Equinox fits within the standard-sized parking spaces in all eight regions, but only five leave a comfortable amount of room around it. The standard spaces in the United Kingdom, European Union and Australia are the tightest.
It makes good use of its size
Taking both its seats-up and maximum cargo capacity into account, the Equinox provides about 138 litres per square metre of ground space. That is roughly 6% above average for a crossover, so it makes good use of its exterior size.

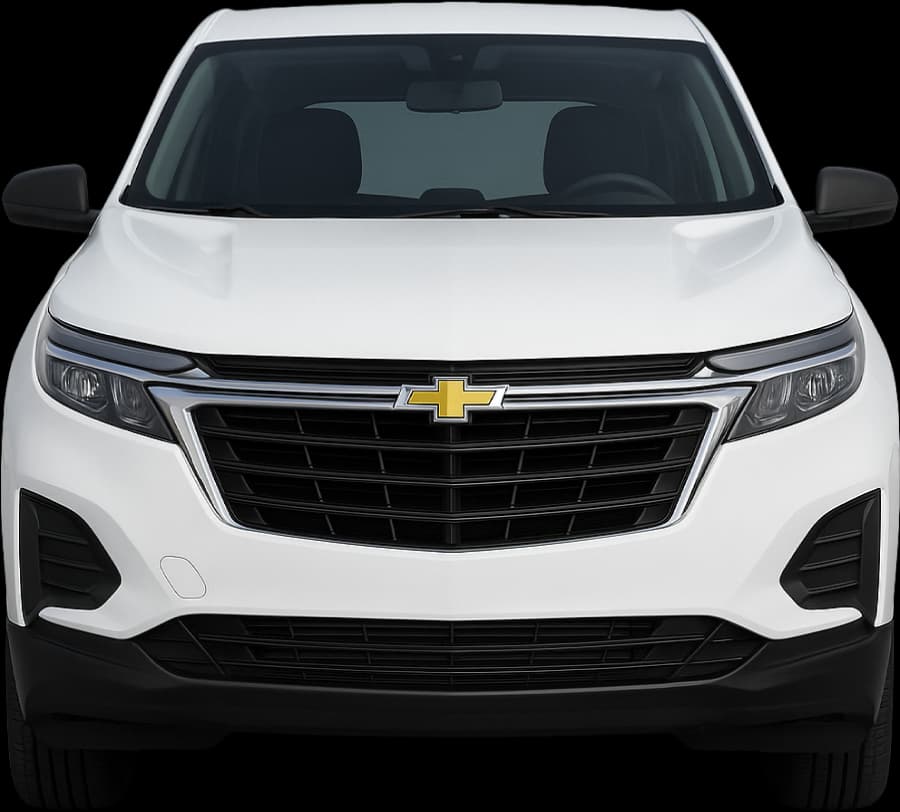

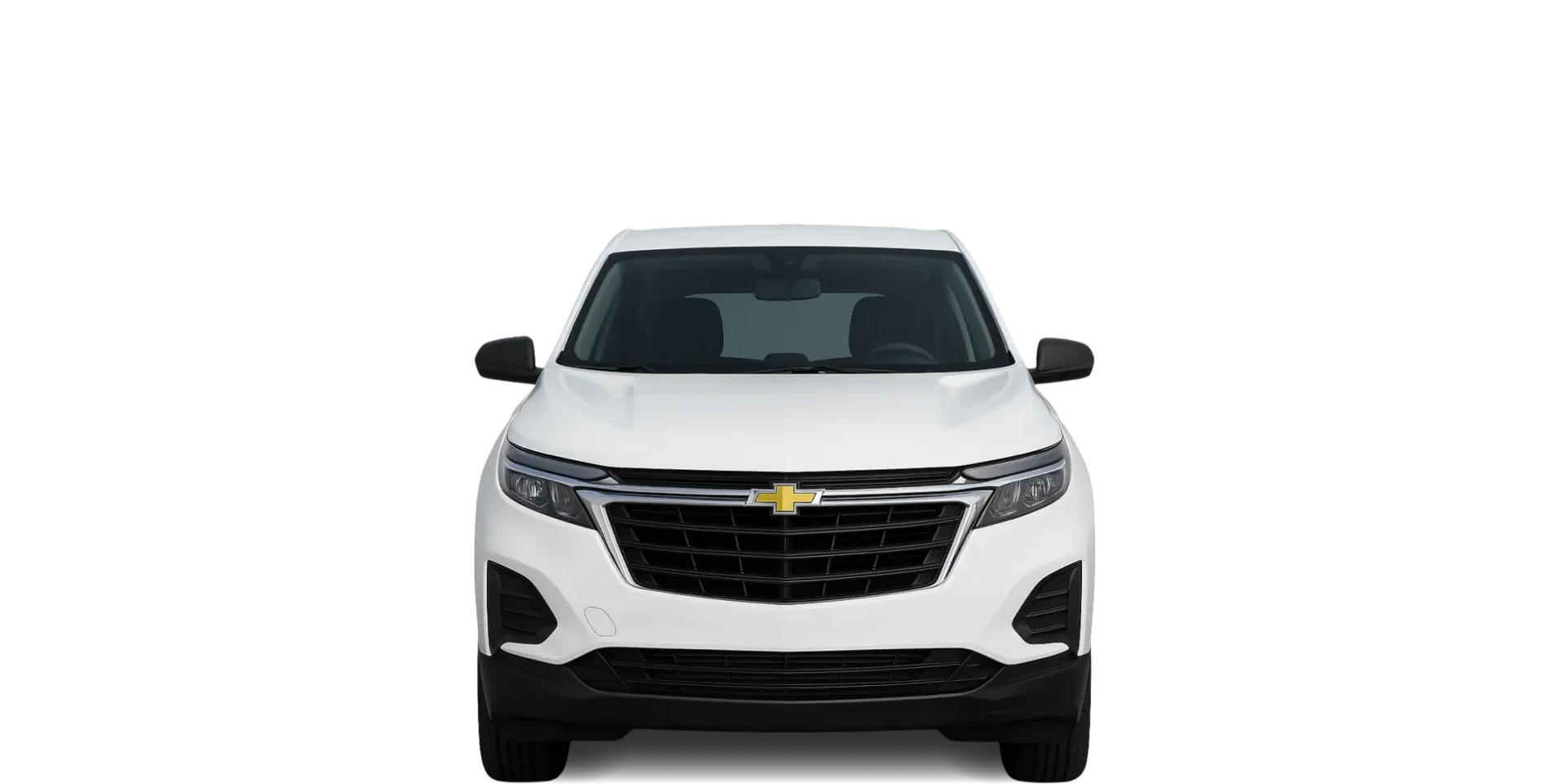

2022 Chevrolet Equinox front view
Cargo space & efficiency
2022 Chevrolet Equinox cargo capacity and space efficiency
With all five seats in use, the Equinox has 846 litres of boot space. That is around 107 litres, or 14%, more than the average crossover, giving you extra room for shopping, luggage or a pushchair without folding the back seats. Set the car up to carry as much as possible and capacity rises to 1,809 litres. That is about 62 litres below the average crossover, so the Equinox stands out more for its everyday boot space than for its outright maximum capacity. Taking both its seats-up and maximum cargo capacity into account, the Equinox provides about 138 litres per square metre of ground space. That is roughly 6% above average for a crossover, so it makes good use of its exterior size.
Measurements
Standard cargo capacity (SAE)
The standard cargo capacity using SAE, the method commonly used in the US.
This is the manufacturer's normal published figure; it does not imply a particular seat configuration.
846 L
Largest cargo capacity (SAE)
The largest cargo capacity using SAE, the method commonly used in the US.
If only one SAE figure is published, the standard and largest values are the same.
1,809 L
Cargo space vs length
This DriveSize metric divides blended cargo volume by overall vehicle length.
Blended cargo uses 65% of the standard figure and 35% of the largest figure, using VDA where available and SAE otherwise.
254.4 L per m
Cargo space vs footprint
This DriveSize metric divides blended cargo volume by footprint.
Blended cargo uses 65% of the standard figure and 35% of the largest figure, using VDA where available and SAE otherwise.
It helps show how efficiently a car turns exterior area into usable cargo space.
137.9 L per m²
How the 2022 Chevrolet Equinox's cargo space and efficiency compare with the average Crossover
Standard cargo capacity (SAE)
The standard cargo capacity using SAE, the method commonly used in the US.
This is the manufacturer's normal published figure; it does not imply a particular seat configuration.
107 L more cargo volume than the average Crossover
Largest cargo capacity (SAE)
The largest cargo capacity using SAE, the method commonly used in the US.
If only one SAE figure is published, the standard and largest values are the same.
62 L less cargo volume than the average Crossover
DriveSize space efficiency score (SAE)
DriveSize space efficiency compares blended cargo volume per square meter of footprint with the class average.
Blended cargo uses 65% of the standard figure and 35% of the largest figure within the selected cargo measurement method.
VDA scores compare with VDA class averages, and SAE scores compare with SAE class averages. Around 100% means in line with class average.
106%
Above class average (+6%)
Parking
Will the 2022 Chevrolet Equinox fit in a standard parking space?
The Equinox fits within the standard-sized parking spaces in all eight regions, but only five leave a comfortable amount of space around it. Fitting between the lines should not be a problem, although opening the doors and getting in or out may be less straightforward in narrower spaces. The standard spaces in the United Kingdom, European Union and Australia are the tightest, while those in China, India, Japan, the Middle East and USA/Canada provide a more comfortable fit.
DriveSize parking fit score
DriveSize compares the car's width and length with typical parking-space sizes by region.
Vehicle dimensions are rounded up and available side or length clearance is rounded down.
Side clearance is based on body width excluding mirrors where available; real spaces can vary because of mirrors, walls, pillars, kerbs, bay markings, and nearby cars.
For an average USA / Canada space: body side clearance is 45 cm per side (excluding mirrors), and length clearance is 42 cm at each end.
Body side clearance (excluding mirrors)
45 cm
Length clearance (at each end)
42 cm
Usability
2022 Chevrolet Equinox usability & manoeuvrability
The Equinox has an 11.4-metre turning circle, very close to the roughly 11.2-metre average for a crossover. The difference is only about 16cm, so it should feel much like a typical crossover in car parks and tight turns, although it is not one of the most nimble cars in its class. Ground clearance is 19.3cm, around 1cm higher than the average crossover. That gives you a little more breathing room over raised entrances, rough tracks and steep driveways. At 1,485kg, it is also roughly 150kg lighter than the average crossover.
Measurements
Doors
5
Max seats
5
Turning circle
11.4 m
Curb weight
1,485 kg
How the 2022 Chevrolet Equinox's usability and manoeuvrability compare with the average Crossover
Turning circle
0.2 m larger turning circle than the average Crossover
Curb weight
147 kg lighter than the average Crossover
DriveSize manoeuvrability score
DriveSize manoeuvrability score combines turning circle and footprint, with turning circle weighted more heavily.
Around 100% means in line with the class average; higher scores indicate better manoeuvrability relative to similar cars.
98%
2% less manoeuvrable than the average Crossover

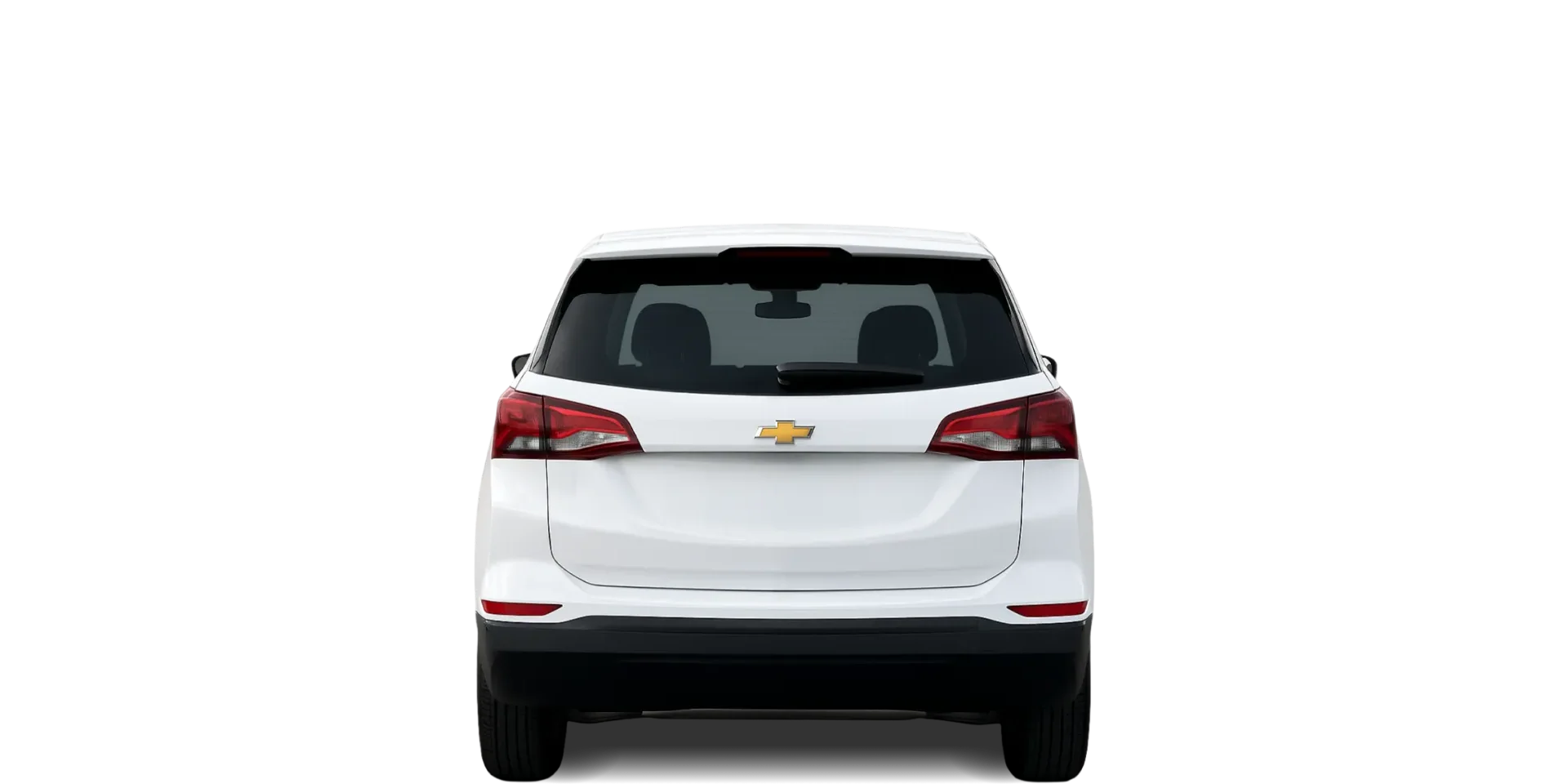

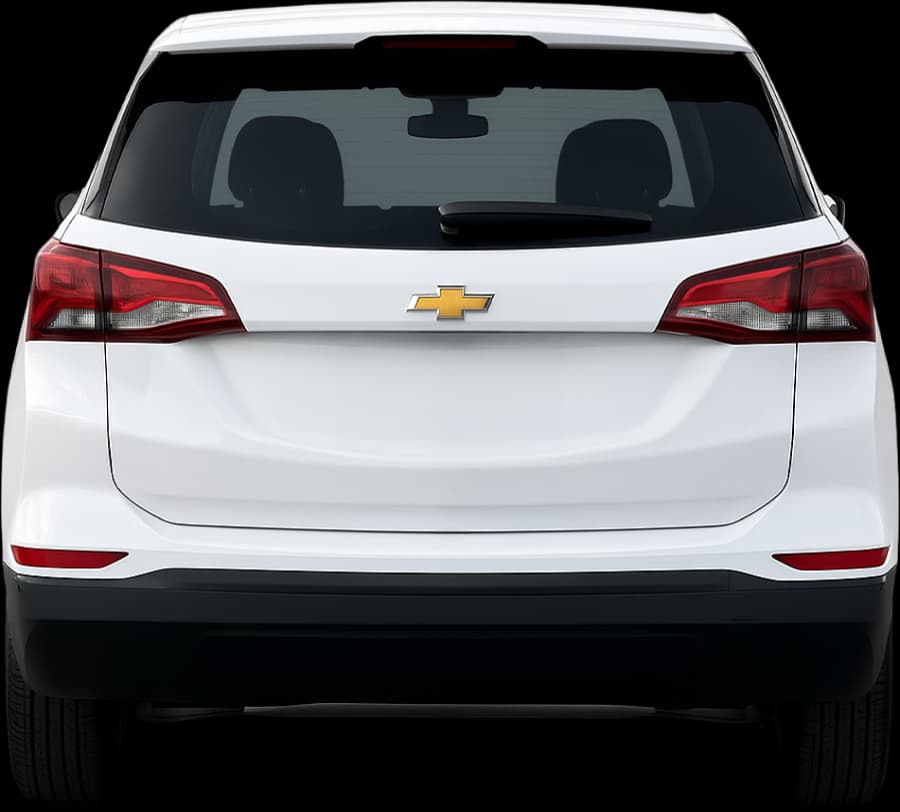

2022 Chevrolet Equinox rear view
DriveSize overview: 2022 Chevrolet Equinox
Based on its dimensions, the Equinox is likely to suit families who want to use all five seats without giving up a generous boot. It could also work well for couples who regularly carry luggage, sports equipment, a pushchair or other bulky everyday items. Its 846-litre boot is around 107 litres larger than that of the average crossover, making everyday carrying space its clearest strength.
Its 465.1cm length means it may be less convenient for drivers who regularly use tight United Kingdom or European parking spaces, or who have a short garage. Maximum cargo capacity and manoeuvrability are closer to average, so the Equinox is best viewed as a roomy everyday crossover rather than one chosen purely for maximum carrying space.
For a closely sized alternative, compare it with the 2022 Toyota RAV4.
