2022 Toyota RAV4 dimensions and size guide
2022 Toyota RAV4
Add comparisonExterior dimensions
2022 Toyota RAV4 exterior dimensions
The 2022 Toyota RAV4 is close to the average-sized crossover in length and width, but it stands noticeably taller. Its 459.5cm body is around 7cm, or 2%, longer, while its 185.4cm body width is almost exactly average. At 170.2cm tall, it is approximately 7cm, or 5%, higher than the class norm. Its 269cm wheelbase is around 3cm, or 1%, shorter than average. Length and width combine to create a footprint of approximately 8.5m², just 1% larger than the typical crossover, so its greater height is the clearest exterior difference rather than the amount of ground space it occupies.
Measurements
Length
459.5 cm
Body width
185.4 cm
Height
170.2 cm
Wheelbase
269 cm
Ground clearance
21.3 cm
Footprint
DriveSize footprint is overall length multiplied by body width.
8.5 m²
How the 2022 Toyota RAV4's exterior dimensions compare with the average Crossover
Length
6.9 cm longer than the average Crossover
Body width
0.5 cm wider than the average Crossover
Height
7.4 cm taller than the average Crossover
Wheelbase
3.4 cm shorter wheelbase than the average Crossover
Ground clearance
3.2 cm more ground clearance than the average Crossover
DriveSize footprint
DriveSize footprint compares this car's footprint with the average footprint for the same class.
A positive percentage means a larger footprint and a negative percentage means a smaller footprint. About average means the rounded difference is 0%.
+1%
Larger footprint than the average Crossover
Fast facts
Fast facts
2% tighter than average turning circle
Its 11m turning circle needs around 0.2m less room than the crossover norm, providing a small advantage for tight turns.
Ground clearance is 18% above average
At 21.3cm, the RAV4 provides around 3.2cm more under-car room than the typical crossover.
Seats-up cargo space is above average under both standards
The RAV4's 580-litre VDA figure is 30% above the VDA average for crossovers, while its separately published 1,065-litre SAE figure is 44% above the class norm.
Five regional spaces provide comfortable access
All eight standard sized parking spaces tested by DriveSize physically fit the RAV4, while five leave comfortable surrounding room.

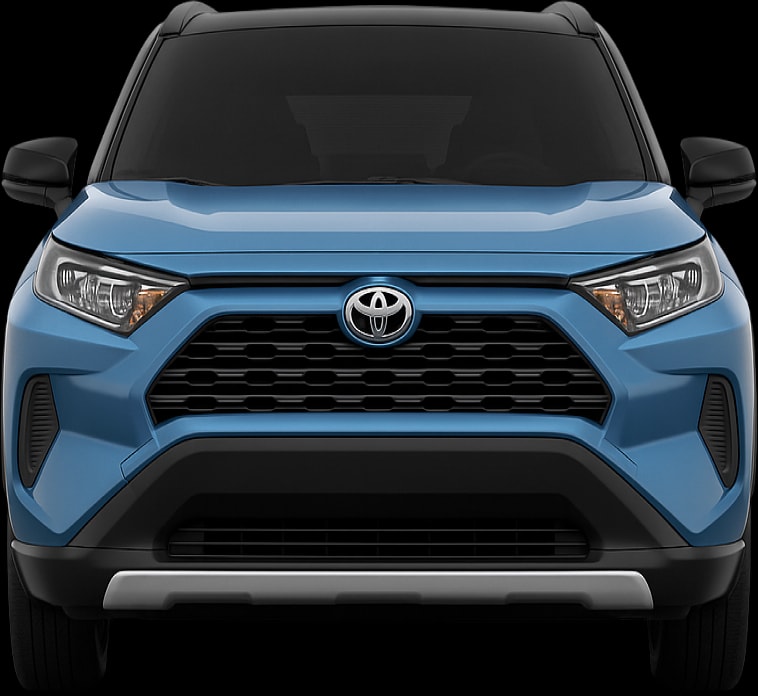

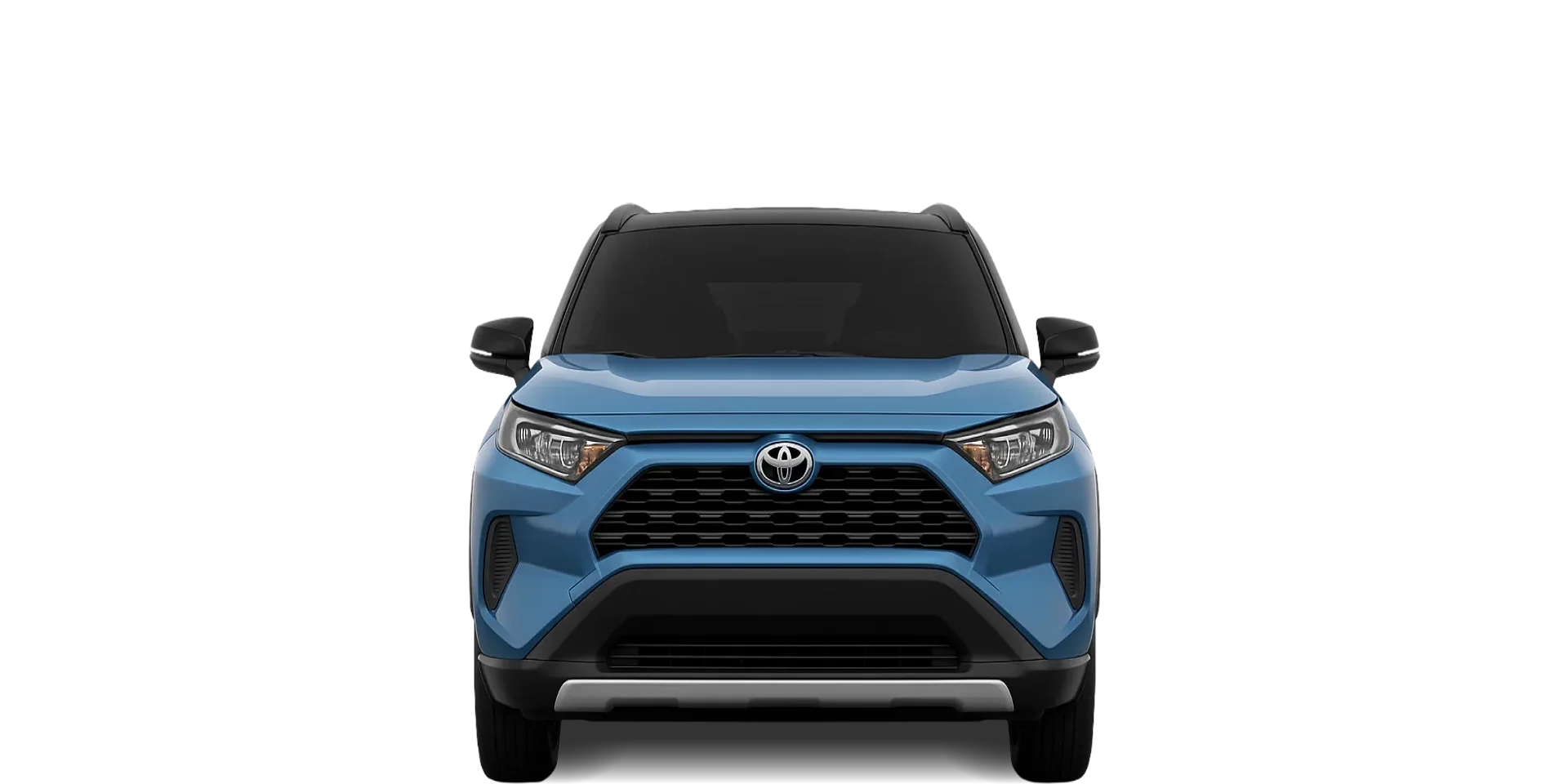

2022 Toyota RAV4 front view
Cargo space & efficiency
2022 Toyota RAV4 cargo capacity and space efficiency
Under the VDA standard, the RAV4 provides 580 litres of cargo space with all five seats available, which is around 135 litres, or 30%, more than the crossover average. Maximum VDA capacity reaches 1,690 litres, approximately 182 litres, or 12%, above average. The additional seats-up space is roughly equivalent to two large suitcases. Measured separately under SAE, seats-up capacity is 1,065 litres, around 326 litres, or 44%, above the SAE average. Maximum SAE capacity is 1,977 litres, approximately 106 litres, or 6%, above its matching class norm. Taking seats-up and maximum cargo capacity into account within each standard, the RAV4 provides about 114 litres per square metre of ground space under VDA, 15% above average, and 162 litres per square metre under SAE, 24% above average.
Measurements
Standard cargo capacity (VDA)
The standard cargo capacity using VDA, the method commonly used globally.
This is the manufacturer's normal published figure; it does not imply a particular seat configuration.
580 L
Largest cargo capacity (VDA)
The largest cargo capacity using VDA, the method commonly used globally.
If only one VDA figure is published, the standard and largest values are the same.
1,690 L
Standard cargo capacity (SAE)
The standard cargo capacity using SAE, the method commonly used in the US.
This is the manufacturer's normal published figure; it does not imply a particular seat configuration.
1,065 L
Largest cargo capacity (SAE)
The largest cargo capacity using SAE, the method commonly used in the US.
If only one SAE figure is published, the standard and largest values are the same.
1,977 L
Cargo space vs length
This DriveSize metric divides blended cargo volume by overall vehicle length.
Blended cargo uses 65% of the standard figure and 35% of the largest figure, using VDA where available and SAE otherwise.
210.8 L per m
Cargo space vs footprint
This DriveSize metric divides blended cargo volume by footprint.
Blended cargo uses 65% of the standard figure and 35% of the largest figure, using VDA where available and SAE otherwise.
It helps show how efficiently a car turns exterior area into usable cargo space.
113.7 L per m²
How the 2022 Toyota RAV4's cargo space and efficiency compare with the average Crossover
Standard cargo capacity (VDA)
The standard cargo capacity using VDA, the method commonly used globally.
This is the manufacturer's normal published figure; it does not imply a particular seat configuration.
135 L more cargo volume than the average Crossover
Largest cargo capacity (VDA)
The largest cargo capacity using VDA, the method commonly used globally.
If only one VDA figure is published, the standard and largest values are the same.
182 L more cargo volume than the average Crossover
Standard cargo capacity (SAE)
The standard cargo capacity using SAE, the method commonly used in the US.
This is the manufacturer's normal published figure; it does not imply a particular seat configuration.
326 L more cargo volume than the average Crossover
Largest cargo capacity (SAE)
The largest cargo capacity using SAE, the method commonly used in the US.
If only one SAE figure is published, the standard and largest values are the same.
106 L more cargo volume than the average Crossover
DriveSize space efficiency (VDA)
DriveSize space efficiency compares blended cargo volume per square meter of footprint with the class average.
Blended cargo uses 65% of the standard figure and 35% of the largest figure within the selected cargo measurement method.
VDA values compare with VDA class averages, and SAE values compare with SAE class averages. Positive percentages indicate more space efficiency and negative percentages indicate less.
+15%
More space efficient than the average Crossover
Parking
Will the 2022 Toyota RAV4 fit in a standard parking space?
All eight standard regional parking spaces tested by DriveSize can physically contain the RAV4, with five also providing comfortable surrounding room. Its near-average width helps it fit between the lines, while its 2% additional length makes the shortest spaces a little more restrictive. The easier parking results are found in China, India, Japan, the Middle East and USA/Canada. The United Kingdom, European Union and Australia are tighter, although each could still physically contains the car.
DriveSize parking fit score
DriveSize compares the car's width and length with typical parking-space sizes by region.
Vehicle dimensions are rounded up and available side or length clearance is rounded down.
Side clearance is based on body width where available; real spaces can vary because of mirrors, walls, pillars, kerbs, bay markings, and nearby cars.
For an average USA / Canada space: body side clearance is 44.5 cm per side, and length clearance is 45 cm at each end.
Body side clearance
44.5 cm
Length clearance (at each end)
45 cm
Usability
2022 Toyota RAV4 usability & manoeuvrability
At 11m, the RAV4's turning circle is around 0.2m, or 2%, tighter than the average crossover. This gives it a small advantage when making tight turns or changing direction in confined car parks. Its 1,533kg kerb weight is approximately 99kg, or 6%, below average. Ground clearance measures 21.3cm, around 3.2cm, or 18%, above the crossover norm, providing noticeably more under-car room on uneven ground and speed bumps.
Measurements
Doors
5
Max seats
5
Turning circle
11 m
Curb weight
1,533 kg
How the 2022 Toyota RAV4's usability and manoeuvrability compare with the average Crossover
Turning circle
0.2 m smaller turning circle than the average Crossover
Curb weight
99 kg lighter than the average Crossover
DriveSize manoeuvrability
DriveSize manoeuvrability combines turning circle and footprint, with turning circle weighted more heavily.
A positive percentage means more manoeuvrable than the class average and a negative percentage means less manoeuvrable.
+1%
More manoeuvrable than the average Crossover

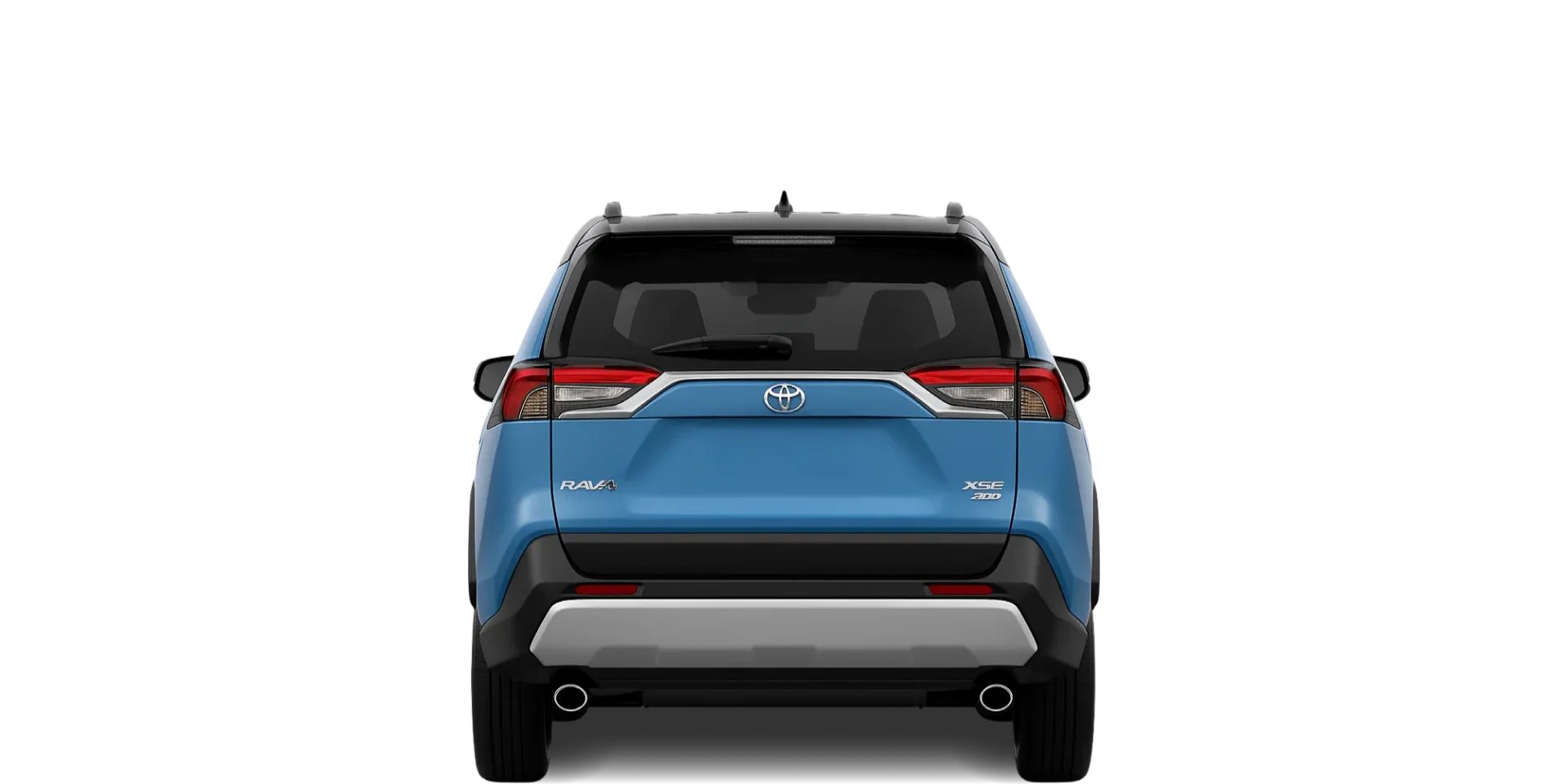

2022 Toyota RAV4 rear view
DriveSize overview: 2022 Toyota RAV4
Based on its dimensions and capacities, the 2022 Toyota RAV4 may suit drivers who want a near-average sized crossover with above-average cargo space. Its footprint is only 1% above the class norm, while seats-up capacity is 30% above average under VDA and 44% above average under SAE.
It also physically fits all eight regional parking spaces tested by DriveSize, with five providing comfortable access. Its 18% additional ground clearance and slightly tighter turning circle further distinguish it from the average crossover.
Its footprint is almost identical to the 2022 Chevrolet Equinox, making the two crossovers a useful size comparison.
Articles featuring this car
Will Your Car Fit in a Standard Parking Space? Parking Space Sizes Explained
Find out if your car will fit in a standard parking space. Compare UK, US and international parking bay sizes, and check real vehicle fit with DriveSize.
Boot Space Explained: VDA vs SAE, Seats-Up vs Seats-Down & Real-World Usability
VDA vs SAE boot space explained clearly. Seats-up vs seats-down, litres vs cu.ft, and real examples using the RAV4 & CR-V. The best guide there is.
Compact SUV Size & Boot Space Guide: RAV4 vs CR-V vs Tiguan vs Kona vs Equinox
Compare compact SUV dimensions and boot space for the RAV4, CR-V, Tiguan, Kona and Equinox.
FAQs
Frequently asked questions
Vehicle specifications on this page are sourced from official Toyota documentation. Unless the page identifies a specific trim, body style, powertrain or market version, DriveSize uses manufacturer-published specifications for the base model as its default reference. DriveSize standardises the published measurements and calculates the comparisons and derived figures shown. Figures can vary by market, model year, trim, powertrain, wheels, tyres and measurement method. How DriveSize sources and calculates these figures.
