2025 Toyota Corolla Cross dimensions and size guide
2025 Toyota Corolla Cross
Add comparisonExterior dimensions
2025 Toyota Corolla Cross exterior dimensions
2025 Toyota Corolla Cross is very close to the average-sized crossover in overall size, while being slightly smaller in every recorded exterior dimension. Its 446cm length is around 7cm, or 1%, shorter, and its 182.5cm body width is approximately 2cm, or 1%, narrower. At 162cm tall, it is only about 1cm lower than the class norm. Its 264cm wheelbase is around 8cm, or 3%, shorter than average. Length and width combine to produce a footprint of about 8.1m², roughly 0.3m², or 3%, smaller than the typical crossover, so it requires slightly less ground space without feeling unusually compact for the class.
Measurements
Length
446 cm
Body width
182.5 cm
Height
162 cm
Wheelbase
264 cm
Footprint
DriveSize footprint is overall length multiplied by body width.
8.1 m²
How the 2025 Toyota Corolla Cross's exterior dimensions compare with the average Crossover
Length
6.6 cm shorter than the average Crossover
Body width
2.4 cm narrower than the average Crossover
Height
0.8 cm shorter than the average Crossover
Wheelbase
8.4 cm shorter wheelbase than the average Crossover
DriveSize footprint
DriveSize footprint compares this car's footprint with the average footprint for the same class.
A positive percentage means a larger footprint and a negative percentage means a smaller footprint. About average means the rounded difference is 0%.
-3%
Smaller footprint than the average Crossover
Fast facts
Fast facts
The turning circle is 7% tighter than average
At 10.4m, the Corolla Cross needs around 0.8m less room to complete a turn than the typical crossover, which is useful in compact car parks and tight streets.
It is 15% lighter than average
The Corolla Cross weighs 1,380kg, approximately 252kg less than the crossover norm.
Everyday VDA cargo space is 6% above average
With all five seats in use, the Corolla Cross provides 473 litres of cargo capacity, around 28 litres more than the average crossover, meaning it could fit in another couple of grocery bags.
Five regional spaces provide comfortable access
All eight standard parking spaces tested by DriveSize physically fit the Corolla Cross, and five also leave comfortable surrounding room.

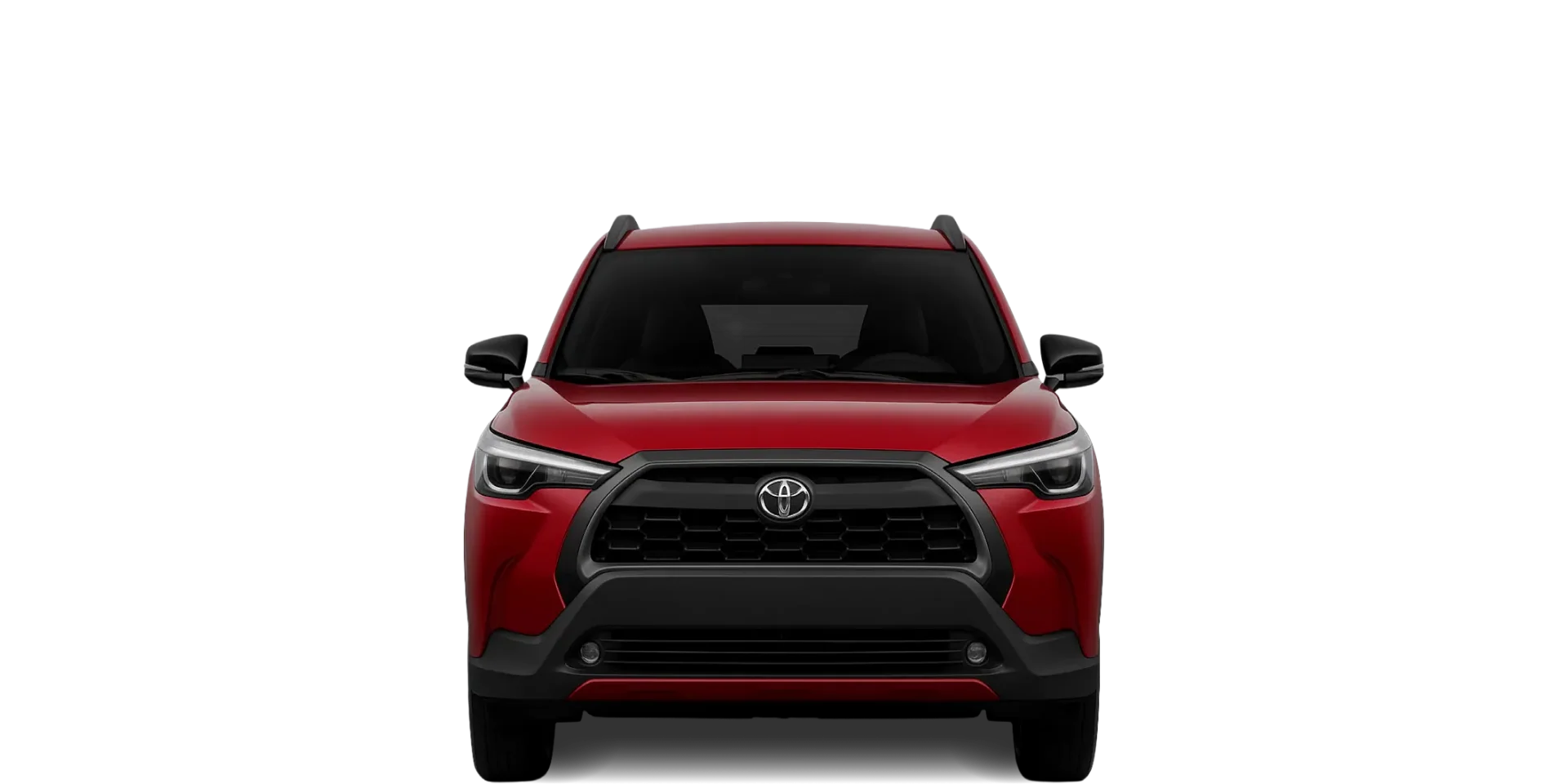

2025 Toyota Corolla Cross front view
Cargo space & efficiency
2025 Toyota Corolla Cross cargo capacity and space efficiency
Keeping all five seats in use, the Corolla Cross provides 473 litres of published VDA cargo capacity. That is around 28 litres, or 6%, more than the average crossover, giving it a little extra room for shopping, luggage or other everyday loads. Under VDA, maximum capacity reaches 1,404 litres, approximately 104 litres, or 7%, below average. The Corolla Cross therefore performs better for everyday seats-up capacity than for carrying the largest possible loads. Combining its seats-up and maximum cargo figures, the Corolla Cross provides about 98 litres per square metre of ground space. That is around 1% below the crossover norm, making its combined cargo efficiency almost exactly average.
Measurements
Standard cargo capacity (VDA)
The standard cargo capacity using VDA, the method commonly used globally.
This is the manufacturer's normal published figure; it does not imply a particular seat configuration.
473 L
Largest cargo capacity (VDA)
The largest cargo capacity using VDA, the method commonly used globally.
If only one VDA figure is published, the standard and largest values are the same.
1,404 L
Cargo space vs length
This DriveSize metric divides blended cargo volume by overall vehicle length.
Blended cargo uses 65% of the standard figure and 35% of the largest figure, using VDA where available and SAE otherwise.
179.1 L per m
Cargo space vs footprint
This DriveSize metric divides blended cargo volume by footprint.
Blended cargo uses 65% of the standard figure and 35% of the largest figure, using VDA where available and SAE otherwise.
It helps show how efficiently a car turns exterior area into usable cargo space.
98.1 L per m²
How the 2025 Toyota Corolla Cross's cargo space and efficiency compare with the average Crossover
Standard cargo capacity (VDA)
The standard cargo capacity using VDA, the method commonly used globally.
This is the manufacturer's normal published figure; it does not imply a particular seat configuration.
28 L more cargo volume than the average Crossover
Largest cargo capacity (VDA)
The largest cargo capacity using VDA, the method commonly used globally.
If only one VDA figure is published, the standard and largest values are the same.
104 L less cargo volume than the average Crossover
DriveSize space efficiency (VDA)
DriveSize space efficiency compares blended cargo volume per square meter of footprint with the class average.
Blended cargo uses 65% of the standard figure and 35% of the largest figure within the selected cargo measurement method.
VDA values compare with VDA class averages, and SAE values compare with SAE class averages. Positive percentages indicate more space efficiency and negative percentages indicate less.
-1%
Less space efficient than the average Crossover
Parking
Will the 2025 Toyota Corolla Cross fit in a standard parking space?
All eight standard regional parking spaces tested by DriveSize can physically contain the Corolla Cross, with five also providing comfortable surrounding room. Its slightly below-average length and width help it remain manageable across every region. China, India, Japan, the Middle East and USA/Canada provide the easier fit. The United Kingdom, European Union and Australia are tighter, although each still physically fits the car between the lines.
DriveSize parking fit score
DriveSize compares the car's width and length with typical parking-space sizes by region.
Vehicle dimensions are rounded up and available side or length clearance is rounded down.
Side clearance is based on body width where available; real spaces can vary because of mirrors, walls, pillars, kerbs, bay markings, and nearby cars.
For an average USA / Canada space: body side clearance is 46 cm per side, and length clearance is 52 cm at each end.
Body side clearance
46 cm
Length clearance (at each end)
52 cm
Usability
2025 Toyota Corolla Cross usability & manoeuvrability
The Corolla Cross has a 10.4m turning circle, around 0.8m, or 7%, tighter than the average crossover. This gives it a useful advantage for U-turns, tight corners and maneuvering in confined car parks. At 1,380kg, its kerb weight is approximately 252kg, or 15%, below average. Combined with a footprint that is 3% smaller than the crossover norm, this makes its main physical measurements consistently modest for the class.
Measurements
Doors
5
Max seats
5
Turning circle
10.4 m
Curb weight
1,380 kg
How the 2025 Toyota Corolla Cross's usability and manoeuvrability compare with the average Crossover
Turning circle
0.8 m smaller turning circle than the average Crossover
Curb weight
252 kg lighter than the average Crossover
DriveSize manoeuvrability
DriveSize manoeuvrability combines turning circle and footprint, with turning circle weighted more heavily.
A positive percentage means more manoeuvrable than the class average and a negative percentage means less manoeuvrable.
+7%
More manoeuvrable than the average Crossover

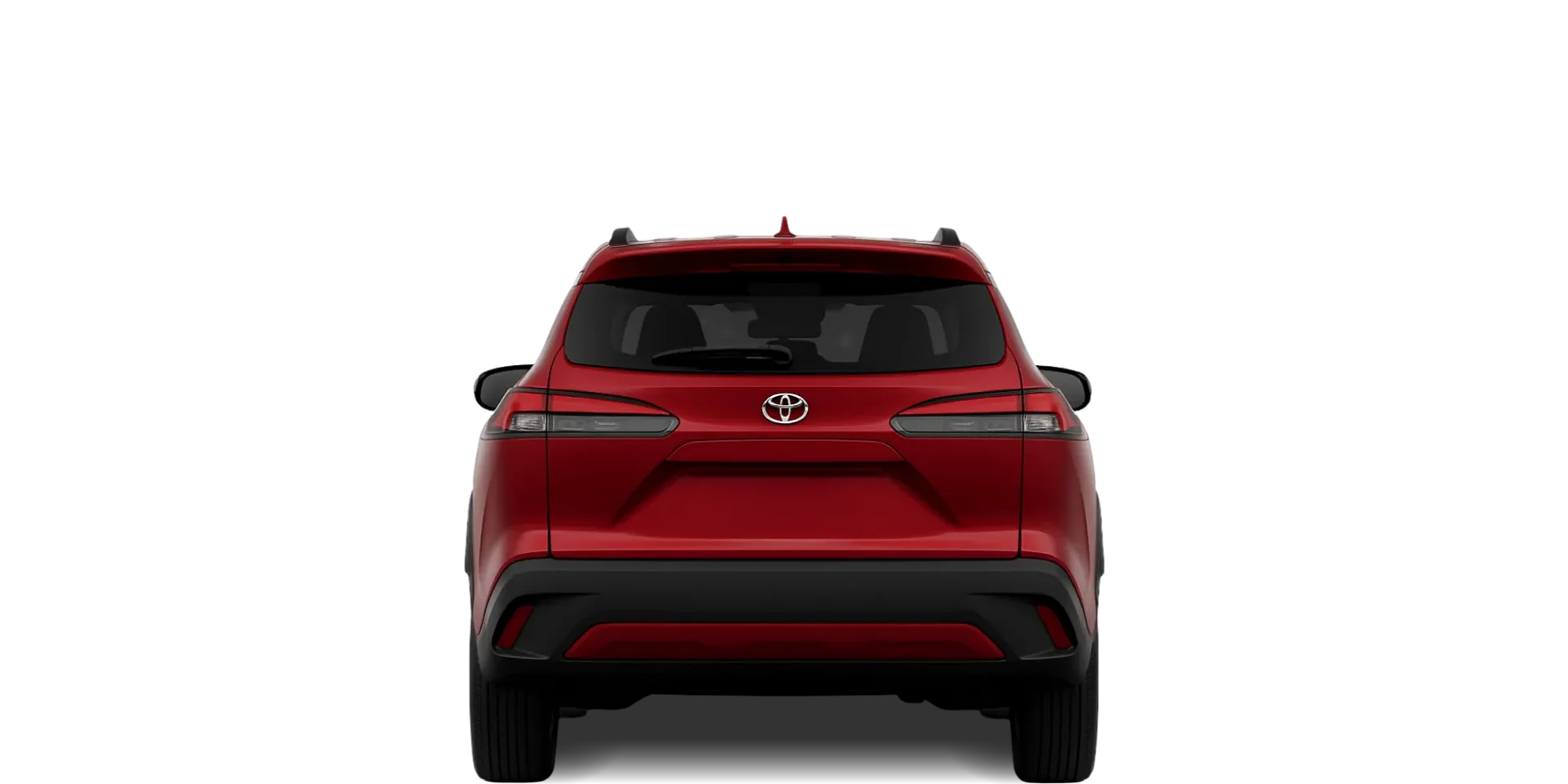

2025 Toyota Corolla Cross rear view
DriveSize overview: 2025 Toyota Corolla Cross
Viewed in terms of its dimensions and capacities, the 2025 Toyota Corolla Cross may suit drivers who want an average sized crossover while being slightly easier to park and turn. It physically fits all eight regional spaces, five provide comfortable access and its turning circle is 7% tighter than average.
Everyday VDA cargo space is 6% above the crossover norm, although maximum capacity is 7% below it. Its combined cargo efficiency is almost exactly average, making the Corolla Cross more notable for its balanced exterior dimensions and day-to-day usability than its maximum carrying space.
A similarly proportioned five-seat crossover is the 2024 Volkswagen Tiguan, with a closely matched footprint and height.
FAQs
Frequently asked questions
Vehicle specifications on this page are sourced from official Toyota documentation. Unless the page identifies a specific trim, body style, powertrain or market version, DriveSize uses manufacturer-published specifications for the base model as its default reference. DriveSize standardises the published measurements and calculates the comparisons and derived figures shown. Figures can vary by market, model year, trim, powertrain, wheels, tyres and measurement method. How DriveSize sources and calculates these figures.
