2024 Volkswagen Tiguan dimensions and size guide
2024 Volkswagen Tiguan
Add comparisonExterior dimensions
2024 Volkswagen Tiguan exterior dimensions
2024 Volkswagen Tiguan is almost exactly the same overall size as the average crossover. Its 453.9cm length is only around 1cm longer than the class norm, while its 184.2cm body width is approximately 1cm narrower. At 166cm tall, it stands roughly 3cm, or 2%, higher than average. Its 267.6cm wheelbase is around 5cm, or 2%, shorter than the crossover norm. Length and width combine to create a footprint of approximately 8.4m², less than 1% below average, so the Tiguan occupies essentially the same amount of ground space as a typical-sized crossover.
Measurements
Length
453.9 cm
Body width
184.2 cm
Height
166 cm
Wheelbase
267.6 cm
Footprint
DriveSize footprint is overall length multiplied by body width.
8.4 m²
How the 2024 Volkswagen Tiguan's exterior dimensions compare with the average Crossover
Length
1.3 cm longer than the average Crossover
Body width
0.7 cm narrower than the average Crossover
Height
3.2 cm taller than the average Crossover
Wheelbase
4.8 cm shorter wheelbase than the average Crossover
DriveSize footprint
DriveSize footprint compares this car's footprint with the average footprint for the same class.
A positive percentage means a larger footprint and a negative percentage means a smaller footprint. About average means the rounded difference is 0%.
About average
About the average Crossover footprint
Fast facts
Fast facts
Everyday VDA cargo space is 47% above average
With all five seats available, the Tiguan provides 652 litres, around 207 litres more than the crossover norm, a difference roughly equivalent to several moving boxes.
Combined cargo efficiency is 21% above average
Taking seats-up and maximum cargo capacity into account, the Tiguan provides about 120 litres per square metre of ground space.
Five regional spaces provide comfortable access
All eight standard parking spaces tested by DriveSize physically fit the Tiguan, while five leave comfortable surrounding room.
The turning circle is 4% wider than average
At 11.7m, the Tiguan needs around 0.5m more room to complete a turn than the typical crossover.

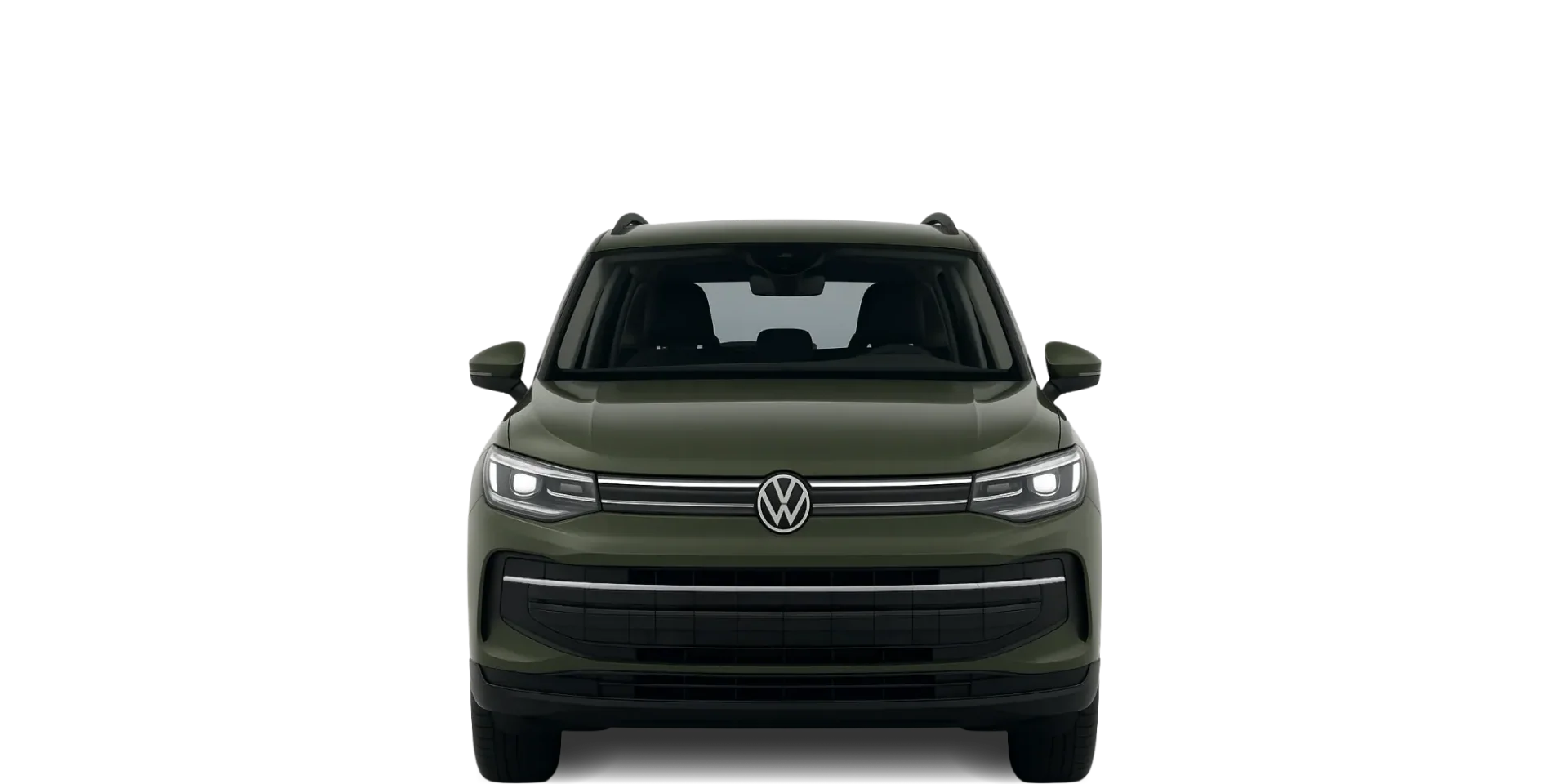

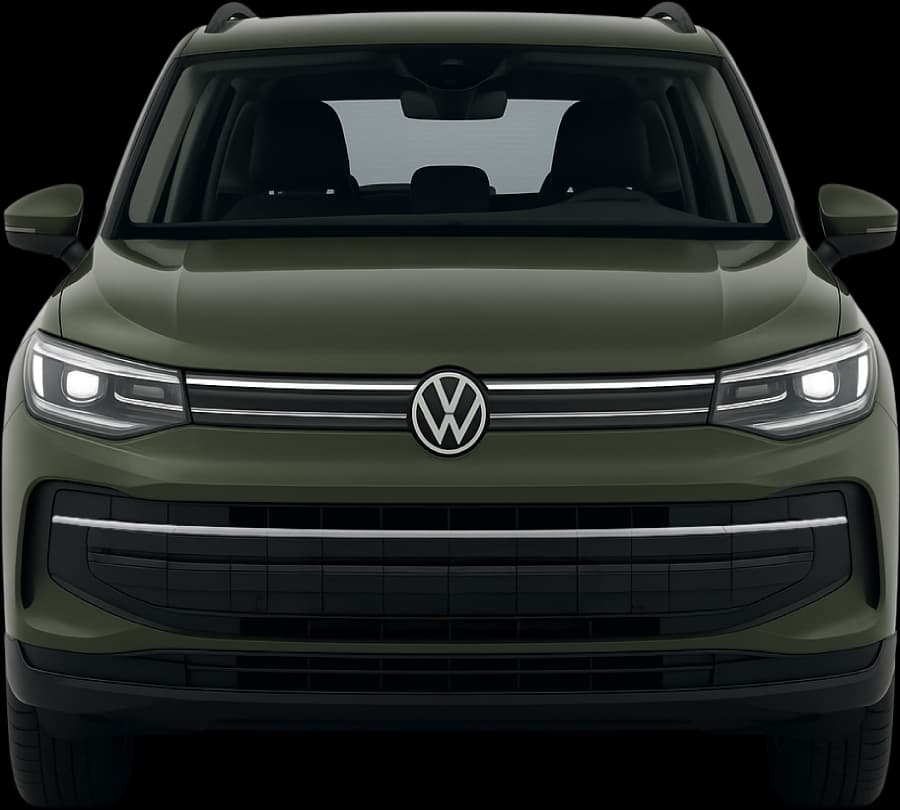

2024 Volkswagen Tiguan front view
Cargo space & efficiency
2024 Volkswagen Tiguan cargo capacity and space efficiency
When all five seats are upright and available, the Tiguan provides 652 litres of published VDA cargo capacity. That is around 207 litres, or 47%, more than the average crossover, roughly equivalent to the space occupied by several moving boxes. The maximum VDA figure is 1,650 litres, approximately 142 litres, or 9%, above average. Using both its seats-up and maximum cargo capacities, the Tiguan provides about 120 litres per square metre of ground space. That is roughly 21% above average for a crossover. Its footprint is almost exactly typical for its class, so this represents more combined cargo capacity from essentially the same ground-space requirement.
Measurements
Standard cargo capacity (VDA)
The standard cargo capacity using VDA, the method commonly used globally.
This is the manufacturer's normal published figure; it does not imply a particular seat configuration.
652 L
Largest cargo capacity (VDA)
The largest cargo capacity using VDA, the method commonly used globally.
If only one VDA figure is published, the standard and largest values are the same.
1,650 L
Cargo space vs length
This DriveSize metric divides blended cargo volume by overall vehicle length.
Blended cargo uses 65% of the standard figure and 35% of the largest figure, using VDA where available and SAE otherwise.
220.6 L per m
Cargo space vs footprint
This DriveSize metric divides blended cargo volume by footprint.
Blended cargo uses 65% of the standard figure and 35% of the largest figure, using VDA where available and SAE otherwise.
It helps show how efficiently a car turns exterior area into usable cargo space.
119.8 L per m²
How the 2024 Volkswagen Tiguan's cargo space and efficiency compare with the average Crossover
Standard cargo capacity (VDA)
The standard cargo capacity using VDA, the method commonly used globally.
This is the manufacturer's normal published figure; it does not imply a particular seat configuration.
207 L more cargo volume than the average Crossover
Largest cargo capacity (VDA)
The largest cargo capacity using VDA, the method commonly used globally.
If only one VDA figure is published, the standard and largest values are the same.
142 L more cargo volume than the average Crossover
DriveSize space efficiency (VDA)
DriveSize space efficiency compares blended cargo volume per square meter of footprint with the class average.
Blended cargo uses 65% of the standard figure and 35% of the largest figure within the selected cargo measurement method.
VDA values compare with VDA class averages, and SAE values compare with SAE class averages. Positive percentages indicate more space efficiency and negative percentages indicate less.
+21%
More space efficient than the average Crossover
Parking
Will the 2024 Volkswagen Tiguan fit in a standard parking space?
All eight standard regional parking spaces tested by DriveSize can physically contain the Tiguan, with five also providing comfortable surrounding room. Its length and body width are both within 1% of the crossover norm, helping it fit between the lines across every region. The comfortable results come from China, India, Japan, the Middle East and USA/Canada. The United Kingdom, European Union and Australia are tighter, although each still physically contains the car.
DriveSize parking fit score
DriveSize compares the car's width and length with typical parking-space sizes by region.
Vehicle dimensions are rounded up and available side or length clearance is rounded down.
Side clearance is based on body width where available; real spaces can vary because of mirrors, walls, pillars, kerbs, bay markings, and nearby cars.
For an average USA / Canada space: body side clearance is 45 cm per side, and length clearance is 48 cm at each end.
Body side clearance
45 cm
Length clearance (at each end)
48 cm
Usability
2024 Volkswagen Tiguan usability & manoeuvrability
The Tiguan has an 11.7m turning circle, around 0.5m, or 4%, wider than the average crossover. It therefore needs slightly more room than the class norm for full turns. Its 1,710kg kerb weight is approximately 78kg, or 5%, above average. Turning circle and weight are both modest departures from an otherwise near-average exterior size.
Measurements
Doors
5
Max seats
5
Turning circle
11.7 m
Curb weight
1,710 kg
How the 2024 Volkswagen Tiguan's usability and manoeuvrability compare with the average Crossover
Turning circle
0.5 m larger turning circle than the average Crossover
Curb weight
78 kg heavier than the average Crossover
DriveSize manoeuvrability
DriveSize manoeuvrability combines turning circle and footprint, with turning circle weighted more heavily.
A positive percentage means more manoeuvrable than the class average and a negative percentage means less manoeuvrable.
-3%
Less manoeuvrable than the average Crossover

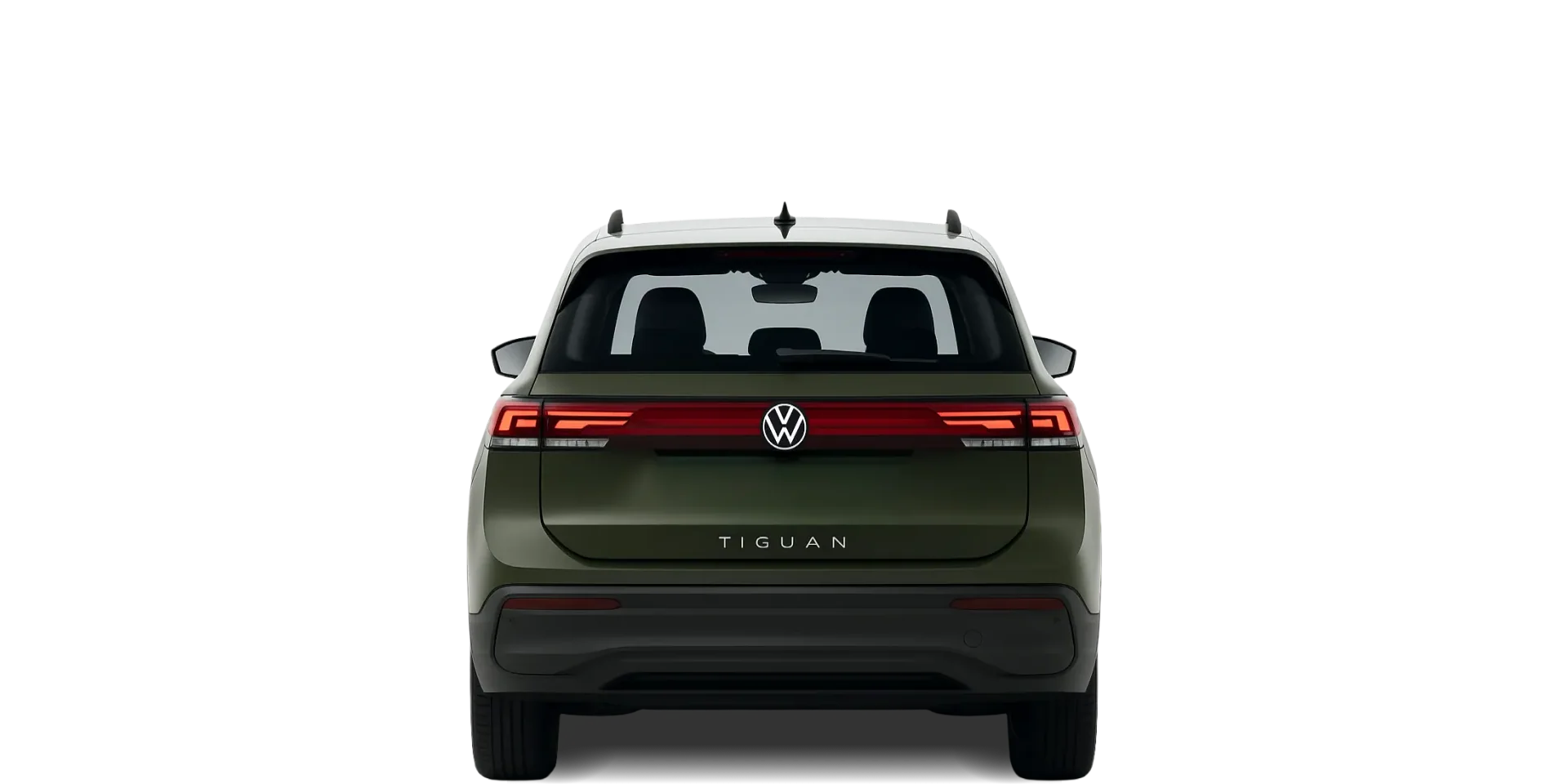

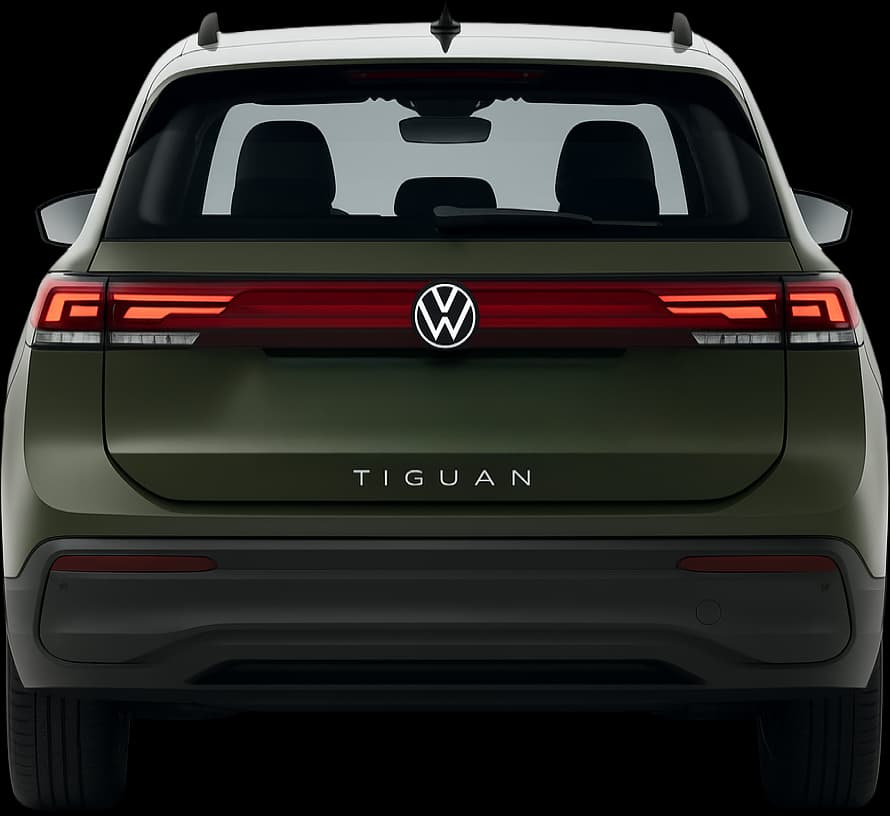

2024 Volkswagen Tiguan rear view
DriveSize overview: 2024 Volkswagen Tiguan
Looking at its dimensions and capacities, the 2024 Volkswagen Tiguan may suit drivers who want a crossover with a typical exterior footprint and substantially above-average everyday VDA cargo space. Seats-up cargo capacity is 47% above the crossover norm, maximum capacity is 9% above and combined cargo efficiency is 21% higher.
It physically fits all eight standard regional parking spaces tested by DriveSize, with five providing comfortable access in and out of the car once parked. Its 4% wider turning circle and 5% additional weight are the clearest day-to-day differences from the average crossover.
The electric 2021 Volkswagen ID.4 has a similar footprint and cargo capacity.
Articles featuring this car
Will Your Car Fit in a Standard Parking Space? Parking Space Sizes Explained
Find out if your car will fit in a standard parking space. Compare UK, US and international parking bay sizes, and check real vehicle fit with DriveSize.
Compact SUV Size & Boot Space Guide: RAV4 vs CR-V vs Tiguan vs Kona vs Equinox
Compare compact SUV dimensions and boot space for the RAV4, CR-V, Tiguan, Kona and Equinox.
FAQs
Frequently asked questions
Vehicle specifications on this page are sourced from official Volkswagen documentation. Unless the page identifies a specific trim, body style, powertrain or market version, DriveSize uses manufacturer-published specifications for the base model as its default reference. DriveSize standardises the published measurements and calculates the comparisons and derived figures shown. Figures can vary by market, model year, trim, powertrain, wheels, tyres and measurement method. How DriveSize sources and calculates these figures.
