2024 Ford F‑150 Regular Cab 6.5ft bed 4x2 dimensions and size guide
2024 Ford F‑150 Regular Cab 6.5ft bed 4x2
Add comparisonExterior dimensions
2024 Ford F‑150 Regular Cab 6.5ft bed 4x2 exterior dimensions
This F‑150 with a 6.5ft bed is slightly shorter than the average pickup, but noticeably wider. It measures 531.9cm long, nearly 11cm shorter than average, while its 202.9cm body is 8.5cm wider. For width including mirrors, the difference grows to around 20cm, making width the measurement you are most likely to notice on narrow roads and in parking spaces. At 191.5cm tall, it stands nearly 5cm above average, while its 311.9cm wheelbase is around 19cm shorter. Its overall 10.8m² footprint is only about 2% larger than the average pickup, with the shorter length largely balancing the extra width.
Measurements
Length
531.9 cm
Body width
202.9 cm
Width including mirrors
243.1 cm
Height
191.5 cm
Wheelbase
311.9 cm
Ground clearance
21.1 cm
Footprint
DriveSize footprint is overall length multiplied by body width.
10.8 m²
How the 2024 Ford F‑150 Regular Cab 6.5ft bed 4x2's exterior dimensions compare with the average Pickup
Length
10.8 cm shorter than the average Pickup
Body width
8.5 cm wider than the average Pickup
Width including mirrors
20.2 cm wider than the average Pickup
Height
4.7 cm taller than the average Pickup
Wheelbase
19.1 cm shorter wheelbase than the average Pickup
Ground clearance
1.7 cm less ground clearance than the average Pickup
DriveSize footprint
DriveSize footprint compares this car's footprint with the average footprint for the same class.
A positive percentage means a larger footprint and a negative percentage means a smaller footprint. About average means the rounded difference is 0%.
+2%
Larger footprint than the average Pickup
Fast facts
Fast facts
Slightly shorter, but considerably wider than average
The Regular Cab F‑150 with a 6.5ft bed is nearly 11cm shorter than the average pickup, but its body is 8.5cm wider and its width including mirrors is around 20cm larger. Width is therefore more likely than length to limit where it fits.
Around 327 litres more standard cargo capacity
Its 1,764-litre SAE cargo capacity is around 327 litres, or 23%, above the average pickup's standard published figure. That gives this version a strong amount of carrying space for its class.
Only two regional parking spaces physically fit this F-150
This F‑150 fits within the standard-sized spaces in USA/Canada and the Middle East, but not the other six regions. Infact, none of the eight spaces provide enough surrounding room to meet the comfortable-fit test.
Cargo efficiency is roughly 33% above average
Taking both the standard seats-up figure and maximum cargo capacity into account, this F‑150 provides about 163 litres of cargo capacity per square metre of ground space. That is roughly one-third above average for a pickup.

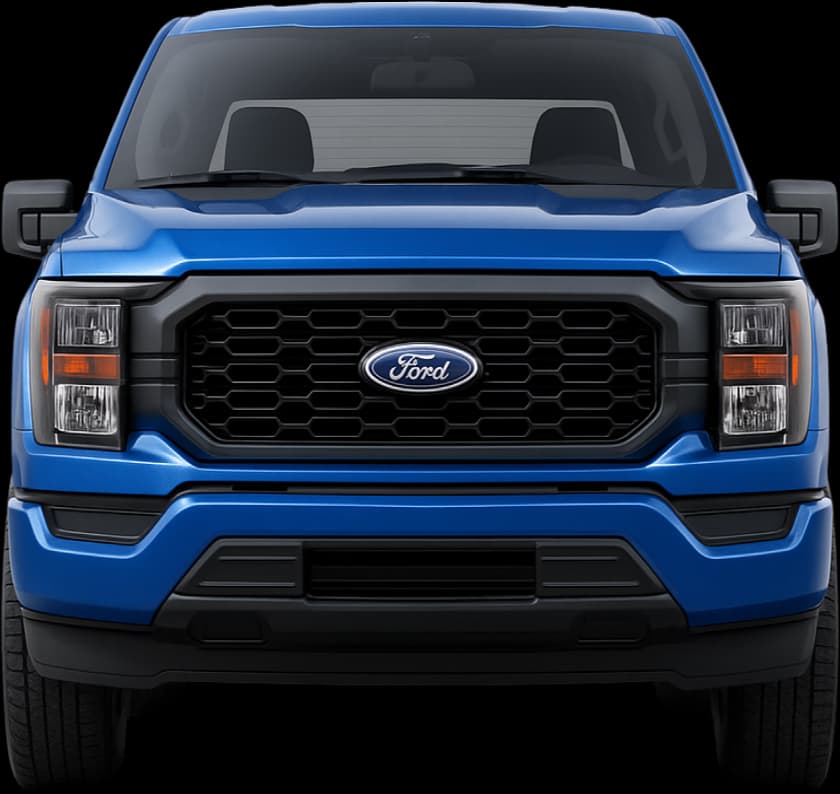

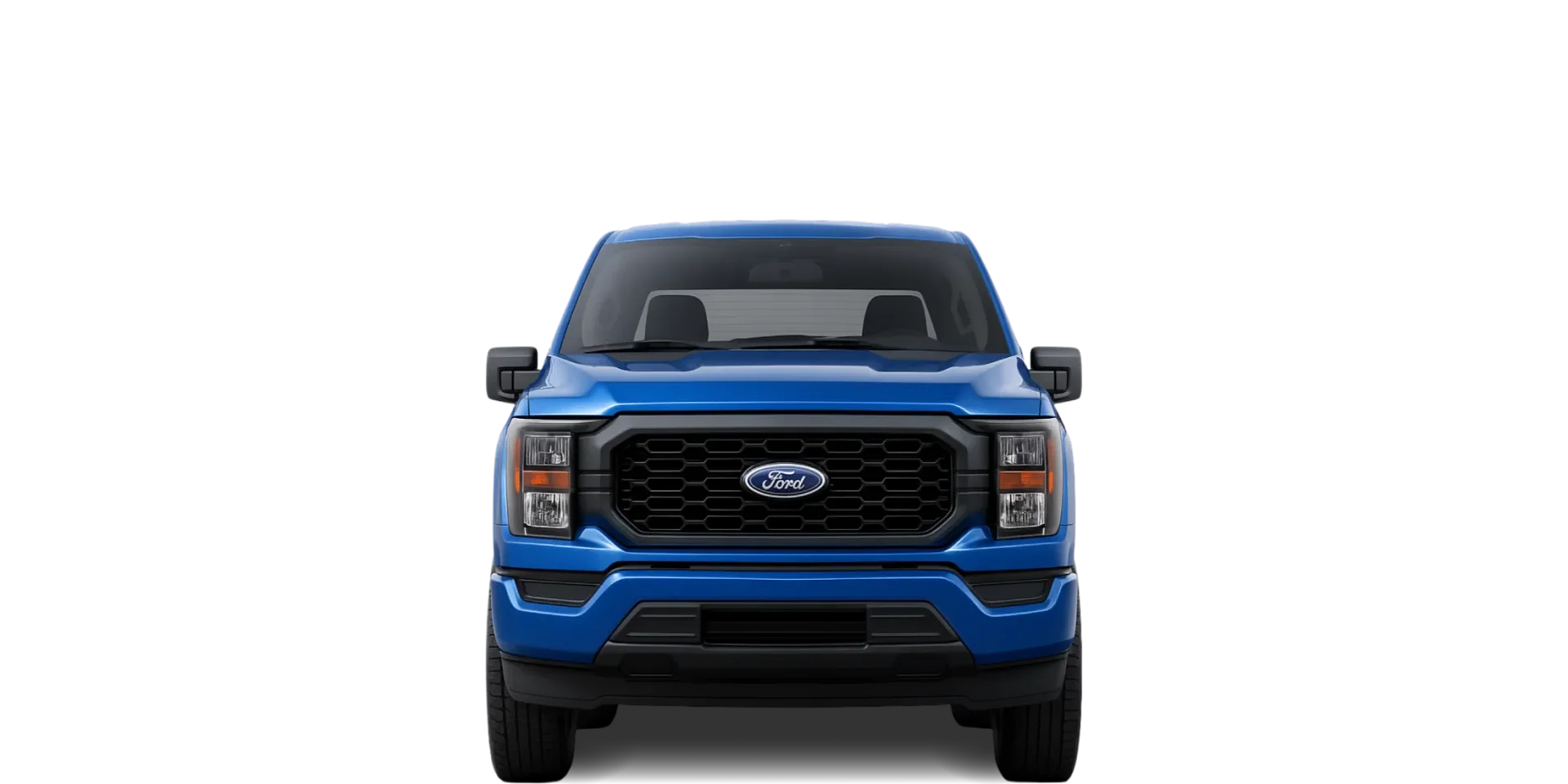

2024 Ford F‑150 Regular Cab 6.5ft bed 4x2 front view
Cargo space & efficiency
2024 Ford F‑150 Regular Cab 6.5ft bed 4x2 cargo capacity and space efficiency
This Regular Cab, 6.5ft bed F‑150 has a published SAE cargo capacity of 1,764 litres. Compared with the average pickup's standard published capacity, that is around 327 litres, or 23%, more, giving it a clear carrying-space advantage. The same 1,764-litre figure is also its largest published capacity. On that comparison it sits around 237 litres, or 16%, above the pickup average. Combining the standard and maximum cargo figures, this F‑150 provides about 163 litres per square metre of ground space. That is roughly 33% above average for a pickup, so cargo capacity is generous even after allowing for its exterior footprint.
Measurements
Standard cargo capacity (SAE)
The standard cargo capacity using SAE, the method commonly used in the US.
This is the manufacturer's normal published figure; it does not imply a particular seat configuration.
1,764 L
Largest cargo capacity (SAE)
The largest cargo capacity using SAE, the method commonly used in the US.
If only one SAE figure is published, the standard and largest values are the same.
1,764 L
Cargo space vs length
This DriveSize metric divides blended cargo volume by overall vehicle length.
Blended cargo uses 65% of the standard figure and 35% of the largest figure, using VDA where available and SAE otherwise.
331.6 L per m
Cargo space vs footprint
This DriveSize metric divides blended cargo volume by footprint.
Blended cargo uses 65% of the standard figure and 35% of the largest figure, using VDA where available and SAE otherwise.
It helps show how efficiently a car turns exterior area into usable cargo space.
163.5 L per m²
How the 2024 Ford F‑150 Regular Cab 6.5ft bed 4x2's cargo space and efficiency compare with the average Pickup
Standard cargo capacity (SAE)
The standard cargo capacity using SAE, the method commonly used in the US.
This is the manufacturer's normal published figure; it does not imply a particular seat configuration.
327 L more cargo volume than the average Pickup
Largest cargo capacity (SAE)
The largest cargo capacity using SAE, the method commonly used in the US.
If only one SAE figure is published, the standard and largest values are the same.
237 L more cargo volume than the average Pickup
DriveSize space efficiency (SAE)
DriveSize space efficiency compares blended cargo volume per square meter of footprint with the class average.
Blended cargo uses 65% of the standard figure and 35% of the largest figure within the selected cargo measurement method.
VDA values compare with VDA class averages, and SAE values compare with SAE class averages. Positive percentages indicate more space efficiency and negative percentages indicate less.
+33%
More space efficient than the average Pickup
Parking
Will the 2024 Ford F‑150 Regular Cab 6.5ft bed 4x2 fit in a standard parking space?
Parking is one of this F‑150's clearest compromises. It physically fits within only two of the eight standard regional parking-space sizes, those for USA/Canada and the Middle East, and neither leaves enough surrounding room for a comfortable fit. It falls outside the standard spaces used for the United Kingdom, European Union, China, India, Japan and Australia. Length is the main limitation in four of those regions, while width or a combination of both dimensions causes the remaining issues.
DriveSize parking fit score
DriveSize compares the car's width and length with typical parking-space sizes by region.
Vehicle dimensions are rounded up and available side or length clearance is rounded down.
Side clearance is based on body width where available; real spaces can vary because of mirrors, walls, pillars, kerbs, bay markings, and nearby cars.
For an average USA / Canada space: body side clearance is 36 cm per side, and length clearance is 9 cm at each end. Primary constraint: length.
Body side clearance
36 cm
Length clearance (at each end)
9 cm
Primary constraint.
Usability
2024 Ford F‑150 Regular Cab 6.5ft bed 4x2 usability & manoeuvrability
The F‑150's 12.6m turning circle is around 0.5m, or 4%, tighter than the average pickup. Its shorter-than-average wheelbase may also reduce the amount of space needed when manoeuvring, although the truck's additional width remains important in tight areas. Ground clearance is 21.1cm, around 1.7cm, or 7%, below the pickup average. At 1,992kg, it is also roughly 260kg, or 12%, lighter than average for the class.
Measurements
Doors
2
Max seats
3
Turning circle
12.6 m
Curb weight
1,992 kg
How the 2024 Ford F‑150 Regular Cab 6.5ft bed 4x2's usability and manoeuvrability compare with the average Pickup
Turning circle
0.5 m smaller turning circle than the average Pickup
Curb weight
259 kg lighter than the average Pickup
DriveSize manoeuvrability
DriveSize manoeuvrability combines turning circle and footprint, with turning circle weighted more heavily.
A positive percentage means more manoeuvrable than the class average and a negative percentage means less manoeuvrable.
+1%
More manoeuvrable than the average Pickup

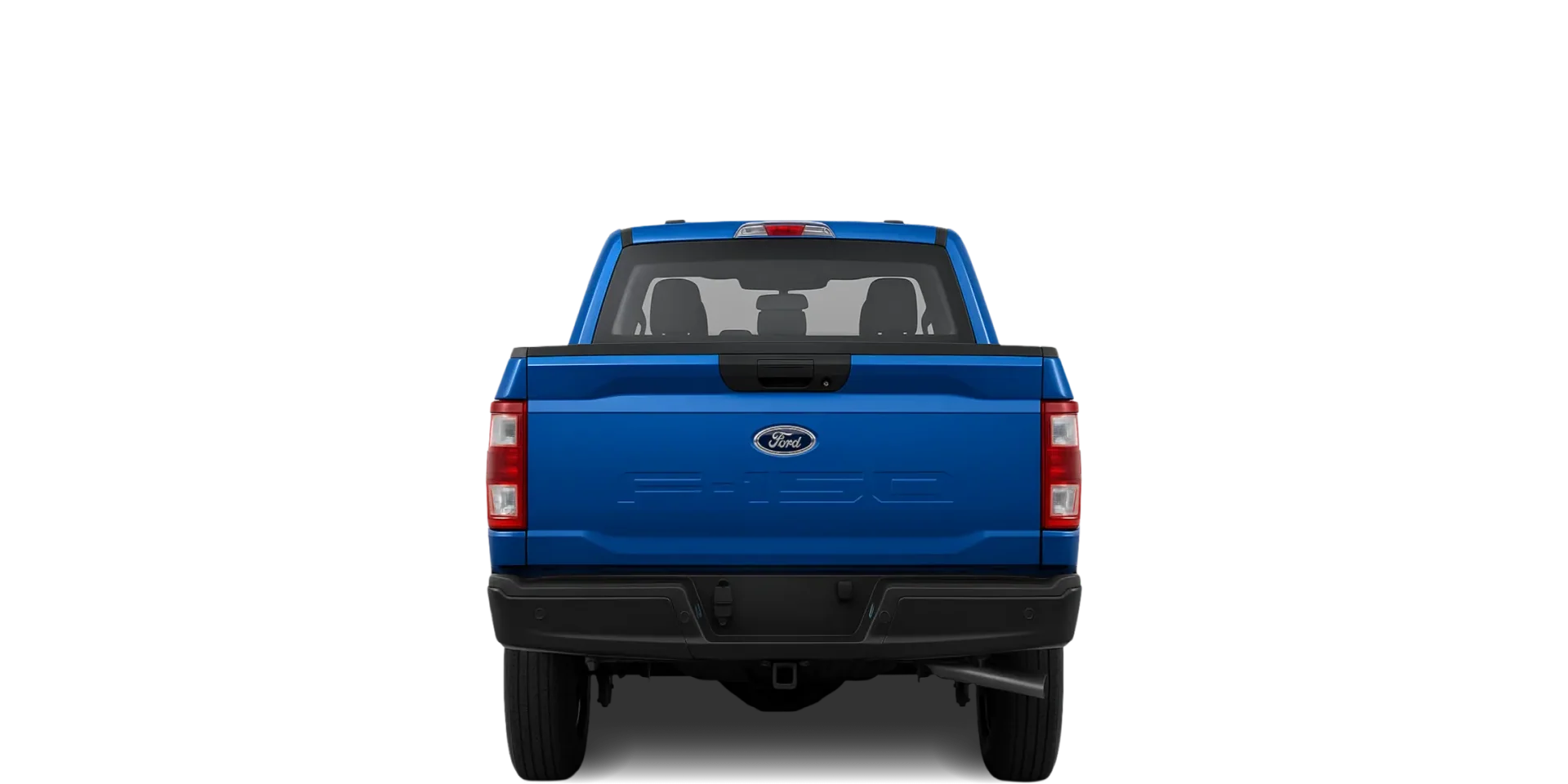

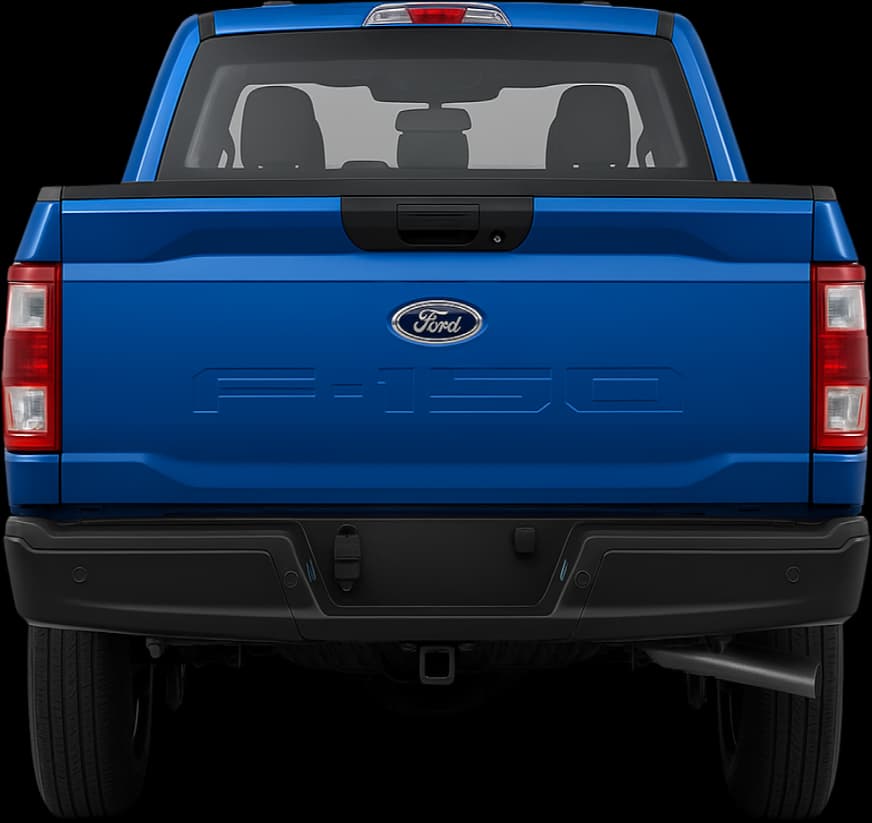

2024 Ford F‑150 Regular Cab 6.5ft bed 4x2 rear view
DriveSize overview: 2024 Ford F‑150 Regular Cab 6.5ft bed 4x2
Viewed in terms of its dimensions and capacities, this F‑150 may suit drivers who prioritise cargo space over passenger capacity and regularly use roads, driveways and parking areas designed for full-size pickups. Its 1,764-litre SAE cargo capacity is above average for its class, its turning circle is slightly tighter than usual and its overall footprint remains close to the pickup norm.
Width and parking space fit are the main compromises. With a body width of 202.9cm, it is wider than the average pickup, and only two of eight regional parking spaces can physically contain it. Drivers regularly using narrower spaces are likely to find those dimensions more significant than its slightly shorter-than-average length.
The closest like-for-like alternative is the 2024 Ford F-150 Regular Cab 6.5ft bed 4x4, which keeps the same cab and bed length but adds four-wheel drive.
