2024 Ford F‑150 SuperCab 6.5ft bed 4x2 dimensions and size guide
2024 Ford F‑150 SuperCab 6.5ft bed 4x2
Add comparisonExterior dimensions
2024 Ford F‑150 SuperCab 6.5ft bed 4x2 exterior dimensions
Length is the defining exterior measurement of this SuperCab F‑150. It stretches to 589.3cm, nearly 47cm, or 9%, more than the average pickup. Its 202.9cm body is also 8.5cm wider, while the mirrors take the full width to 243.1cm, around 20cm more than average. Drivers therefore need to allow extra room both alongside the truck and in front of and behind it when driving and manoeuvring. The 369.3cm wheelbase is roughly 38cm longer than the pickup average, while its 191.3cm height is only about 5cm greater. Overall, the SuperCab occupies almost 12.0m² of ground space, around 13% more than the average pickup.
Measurements
Length
589.3 cm
Width (excluding mirrors)
202.9 cm
Width (including mirrors)
243.1 cm
Height
191.3 cm
Wheelbase
369.3 cm
Ground clearance
20.8 cm
Footprint
DriveSize footprint is overall length multiplied by body width excluding mirrors.
12 m²
How the 2024 Ford F‑150 SuperCab 6.5ft bed 4x2's exterior dimensions compare with the average Pickup
Length
46.6 cm longer than the average Pickup
Width (excluding mirrors)
8.5 cm wider than the average Pickup
Width (including mirrors)
20.2 cm wider than the average Pickup
Height
4.5 cm taller than the average Pickup
Wheelbase
38.3 cm longer wheelbase than the average Pickup
Ground clearance
2 cm less ground clearance than the average Pickup
DriveSize footprint score
DriveSize footprint score compares this car's footprint with the average footprint for the same class.
A score near 100% means it is close to class average size. Lower scores mean it sits further from that average, either smaller or larger.
87%
13% larger than the average Pickup
Fast facts
Fast facts
Six seats with above-average cargo capacity
This SuperCab can seat up to six people and still provides 1,764 litres of published SAE cargo capacity. That is around 327 litres, or 23%, above the average pickup's standard figure, giving it useful flexibility when both passengers and cargo matter.
Tight turns require more space
Its 14.6m turning circle is around 1.5m, or 11%, wider than the pickup average. Combined with a 369.3cm wheelbase, that means tighter turns and changes of direction need more room or more careful manoeuvring.
All eight regional parking spaces are too short
None of the standard regional parking-space sizes tested on DriveSize can physically contain this F‑150. Length rules out all eight, while the United Kingdom, European Union and Australia spaces are too narrow as well.
Cargo efficiency remains 20% above average
Combining the standard and maximum cargo figures, the SuperCab provides about 148 litres per square metre of ground space. That is roughly 20% above average for a pickup.

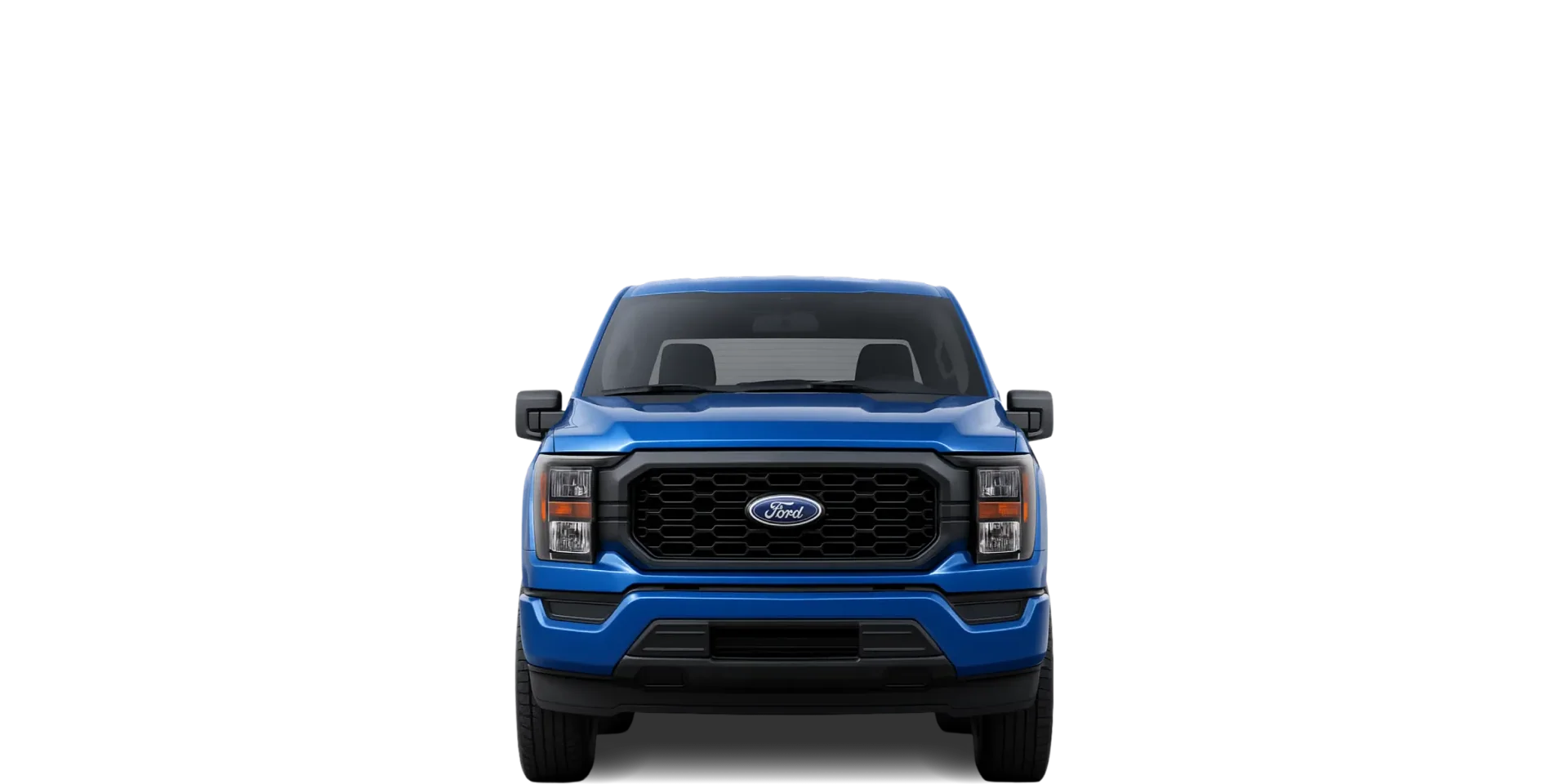

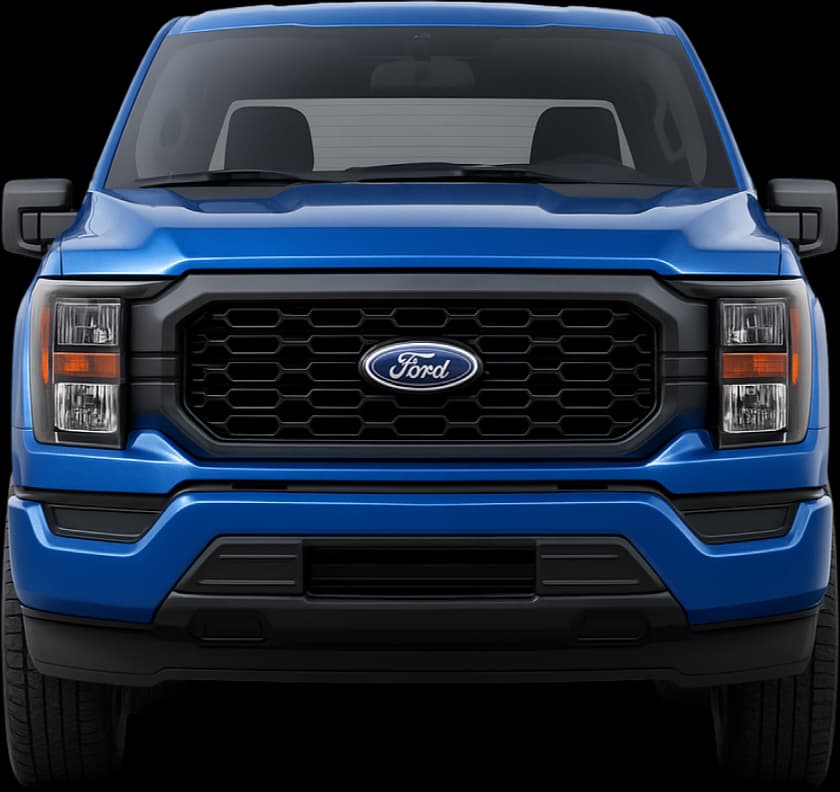

2024 Ford F‑150 SuperCab 6.5ft bed 4x2 front view
Cargo space & efficiency
2024 Ford F‑150 SuperCab 6.5ft bed 4x2 cargo capacity and space efficiency
Even with seating for up to six, this SuperCab has a published SAE cargo capacity of 1,764 litres. That is around 327 litres, or 23%, above the average pickup's standard published figure, meaning it offers roughly a fifth more cargo room than usual for the class. The same 1,764-litre figure is also its maximum published capacity. Compared with the average pickup's maximum figure, it remains around 237 litres, or 16%, larger. Combining the standard seats-up cargo figure with its maximum cargo capacity, the SuperCab provides about 148 litres per square metre of ground space. Put another way, although it occupies around 13% more ground space than the average pickup, each square metre provides roughly 20% more cargo capacity than the pickup norm.
Measurements
Standard cargo capacity (SAE)
The standard cargo capacity using SAE, the method commonly used in the US.
This is the manufacturer's normal published figure; it does not imply a particular seat configuration.
1,764 L
Largest cargo capacity (SAE)
The largest cargo capacity using SAE, the method commonly used in the US.
If only one SAE figure is published, the standard and largest values are the same.
1,764 L
Cargo space vs length
This DriveSize metric divides blended cargo volume by overall vehicle length.
Blended cargo uses 65% of the standard figure and 35% of the largest figure, using VDA where available and SAE otherwise.
299.3 L per m
Cargo space vs footprint
This DriveSize metric divides blended cargo volume by footprint.
Blended cargo uses 65% of the standard figure and 35% of the largest figure, using VDA where available and SAE otherwise.
It helps show how efficiently a car turns exterior area into usable cargo space.
147.5 L per m²
How the 2024 Ford F‑150 SuperCab 6.5ft bed 4x2's cargo space and efficiency compare with the average Pickup
Standard cargo capacity (SAE)
The standard cargo capacity using SAE, the method commonly used in the US.
This is the manufacturer's normal published figure; it does not imply a particular seat configuration.
327 L more cargo volume than the average Pickup
Largest cargo capacity (SAE)
The largest cargo capacity using SAE, the method commonly used in the US.
If only one SAE figure is published, the standard and largest values are the same.
237 L more cargo volume than the average Pickup
DriveSize space efficiency score (SAE)
DriveSize space efficiency compares blended cargo volume per square meter of footprint with the class average.
Blended cargo uses 65% of the standard figure and 35% of the largest figure within the selected cargo measurement method.
VDA scores compare with VDA class averages, and SAE scores compare with SAE class averages. Around 100% means in line with class average.
120%
Above class average (+20%)
Parking
Will the 2024 Ford F‑150 SuperCab 6.5ft bed 4x2 fit in a standard parking space?
This SuperCab falls outside all eight standard regional parking-space sizes, with length preventing a physical fit in every one. That includes the larger standard spaces used for USA/Canada and the Middle East, and means none can offer enough surrounding room for a comfortable fit. China, India and Japan fail on length alone, as do USA/Canada and the Middle East. The standard spaces in the United Kingdom, European Union and Australia are too narrow as well, so everyday parking is likely to depend on spaces intended for larger vehicles.
DriveSize parking fit score
DriveSize compares the car's width and length with typical parking-space sizes by region.
Vehicle dimensions are rounded up and available side or length clearance is rounded down.
Side clearance is based on body width excluding mirrors where available; real spaces can vary because of mirrors, walls, pillars, kerbs, bay markings, and nearby cars.
For an average USA / Canada space: exceeds the bay's length by 40 cm.
Body side clearance (excluding mirrors)
36 cm
Length over bay
40 cm
Overall length. Primary constraint.
Usability
2024 Ford F‑150 SuperCab 6.5ft bed 4x2 usability & manoeuvrability
This F‑150 needs noticeably more room to change direction than the average pickup. Its 14.6m turning circle is around 1.5m, or 11%, wider, and its 369.3cm wheelbase is roughly 38cm longer. Those dimensions make tight turns and confined manoeuvres more demanding. Ground clearance is 20.8cm, around 2cm, or 9%, below the pickup average, giving it less breathing room over steep entrances and uneven ground than is typical for the class. Its 2,105kg kerb weight is nevertheless roughly 146kg, or 6%, below average.
Measurements
Doors
4
Max seats
6
Turning circle
14.6 m
Curb weight
2,105 kg
How the 2024 Ford F‑150 SuperCab 6.5ft bed 4x2's usability and manoeuvrability compare with the average Pickup
Turning circle
1.5 m larger turning circle than the average Pickup
Curb weight
146 kg lighter than the average Pickup
DriveSize manoeuvrability score
DriveSize manoeuvrability score combines turning circle and footprint, with turning circle weighted more heavily.
Around 100% means in line with the class average; higher scores indicate better manoeuvrability relative to similar cars.
88%
12% less manoeuvrable than the average Pickup

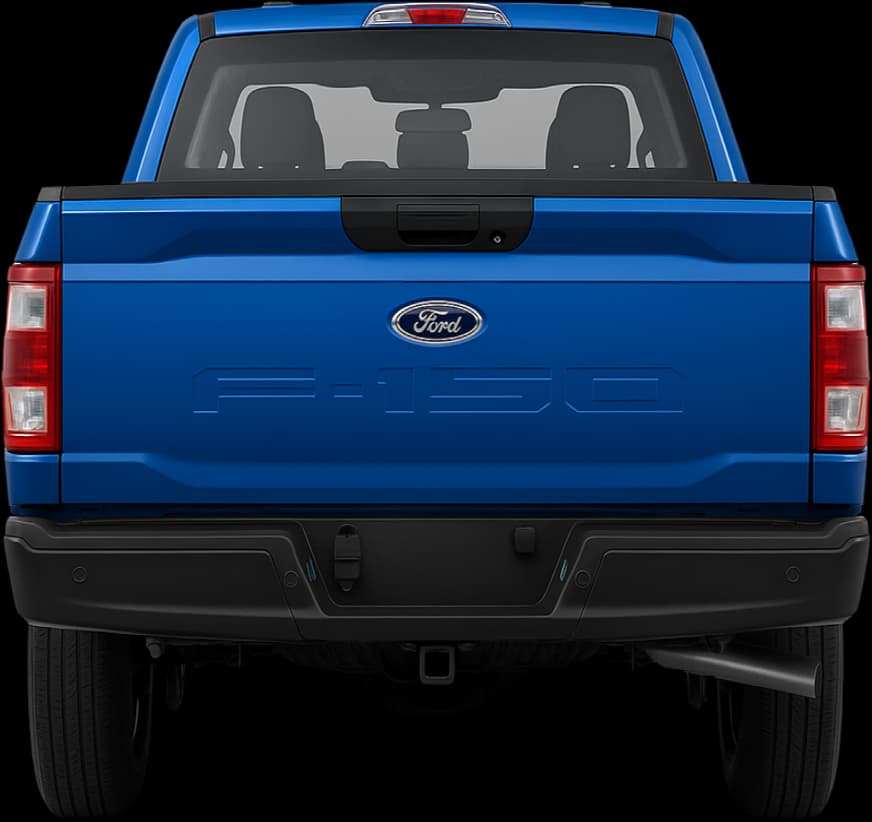

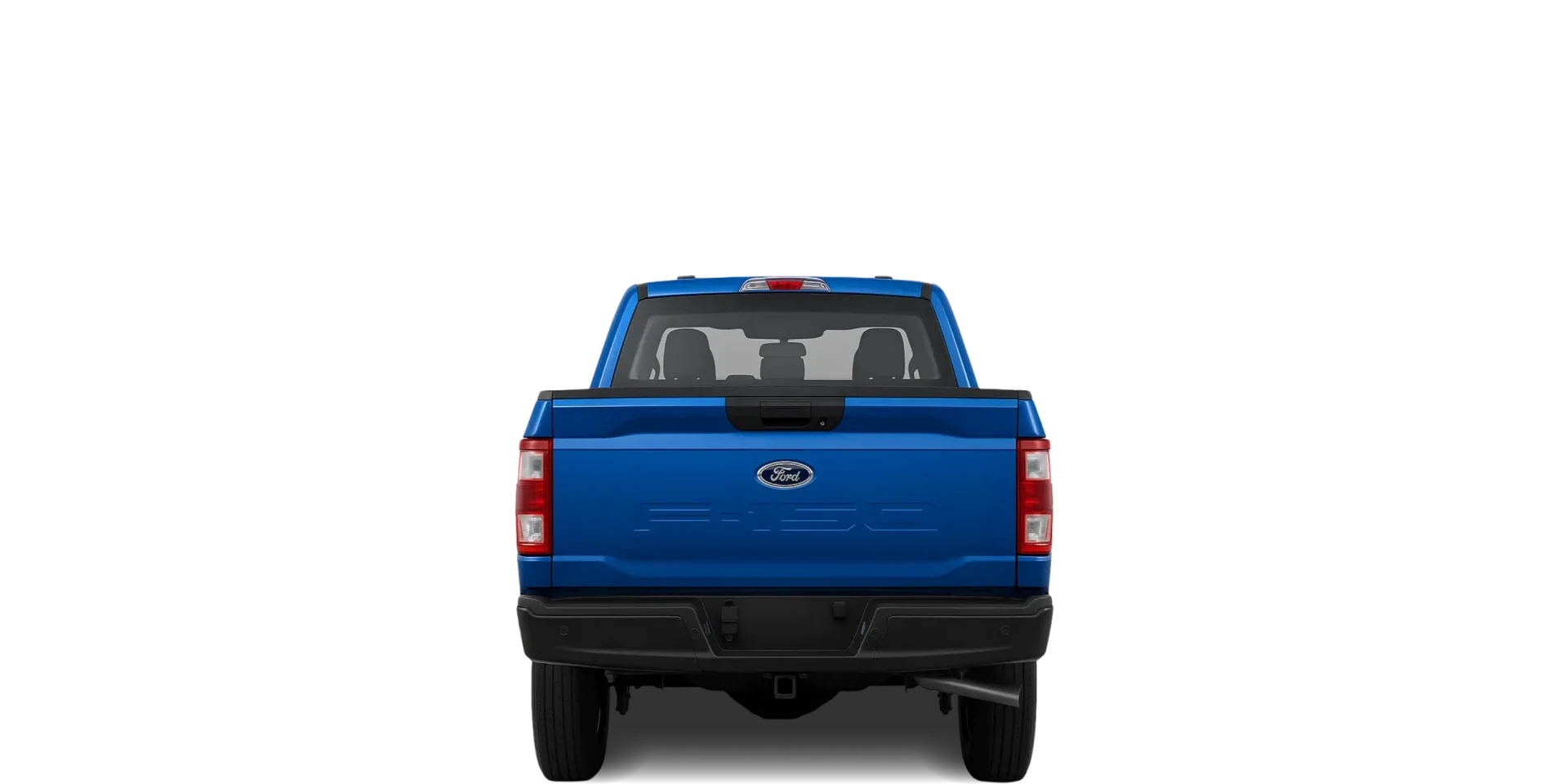

2024 Ford F‑150 SuperCab 6.5ft bed 4x2 rear view
DriveSize overview: 2024 Ford F‑150 SuperCab 6.5ft bed 4x2
Considering its dimensions and capacities, this SuperCab F‑150 may suit drivers who need to carry up to six people without giving up above-average cargo space. Its 1,764-litre SAE capacity is 23% above the average pickup's standard published figure, offering roughly a fifth more room for cargo while retaining the additional seating.
The compromise is the space required to accommodate it. At 589.3cm long and 202.9cm wide before including the mirrors, it cannot fit within any of the eight regional standard parking-space sizes, while its 14.6m turning circle also needs more room than usual. This version is therefore best matched with roads, parking and storage designed for full-size pickups.
Its closest counterpart is the 2024 Ford F-150 SuperCab 6.5ft bed 4x4, which uses the same SuperCab body and 6.5ft bed.
