2024 Ford F‑150 SuperCab 6.5ft bed 4x4 dimensions and size guide
2024 Ford F‑150 SuperCab 6.5ft bed 4x4
Add comparisonExterior dimensions
2024 Ford F‑150 SuperCab 6.5ft bed 4x4 exterior dimensions
This 4x4 SuperCab combines a tall stance with a particularly long body. It is 195.8cm high, which is around 9cm, or 5%, taller than the average pickup. At 589.3cm from end to end, it is also nearly 47cm, or 9%, longer than average, so finding enough space ahead of and behind it to park and maneuver is likely to be the biggest everyday challenge. Its body width is 202.9cm, 8.5cm more than average, and its width including mirrors is 243.1cm, around 20cm above the pickup norm. Its 369.3cm wheelbase is roughly 38cm longer than average. In total, it covers almost 12.0m² of ground space, about 13% more than the average pickup.
Measurements
Length
589.3 cm
Body width
202.9 cm
Width including mirrors
243.1 cm
Height
195.8 cm
Wheelbase
369.3 cm
Ground clearance
24.9 cm
Footprint
DriveSize footprint is overall length multiplied by body width.
12 m²
How the 2024 Ford F‑150 SuperCab 6.5ft bed 4x4's exterior dimensions compare with the average Pickup
Length
46.6 cm longer than the average Pickup
Body width
8.5 cm wider than the average Pickup
Width including mirrors
20.2 cm wider than the average Pickup
Height
9 cm taller than the average Pickup
Wheelbase
38.3 cm longer wheelbase than the average Pickup
Ground clearance
2.1 cm more ground clearance than the average Pickup
DriveSize footprint
DriveSize footprint compares this car's footprint with the average footprint for the same class.
A positive percentage means a larger footprint and a negative percentage means a smaller footprint. About average means the rounded difference is 0%.
+13%
Larger footprint than the average Pickup
Fast facts
Fast facts
Useful extra clearance underneath
The 24.9cm ground clearance is around 2.1cm, or 9%, above the pickup average. That extra breathing room is helpful over steep entrances and uneven surfaces.
Room for six and 23% more cargo
This SuperCab seats up to six and has 1,764 litres of published SAE cargo capacity, around 327 litres more than the average pickup's standard figure. That 23% advantage is useful when passengers and a larger load need to travel together.
Almost 12 square metres of ground space
Its 589.3cm length and 202.9cm body width create a footprint of almost 12.0m². That's around 13% larger than average for a pickup, so garages, driveways and turning areas all need to be generously sized.
Marked bays need to be oversized
This F‑150 is too long for every one of the eight standard regional parking-spaces on DriveSize. Width also prevents a fit in the United Kingdom, European Union and Australian spaces.

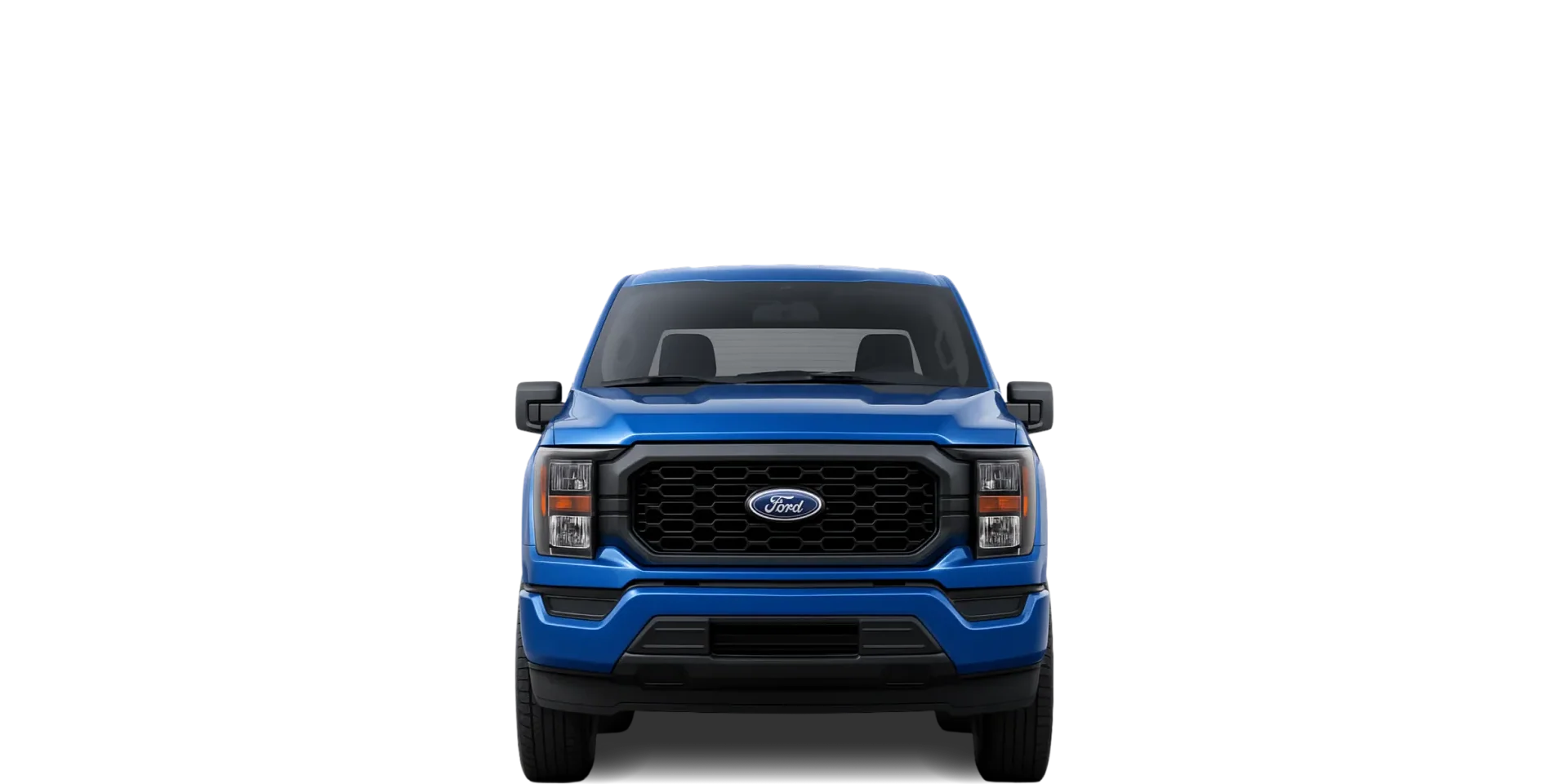

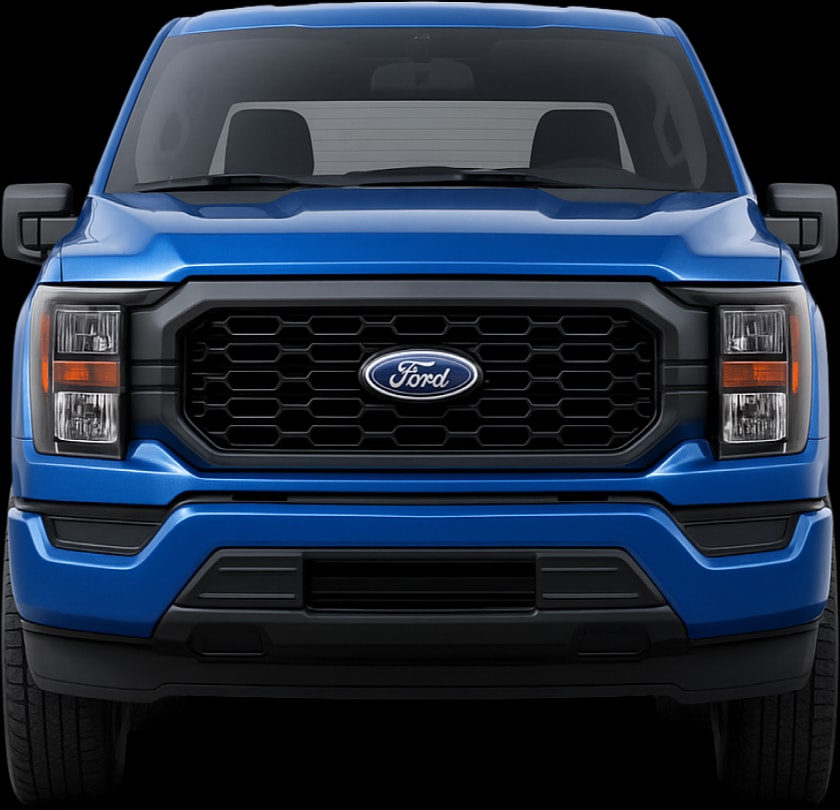

2024 Ford F‑150 SuperCab 6.5ft bed 4x4 front view
Cargo space & efficiency
2024 Ford F‑150 SuperCab 6.5ft bed 4x4 cargo capacity and space efficiency
Passenger capacity does not leave this SuperCab with below-average cargo space. Its 1,764-litre published SAE figure is around 327 litres, or 23%, greater than the average pickup's standard capacity, meaning it can carry roughly a fifth more cargo than usual for the class. The maximum published capacity is also 1,764 litres. Against the average pickup's maximum figure, that leaves an advantage of around 237 litres, or 16%. Allowing for both the standard seats-up cargo figure and its maximum cargo capacity, this F‑150 provides about 148 litres per square metre of ground space. So while this 4x4 takes up around 13% more ground space than the average pickup, it delivers roughly 20% more cargo capacity for every square metre it occupies.
Measurements
Standard cargo capacity (SAE)
The standard cargo capacity using SAE, the method commonly used in the US.
This is the manufacturer's normal published figure; it does not imply a particular seat configuration.
1,764 L
Largest cargo capacity (SAE)
The largest cargo capacity using SAE, the method commonly used in the US.
If only one SAE figure is published, the standard and largest values are the same.
1,764 L
Cargo space vs length
This DriveSize metric divides blended cargo volume by overall vehicle length.
Blended cargo uses 65% of the standard figure and 35% of the largest figure, using VDA where available and SAE otherwise.
299.3 L per m
Cargo space vs footprint
This DriveSize metric divides blended cargo volume by footprint.
Blended cargo uses 65% of the standard figure and 35% of the largest figure, using VDA where available and SAE otherwise.
It helps show how efficiently a car turns exterior area into usable cargo space.
147.5 L per m²
How the 2024 Ford F‑150 SuperCab 6.5ft bed 4x4's cargo space and efficiency compare with the average Pickup
Standard cargo capacity (SAE)
The standard cargo capacity using SAE, the method commonly used in the US.
This is the manufacturer's normal published figure; it does not imply a particular seat configuration.
327 L more cargo volume than the average Pickup
Largest cargo capacity (SAE)
The largest cargo capacity using SAE, the method commonly used in the US.
If only one SAE figure is published, the standard and largest values are the same.
237 L more cargo volume than the average Pickup
DriveSize space efficiency (SAE)
DriveSize space efficiency compares blended cargo volume per square meter of footprint with the class average.
Blended cargo uses 65% of the standard figure and 35% of the largest figure within the selected cargo measurement method.
VDA values compare with VDA class averages, and SAE values compare with SAE class averages. Positive percentages indicate more space efficiency and negative percentages indicate less.
+20%
More space efficient than the average Pickup
Parking
Will the 2024 Ford F‑150 SuperCab 6.5ft bed 4x4 fit in a standard parking space?
Do not expect this SuperCab to fit into a standard-sized marked bay. Its length prevents a physical fit across all eight DriveSize regional spaces tested, including the roomier standard spaces for USA/Canada and the Middle East. In China, India, Japan, USA/Canada and the Middle East, length is the dimension that means it won't fit. The United Kingdom, European Union and Australia spaces also fall short on width, making spaces intended for larger vehicles the more realistic choice for this F-150.
DriveSize parking fit score
DriveSize compares the car's width and length with typical parking-space sizes by region.
Vehicle dimensions are rounded up and available side or length clearance is rounded down.
Side clearance is based on body width where available; real spaces can vary because of mirrors, walls, pillars, kerbs, bay markings, and nearby cars.
For an average USA / Canada space: exceeds the bay's length by 40 cm.
Body side clearance
36 cm
Length over bay
40 cm
Overall length. Primary constraint.
Usability
2024 Ford F‑150 SuperCab 6.5ft bed 4x4 usability & manoeuvrability
The higher stance is the clearest day-to-day distinction for this 4x4. Its 24.9cm ground clearance is around 2.1cm, or 9%, above the pickup average, which provides more breathing room over steep entrances and uneven ground. At 2,220kg, its kerb weight is only around 31kg, or 1%, below average. Changing direction demands more room. The 14.6m turning circle is around 1.5m, or 11%, wider than average, and the 369.3cm wheelbase is roughly 38cm longer, so tight turns need to be taken with care.
Measurements
Doors
4
Max seats
6
Turning circle
14.6 m
Curb weight
2,220 kg
How the 2024 Ford F‑150 SuperCab 6.5ft bed 4x4's usability and manoeuvrability compare with the average Pickup
Turning circle
1.5 m larger turning circle than the average Pickup
Curb weight
31 kg lighter than the average Pickup
DriveSize manoeuvrability
DriveSize manoeuvrability combines turning circle and footprint, with turning circle weighted more heavily.
A positive percentage means more manoeuvrable than the class average and a negative percentage means less manoeuvrable.
-12%
Less manoeuvrable than the average Pickup

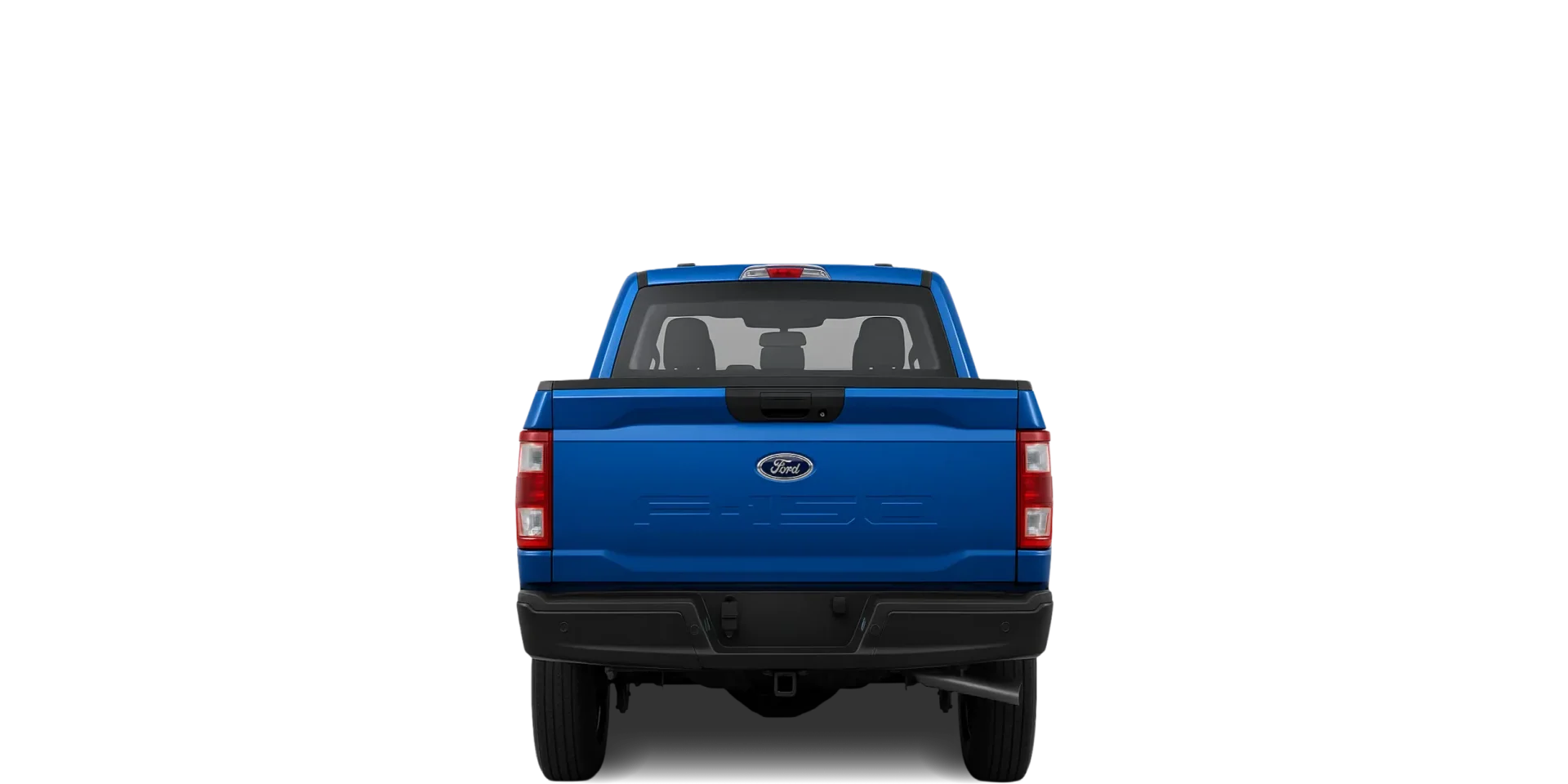

2024 Ford F‑150 SuperCab 6.5ft bed 4x4 rear view
DriveSize overview: 2024 Ford F‑150 SuperCab 6.5ft bed 4x4
Its dimensions and capacities suggest that this 4x4 SuperCab F‑150 may suit drivers who need seating for up to six, above-average cargo space and more ground clearance than the typical pickup. Its 1,764-litre SAE capacity is 23% above the average standard figure, while its 24.9cm ground clearance is 9% higher than average.
It needs plenty of room in return. The truck is 589.3cm long, occupies almost 12.0m² of ground space and has a turning circle 11% wider than average. Every regional parking space is too short for it, so its dimensions are better matched to larger roads, parking areas and storage spaces.
The 2024 Ford F-150 SuperCab 6.5ft bed 4x2 provides a direct comparison with the same SuperCab and 6.5ft bed.
