2024 Ford F‑150 Regular Cab 6.5ft bed 4x4 dimensions and size guide
2024 Ford F‑150 Regular Cab 6.5ft bed 4x4
Add comparisonExterior dimensions
2024 Ford F‑150 Regular Cab 6.5ft bed 4x4 exterior dimensions
This Regular Cab, 4x4 F‑150 with a 6.5ft bed is slightly shorter than the average pickup, but considerably wider. At 531.9cm long, it is nearly 11cm shorter than average, while its 202.9cm body is 8.5cm wider. Extending the mirrors increases the difference to around 20cm, so width is the measurement you are most likely to notice on narrow roads and in parking spaces. At 195.3cm tall, it is 8.5cm, or 5%, above the average pickup height, while its 311.9cm wheelbase is around 19cm shorter. Its overall 10.8m² footprint is only about 2% larger than average, with its shorter length largely balancing the extra width.
Measurements
Length
531.9 cm
Body width
202.9 cm
Width including mirrors
243.1 cm
Height
195.3 cm
Wheelbase
311.9 cm
Ground clearance
24.9 cm
Footprint
DriveSize footprint is overall length multiplied by body width.
10.8 m²
How the 2024 Ford F‑150 Regular Cab 6.5ft bed 4x4's exterior dimensions compare with the average Pickup
Length
10.8 cm shorter than the average Pickup
Body width
8.5 cm wider than the average Pickup
Width including mirrors
20.2 cm wider than the average Pickup
Height
8.5 cm taller than the average Pickup
Wheelbase
19.1 cm shorter wheelbase than the average Pickup
Ground clearance
2.1 cm more ground clearance than the average Pickup
DriveSize footprint
DriveSize footprint compares this car's footprint with the average footprint for the same class.
A positive percentage means a larger footprint and a negative percentage means a smaller footprint. About average means the rounded difference is 0%.
+2%
Larger footprint than the average Pickup
Fast facts
Fast facts
Width is the bigger everyday constraint
Although this Regular Cab, 6.5ft bed F‑150 is nearly 11cm shorter than the average pickup, its 202.9cm body is 8.5cm wider. The mirrors extend that difference to around 20cm, so narrow spaces are likely to feel tighter at the sides.
A stronger-than-average cargo result
The published SAE cargo capacity is 1,764 litres. That places it around 327 litres, or 23%, above the average pickup's standard published figure.
Standard parking spaces are a difficult match
Only the standard spaces in USA/Canada and the Middle East can physically contain this F‑150, and even those fail the comfortable-fit test. The other six regional spaces are too short, too narrow or both.
Ground clearance is 9% above average
The F‑150 sits 24.9cm from the ground, around 2.1cm more than the average pickup. That gives it additional clearance over raised entrances, uneven ground and steep driveways.

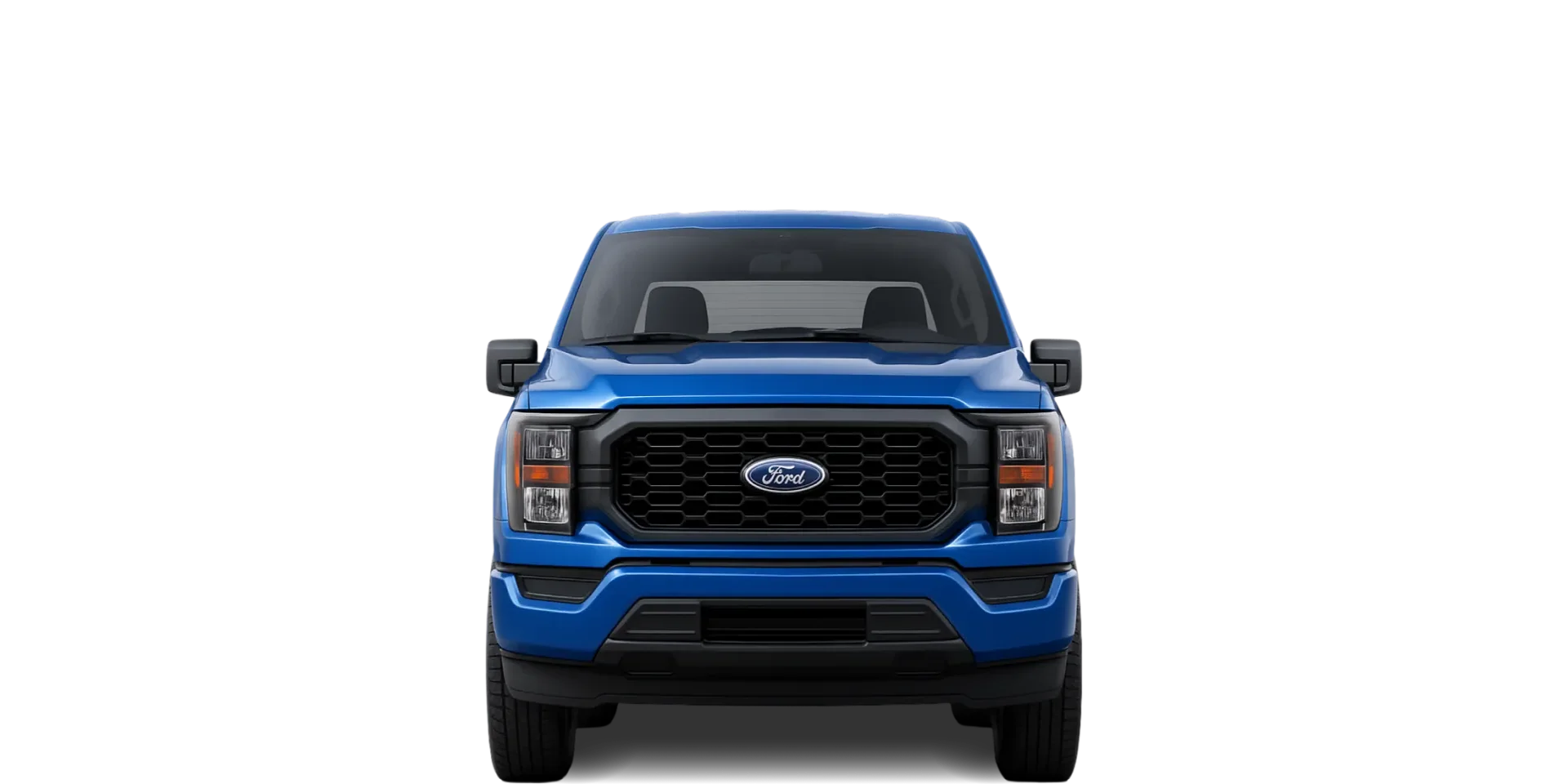

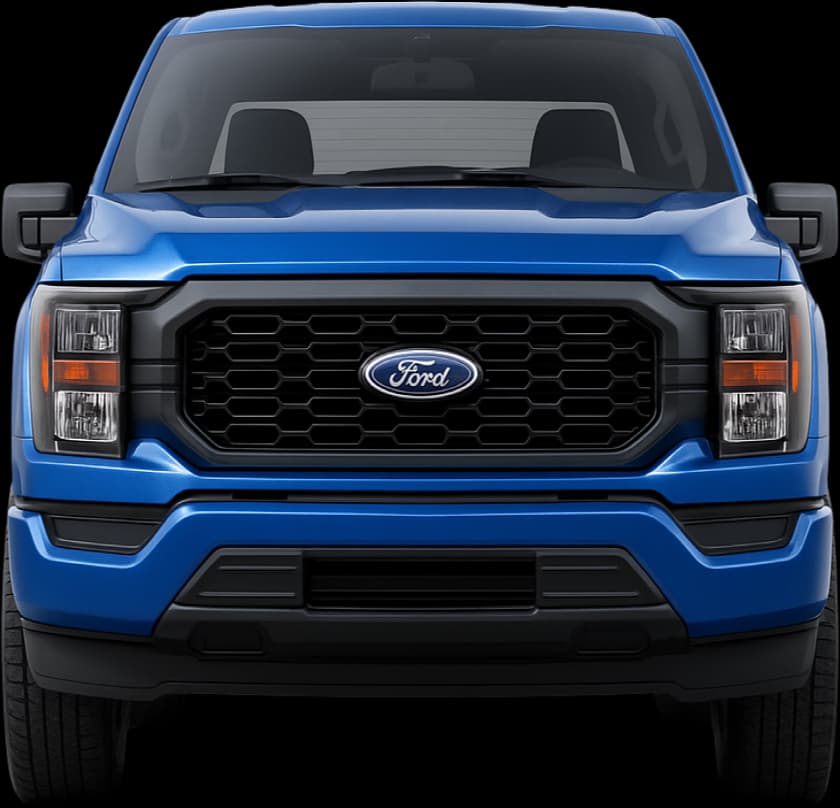

2024 Ford F‑150 Regular Cab 6.5ft bed 4x4 front view
Cargo space & efficiency
2024 Ford F‑150 Regular Cab 6.5ft bed 4x4 cargo capacity and space efficiency
Cargo space is a clear strength for this 4x4. Its 1,764-litre SAE capacity is around 327 litres, or 23%, above the average pickup's standard published figure. That same 1,764-litre capacity is also the largest figure published for this truck. Compared with the average pickup's maximum published capacity, it is around 237 litres, or 16%, higher. Taking both its standard and maximum published cargo capacity into account, this version provides about 163 litres per square metre of ground space. That is roughly 33% above average for a pickup, so the 4x4 uses its exterior footprint efficiently.
Measurements
Standard cargo capacity (SAE)
The standard cargo capacity using SAE, the method commonly used in the US.
This is the manufacturer's normal published figure; it does not imply a particular seat configuration.
1,764 L
Largest cargo capacity (SAE)
The largest cargo capacity using SAE, the method commonly used in the US.
If only one SAE figure is published, the standard and largest values are the same.
1,764 L
Cargo space vs length
This DriveSize metric divides blended cargo volume by overall vehicle length.
Blended cargo uses 65% of the standard figure and 35% of the largest figure, using VDA where available and SAE otherwise.
331.6 L per m
Cargo space vs footprint
This DriveSize metric divides blended cargo volume by footprint.
Blended cargo uses 65% of the standard figure and 35% of the largest figure, using VDA where available and SAE otherwise.
It helps show how efficiently a car turns exterior area into usable cargo space.
163.5 L per m²
How the 2024 Ford F‑150 Regular Cab 6.5ft bed 4x4's cargo space and efficiency compare with the average Pickup
Standard cargo capacity (SAE)
The standard cargo capacity using SAE, the method commonly used in the US.
This is the manufacturer's normal published figure; it does not imply a particular seat configuration.
327 L more cargo volume than the average Pickup
Largest cargo capacity (SAE)
The largest cargo capacity using SAE, the method commonly used in the US.
If only one SAE figure is published, the standard and largest values are the same.
237 L more cargo volume than the average Pickup
DriveSize space efficiency (SAE)
DriveSize space efficiency compares blended cargo volume per square meter of footprint with the class average.
Blended cargo uses 65% of the standard figure and 35% of the largest figure within the selected cargo measurement method.
VDA values compare with VDA class averages, and SAE values compare with SAE class averages. Positive percentages indicate more space efficiency and negative percentages indicate less.
+33%
More space efficient than the average Pickup
Parking
Will the 2024 Ford F‑150 Regular Cab 6.5ft bed 4x4 fit in a standard parking space?
This vehicle is difficult to place within a standard parking space. Only the USA/Canada and Middle East standard-sized spaces are large enough to contain it physically, and neither leaves the surrounding room required to comfortably enter or exit the vehicle. The standard spaces in the United Kingdom and European Union are both too short and too narrow. China, India and Japan fail on length, while Australia fails on width.
DriveSize parking fit score
DriveSize compares the car's width and length with typical parking-space sizes by region.
Vehicle dimensions are rounded up and available side or length clearance is rounded down.
Side clearance is based on body width where available; real spaces can vary because of mirrors, walls, pillars, kerbs, bay markings, and nearby cars.
For an average USA / Canada space: body side clearance is 36 cm per side, and length clearance is 9 cm at each end. Primary constraint: length.
Body side clearance
36 cm
Length clearance (at each end)
9 cm
Primary constraint.
Usability
2024 Ford F‑150 Regular Cab 6.5ft bed 4x4 usability & manoeuvrability
Its turning requirements are more conventional than this F‑150's width might suggest. The 12.6m turning circle is around 0.5m, or 4%, tighter than the pickup average, although the 202.9cm body remains an important consideration when manoeuvring in confined areas. This 4x4 version stands apart more clearly through its 24.9cm ground clearance, which is around 2.1cm, or 9%, above average. Its 2,111kg kerb weight is also roughly 140kg, or 6%, below the pickup norm.
Measurements
Doors
2
Max seats
3
Turning circle
12.6 m
Curb weight
2,111 kg
How the 2024 Ford F‑150 Regular Cab 6.5ft bed 4x4's usability and manoeuvrability compare with the average Pickup
Turning circle
0.5 m smaller turning circle than the average Pickup
Curb weight
140 kg lighter than the average Pickup
DriveSize manoeuvrability
DriveSize manoeuvrability combines turning circle and footprint, with turning circle weighted more heavily.
A positive percentage means more manoeuvrable than the class average and a negative percentage means less manoeuvrable.
+1%
More manoeuvrable than the average Pickup

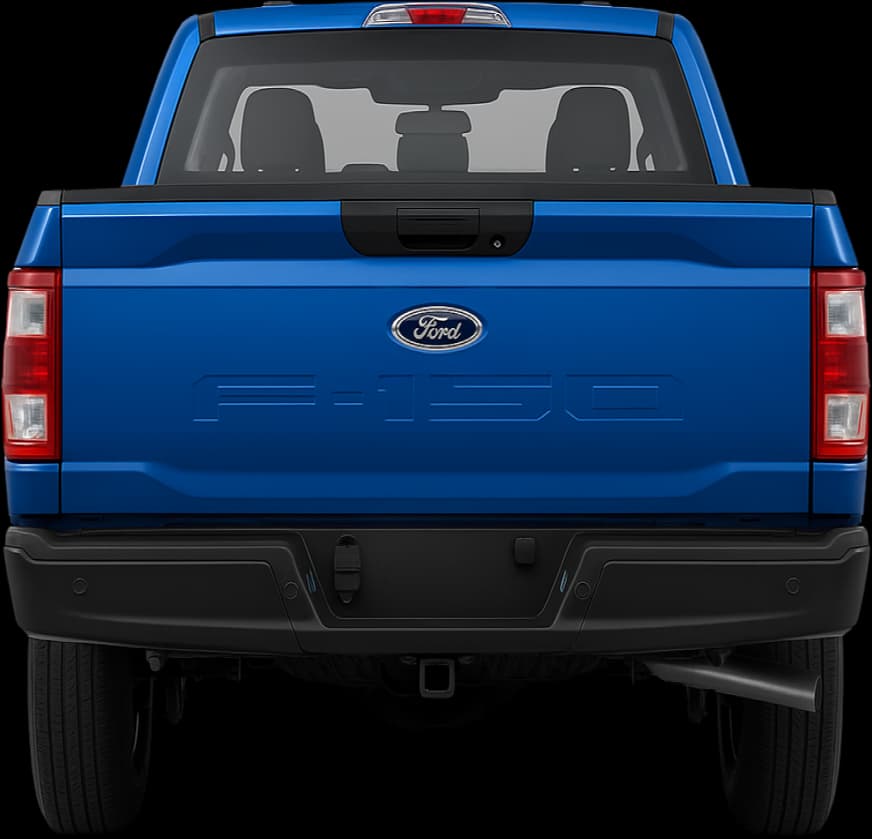

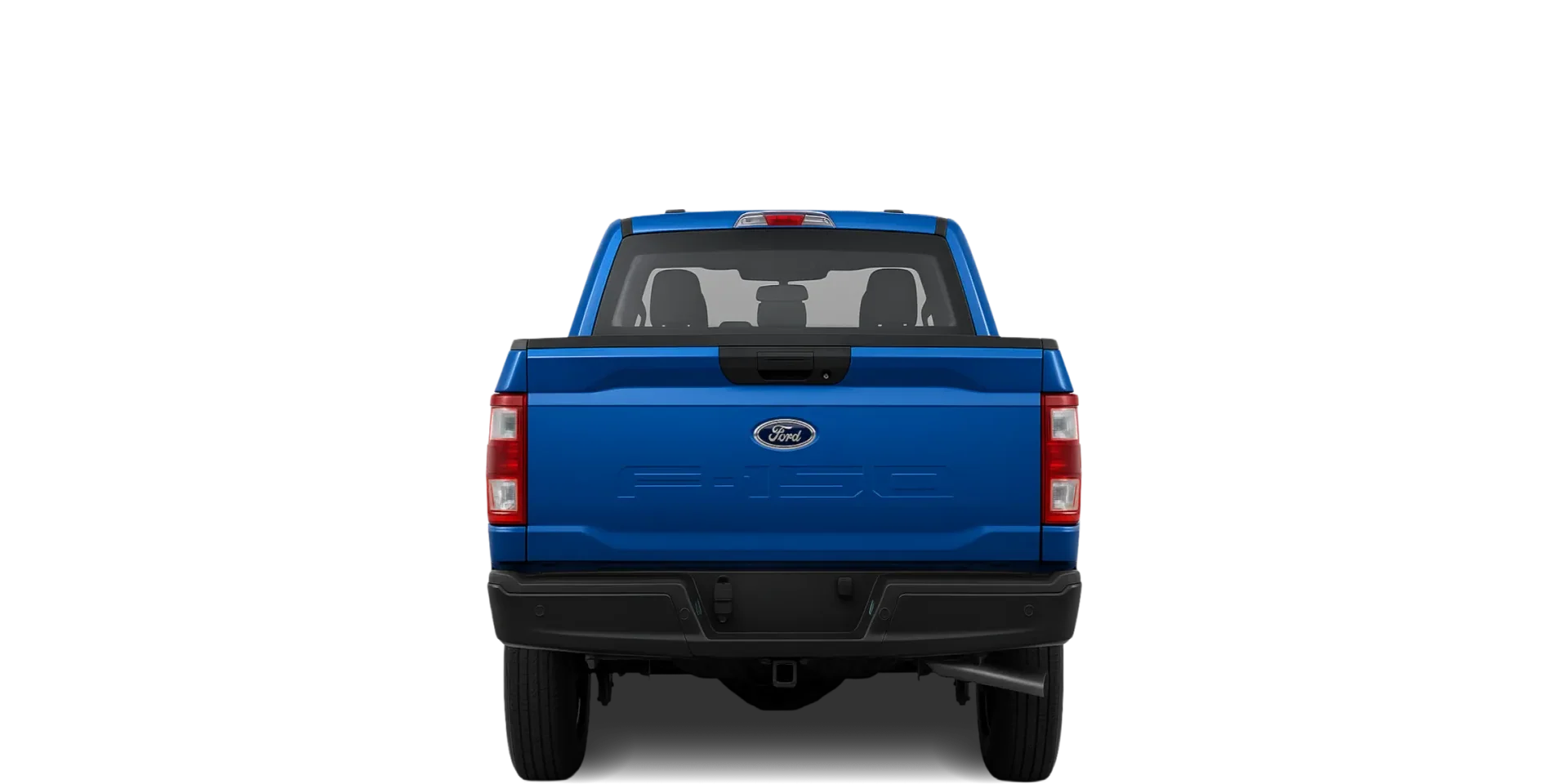

2024 Ford F‑150 Regular Cab 6.5ft bed 4x4 rear view
DriveSize overview: 2024 Ford F‑150 Regular Cab 6.5ft bed 4x4
Based on its dimensions and capacities, this Regular Cab 4x4 with a 6.5ft bed may suit drivers who want strong cargo capacity and more ground clearance than the average pickup, and who have roads, driveways and parking areas suited to a full-size truck. Its 1,764-litre SAE cargo capacity is 23% above the average standard published figure, while its 24.9cm ground clearance is 9% higher than usual.
The main question is whether its width works for the places it will be used. The body width is 202.9cm, and only two of eight regional parking spaces are big enough to fir this F-150. Being nearly 11cm shorter than the average pickup helps with overall length, but does not offset the extra width in tighter spaces.
Compare this 4x4 with the otherwise matching 2024 Ford F-150 Regular Cab 6.5ft bed 4x2 to see how the drivetrain versions differ in height and ground clearance.
