2024 Ford F‑150 SuperCrew 6.5ft bed 4x2 dimensions and size guide
2024 Ford F‑150 SuperCrew 6.5ft bed 4x2
Add comparisonExterior dimensions
2024 Ford F‑150 SuperCrew 6.5ft bed 4x2 exterior dimensions
This 6.5ft-bed SuperCrew F-150 measures 619.3cm from end to end, which is around 77cm, or 14%, longer than the average pickup. Its 399.3cm wheelbase is roughly 68cm, or 21%, longer than average, so garages, driveways and turning areas need to accommodate this long vehicle. The 202.9cm body is around 8.5cm wider than the pickup norm, and its width including mirrors is 243.1cm, about 20cm more than average. It stands 196.9cm high, roughly 10cm higher. Overall, its footprint reaches about 12.6m², around 19% larger than the average pickup.
Measurements
Length
619.3 cm
Body width
202.9 cm
Width including mirrors
243.1 cm
Height
196.9 cm
Wheelbase
399.3 cm
Ground clearance
24.6 cm
Footprint
DriveSize footprint is overall length multiplied by body width.
12.6 m²
How the 2024 Ford F‑150 SuperCrew 6.5ft bed 4x2's exterior dimensions compare with the average Pickup
Length
76.6 cm longer than the average Pickup
Body width
8.5 cm wider than the average Pickup
Width including mirrors
20.2 cm wider than the average Pickup
Height
10.1 cm taller than the average Pickup
Wheelbase
68.3 cm longer wheelbase than the average Pickup
Ground clearance
1.8 cm more ground clearance than the average Pickup
DriveSize footprint
DriveSize footprint compares this car's footprint with the average footprint for the same class.
A positive percentage means a larger footprint and a negative percentage means a smaller footprint. About average means the rounded difference is 0%.
+19%
Larger footprint than the average Pickup
Fast facts
Fast facts
More than six metres long
At 619.3cm, this SuperCrew is around 77cm, or 14%, longer than the average pickup. That makes long garages, large driveways and spaces designed for full-size trucks especially useful for this truck.
Six seats with 23% more standard cargo
The 1,764-litre published SAE capacity is around 327 litres above the average pickup's standard figure. That 23% advantage gives useful extra room when seating for up to six and a larger cargo load are both needed.
Turning circle is 19% wider than average
Its 15.6m turning circle is around 2.5m wider than the pickup norm. Tight corners and changes of direction therefore require substantially more room and care than usual.
No regional standard bay is long enough
All eight standard regional parking-space sizes tested by DriveSize are too short for this F‑150. There is also insufficient width in the United Kingdom, European Union and Australian spaces.

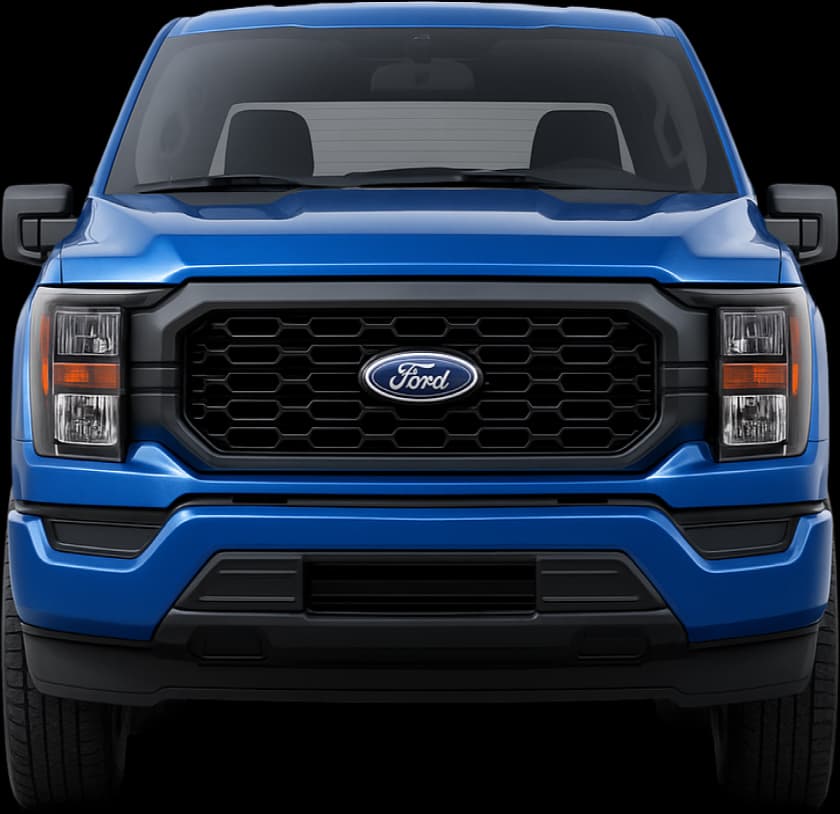

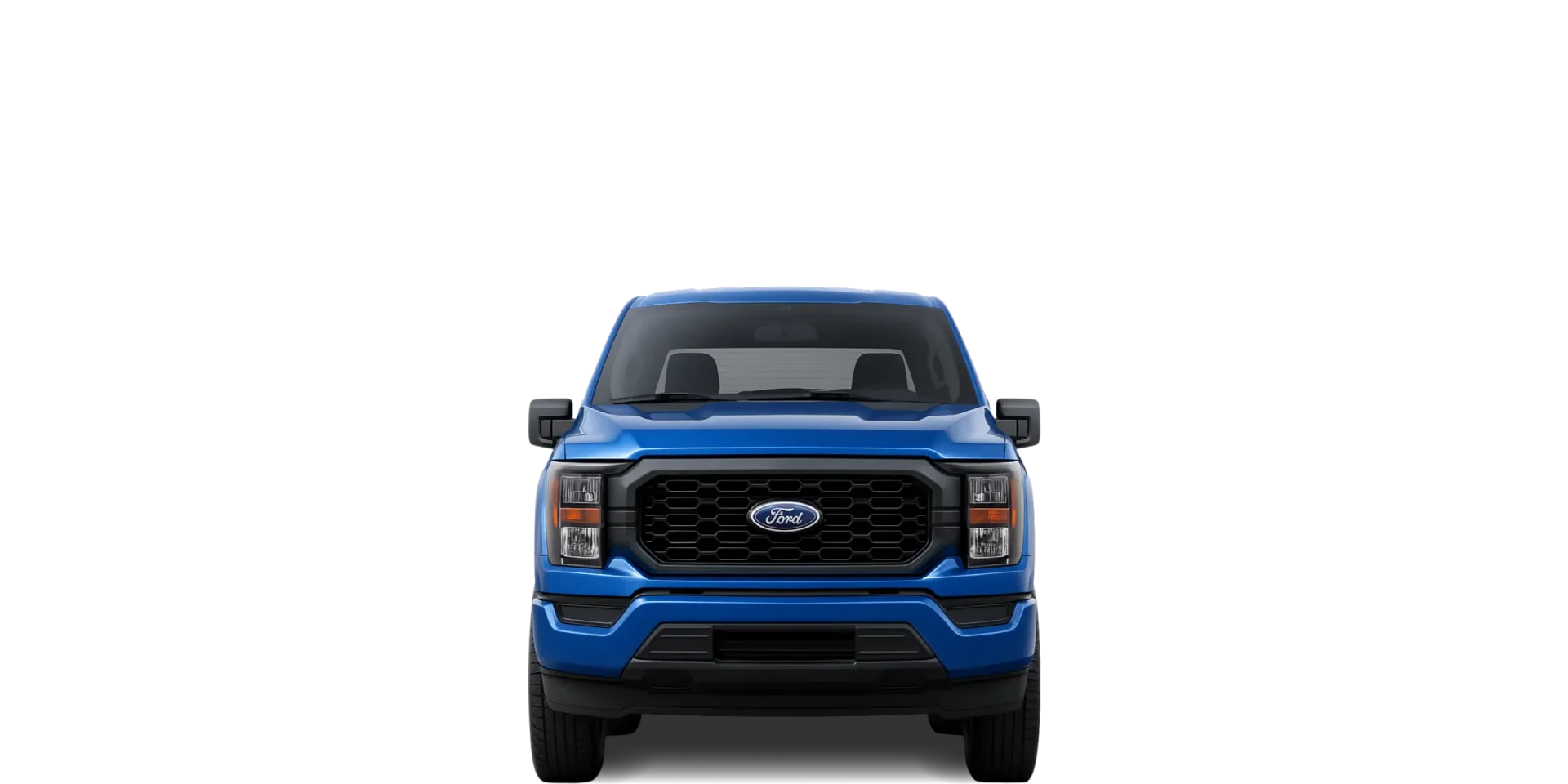

2024 Ford F‑150 SuperCrew 6.5ft bed 4x2 front view
Cargo space & efficiency
2024 Ford F‑150 SuperCrew 6.5ft bed 4x2 cargo capacity and space efficiency
This SuperCrew with a 6.5ft bed combines seating for up to six with 1,764 litres of published SAE cargo capacity. That is around 327 litres, or 23%, above the average pickup's standard figure, meaning it provides roughly a fifth more cargo room than usual for the class. That 1,764-litre figure also represents its maximum published capacity. Compared with the average pickup's maximum, it is around 237 litres, or 16%, larger. Combining the standard seats-up cargo figure with maximum cargo capacity, the F‑150 provides about 140 litres per square metre of ground space. That is roughly 14% above average for a pickup, meaning it provides more cargo capacity for each square metre of ground space than the class norm.
Measurements
Standard cargo capacity (SAE)
The standard cargo capacity using SAE, the method commonly used in the US.
This is the manufacturer's normal published figure; it does not imply a particular seat configuration.
1,764 L
Largest cargo capacity (SAE)
The largest cargo capacity using SAE, the method commonly used in the US.
If only one SAE figure is published, the standard and largest values are the same.
1,764 L
Cargo space vs length
This DriveSize metric divides blended cargo volume by overall vehicle length.
Blended cargo uses 65% of the standard figure and 35% of the largest figure, using VDA where available and SAE otherwise.
284.8 L per m
Cargo space vs footprint
This DriveSize metric divides blended cargo volume by footprint.
Blended cargo uses 65% of the standard figure and 35% of the largest figure, using VDA where available and SAE otherwise.
It helps show how efficiently a car turns exterior area into usable cargo space.
140.4 L per m²
How the 2024 Ford F‑150 SuperCrew 6.5ft bed 4x2's cargo space and efficiency compare with the average Pickup
Standard cargo capacity (SAE)
The standard cargo capacity using SAE, the method commonly used in the US.
This is the manufacturer's normal published figure; it does not imply a particular seat configuration.
327 L more cargo volume than the average Pickup
Largest cargo capacity (SAE)
The largest cargo capacity using SAE, the method commonly used in the US.
If only one SAE figure is published, the standard and largest values are the same.
237 L more cargo volume than the average Pickup
DriveSize space efficiency (SAE)
DriveSize space efficiency compares blended cargo volume per square meter of footprint with the class average.
Blended cargo uses 65% of the standard figure and 35% of the largest figure within the selected cargo measurement method.
VDA values compare with VDA class averages, and SAE values compare with SAE class averages. Positive percentages indicate more space efficiency and negative percentages indicate less.
+14%
More space efficient than the average Pickup
Parking
Will the 2024 Ford F‑150 SuperCrew 6.5ft bed 4x2 fit in a standard parking space?
This exceptionally long SuperCrew exceeds the standard parking-space length in every one of the eight regional spaces below. Even the larger standard spaces for USA/Canada and the Middle East cannot physically contain it, leaving no comfortable-fit result anywhere. Length is the deciding issue in China, India, Japan, USA/Canada and the Middle East. Width creates an additional problem in the United Kingdom, European Union and Australia, so everyday parking calls for spaces intended for especially large vehicles.
DriveSize parking fit score
DriveSize compares the car's width and length with typical parking-space sizes by region.
Vehicle dimensions are rounded up and available side or length clearance is rounded down.
Side clearance is based on body width where available; real spaces can vary because of mirrors, walls, pillars, kerbs, bay markings, and nearby cars.
For an average USA / Canada space: exceeds the bay's length by 70 cm.
Body side clearance
36 cm
Length over bay
70 cm
Overall length. Primary constraint.
Usability
2024 Ford F‑150 SuperCrew 6.5ft bed 4x2 usability & manoeuvrability
The long wheelbase and wide turning circle make manoeuvring the defining usability consideration. Its 15.6m turning circle is around 2.5m, or 19%, wider than the average pickup turning circle, while the 399.3cm wheelbase adds roughly 68cm, or 21%. Tight turns and changes of direction need considerably more space and more consideration. Ground clearance is 24.6cm, around 1.8cm, or 8%, above the pickup average. That gives this F‑150 some extra breathing room over steep entrances and uneven surfaces.
Measurements
Doors
4
Max seats
6
Turning circle
15.6 m
How the 2024 Ford F‑150 SuperCrew 6.5ft bed 4x2's usability and manoeuvrability compare with the average Pickup
Turning circle
2.5 m larger turning circle than the average Pickup
DriveSize manoeuvrability
DriveSize manoeuvrability combines turning circle and footprint, with turning circle weighted more heavily.
A positive percentage means more manoeuvrable than the class average and a negative percentage means less manoeuvrable.
-17%
Less manoeuvrable than the average Pickup

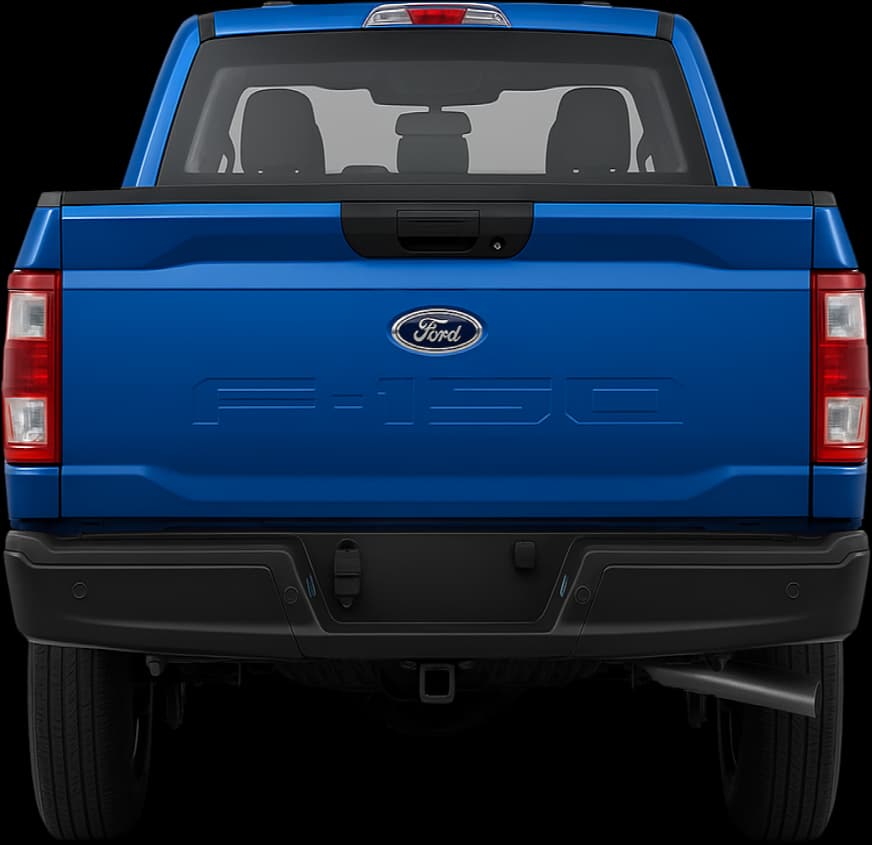

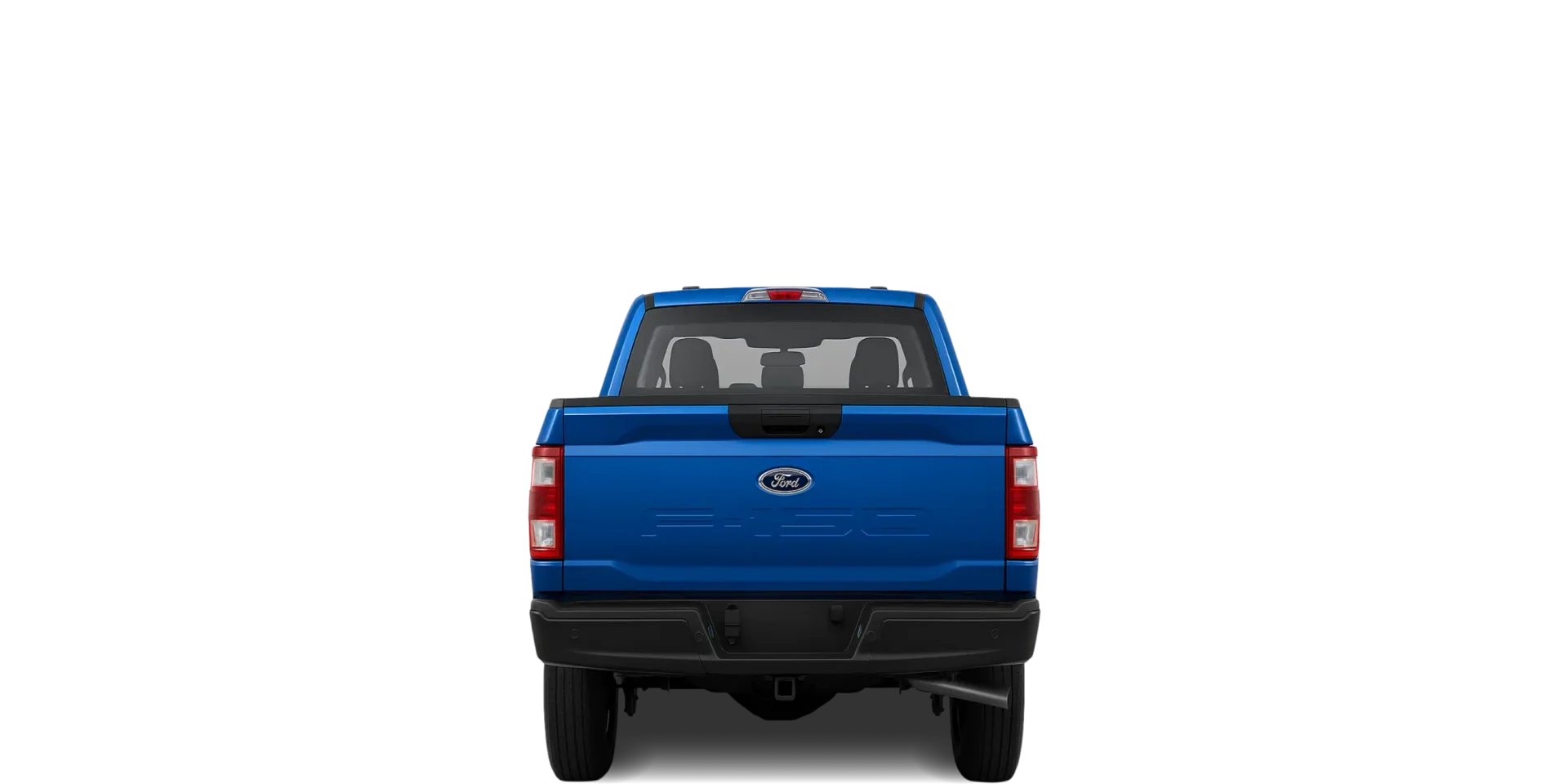

2024 Ford F‑150 SuperCrew 6.5ft bed 4x2 rear view
DriveSize overview: 2024 Ford F‑150 SuperCrew 6.5ft bed 4x2
Looking at its dimensions and capacities, this 6.5ft-bed SuperCrew may suit drivers who need seating for up to six alongside substantially more cargo space than the average pickup. Its 1,764-litre standard SAE capacity is 23% above average, while the 24.6cm ground clearance is also 8% higher than the pickup norm.
The cost of that capacity is the amount of road space the truck requires. It is 619.3cm long, has a footprint around 19% larger than average and needs 19% more turning room. None of the eight regional parking bays are long enough, so it is best matched with generous sized roads, parking and storage.
The four-wheel-drive 2024 Ford F-150 SuperCrew 6.5ft bed 4x4 is the most direct comparison, matching its SuperCrew cab and 6.5ft bed.
