2022 Ford F‑150 Lightning dimensions and size guide
2022 Ford F‑150 Lightning
Add comparisonExterior dimensions
2022 Ford F‑150 Lightning exterior dimensions
The F‑150 Lightning's height is one of its more noticeable dimensions. At 198.9cm, it stands around 12cm, or 6%, above the pickup average. Its 591.1cm length is also roughly 48cm, or 9%, above average, making overhead clearance and the room in front and behind worth checking before parking in a garage. The body measures 203.2cm wide, around 8.8cm more than the pickup norm, while the mirrors extend the full width to 243.8cm, about 21cm more. Its 369.6cm wheelbase is nearly 39cm longer than average. Altogether, the Lightning covers about 12.0m² of ground, around 13% more than the average pickup.
Measurements
Length
591.1 cm
Width (excluding mirrors)
203.2 cm
Width (including mirrors)
243.8 cm
Height
198.9 cm
Wheelbase
369.6 cm
Ground clearance
21.3 cm
Footprint
DriveSize footprint is overall length multiplied by body width excluding mirrors.
12 m²
How the 2022 Ford F‑150 Lightning's exterior dimensions compare with the average Pickup
Length
48.4 cm longer than the average Pickup
Width (excluding mirrors)
8.8 cm wider than the average Pickup
Width (including mirrors)
20.9 cm wider than the average Pickup
Height
12.1 cm taller than the average Pickup
Wheelbase
38.6 cm longer wheelbase than the average Pickup
Ground clearance
1.5 cm less ground clearance than the average Pickup
DriveSize footprint score
DriveSize footprint score compares this car's footprint with the average footprint for the same class.
A score near 100% means it is close to class average size. Lower scores mean it sits further from that average, either smaller or larger.
87%
13% larger than the average Pickup
Fast facts
Fast facts
Nearly half a tonne heavier than average
At 2,728kg, the F‑150 Lightning weighs around 477kg, or 21%, more than the average pickup. That is one of its largest differences from the class norm.
Standard cargo capacity is 4% above average
Its 1,495-litre published SAE cargo figure is around 58 litres more than the average pickup's standard capacity. That keeps its everyday cargo size just ahead of the class norm while still seating up to five.
Cargo efficiency is almost average
Using both its seats-up and maximum cargo capacities, the Lightning provides about 125 litres per square metre of ground space. That is only around 1% above the pickup average.
Eight parking spaces, no physical fits
The Lightning is too long for every standard regional parking space tested by DriveSize. Those standard spaces in the United Kingdom, European Union and Australia also lack sufficient width.

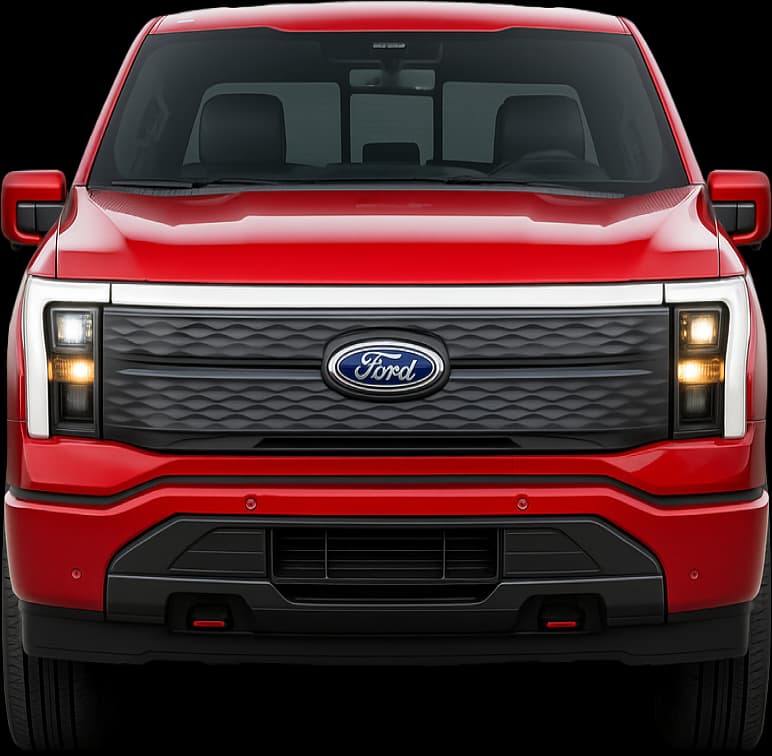

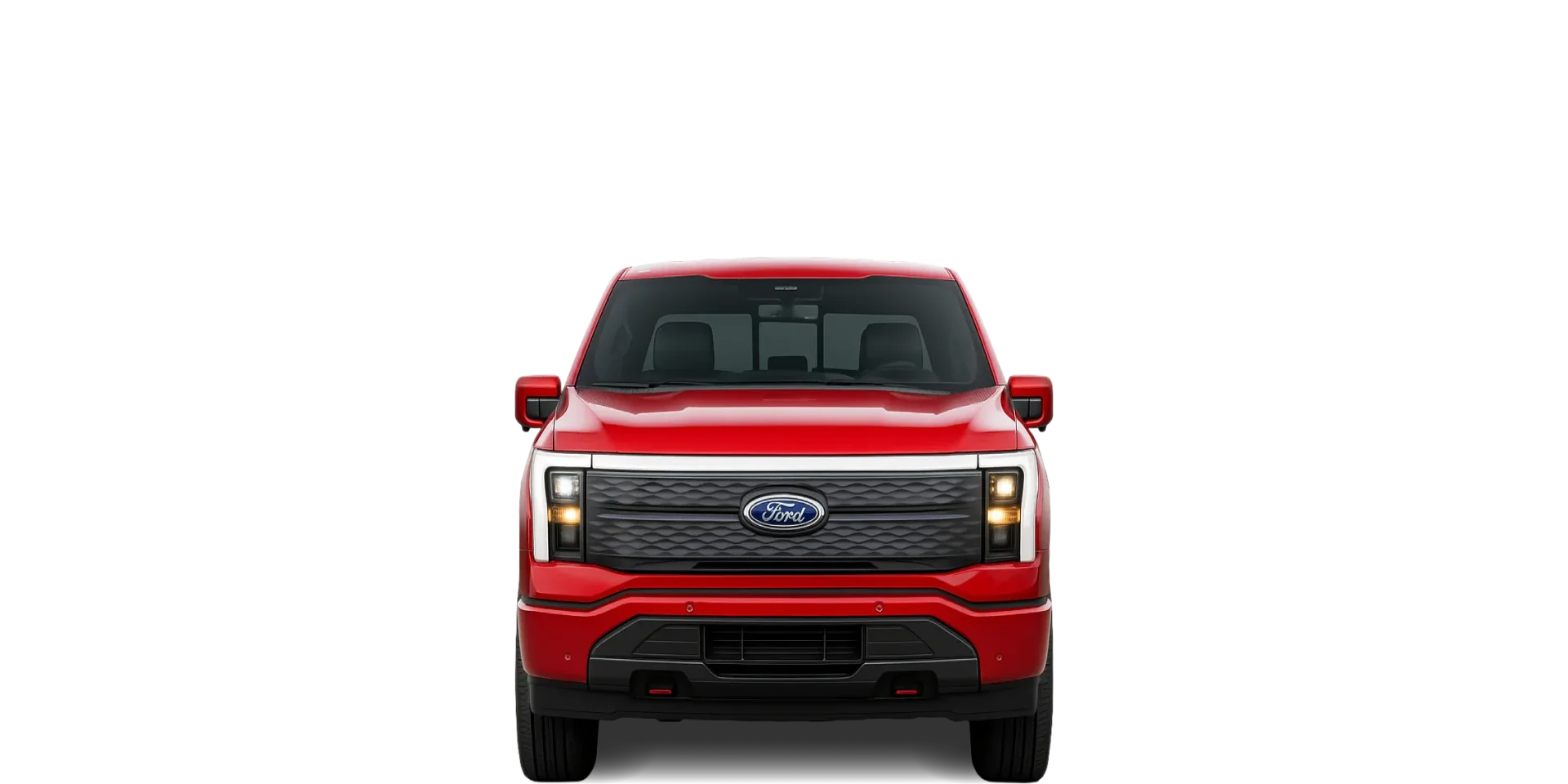

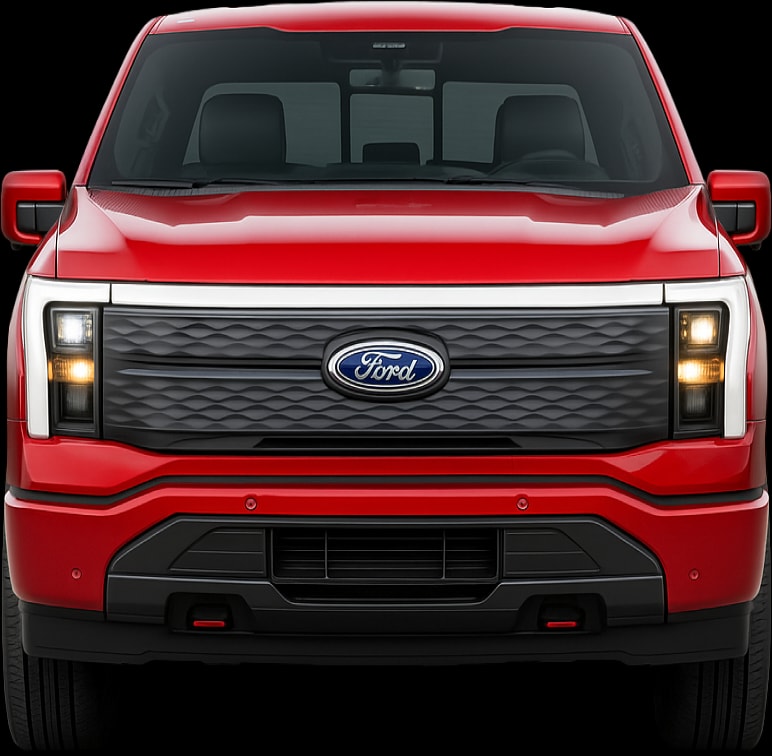

2022 Ford F‑150 Lightning front view
Cargo space & efficiency
2022 Ford F‑150 Lightning cargo capacity and space efficiency
With five seats, the 2022 F‑150 Lightning provides 1,495 litres of published SAE cargo capacity. This is around 58 litres, or 4%, above the average pickup's standard figure, putting its normal cargo provision slightly ahead of the class norm. Maximum published capacity is also 1,495 litres. On this comparison, the Lightning is around 32 litres, or 2%, below average, a small difference. Using both its seats-up and maximum cargo capacities, it provides about 125 litres per square metre of ground space. That places cargo capacity per square metre only around 1% above the pickup average, making it almost exactly typical for the class.
Measurements
Standard cargo capacity (SAE)
The standard cargo capacity using SAE, the method commonly used in the US.
This is the manufacturer's normal published figure; it does not imply a particular seat configuration.
1,495 L
Largest cargo capacity (SAE)
The largest cargo capacity using SAE, the method commonly used in the US.
If only one SAE figure is published, the standard and largest values are the same.
1,495 L
Frunk capacity
400 L
Cargo space vs length
This DriveSize metric divides blended cargo volume by overall vehicle length.
Blended cargo uses 65% of the standard figure and 35% of the largest figure, using VDA where available and SAE otherwise.
252.9 L per m
Cargo space vs footprint
This DriveSize metric divides blended cargo volume by footprint.
Blended cargo uses 65% of the standard figure and 35% of the largest figure, using VDA where available and SAE otherwise.
It helps show how efficiently a car turns exterior area into usable cargo space.
124.5 L per m²
How the 2022 Ford F‑150 Lightning's cargo space and efficiency compare with the average Pickup
Standard cargo capacity (SAE)
The standard cargo capacity using SAE, the method commonly used in the US.
This is the manufacturer's normal published figure; it does not imply a particular seat configuration.
58 L more cargo volume than the average Pickup
Largest cargo capacity (SAE)
The largest cargo capacity using SAE, the method commonly used in the US.
If only one SAE figure is published, the standard and largest values are the same.
32 L less cargo volume than the average Pickup
DriveSize space efficiency score (SAE)
DriveSize space efficiency compares blended cargo volume per square meter of footprint with the class average.
Blended cargo uses 65% of the standard figure and 35% of the largest figure within the selected cargo measurement method.
VDA scores compare with VDA class averages, and SAE scores compare with SAE class averages. Around 100% means in line with class average.
101%
Above class average (+1%)
Parking
Will the 2022 Ford F‑150 Lightning fit in a standard parking space?
Length rules out every standard regional parking-space size in the DriveSize comparison. None of the eight bays can physically contain the Lightning, including the larger standard spaces used in USA/Canada and the Middle East. China, India, Japan, USA/Canada and the Middle East fall short on length. In the United Kingdom, European Union and Australia, width creates a second constraint, so finding spaces intended for larger vehicles will be important.
DriveSize parking fit score
DriveSize compares the car's width and length with typical parking-space sizes by region.
Vehicle dimensions are rounded up and available side or length clearance is rounded down.
Side clearance is based on body width excluding mirrors where available; real spaces can vary because of mirrors, walls, pillars, kerbs, bay markings, and nearby cars.
For an average USA / Canada space: exceeds the bay's length by 42 cm.
Body side clearance (excluding mirrors)
35.5 cm
Length over bay
42 cm
Overall length. Primary constraint.
Usability
2022 Ford F‑150 Lightning usability & manoeuvrability
Weight is the clearest departure from the pickup norm. The Lightning's 2,728kg kerb weight is around 477kg, or 21%, above average. Its 21.3cm ground clearance is around 1.5cm, or 7%, below average, leaving slightly less space beneath the vehicle over steep entrances and uneven ground. Its 14.6m turning circle is roughly 1.5m, or 11%, wider than average, and the wheelbase is around 39cm longer. Car parks, narrow streets and confined changes of direction will therefore call for more room than they would in a typical pickup.
Measurements
Doors
4
Max seats
5
Turning circle
14.6 m
Curb weight
2,728 kg
How the 2022 Ford F‑150 Lightning's usability and manoeuvrability compare with the average Pickup
Turning circle
1.5 m larger turning circle than the average Pickup
Curb weight
477 kg heavier than the average Pickup
DriveSize manoeuvrability score
DriveSize manoeuvrability score combines turning circle and footprint, with turning circle weighted more heavily.
Around 100% means in line with the class average; higher scores indicate better manoeuvrability relative to similar cars.
88%
12% less manoeuvrable than the average Pickup

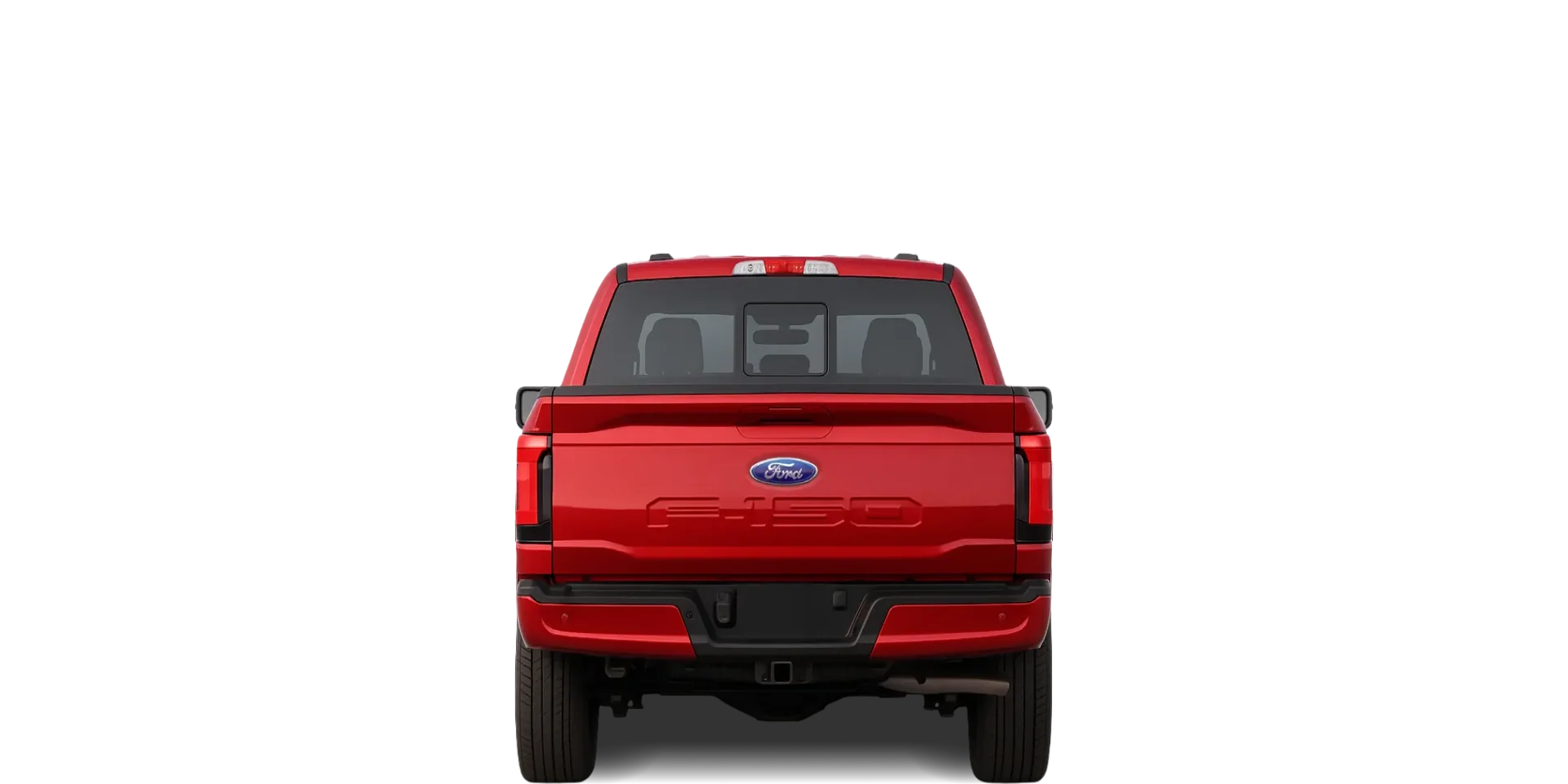

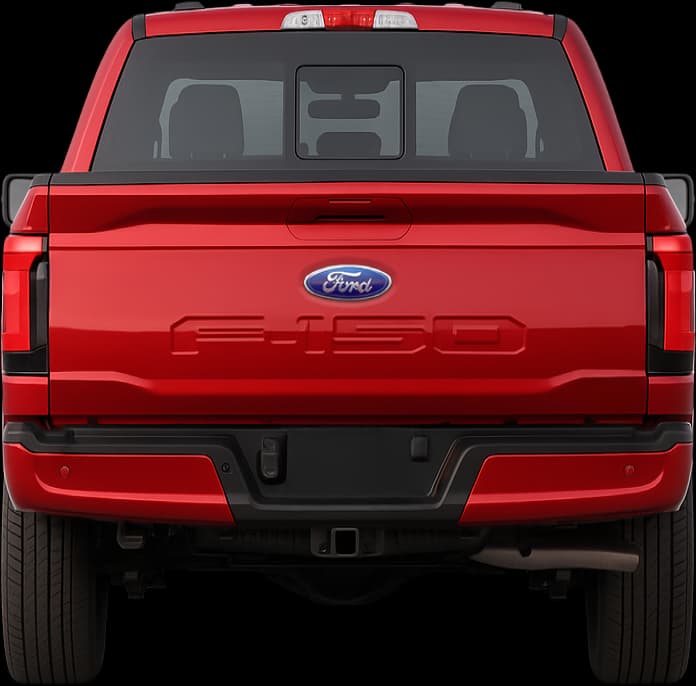

2022 Ford F‑150 Lightning rear view
DriveSize overview: 2022 Ford F‑150 Lightning
Considering its dimensions and capacities, the F‑150 Lightning may suit someone who wants seating for five and an average amount of cargo room for a pickup. Its standard SAE figure is 4% above average, its maximum figure is only 2% below and its overall cargo efficiency is almost exactly typical for the class.
Its size and weight are the more substantial considerations. The Lightning is 591.1cm long, around 21% heavier than average and too long for all eight regional parking spaces. Generous parking and storage will therefore make it easier to accommodate.
The 2024 Chevrolet Silverado EV is a useful alternative if you want to compare two large electric pickups with closely matched length and width.
