2024 Ford F‑150 SuperCrew 5.5ft bed 4x2 dimensions and size guide
2024 Ford F‑150 SuperCrew 5.5ft bed 4x2
Add comparisonExterior dimensions
2024 Ford F‑150 SuperCrew 5.5ft bed 4x2 exterior dimensions
At 589.3cm long, this SuperCrew extends nearly 47cm, or 9%, beyond the average pickup length, so the room in front of and behind it is likely to matter a lot in a garage or parking space. Its 369.3cm wheelbase is roughly 38cm longer than average too, contributing to its substantial overall proportions. The body is 202.9cm wide, around 8.5cm more than the pickup average, while its width including mirrors is 243.1cm, about 20cm more. It stands 191.5cm high, roughly 5cm above average. Together, its length and width create an almost 12.0m² footprint, around 13% larger than the pickup norm.
Measurements
Length
589.3 cm
Body width
202.9 cm
Width including mirrors
243.1 cm
Height
191.5 cm
Wheelbase
369.3 cm
Ground clearance
20.8 cm
Footprint
DriveSize footprint is overall length multiplied by body width.
12 m²
How the 2024 Ford F‑150 SuperCrew 5.5ft bed 4x2's exterior dimensions compare with the average Pickup
Length
46.6 cm longer than the average Pickup
Body width
8.5 cm wider than the average Pickup
Width including mirrors
20.2 cm wider than the average Pickup
Height
4.7 cm taller than the average Pickup
Wheelbase
38.3 cm longer wheelbase than the average Pickup
Ground clearance
2 cm less ground clearance than the average Pickup
DriveSize footprint
DriveSize footprint compares this car's footprint with the average footprint for the same class.
A positive percentage means a larger footprint and a negative percentage means a smaller footprint. About average means the rounded difference is 0%.
+13%
Larger footprint than the average Pickup
Fast facts
Fast facts
Six seats with cargo space close to average
The SuperCrew seats up to six and provides 1,495 litres of published SAE cargo capacity. That is around 58 litres, or 4%, above the average pickup's standard figure, keeping load space close to the class norm when passengers and cargo need to travel together.
Maximum capacity is only 2% below average
Its maximum published SAE capacity is also 1,495 litres. That is just around 32 litres less than the average pickup's maximum figure, which a small difference in a vehicle of this size.
Cargo efficiency is almost average
Using both the standard seats-up cargo figure and its maximum cargo capacity, this F‑150 provides about 125 litres per square metre of ground space. That is only around 2% above the pickup average.
Standard marked bays fall short
All eight regional parking-spaces tested on DriveSize are too short for this SuperCrew. The standard spaces in the United Kingdom, European Union and Australia are also too narrow.

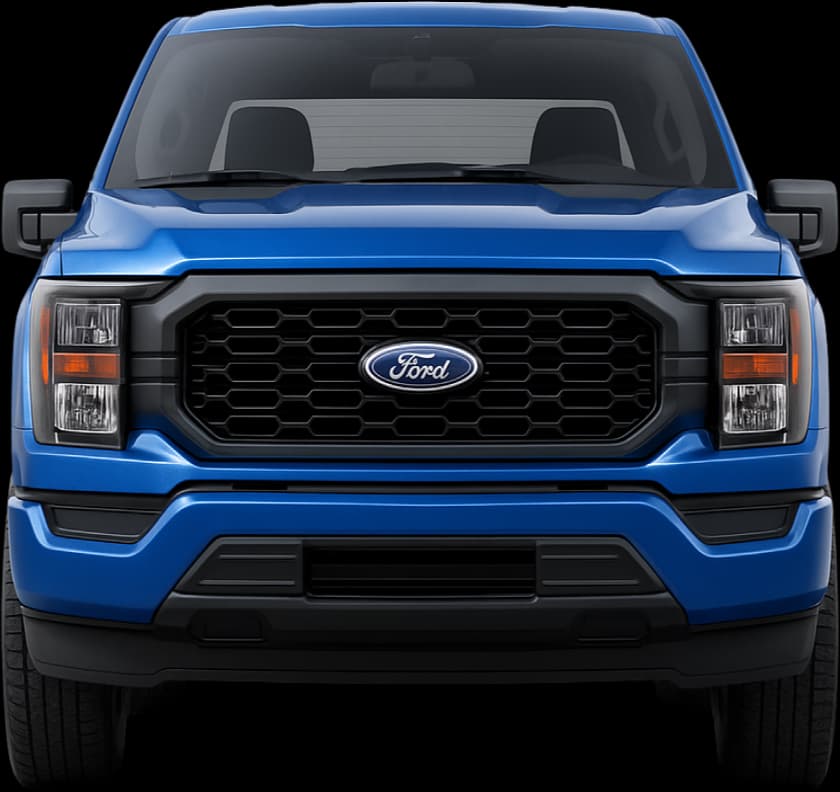

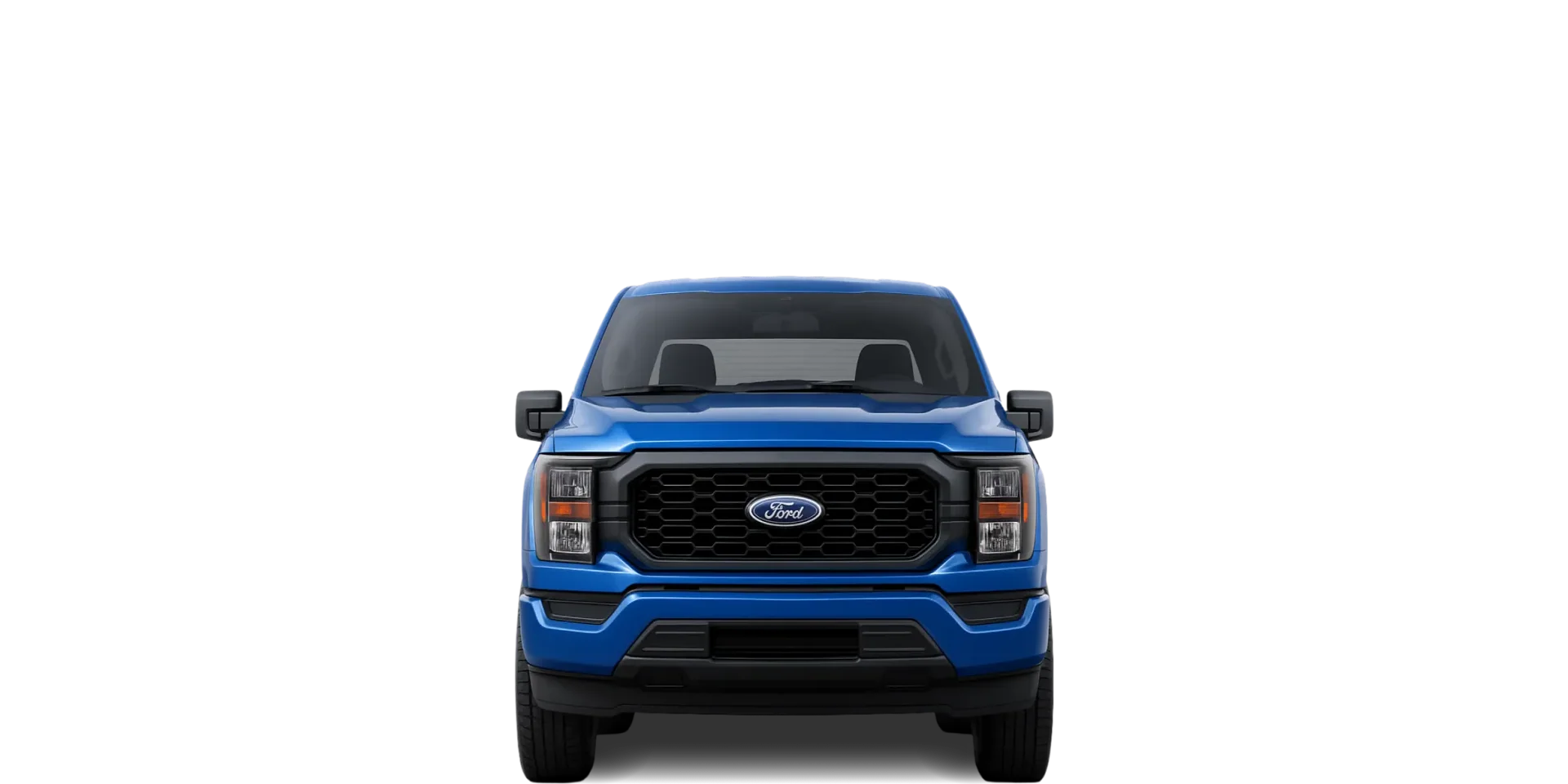

2024 Ford F‑150 SuperCrew 5.5ft bed 4x2 front view
Cargo space & efficiency
2024 Ford F‑150 SuperCrew 5.5ft bed 4x2 cargo capacity and space efficiency
With seating for up to six, this SuperCrew provides 1,495 litres of published SAE cargo capacity. That is around 58 litres, or 4%, more than the average pickup's standard figure, giving it slightly more cargo room than usual for the class. Its maximum published capacity remains 1,495 litres. Compared with the average pickup's maximum figure, it is around 32 litres, or 2%, smaller, making the difference modest rather than substantial. Using the standard cargo figure from the seats-up comparison together with maximum cargo capacity, the SuperCrew provides about 125 litres per square metre of ground space. That is roughly 2% above average for a pickup, placing its cargo capacity per square metre very close to the class norm.
Measurements
Standard cargo capacity (SAE)
The standard cargo capacity using SAE, the method commonly used in the US.
This is the manufacturer's normal published figure; it does not imply a particular seat configuration.
1,495 L
Largest cargo capacity (SAE)
The largest cargo capacity using SAE, the method commonly used in the US.
If only one SAE figure is published, the standard and largest values are the same.
1,495 L
Cargo space vs length
This DriveSize metric divides blended cargo volume by overall vehicle length.
Blended cargo uses 65% of the standard figure and 35% of the largest figure, using VDA where available and SAE otherwise.
253.7 L per m
Cargo space vs footprint
This DriveSize metric divides blended cargo volume by footprint.
Blended cargo uses 65% of the standard figure and 35% of the largest figure, using VDA where available and SAE otherwise.
It helps show how efficiently a car turns exterior area into usable cargo space.
125 L per m²
How the 2024 Ford F‑150 SuperCrew 5.5ft bed 4x2's cargo space and efficiency compare with the average Pickup
Standard cargo capacity (SAE)
The standard cargo capacity using SAE, the method commonly used in the US.
This is the manufacturer's normal published figure; it does not imply a particular seat configuration.
58 L more cargo volume than the average Pickup
Largest cargo capacity (SAE)
The largest cargo capacity using SAE, the method commonly used in the US.
If only one SAE figure is published, the standard and largest values are the same.
32 L less cargo volume than the average Pickup
DriveSize space efficiency (SAE)
DriveSize space efficiency compares blended cargo volume per square meter of footprint with the class average.
Blended cargo uses 65% of the standard figure and 35% of the largest figure within the selected cargo measurement method.
VDA values compare with VDA class averages, and SAE values compare with SAE class averages. Positive percentages indicate more space efficiency and negative percentages indicate less.
+2%
More space efficient than the average Pickup
Parking
Will the 2024 Ford F‑150 SuperCrew 5.5ft bed 4x2 fit in a standard parking space?
This SuperCrew needs a parking space intended for something larger than the regional average vehicle. Its length prevents a physical fit in all eight regional spaces tested by DriveSize, including USA/Canada and the Middle East, and none leave enough surrounding room for a comfortable fit. Length is the only failing measurement in China, India, Japan, USA/Canada and the Middle East. The standard spaces in the United Kingdom, European Union and Australia are too narrow as well, so both ends and both sides need checking in tighter parking locations.
DriveSize parking fit score
DriveSize compares the car's width and length with typical parking-space sizes by region.
Vehicle dimensions are rounded up and available side or length clearance is rounded down.
Side clearance is based on body width where available; real spaces can vary because of mirrors, walls, pillars, kerbs, bay markings, and nearby cars.
For an average USA / Canada space: exceeds the bay's length by 40 cm.
Body side clearance
36 cm
Length over bay
40 cm
Overall length. Primary constraint.
Usability
2024 Ford F‑150 SuperCrew 5.5ft bed 4x2 usability & manoeuvrability
Tight changes of direction call for extra care in this SuperCrew. Its 14.6m turning circle is around 1.5m, or 11%, wider than the pickup average, while the 369.3cm wheelbase is roughly 38cm longer. That combination makes confined turns more demanding than in a typical pickup. The 20.8cm ground clearance is around 2cm, or 9%, below average, leaving less breathing room over steep entrances and uneven surfaces than the pickup norm. At 2,126kg, the F‑150 is nevertheless roughly 125kg, or 6%, lighter than average.
Measurements
Doors
4
Max seats
6
Turning circle
14.6 m
Curb weight
2,126 kg
How the 2024 Ford F‑150 SuperCrew 5.5ft bed 4x2's usability and manoeuvrability compare with the average Pickup
Turning circle
1.5 m larger turning circle than the average Pickup
Curb weight
125 kg lighter than the average Pickup
DriveSize manoeuvrability
DriveSize manoeuvrability combines turning circle and footprint, with turning circle weighted more heavily.
A positive percentage means more manoeuvrable than the class average and a negative percentage means less manoeuvrable.
-12%
Less manoeuvrable than the average Pickup

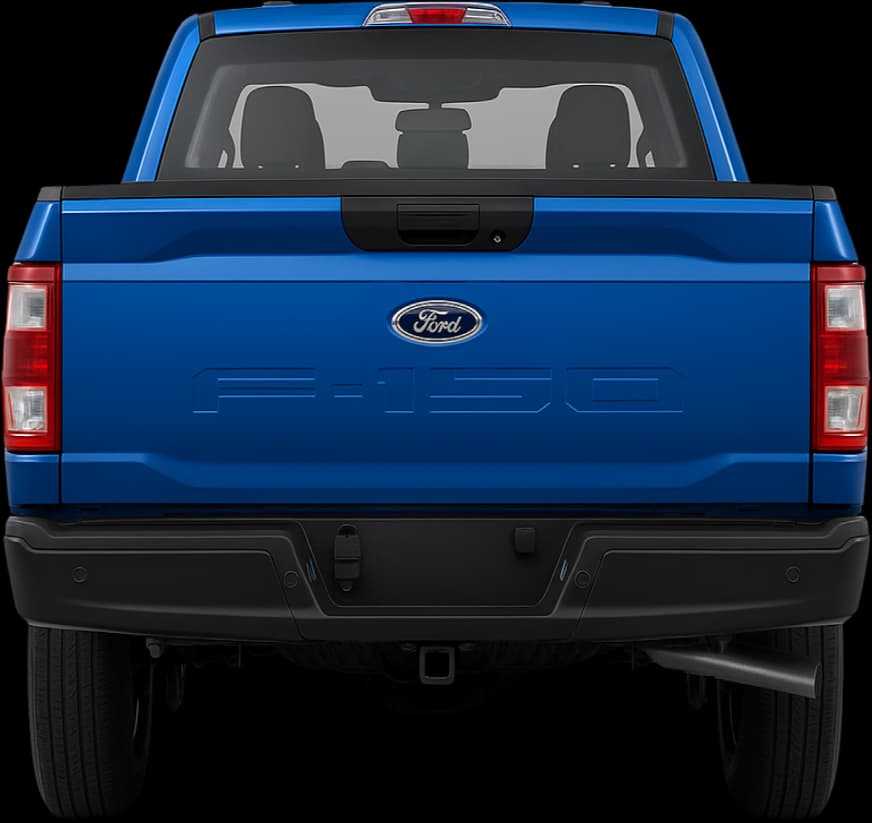

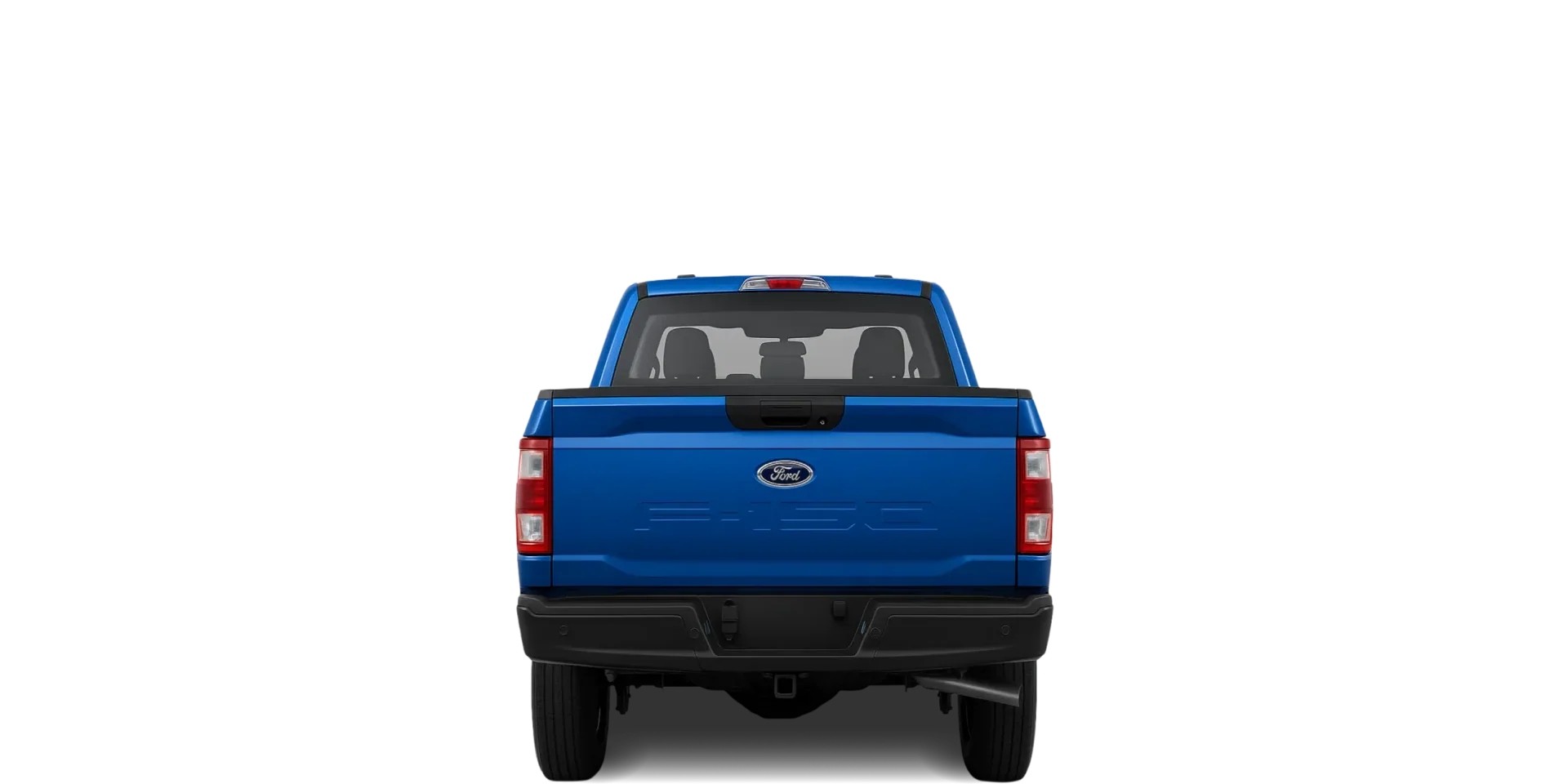

2024 Ford F‑150 SuperCrew 5.5ft bed 4x2 rear view
DriveSize overview: 2024 Ford F‑150 SuperCrew 5.5ft bed 4x2
Viewed in terms of its dimensions and capacities, this 5.5ft-bed SuperCrew may suit drivers who want seating for up to six while keeping cargo space close to the pickup average. Its 1,495-litre standard SAE figure is 4% above average, and its maximum capacity is only 2% below it, giving a balanced result when both passengers and cargo matter.
That balance still comes in a very large package. The F‑150 is 589.3cm long, occupies almost 12.0m² of ground space and has a turning circle 11% wider than average. All eight regional parking spaces are too short, so it is better suited to roads, parking and storage with generous space.
To compare the same SuperCrew cab and 5.5ft bed with four-wheel drive, look at the 2024 Ford F-150 SuperCrew 5.5ft bed 4x4.
Articles featuring this car
Ford F-150 Cab & Bed Sizes Explained: Regular Cab vs SuperCab vs SuperCrew
Understand Ford F-150 SuperCrew, SuperCab and Regular Cab sizes, bed lengths, passenger space, footprint and turning circle.
Ford F-150 vs Tesla Cybertruck: Dimensions, Bed Sizes, Width & Parking
We compare the Ford F-150 and Tesla Cybertruck on size, width, bed length, and parking practicality. See which pickup fits your driveway best — with real dimensions, wheelbase, and turning circle data from Drivesize.
FAQs
Frequently asked questions
Vehicle specifications on this page are sourced from official Ford documentation. Unless the page identifies a specific trim, body style, powertrain or market version, DriveSize uses manufacturer-published specifications for the base model as its default reference. DriveSize standardises the published measurements and calculates the comparisons and derived figures shown. Figures can vary by market, model year, trim, powertrain, wheels, tyres and measurement method. How DriveSize sources and calculates these figures.
