2024 Ford F‑150 SuperCrew 5.5ft bed 4x4 dimensions and size guide
2024 Ford F‑150 SuperCrew 5.5ft bed 4x4
Add comparisonExterior dimensions
2024 Ford F‑150 SuperCrew 5.5ft bed 4x4 exterior dimensions
This 4x4 SuperCrew stands at 195.8cm tall, which is around 9cm, or 5%, above the pickup average, while its 589.3cm length adds nearly 47cm, or 9%. That extra length is likely to be a frequent issue in ordinary parking spaces. Its 202.9cm body is around 8.5cm wider than average, and the mirrors extend the total width to 243.1cm, about 20cm more than the pickup norm. The 369.3cm wheelbase is roughly 38cm longer than average. Altogether, this SuperCrew occupies almost 12.0m² of ground space, around 13% more than the typical pickup.
Measurements
Length
589.3 cm
Width (excluding mirrors)
202.9 cm
Width (including mirrors)
243.1 cm
Height
195.8 cm
Wheelbase
369.3 cm
Ground clearance
24.9 cm
Footprint
DriveSize footprint is overall length multiplied by body width excluding mirrors.
12 m²
How the 2024 Ford F‑150 SuperCrew 5.5ft bed 4x4's exterior dimensions compare with the average Pickup
Length
46.6 cm longer than the average Pickup
Width (excluding mirrors)
8.5 cm wider than the average Pickup
Width (including mirrors)
20.2 cm wider than the average Pickup
Height
9 cm taller than the average Pickup
Wheelbase
38.3 cm longer wheelbase than the average Pickup
Ground clearance
2.1 cm more ground clearance than the average Pickup
DriveSize footprint score
DriveSize footprint score compares this car's footprint with the average footprint for the same class.
A score near 100% means it is close to class average size. Lower scores mean it sits further from that average, either smaller or larger.
87%
13% larger than the average Pickup
Fast facts
Fast facts
Ground clearance is 9% above average
With 24.9cm of ground clearance, this SuperCrew sits around 2.1cm higher than the average pickup. That gives it useful extra breathing room over steep entrances and uneven surfaces.
Standard cargo capacity edges above average
The published SAE figure of 1,495 litres is around 58 litres, or 4%, above the average pickup's standard capacity. That keeps its everyday cargo provision close to the class norm while seating up to six.
Cargo efficiency close to the pickup norm
Taking both the standard seats-up cargo figure and maximum cargo capacity into account, this F‑150 provides about 125 litres per square metre of ground space. That is only around 2% above average for a pickup.
Every tested regional parking space is too short
This SuperCrew is longer than all eight standard regional parking-space sizes tested by DriveSize. The spaces used in the United Kingdom, European Union and Australia also fall short on width.

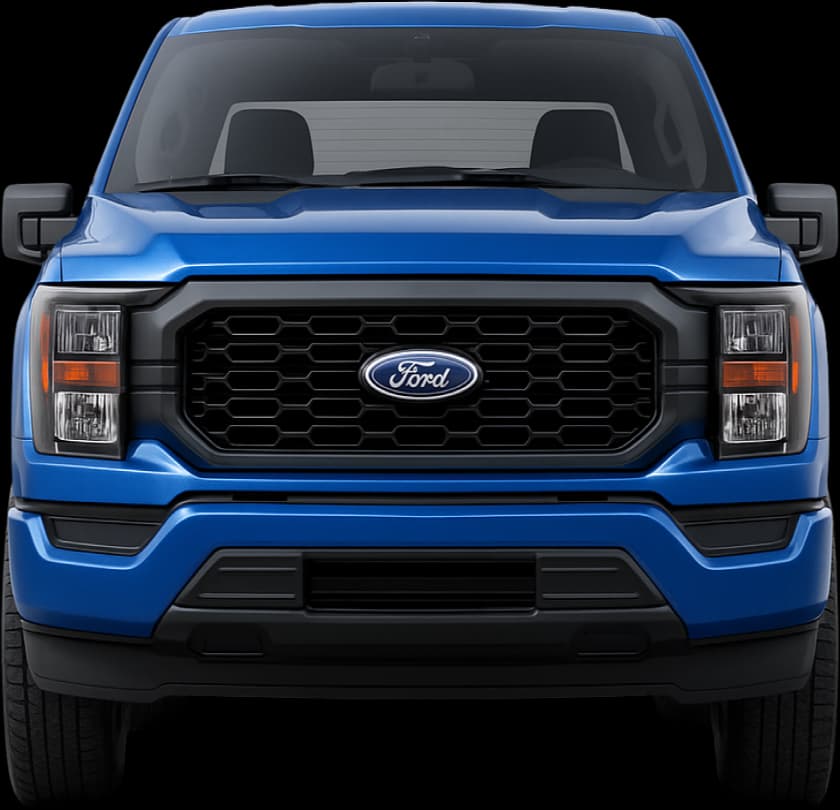

2024 Ford F‑150 SuperCrew 5.5ft bed 4x4 front view
Cargo space & efficiency
2024 Ford F‑150 SuperCrew 5.5ft bed 4x4 cargo capacity and space efficiency
This 5.5ft-bed SuperCrew has 1,495 litres of published SAE cargo capacity while seating up to six. That is around 58 litres, or 4%, above the average pickup's standard figure, so its normal cargo provision is slightly more generous than the class norm. Its maximum published capacity is the same 1,495 litres. Against the average pickup's maximum figure, it is around 32 litres, or 2%, smaller, a relatively minor difference at this capacity scale. Taking both the standard seats-up cargo figure and maximum cargo capacity into account, this F‑150 provides about 125 litres per square metre of ground space. That is roughly 2% above average for a pickup, meaning each square metre provides almost exactly the cargo capacity expected for the class.
Measurements
Standard cargo capacity (SAE)
The standard cargo capacity using SAE, the method commonly used in the US.
This is the manufacturer's normal published figure; it does not imply a particular seat configuration.
1,495 L
Largest cargo capacity (SAE)
The largest cargo capacity using SAE, the method commonly used in the US.
If only one SAE figure is published, the standard and largest values are the same.
1,495 L
Cargo space vs length
This DriveSize metric divides blended cargo volume by overall vehicle length.
Blended cargo uses 65% of the standard figure and 35% of the largest figure, using VDA where available and SAE otherwise.
253.7 L per m
Cargo space vs footprint
This DriveSize metric divides blended cargo volume by footprint.
Blended cargo uses 65% of the standard figure and 35% of the largest figure, using VDA where available and SAE otherwise.
It helps show how efficiently a car turns exterior area into usable cargo space.
125 L per m²
How the 2024 Ford F‑150 SuperCrew 5.5ft bed 4x4's cargo space and efficiency compare with the average Pickup
Standard cargo capacity (SAE)
The standard cargo capacity using SAE, the method commonly used in the US.
This is the manufacturer's normal published figure; it does not imply a particular seat configuration.
58 L more cargo volume than the average Pickup
Largest cargo capacity (SAE)
The largest cargo capacity using SAE, the method commonly used in the US.
If only one SAE figure is published, the standard and largest values are the same.
32 L less cargo volume than the average Pickup
DriveSize space efficiency score (SAE)
DriveSize space efficiency compares blended cargo volume per square meter of footprint with the class average.
Blended cargo uses 65% of the standard figure and 35% of the largest figure within the selected cargo measurement method.
VDA scores compare with VDA class averages, and SAE scores compare with SAE class averages. Around 100% means in line with class average.
102%
Above class average (+2%)
Parking
Will the 2024 Ford F‑150 SuperCrew 5.5ft bed 4x4 fit in a standard parking space?
The regional parking space results leave no borderline cases for this SuperCrew: its length prevents a physical fit in all eight standard spaces tested by DriveSize. That includes the larger standard spaces used for USA/Canada and the Middle East. The China, India, Japan, USA/Canada and Middle East spaces fall short on length alone. Those in the United Kingdom, European Union and Australia are also too narrow, making parking intended for larger vehicles the sensible target for this pickup.
DriveSize parking fit score
DriveSize compares the car's width and length with typical parking-space sizes by region.
Vehicle dimensions are rounded up and available side or length clearance is rounded down.
Side clearance is based on body width excluding mirrors where available; real spaces can vary because of mirrors, walls, pillars, kerbs, bay markings, and nearby cars.
For an average USA / Canada space: exceeds the bay's length by 40 cm.
Body side clearance (excluding mirrors)
36 cm
Length over bay
40 cm
Overall length. Primary constraint.
Usability
2024 Ford F‑150 SuperCrew 5.5ft bed 4x4 usability & manoeuvrability
Ground clearance and manoeuvrability pull in different directions here. The 24.9cm clearance is around 2.1cm, or 9%, above average, providing extra breathing room over steep entrances and uneven ground. At 2,241kg, its kerb weight is almost exactly average for a pickup. The 14.6m turning circle is around 1.5m, or 11%, wider than average, while the 369.3cm wheelbase adds roughly 38cm. Tight corners and changes of direction therefore need noticeably more space and consideration pickups with smaller turning circles.
Measurements
Doors
4
Max seats
6
Turning circle
14.6 m
Curb weight
2,241 kg
How the 2024 Ford F‑150 SuperCrew 5.5ft bed 4x4's usability and manoeuvrability compare with the average Pickup
Turning circle
1.5 m larger turning circle than the average Pickup
Curb weight
10 kg lighter than the average Pickup
DriveSize manoeuvrability score
DriveSize manoeuvrability score combines turning circle and footprint, with turning circle weighted more heavily.
Around 100% means in line with the class average; higher scores indicate better manoeuvrability relative to similar cars.
88%
12% less manoeuvrable than the average Pickup

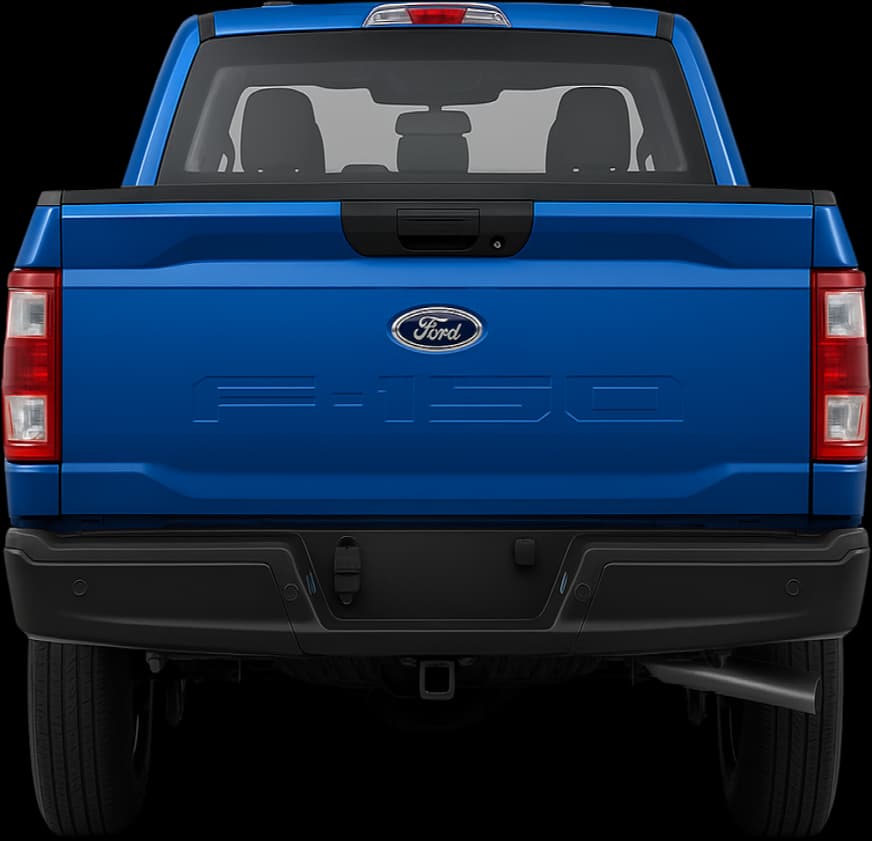

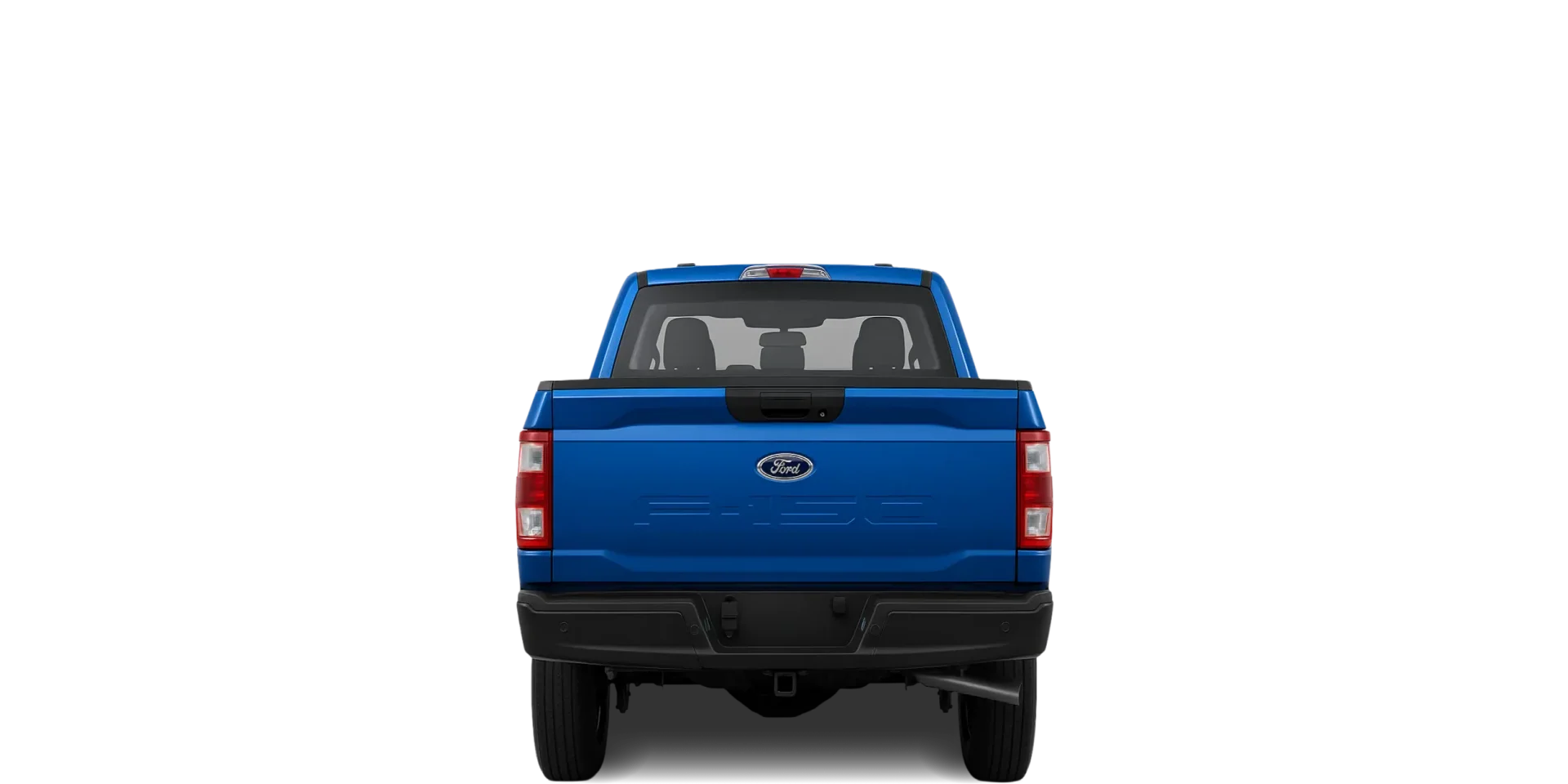

2024 Ford F‑150 SuperCrew 5.5ft bed 4x4 rear view
DriveSize overview: 2024 Ford F‑150 SuperCrew 5.5ft bed 4x4
Based on its dimensions and capacities, this 4x4 SuperCrew may suit drivers who want seating for up to six, cargo capacity close to the pickup average and some extra ground clearance. Its standard SAE capacity is 4% above average, while its 24.9cm clearance is 9% higher, which is useful over steep entrances and uneven surfaces.
Its size is the clear trade-off. At 589.3cm long with an almost 12.0m² footprint and a turning circle 11% wider than average, it needs generous roads, parking and storage. None of the eight regional parking spaces are long enough for it.
The closest 4x2 equivalent is the 2024 Ford F-150 SuperCrew 5.5ft bed 4x2, with the same cab, bed length and cargo capacity.
