2024 Ford F‑150 SuperCrew 6.5ft bed 4x4 dimensions and size guide
2024 Ford F‑150 SuperCrew 6.5ft bed 4x4
Add comparisonExterior dimensions
2024 Ford F‑150 SuperCrew 6.5ft bed 4x4 exterior dimensions
This 4x4 SuperCrew with a 6.5ft bed has a length of 619.5cm, putting it around 77cm, or 14%, longer than the average pickup. More than six metres of body length makes having the available space in a garage or driveway especially important. Its 399.3cm wheelbase is also roughly 68cm, or 21%, longer than average, adding to the amount of room needed when turning. Its body width is 202.9cm and its width including mirrors is 243.1cm, around 8.5cm and 20cm wider than average respectively. Its 196.9cm height is roughly 10cm above the pickup norm. The resulting 12.6m² footprint is nearly a fifth larger than average.
Measurements
Length
619.5 cm
Body width
202.9 cm
Width including mirrors
243.1 cm
Height
196.9 cm
Wheelbase
399.3 cm
Ground clearance
24.6 cm
Footprint
DriveSize footprint is overall length multiplied by body width.
12.6 m²
How the 2024 Ford F‑150 SuperCrew 6.5ft bed 4x4's exterior dimensions compare with the average Pickup
Length
76.8 cm longer than the average Pickup
Body width
8.5 cm wider than the average Pickup
Width including mirrors
20.2 cm wider than the average Pickup
Height
10.1 cm taller than the average Pickup
Wheelbase
68.3 cm longer wheelbase than the average Pickup
Ground clearance
1.8 cm more ground clearance than the average Pickup
DriveSize footprint
DriveSize footprint compares this car's footprint with the average footprint for the same class.
A positive percentage means a larger footprint and a negative percentage means a smaller footprint. About average means the rounded difference is 0%.
+19%
Larger footprint than the average Pickup
Fast facts
Fast facts
Its footprint is nearly a fifth larger
This F‑150 occupies about 12.6m² of ground space, around 19% more than the average pickup. A very large garage or driveway will therefore make storing it much easier.
Maximum cargo capacity is 16% above average
The 1,764-litre maximum published SAE figure is around 237 litres more than the pickup average. That gives it useful extra scope for carrying larger loads while retaining seating for up to six.
14% more cargo capacity per square metre
Taking both its standard seats-up and maximum cargo capacity into account, this SuperCrew provides about 140 litres per square metre of ground space. That is 14% above the pickup average, meaning each square metre provides more cargo capacity than usual for the class.
Tight turns need around 2.5m more room
The 15.6m turning circle is 19% wider than the pickup average. That extra 2.5m is likely to be noticeable when turning in confined streets, yards or car parks.

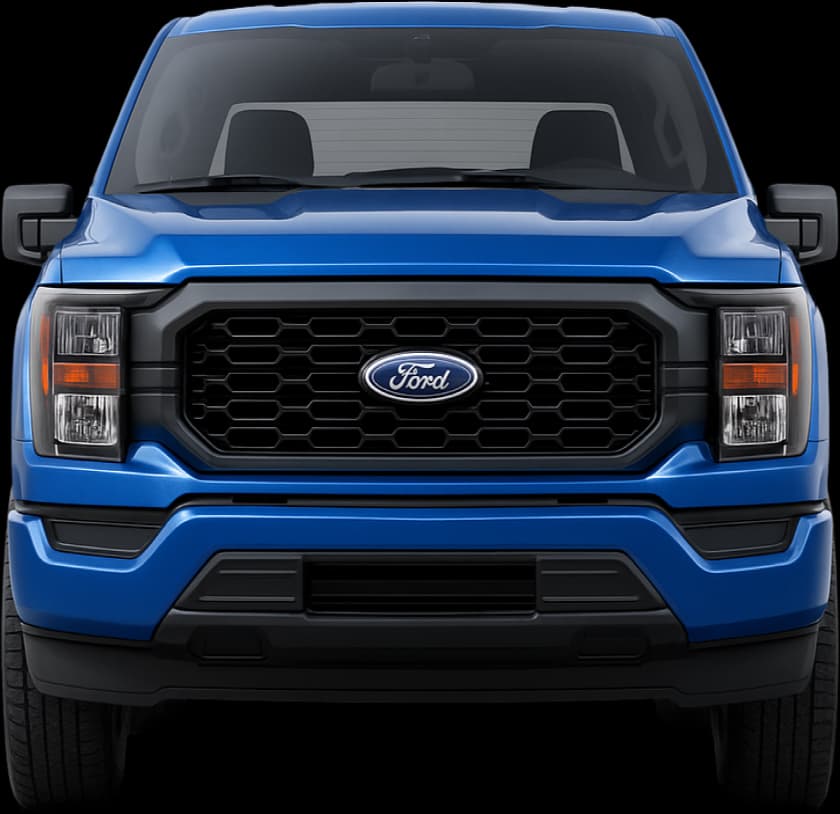

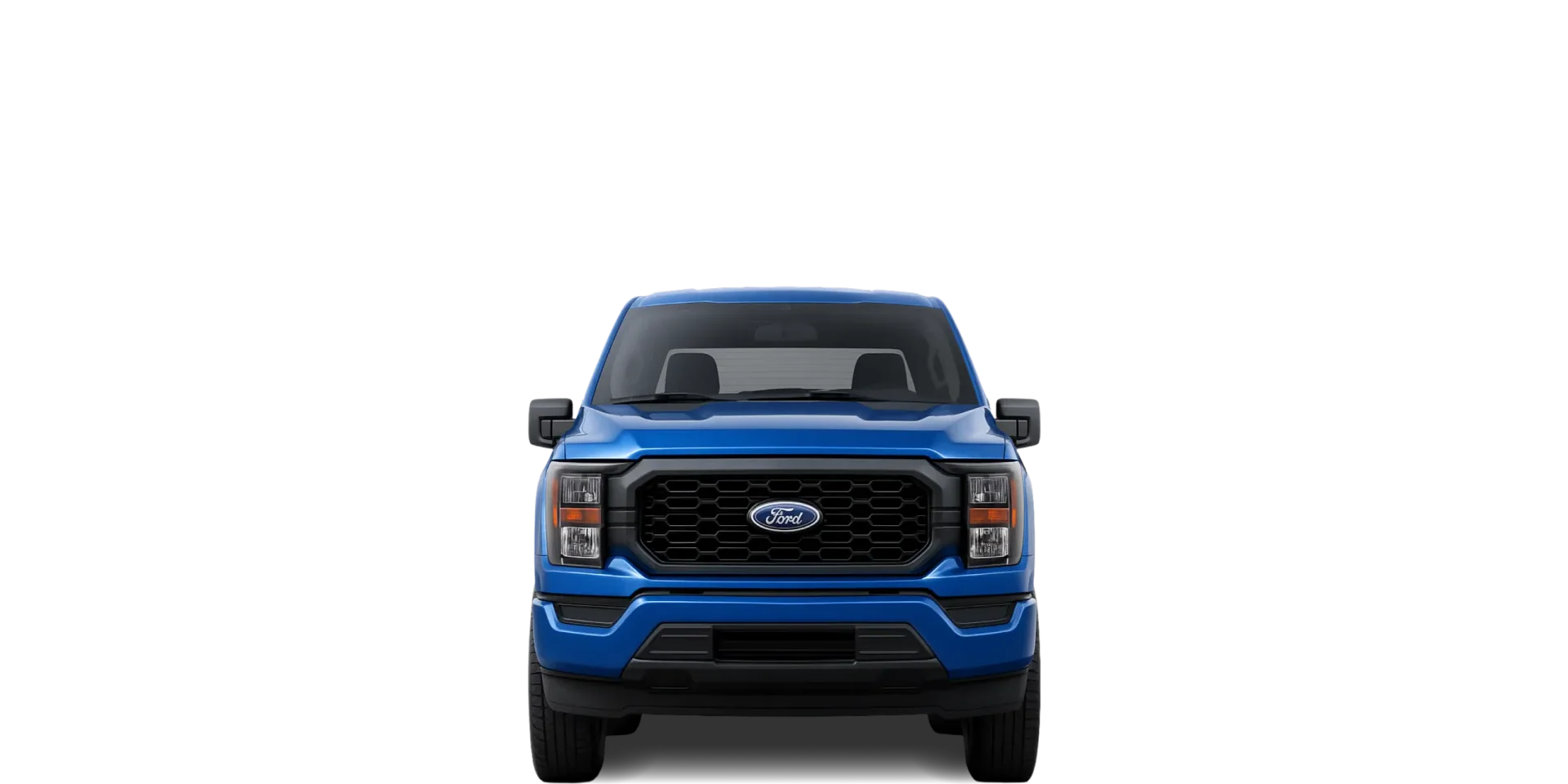

2024 Ford F‑150 SuperCrew 6.5ft bed 4x4 front view
Cargo space & efficiency
2024 Ford F‑150 SuperCrew 6.5ft bed 4x4 cargo capacity and space efficiency
The published standard SAE cargo figure is 1,764 litres, around 327 litres or 23% more than the average pickup. Combined with seating for up to six, that provides substantially more cargo room than usual when the passenger seats are in use. Maximum published capacity is also 1,764 litres, which is still above the pickup average by around 237 litres, or 16%, which remains useful when a larger load needs to be carried. Allowing for both its standard and maximum cargo figures, the SuperCrew offers about 140 litres of capacity per square metre of ground space. That puts its cargo capacity per square metre roughly 14% above the pickup norm.
Measurements
Standard cargo capacity (SAE)
The standard cargo capacity using SAE, the method commonly used in the US.
This is the manufacturer's normal published figure; it does not imply a particular seat configuration.
1,764 L
Largest cargo capacity (SAE)
The largest cargo capacity using SAE, the method commonly used in the US.
If only one SAE figure is published, the standard and largest values are the same.
1,764 L
Cargo space vs length
This DriveSize metric divides blended cargo volume by overall vehicle length.
Blended cargo uses 65% of the standard figure and 35% of the largest figure, using VDA where available and SAE otherwise.
284.7 L per m
Cargo space vs footprint
This DriveSize metric divides blended cargo volume by footprint.
Blended cargo uses 65% of the standard figure and 35% of the largest figure, using VDA where available and SAE otherwise.
It helps show how efficiently a car turns exterior area into usable cargo space.
140.3 L per m²
How the 2024 Ford F‑150 SuperCrew 6.5ft bed 4x4's cargo space and efficiency compare with the average Pickup
Standard cargo capacity (SAE)
The standard cargo capacity using SAE, the method commonly used in the US.
This is the manufacturer's normal published figure; it does not imply a particular seat configuration.
327 L more cargo volume than the average Pickup
Largest cargo capacity (SAE)
The largest cargo capacity using SAE, the method commonly used in the US.
If only one SAE figure is published, the standard and largest values are the same.
237 L more cargo volume than the average Pickup
DriveSize space efficiency (SAE)
DriveSize space efficiency compares blended cargo volume per square meter of footprint with the class average.
Blended cargo uses 65% of the standard figure and 35% of the largest figure within the selected cargo measurement method.
VDA values compare with VDA class averages, and SAE values compare with SAE class averages. Positive percentages indicate more space efficiency and negative percentages indicate less.
+14%
More space efficient than the average Pickup
Parking
Will the 2024 Ford F‑150 SuperCrew 6.5ft bed 4x4 fit in a standard parking space?
Ordinary sized parking spaces are unlikely to fit the full length of this SuperCrew. It fails the physical-fit test in all eight regional parking standards used by DriveSize, including the comparatively generous USA/Canada and Middle East spaces. In China, India, Japan, USA/Canada and the Middle East, length is the measurement preventing a fit. The standard spaces in the United Kingdom, European Union and Australia fall short in both length and width, making spaces intended for oversized vehicles the more realistic choice for this truck.
DriveSize parking fit score
DriveSize compares the car's width and length with typical parking-space sizes by region.
Vehicle dimensions are rounded up and available side or length clearance is rounded down.
Side clearance is based on body width where available; real spaces can vary because of mirrors, walls, pillars, kerbs, bay markings, and nearby cars.
For an average USA / Canada space: exceeds the bay's length by 70 cm.
Body side clearance
36 cm
Length over bay
70 cm
Overall length. Primary constraint.
Usability
2024 Ford F‑150 SuperCrew 6.5ft bed 4x4 usability & manoeuvrability
At 2,323kg, this 4x4 SuperCrew is around 72kg, or 3%, heavier than the average pickup. Its 24.6cm ground clearance sits around 1.8cm, or 8%, above average, providing a little more space beneath the vehicle over steep entrances and uneven ground. Its large dimensions demand consideration when manoeuvring. The 15.6m turning circle is around 2.5m, or 19%, wider than average, and the wheelbase is 21% longer. Turning around or navigating tight corners will require notably more space than in a typical pickup.
Measurements
Doors
4
Max seats
6
Turning circle
15.6 m
Curb weight
2,323 kg
How the 2024 Ford F‑150 SuperCrew 6.5ft bed 4x4's usability and manoeuvrability compare with the average Pickup
Turning circle
2.5 m larger turning circle than the average Pickup
Curb weight
72 kg heavier than the average Pickup
DriveSize manoeuvrability
DriveSize manoeuvrability combines turning circle and footprint, with turning circle weighted more heavily.
A positive percentage means more manoeuvrable than the class average and a negative percentage means less manoeuvrable.
-17%
Less manoeuvrable than the average Pickup

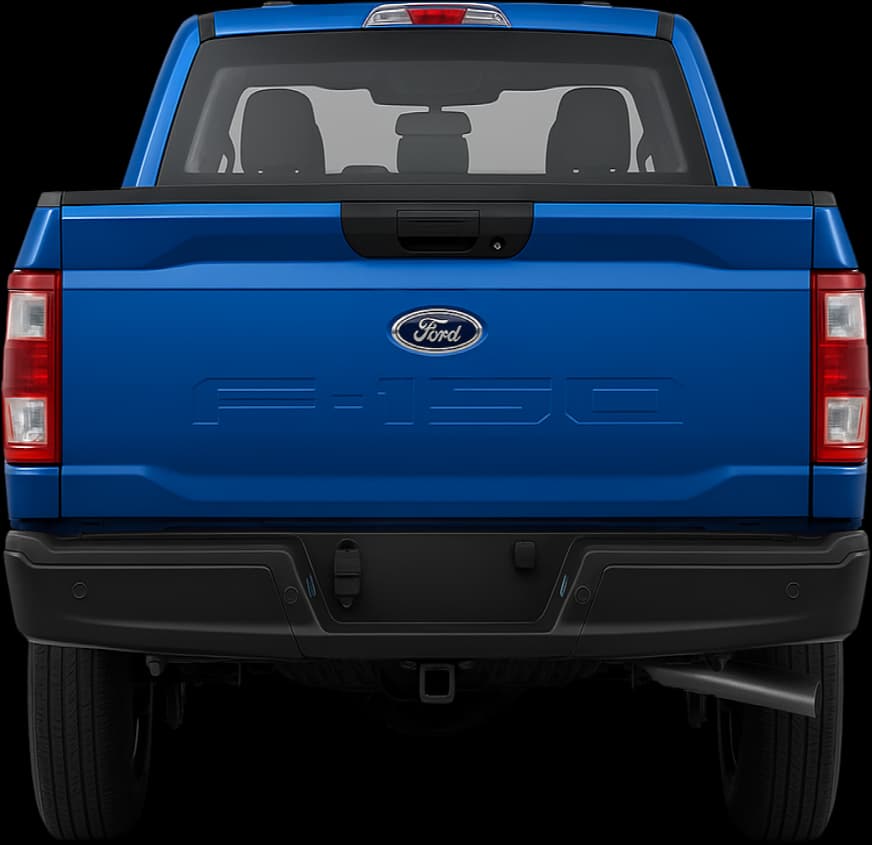

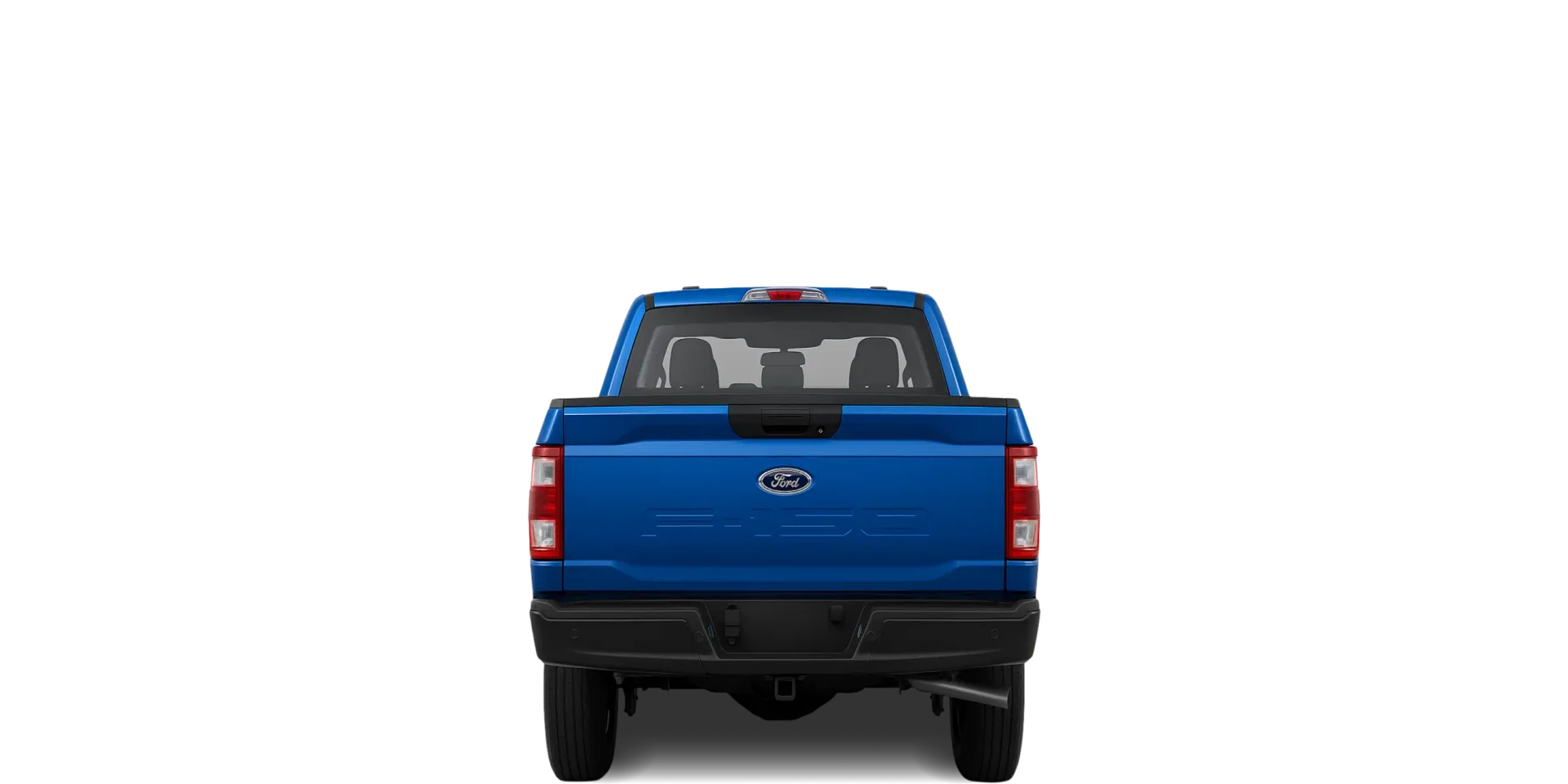

2024 Ford F‑150 SuperCrew 6.5ft bed 4x4 rear view
DriveSize overview: 2024 Ford F‑150 SuperCrew 6.5ft bed 4x4
Judging by its dimensions and capacities, this 6.5ft-bed 4x4 SuperCrew may suit someone who needs six seats and cargo capacity well above the pickup average. Both its standard and maximum published SAE figures are 1,764 litres, while cargo efficiency is 14% above the class norm.
It requires considerable space in return. The body is 619.5cm long, its footprint is 19% larger than average and its turning circle is also 19% wider. As none of the eight regional parking standards are long enough, generous storage and parking are important considerations.
Its near-identical 4x2 counterpart is the 2024 Ford F-150 SuperCrew 6.5ft bed 4x2.
