2024 Chevrolet Silverado EV dimensions and size guide
2024 Chevrolet Silverado EV
Add comparisonExterior dimensions

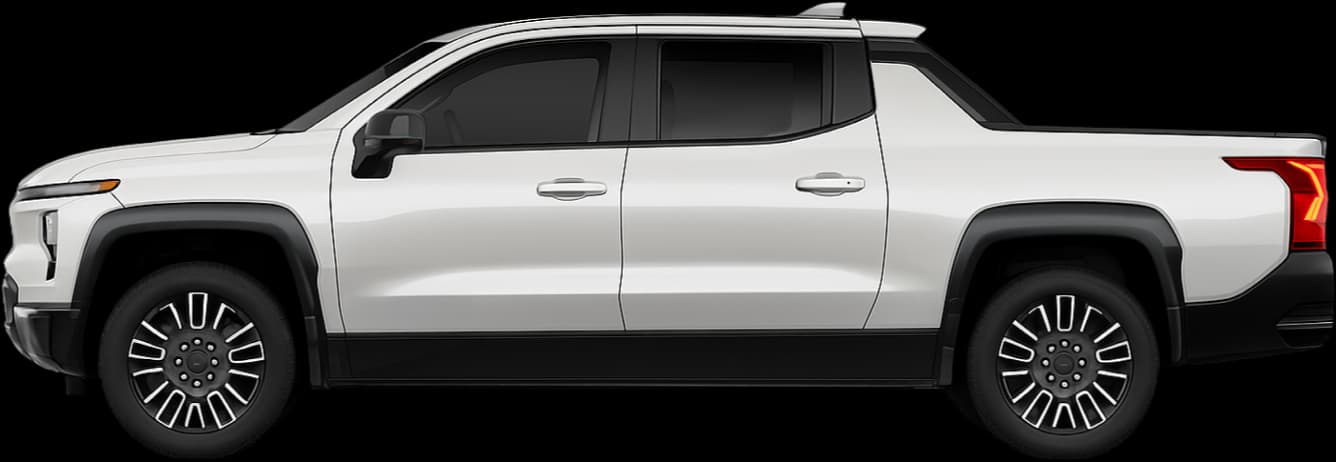

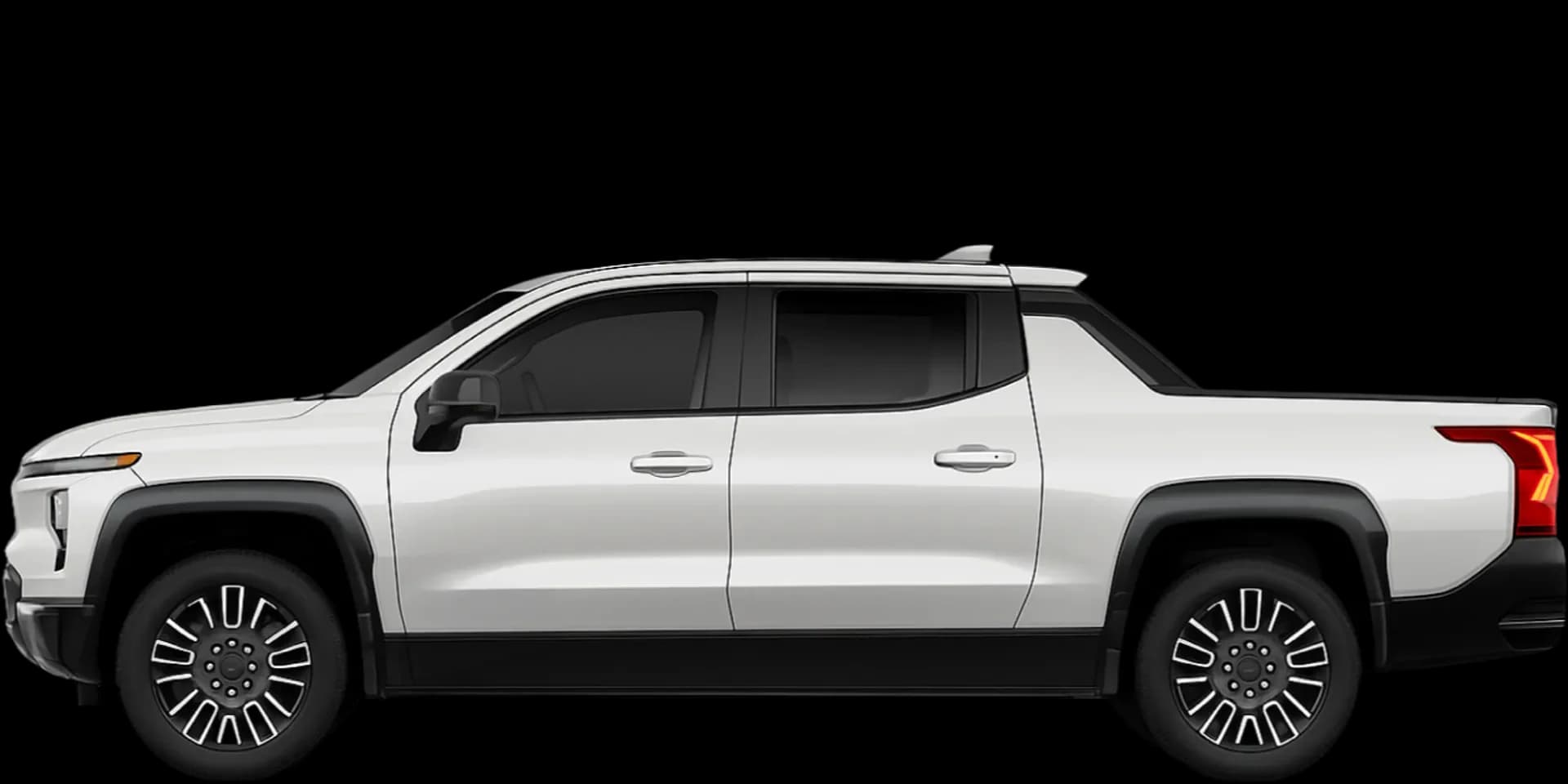

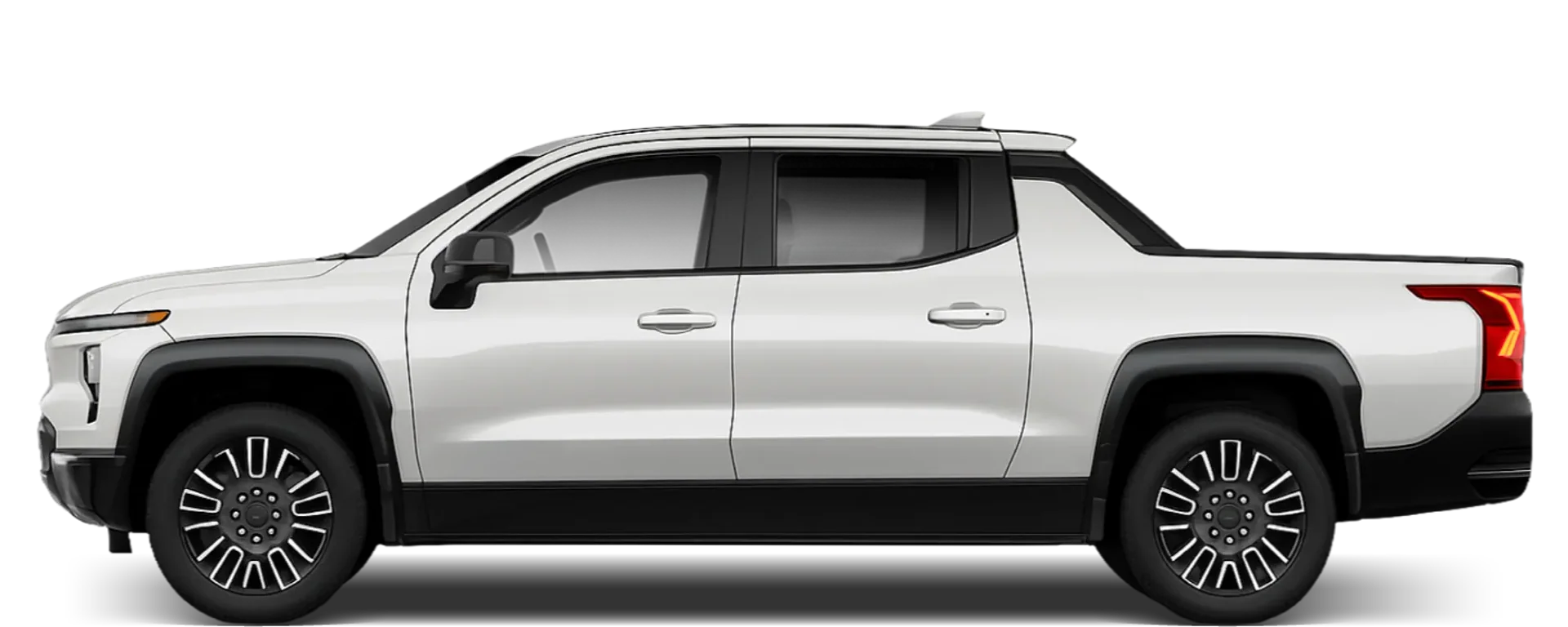

2024 Chevrolet Silverado EV exterior dimensions
At 592cm long, the Silverado EV needs plenty of room wherever it is parked. It stretches roughly 49cm, or 9%, beyond the average pickup, and its 370cm wheelbase is 39cm, or 12%, longer. This is not a truck that hides its scale from end to end. Its body width is 207.2cm, about 13cm, or 7%, above average. Its width including mirrors is 238.5cm, nearly 16cm, or 7%, wider than average, while the 198.2cm height adds around 11cm, or 6%. Together, those dimensions produce a 12.3m² footprint, roughly 16% larger than the pickup norm.
Measurements
Length
592 cm
Body width
207.2 cm
Width including mirrors
238.5 cm
Height
198.2 cm
Wheelbase
370 cm
Footprint
DriveSize footprint is overall length multiplied by body width.
12.3 m²
How the 2024 Chevrolet Silverado EV's exterior dimensions compare with the average Pickup
Length
49.3 cm longer than the average Pickup
Body width
12.8 cm wider than the average Pickup
Width including mirrors
15.6 cm wider than the average Pickup
Height
11.4 cm taller than the average Pickup
Wheelbase
39 cm longer wheelbase than the average Pickup
DriveSize footprint
DriveSize footprint compares this car's footprint with the average footprint for the same class.
A positive percentage means a larger footprint and a negative percentage means a smaller footprint. About average means the rounded difference is 0%.
+16%
Larger footprint than the average Pickup
Fast facts
Fast facts
Nearly six metres from nose to tail
At 592cm, the Silverado EV is around 49cm longer than the average pickup. Its wheelbase also exceeds the class norm by 39cm, so the extra scale extends through the centre of the truck as well as its outer body.
One bed figure, two above-average results
The fixed pickup bed is rated at 1,634 litres SAE in both standard and maximum configurations. That is about 197 litres, or 14%, above the average standard figure and 107 litres, or 7%, above the average maximum.
Standard parking spaces are too short
None of the eight standard regional parking-space sizes can physically contain the Silverado EV. Length is a constraint in every case, with width adding further pressure in the tightest spaces.
Cargo capacity relative to vehicle length
Taking its standard and maximum cargo capacities together, the Silverado EV provides about 276 litres per metre of vehicle length. That is roughly 6% below the average pickup, despite its above-average bed capacity.

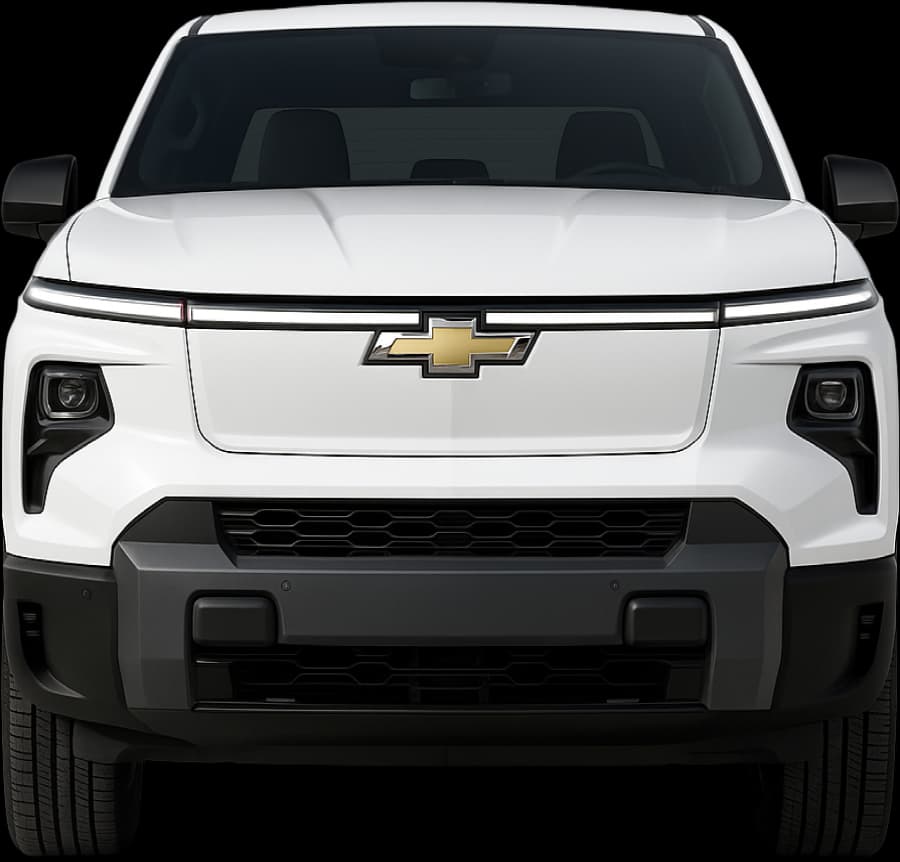

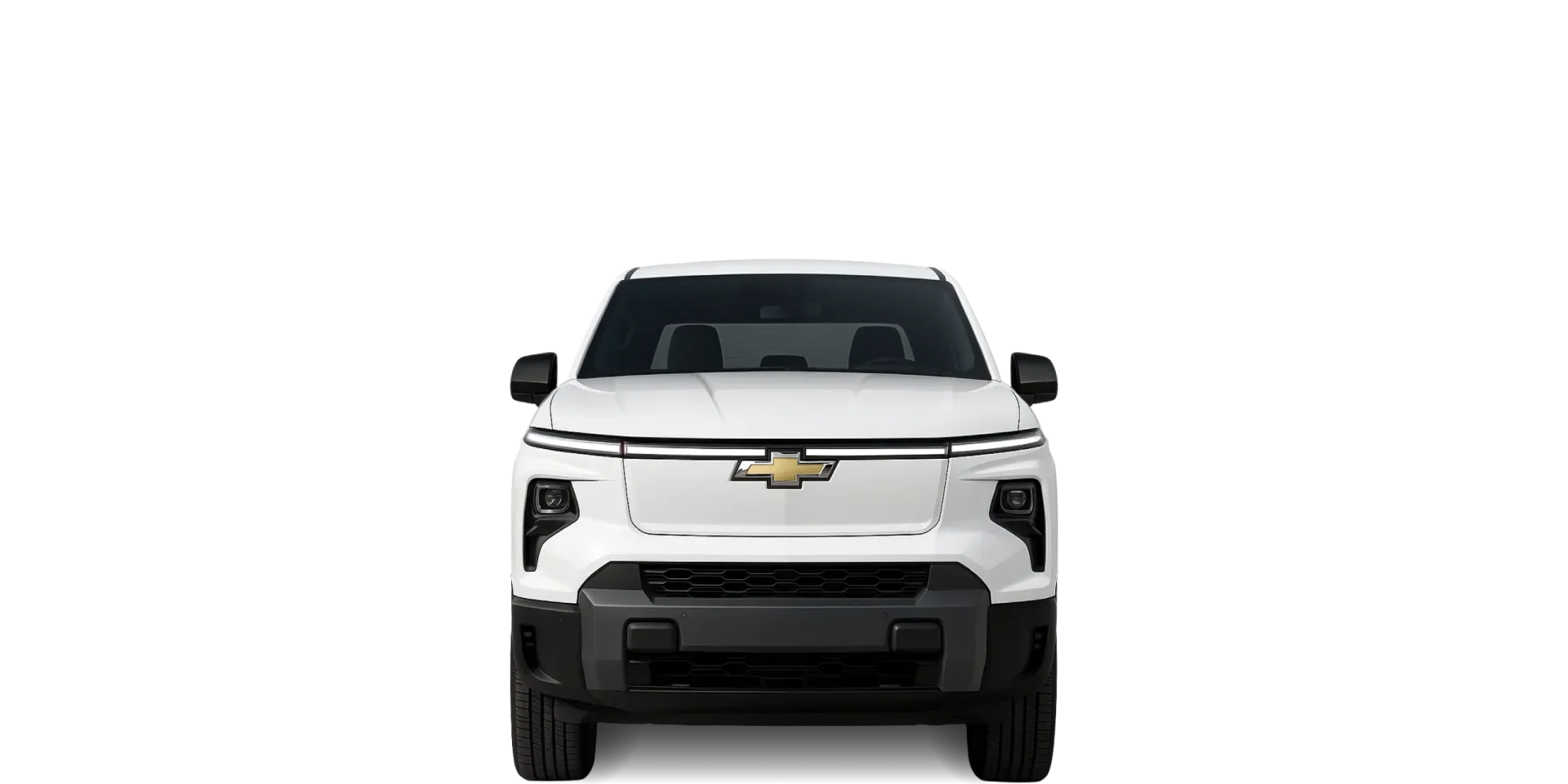

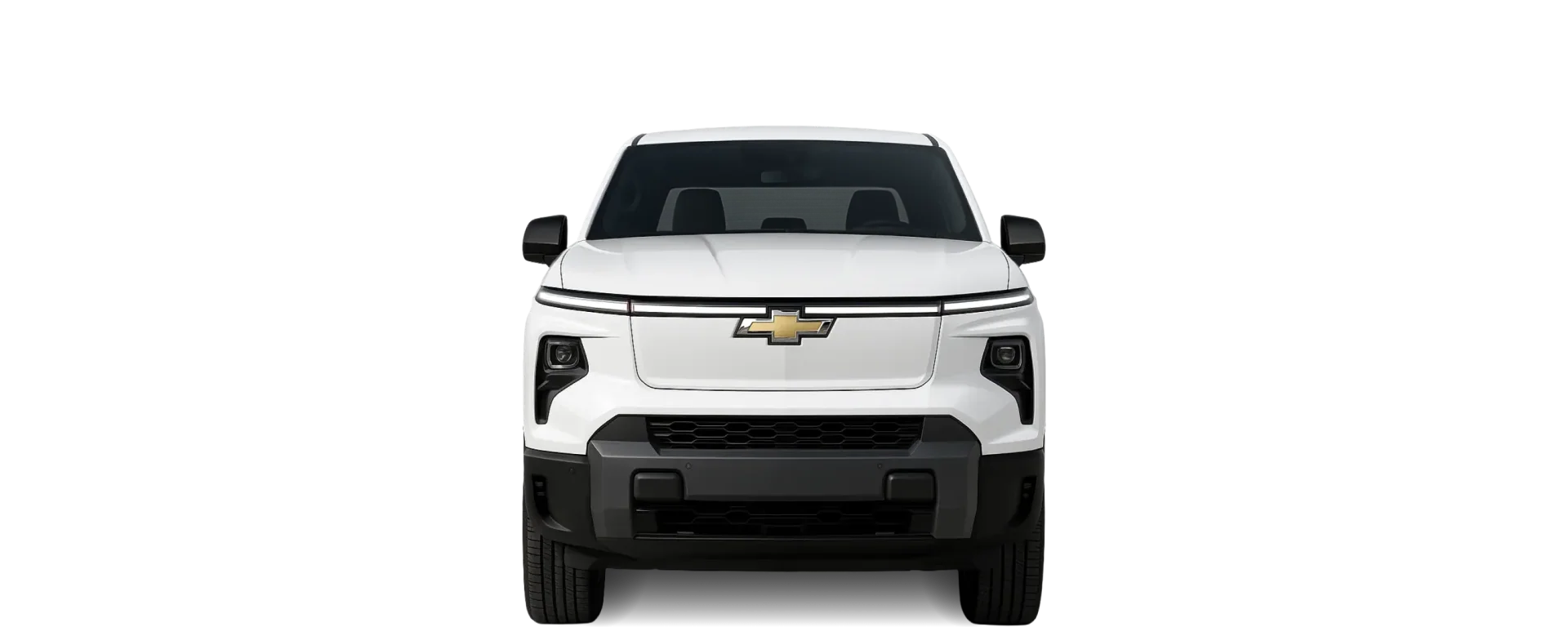

2024 Chevrolet Silverado EV front view
Cargo space & efficiency
2024 Chevrolet Silverado EV cargo capacity and space efficiency
The Silverado EV's published cargo figure comes from its fixed pickup bed rather than a changing rear-seat setup. Capacity is 1,634 litres SAE in both standard and maximum configurations, while a separate front storage area adds another 303 litres. Set against other pickups, the bed sits around 197 litres, or 14%, above the average standard capacity. Its advantage over the average maximum is smaller but still positive at about 107 litres, or 7%. Take both the standard and maximum capacities into account and the Silverado EV returns about 276 litres per metre of vehicle length. That is roughly 6% below average, showing that its generous bed is accompanied by an even more substantial body.
Measurements
Standard cargo capacity (SAE)
The standard cargo capacity using SAE, the method commonly used in the US.
This is the manufacturer's normal published figure; it does not imply a particular seat configuration.
1,634 L
Largest cargo capacity (SAE)
The largest cargo capacity using SAE, the method commonly used in the US.
If only one SAE figure is published, the standard and largest values are the same.
1,634 L
Frunk capacity
303 L
Cargo space vs length
This DriveSize metric divides blended cargo volume by overall vehicle length.
Blended cargo uses 65% of the standard figure and 35% of the largest figure, using VDA where available and SAE otherwise.
276 L per m
Cargo space vs footprint
This DriveSize metric divides blended cargo volume by footprint.
Blended cargo uses 65% of the standard figure and 35% of the largest figure, using VDA where available and SAE otherwise.
It helps show how efficiently a car turns exterior area into usable cargo space.
133.2 L per m²
How the 2024 Chevrolet Silverado EV's cargo space and efficiency compare with the average Pickup
Standard cargo capacity (SAE)
The standard cargo capacity using SAE, the method commonly used in the US.
This is the manufacturer's normal published figure; it does not imply a particular seat configuration.
197 L more cargo volume than the average Pickup
Largest cargo capacity (SAE)
The largest cargo capacity using SAE, the method commonly used in the US.
If only one SAE figure is published, the standard and largest values are the same.
107 L more cargo volume than the average Pickup
DriveSize space efficiency (SAE)
DriveSize space efficiency compares blended cargo volume per square meter of footprint with the class average.
Blended cargo uses 65% of the standard figure and 35% of the largest figure within the selected cargo measurement method.
VDA values compare with VDA class averages, and SAE values compare with SAE class averages. Positive percentages indicate more space efficiency and negative percentages indicate less.
+8%
More space efficient than the average Pickup
Parking
Will the 2024 Chevrolet Silverado EV fit in a standard parking space?
Parking is likely to be the Silverado EV's biggest everyday challenge. It is too long for all eight standard parking space sizes, meaning none can accommodate it even before extra room for opening the doors is taken into account. Its width adds to the problem in narrower spaces, but length is the main limitation. Drivers who regularly use standard marked bays may need to look for oversized spaces or car parks with larger bays.
DriveSize parking fit score
DriveSize compares the car's width and length with typical parking-space sizes by region.
Vehicle dimensions are rounded up and available side or length clearance is rounded down.
Side clearance is based on body width where available; real spaces can vary because of mirrors, walls, pillars, kerbs, bay markings, and nearby cars.
For an average USA / Canada space: exceeds the bay's length by 42 cm.
Body side clearance
33.5 cm
Length over bay
42 cm
Overall length. Primary constraint.
Usability
2024 Chevrolet Silverado EV usability & manoeuvrability
Tight ramps and sharp entrances put the Silverado EV's 370cm wheelbase into focus. It is 39cm, or 12%, longer than the pickup average, leaving a substantial distance between the axles to position through a confined change of direction. Overhead clearance deserves a separate check. At 198.2cm tall, the Silverado EV stands around 11cm, or 6%, above the pickup norm, so low structures may become a limit sooner than they would for a more typical truck.
Measurements
Doors
4
Max seats
5

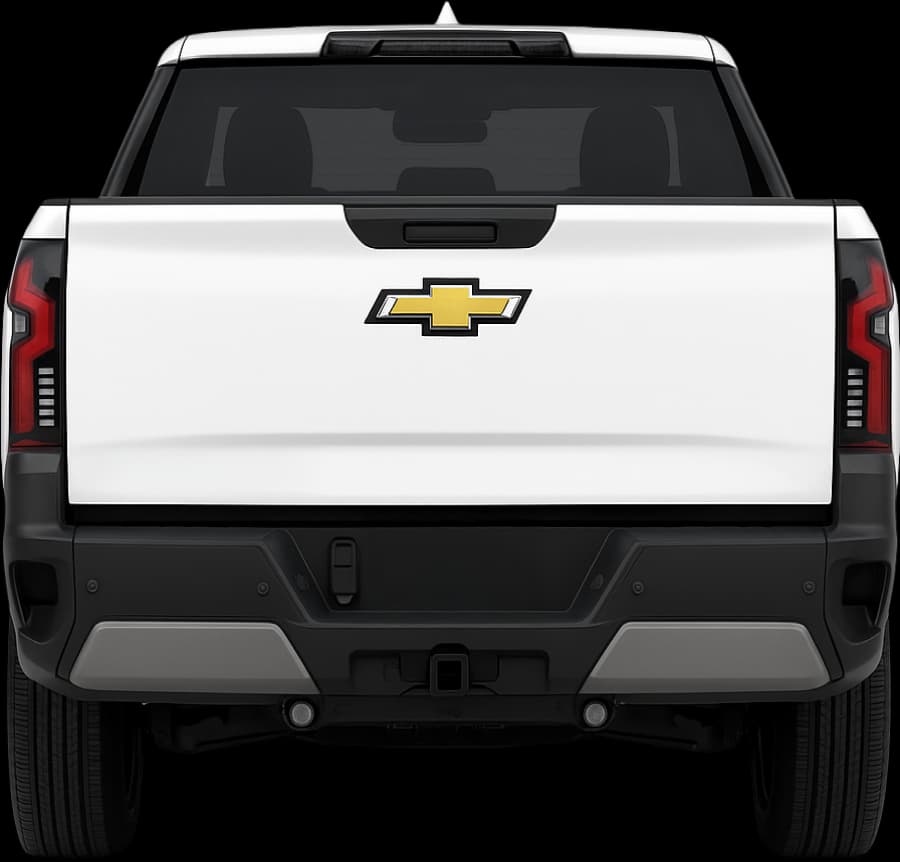

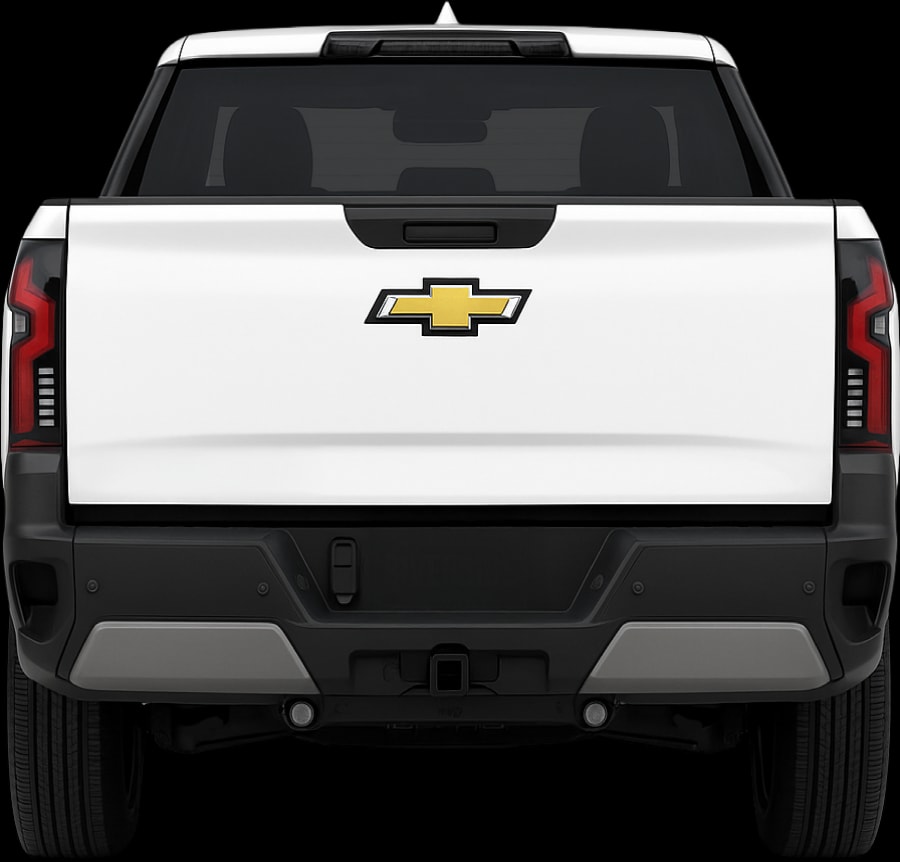

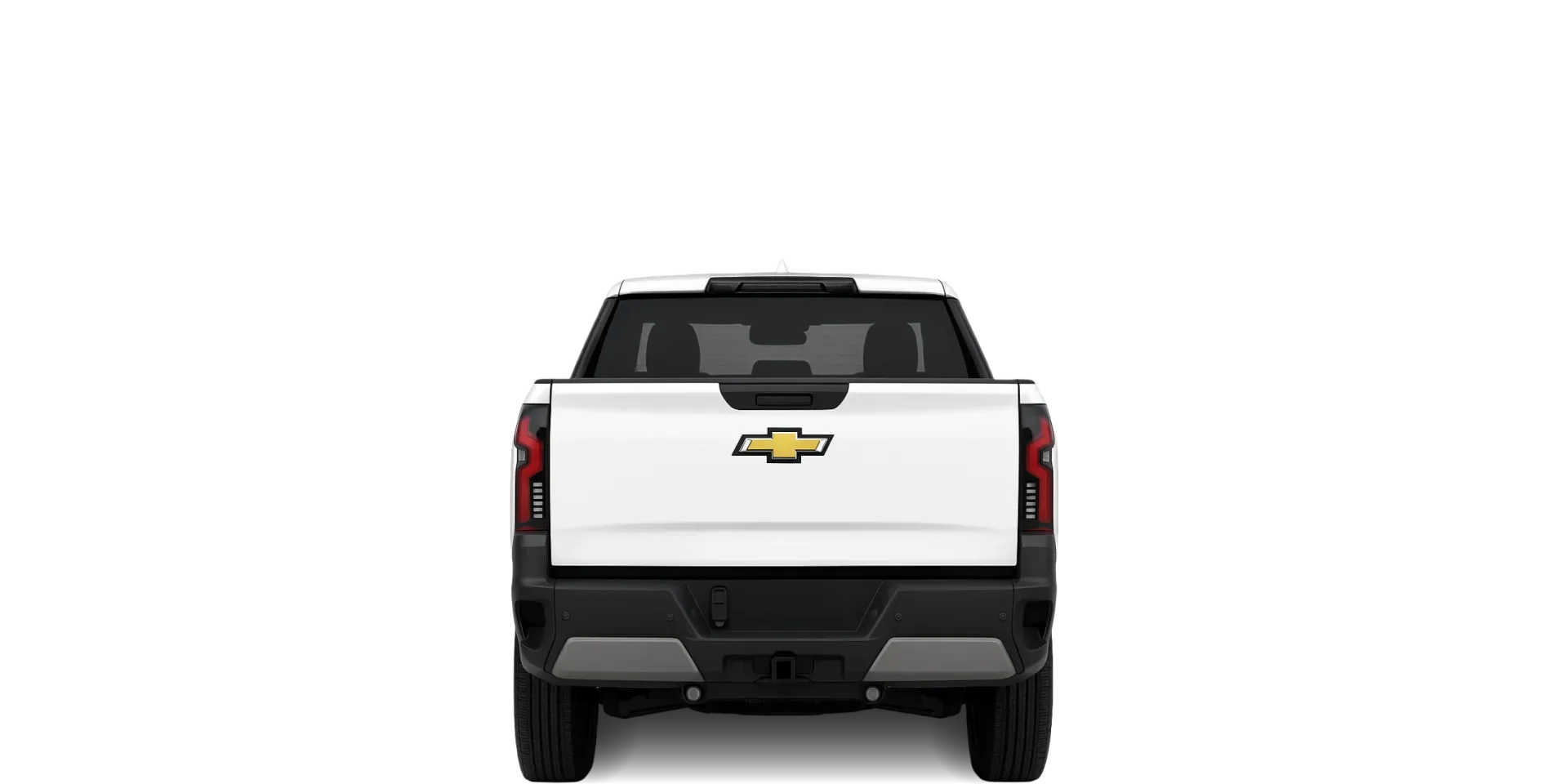

2024 Chevrolet Silverado EV rear view
DriveSize overview: 2024 Chevrolet Silverado EV
The Silverado EV may suit drivers whose first priority is fixed-bed volume and who have space for its above-average footprint. Its 1,634-litre SAE bed exceeds both the average standard and maximum pickup capacities, and the 303-litre front storage area provides a separate place for cargo.
Those gains come with a firm size requirement. The truck is 49cm longer and its footprint 16% larger than average, while none of the eight regional parking spaces result in a physical fit. Based on its dimensions, it makes most sense where generous off-street or oversized parking is readily available, rather than for drivers who routinely depend on conventional marked bays.
Another electric pickup with similar exterior dimensions and cargo space is the 2022 Ford F-150 Lightning.
