2024 Ford F‑150 Regular Cab 8ft bed 4x4 dimensions and size guide
2024 Ford F‑150 Regular Cab 8ft bed 4x4
Add comparisonExterior dimensions

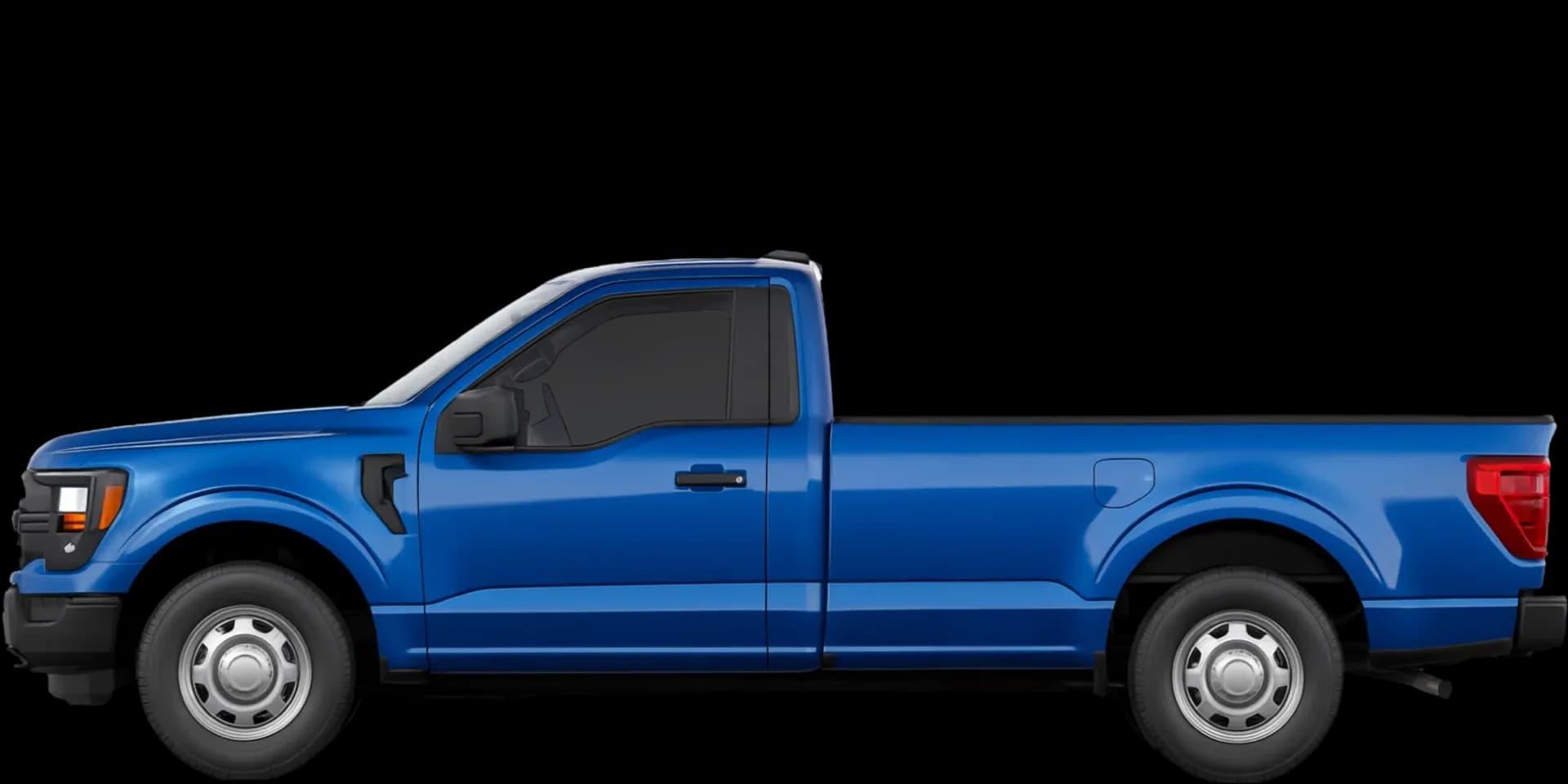

2024 Ford F‑150 Regular Cab 8ft bed 4x4 exterior dimensions
Having enough space around both ends and both sides matters when driving this Regular Cab 4x4 F-150 with an 8ft bed. At 579.4cm long, it is nearly 37cm, or 7%, longer than the average pickup. Its 202.9cm body is also 8.5cm wider than average, and its width including mirrors is 243.1cm, around 20cm more than the pickup norm. The 359.4cm wheelbase is roughly 28cm longer than average, while its 194.8cm height adds 8cm. Altogether, the F‑150 occupies about 11.8m² of ground space, around 11% more than the average pickup, so it needs a genuinely large driveway, garage or parking area.
Measurements
Length
579.4 cm
Body width
202.9 cm
Width including mirrors
243.1 cm
Height
194.8 cm
Wheelbase
359.4 cm
Ground clearance
24.9 cm
Footprint
DriveSize footprint is overall length multiplied by body width.
11.8 m²
How the 2024 Ford F‑150 Regular Cab 8ft bed 4x4's exterior dimensions compare with the average Pickup
Length
36.7 cm longer than the average Pickup
Body width
8.5 cm wider than the average Pickup
Width including mirrors
20.2 cm wider than the average Pickup
Height
8 cm taller than the average Pickup
Wheelbase
28.4 cm longer wheelbase than the average Pickup
Ground clearance
2.1 cm more ground clearance than the average Pickup
DriveSize footprint
DriveSize footprint compares this car's footprint with the average footprint for the same class.
A positive percentage means a larger footprint and a negative percentage means a smaller footprint. About average means the rounded difference is 0%.
+11%
Larger footprint than the average Pickup
Fast facts
Fast facts
A footprint 11% larger than average
This F‑150 covers about 11.8m² of ground space, roughly 11% more than the average pickup. Its 579.4cm length and 202.9cm body width mean it needs suitable and generous places to be parked.
An extra 755 litres of standard cargo capacity
The 2,192-litre SAE capacity is around 755 litres, or 53%, above the average pickup's standard published figure. In practical terms, that is room for around half as much cargo again as the class average.
Ground clearance is 9% above average
With 24.9cm between the truck and the ground, this 4x4 provides around 2.1cm more clearance than the average pickup, giving it useful extra breathing room over steep entrances and uneven surfaces.
Every regional parking space is too short
None of the eight standard regional parking-space sizes shown on DriveSize can physically fit this F‑150 with an 8ft bed. All are too short, while the United Kingdom, European Union and Australia spaces are also too narrow.

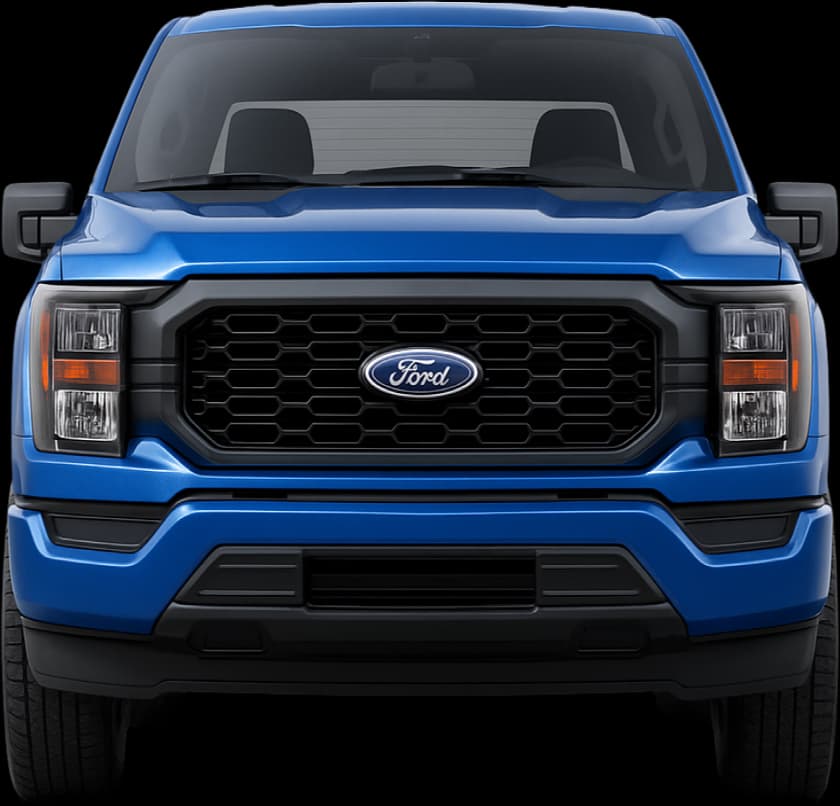

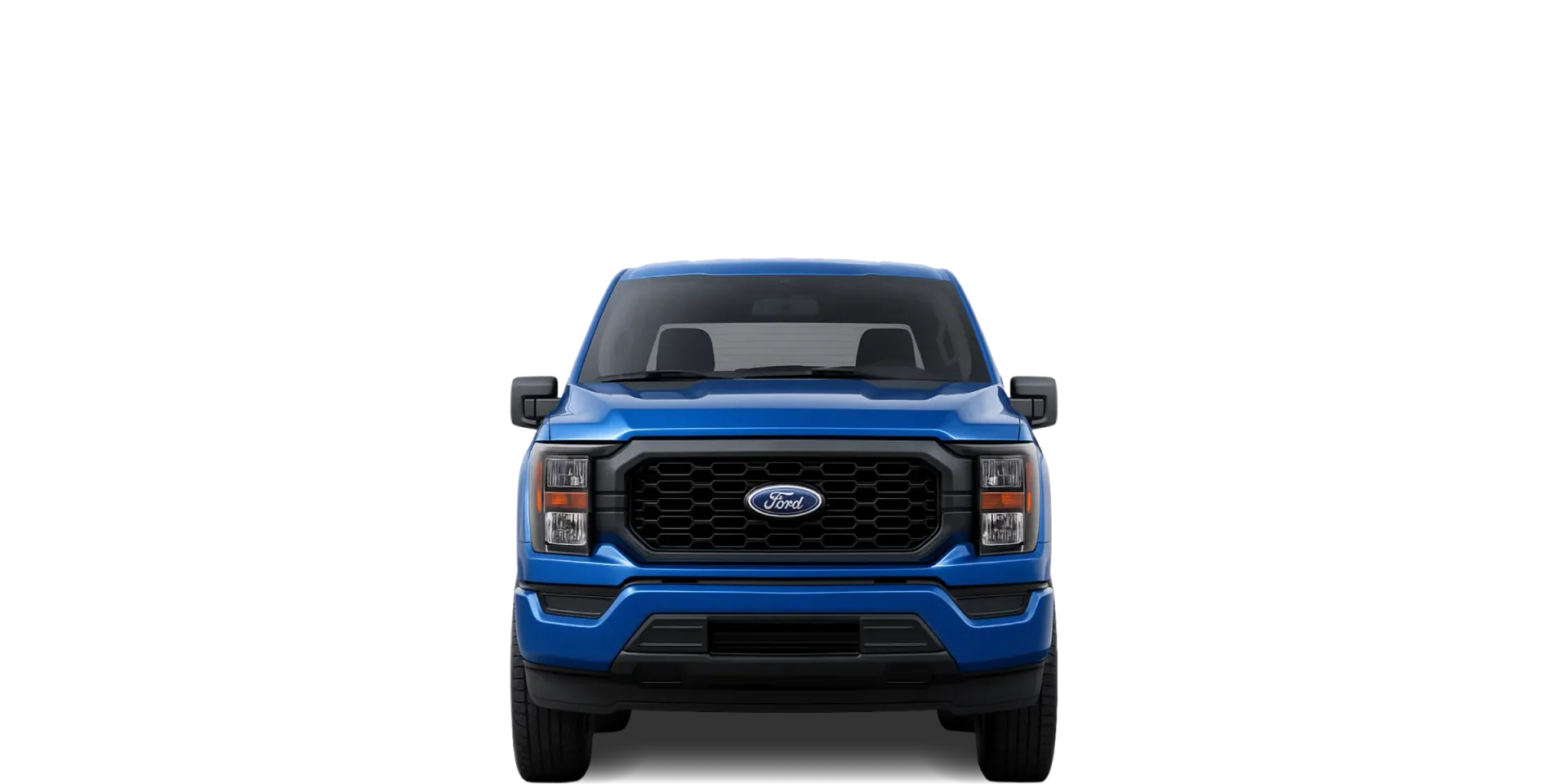

2024 Ford F‑150 Regular Cab 8ft bed 4x4 front view
Cargo space & efficiency
2024 Ford F‑150 Regular Cab 8ft bed 4x4 cargo capacity and space efficiency
The 8ft-bed F‑150 has a published SAE cargo capacity of 2,192 litres. That is around 755 litres, or 53%, above the average pickup's standard published figure, meaning it provides room for around half as much cargo again. Its maximum published capacity is the same 2,192 litres. Compared with the average pickup's maximum figure, its around 665 litres, or 44%, larger. Taking both the standard cargo figure used in the seats-up comparison and maximum cargo capacity into account, this F‑150 provides about 186 litres per square metre of ground space. That is roughly 51% above average for a pickup, so the increase in cargo space is much greater than its 11% increase in footprint.
Measurements
Standard cargo capacity (SAE)
The standard cargo capacity using SAE, the method commonly used in the US.
This is the manufacturer's normal published figure; it does not imply a particular seat configuration.
2,192 L
Largest cargo capacity (SAE)
The largest cargo capacity using SAE, the method commonly used in the US.
If only one SAE figure is published, the standard and largest values are the same.
2,192 L
Cargo space vs length
This DriveSize metric divides blended cargo volume by overall vehicle length.
Blended cargo uses 65% of the standard figure and 35% of the largest figure, using VDA where available and SAE otherwise.
378.3 L per m
Cargo space vs footprint
This DriveSize metric divides blended cargo volume by footprint.
Blended cargo uses 65% of the standard figure and 35% of the largest figure, using VDA where available and SAE otherwise.
It helps show how efficiently a car turns exterior area into usable cargo space.
186.5 L per m²
How the 2024 Ford F‑150 Regular Cab 8ft bed 4x4's cargo space and efficiency compare with the average Pickup
Standard cargo capacity (SAE)
The standard cargo capacity using SAE, the method commonly used in the US.
This is the manufacturer's normal published figure; it does not imply a particular seat configuration.
755 L more cargo volume than the average Pickup
Largest cargo capacity (SAE)
The largest cargo capacity using SAE, the method commonly used in the US.
If only one SAE figure is published, the standard and largest values are the same.
665 L more cargo volume than the average Pickup
DriveSize space efficiency (SAE)
DriveSize space efficiency compares blended cargo volume per square meter of footprint with the class average.
Blended cargo uses 65% of the standard figure and 35% of the largest figure within the selected cargo measurement method.
VDA values compare with VDA class averages, and SAE values compare with SAE class averages. Positive percentages indicate more space efficiency and negative percentages indicate less.
+51%
More space efficient than the average Pickup
Parking
Will the 2024 Ford F‑150 Regular Cab 8ft bed 4x4 fit in a standard parking space?
Standard parking spaces are simply not long enough for this 8ft-bed F‑150. It fails the physical-fit test in all eight regions, including USA/Canada and the Middle East, and therefore cannot achieve a comfortable result in any of them. Length is the only failing dimension in China, India, Japan, USA/Canada and the Middle East. The standard spaces in the United Kingdom, European Union and Australia are too narrow as well, so this version needs parking designed for vehicles larger than the regional norms.
DriveSize parking fit score
DriveSize compares the car's width and length with typical parking-space sizes by region.
Vehicle dimensions are rounded up and available side or length clearance is rounded down.
Side clearance is based on body width where available; real spaces can vary because of mirrors, walls, pillars, kerbs, bay markings, and nearby cars.
For an average USA / Canada space: exceeds the bay's length by 30 cm.
Body side clearance
36 cm
Length over bay
30 cm
Overall length. Primary constraint.
Usability
2024 Ford F‑150 Regular Cab 8ft bed 4x4 usability & manoeuvrability
The 14.1m turning circle is around 1m, or 8%, wider than the average pickup's, while the 359.4cm wheelbase is roughly 28cm longer. That combination means this F‑150 needs more room for tight turns and changes of direction, with its additional width also requiring care in confined areas. Its 24.9cm ground clearance is around 2.1cm, or 9%, above average, giving the truck more breathing room over steep entrances and uneven surfaces. At 2,122kg, it is roughly 129kg, or 6%, lighter than the average pickup.
Measurements
Doors
2
Max seats
3
Turning circle
14.1 m
Curb weight
2,122 kg
How the 2024 Ford F‑150 Regular Cab 8ft bed 4x4's usability and manoeuvrability compare with the average Pickup
Turning circle
1 m larger turning circle than the average Pickup
Curb weight
129 kg lighter than the average Pickup
DriveSize manoeuvrability
DriveSize manoeuvrability combines turning circle and footprint, with turning circle weighted more heavily.
A positive percentage means more manoeuvrable than the class average and a negative percentage means less manoeuvrable.
-9%
Less manoeuvrable than the average Pickup

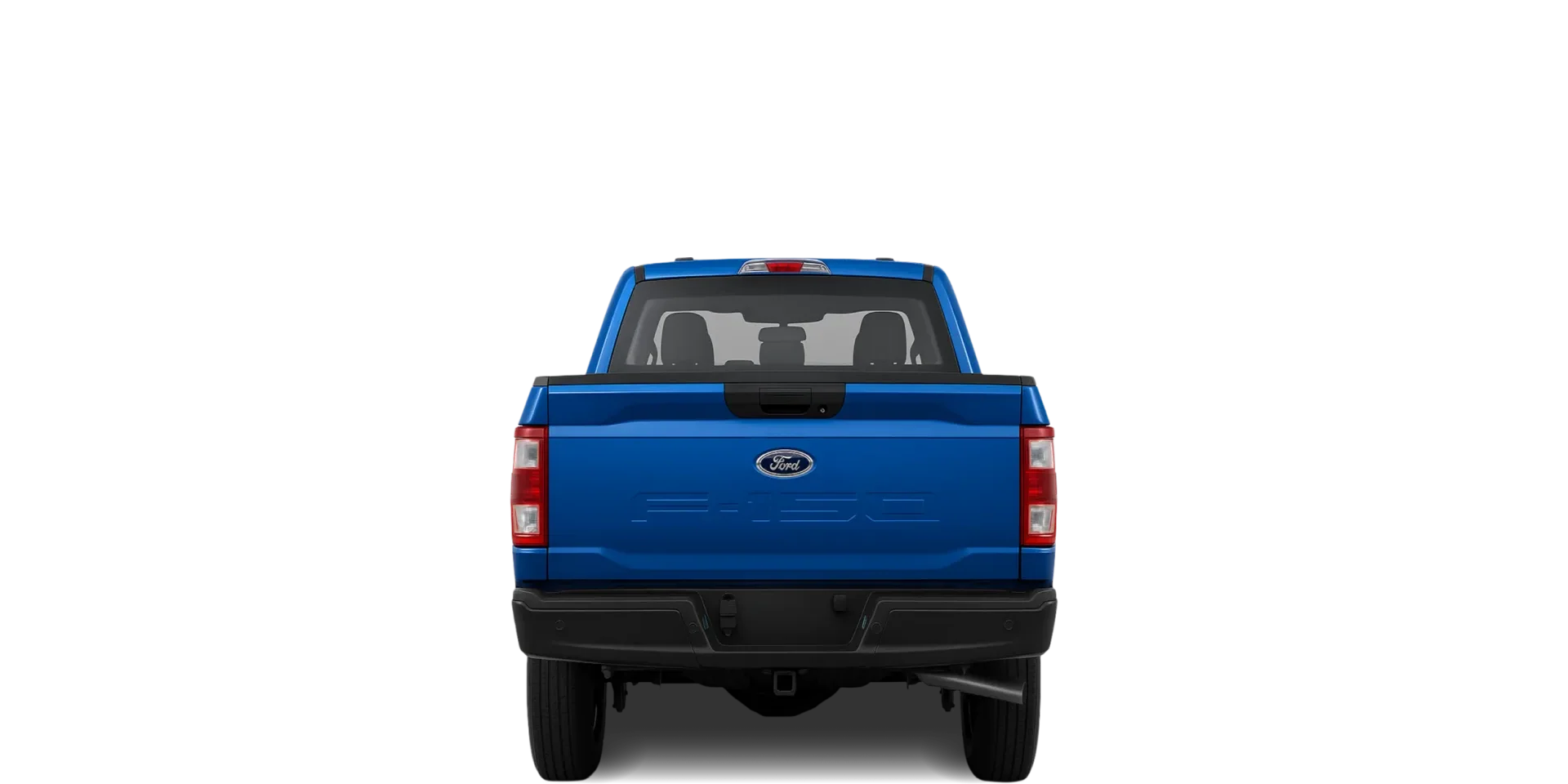

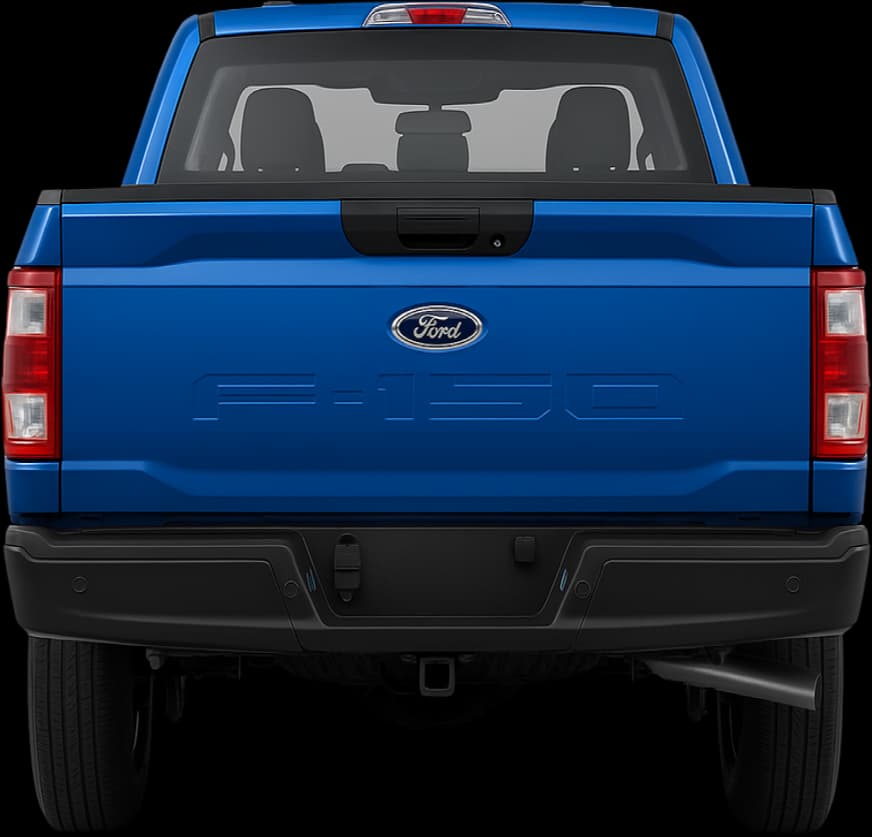

2024 Ford F‑150 Regular Cab 8ft bed 4x4 rear view
DriveSize overview: 2024 Ford F‑150 Regular Cab 8ft bed 4x4
Judging by its dimensions and capacities, this Regular Cab, 4x4 F-150 with an 8ft bed may suit drivers who need substantially more cargo space and ground clearance than the average pickup, and who regularly use places designed for full-size trucks. Its 2,192-litre SAE capacity is 53% above the average standard published figure, providing room for around half as much cargo again, while its 24.9cm ground clearance is 9% higher than average.
Those advantages come with considerable space requirements. The F‑150 is 579.4cm long, its body is 202.9cm wide and its 14.1m turning circle is wider than average. None of the eight regional parking spaces can contain it, so it is best suited to drivers whose usual roads, storage and parking can accommodate its size.
See how it compares with the 2024 Ford F-150 Regular Cab 8ft bed 4x2, which shares the same cab, 8ft bed and cargo figures.
Articles featuring this car
Ford F-150 Cab & Bed Sizes Explained: Regular Cab vs SuperCab vs SuperCrew
Understand Ford F-150 SuperCrew, SuperCab and Regular Cab sizes, bed lengths, passenger space, footprint and turning circle.

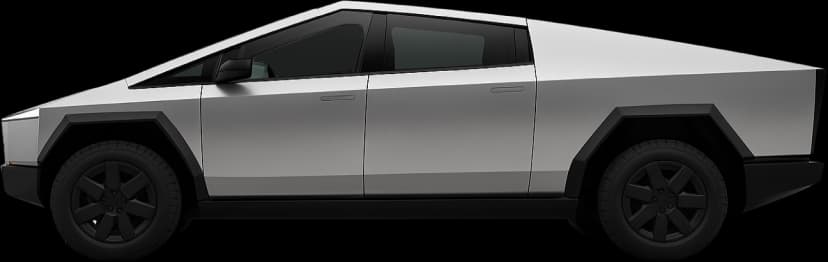

Ford F-150 vs Tesla Cybertruck: Dimensions, Bed Sizes, Width & Parking
