2024 Chevrolet Equinox EV dimensions and size guide
2024 Chevrolet Equinox EV
Add comparisonExterior dimensions
2024 Chevrolet Equinox EV exterior dimensions
A short garage is likely to make the Equinox EV's size apparent before anything else. Its end to end length is 484cm, which is around 31cm, or 7%, beyond the average-sized crossover. Its 295.4cm wheelbase follows the same pattern, exceeding the average by 23cm, or 8%. Width matters at a narrow entrance too. With its mirrors extended, the Equinox EV spans 215.5cm, roughly 9cm, or 4%, wider than average. Height is the least unusual figure: at 164.6cm, it stands only about 2cm higher than the crossover norm.
Measurements
Length
484 cm
Width (excluding mirrors)
187.3 cm
Width (including mirrors)
215.5 cm
Height
164.6 cm
Wheelbase
295.4 cm
Ground clearance
16.3 cm
Footprint
DriveSize footprint is overall length multiplied by body width excluding mirrors.
9.1 m²
How the 2024 Chevrolet Equinox EV's exterior dimensions compare with the average Crossover
Length
31.4 cm longer than the average Crossover
Width (excluding mirrors)
2.4 cm wider than the average Crossover
Width (including mirrors)
9.1 cm wider than the average Crossover
Height
1.8 cm taller than the average Crossover
Wheelbase
23 cm longer wheelbase than the average Crossover
Ground clearance
1.8 cm less ground clearance than the average Crossover
DriveSize footprint score
DriveSize footprint score compares this car's footprint with the average footprint for the same class.
A score near 100% means it is close to class average size. Lower scores mean it sits further from that average, either smaller or larger.
92%
8% larger than the average Crossover
Fast facts
Fast facts
Length is its standout dimension
At 484cm, the Equinox EV is about 31cm longer than the average crossover. However, it is not much taller than an average crossover, so most of the extra size comes from its length.
Everyday boot space is close to average
Leave the back seats upright and the SAE cargo figure is 748 litres. That is just 9 litres, or 1%, above the crossover average, placing everyday boot space almost exactly on the class norm.
Seven physical fits, no comfortable ones
Physically, the Equinox EV fits within seven of the eight standard parking space sizes used across different regions. However, none of those spaces leaves the extra room needed for comfortable access, so the car is technically compatible but still likely to feel tight in everyday use.
Cargo volume slightly outruns body length
Once its seats-up and maximum cargo capacities are combined, the Equinox EV delivers about 218 litres per metre of vehicle length. That puts it roughly 3% ahead of the average crossover on this measure.

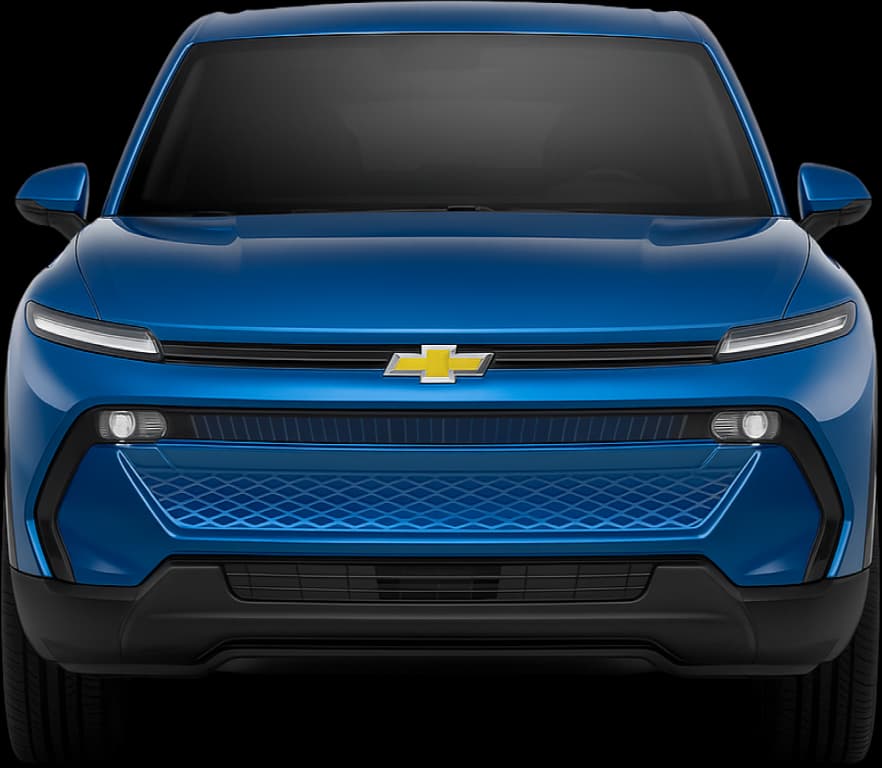

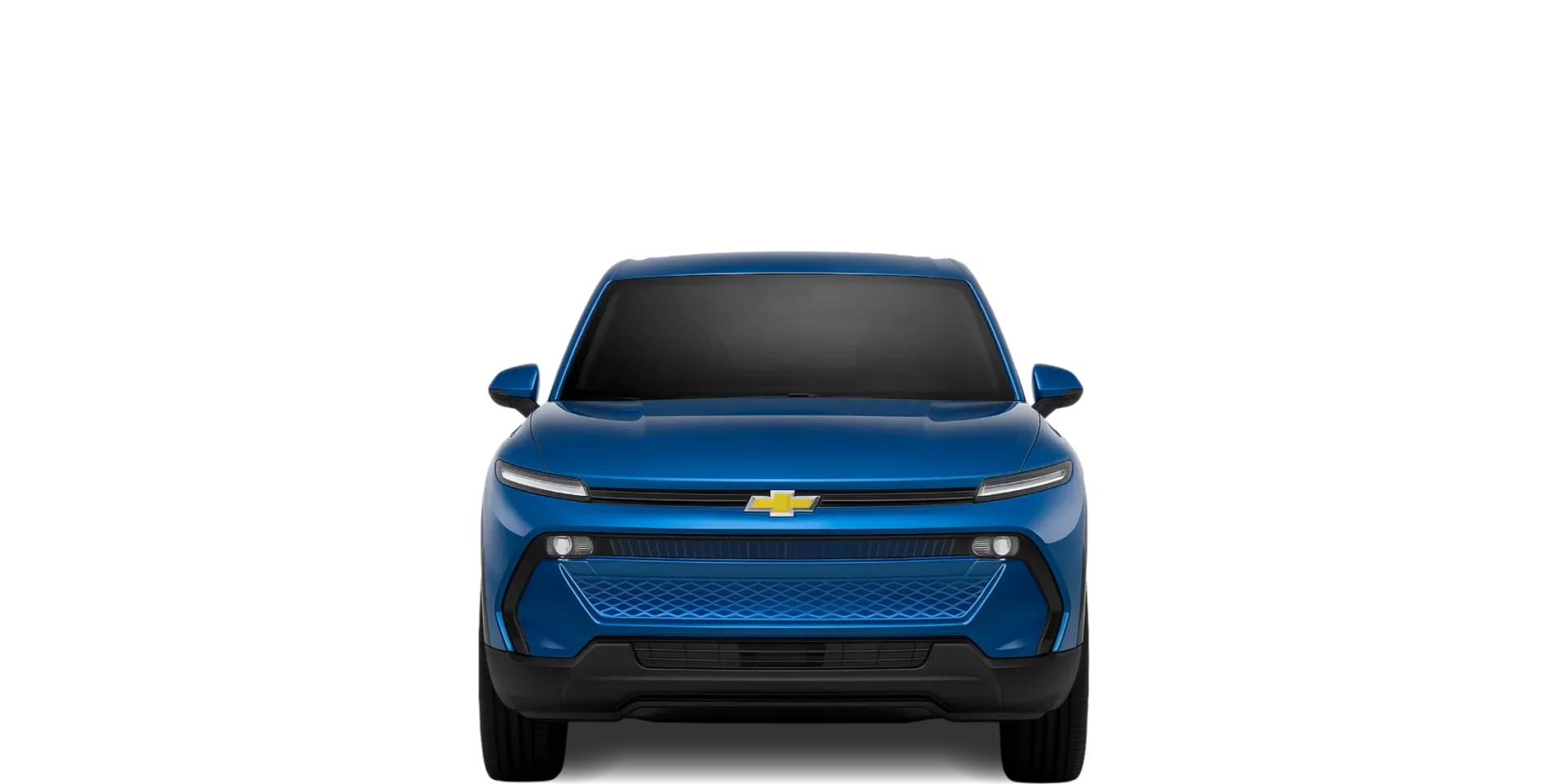

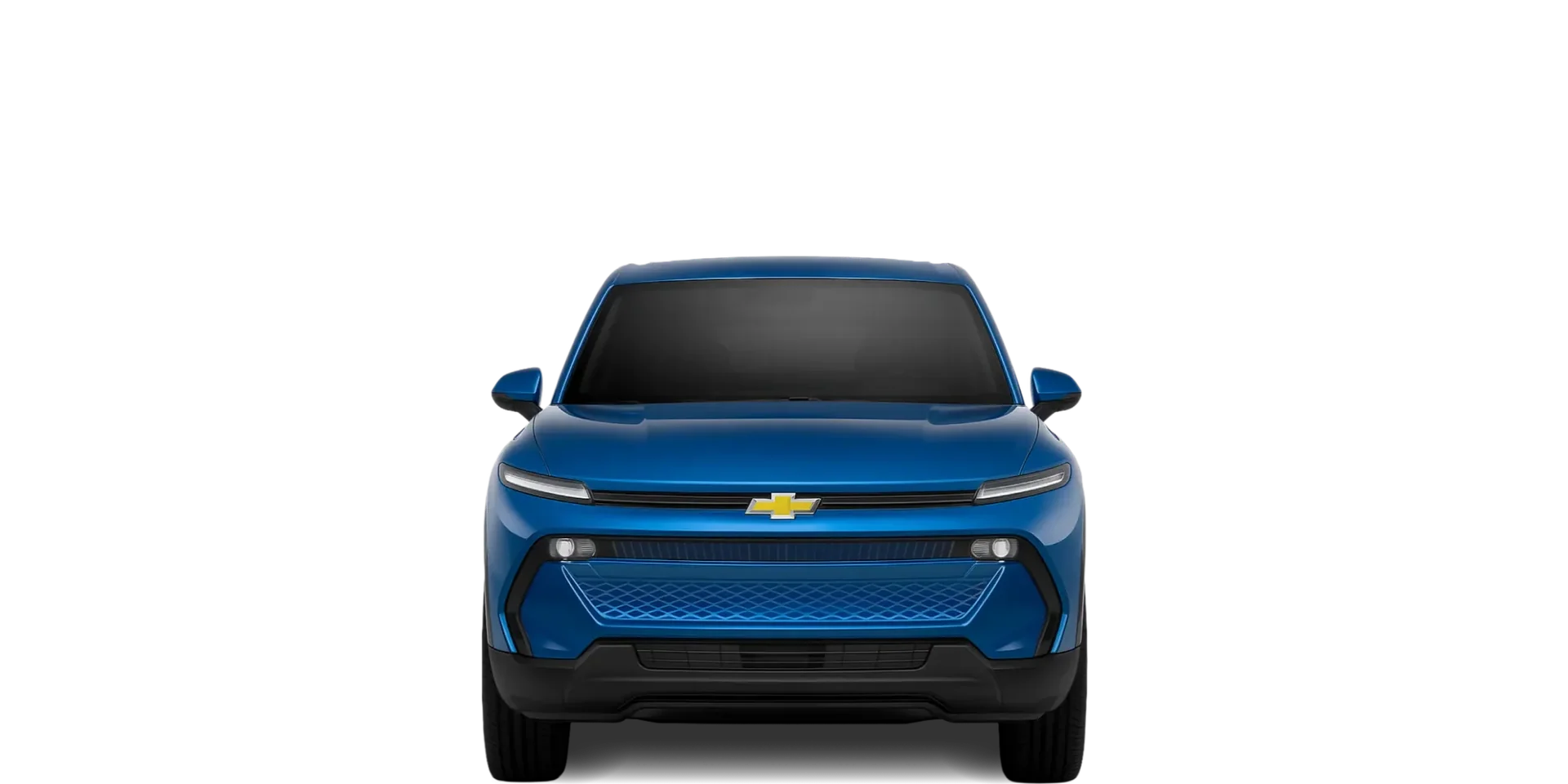

2024 Chevrolet Equinox EV front view
Cargo space & efficiency
2024 Chevrolet Equinox EV cargo capacity and space efficiency
The Equinox EV is most competitive with the back seats upright. Its 748-litre SAE boot is just 9 litres, or 1%, above average, making the normal five-seat setup broadly typical for a crossover. Fold the back seats and the picture changes. Maximum capacity is 1,620 litres, around 251 litres, or 13%, below the crossover average. Everyday boot space is therefore the stronger of its two published cargo figures. Combine the seats-up and maximum cargo capacities and the Equinox EV provides about 218 litres per metre of vehicle length. This cargo-to-length result sits roughly 3% above average, despite its lower maximum capacity.
Measurements
Standard cargo capacity (SAE)
The standard cargo capacity using SAE, the method commonly used in the US.
This is the manufacturer's normal published figure; it does not imply a particular seat configuration.
748 L
Largest cargo capacity (SAE)
The largest cargo capacity using SAE, the method commonly used in the US.
If only one SAE figure is published, the standard and largest values are the same.
1,620 L
Cargo space vs length
This DriveSize metric divides blended cargo volume by overall vehicle length.
Blended cargo uses 65% of the standard figure and 35% of the largest figure, using VDA where available and SAE otherwise.
217.6 L per m
Cargo space vs footprint
This DriveSize metric divides blended cargo volume by footprint.
Blended cargo uses 65% of the standard figure and 35% of the largest figure, using VDA where available and SAE otherwise.
It helps show how efficiently a car turns exterior area into usable cargo space.
116.2 L per m²
How the 2024 Chevrolet Equinox EV's cargo space and efficiency compare with the average Crossover
Standard cargo capacity (SAE)
The standard cargo capacity using SAE, the method commonly used in the US.
This is the manufacturer's normal published figure; it does not imply a particular seat configuration.
9 L more cargo volume than the average Crossover
Largest cargo capacity (SAE)
The largest cargo capacity using SAE, the method commonly used in the US.
If only one SAE figure is published, the standard and largest values are the same.
251 L less cargo volume than the average Crossover
DriveSize space efficiency score (SAE)
DriveSize space efficiency compares blended cargo volume per square meter of footprint with the class average.
Blended cargo uses 65% of the standard figure and 35% of the largest figure within the selected cargo measurement method.
VDA scores compare with VDA class averages, and SAE scores compare with SAE class averages. Around 100% means in line with class average.
89%
Below class average (-11%)
Parking
Will the 2024 Chevrolet Equinox EV fit in a standard parking space?
Parking is the Equinox EV's clearest size compromise. Seven of the eight standard regional parking space sizes can physically contain it, yet none provides enough surrounding room to qualify as a comfortable fit. Getting between the lines and having space to open the doors are two different tests here. The longer-than-average body and broad mirror-to-mirror span contribute in different ways: one reduces end clearance, while the other cuts into room at the sides. For drivers who often use compact spaces, that combination may make the Equinox EV feel cumbersome even where it technically fits.
DriveSize parking fit score
DriveSize compares the car's width and length with typical parking-space sizes by region.
Vehicle dimensions are rounded up and available side or length clearance is rounded down.
Side clearance is based on body width excluding mirrors where available; real spaces can vary because of mirrors, walls, pillars, kerbs, bay markings, and nearby cars.
For an average USA / Canada space: body side clearance is 43.5 cm per side (excluding mirrors), and length clearance is 33 cm at each end.
Body side clearance (excluding mirrors)
43.5 cm
Length clearance (at each end)
33 cm
Usability
2024 Chevrolet Equinox EV usability & manoeuvrability
Ground clearance places the Equinox EV below the crossover norm. Its 16.3cm figure is about 2cm, or 10%, lower than average, so steep ramps, raised entrances and uneven ground deserve a little more care. Turning also takes slightly more room than usual. The 11.6-metre circle is around 36cm, or 3%, wider than average. That is not a dramatic difference, but it offers no extra help when space is already limited.
Measurements
Doors
5
Max seats
5
Turning circle
11.6 m
How the 2024 Chevrolet Equinox EV's usability and manoeuvrability compare with the average Crossover
Turning circle
0.4 m larger turning circle than the average Crossover
DriveSize manoeuvrability score
DriveSize manoeuvrability score combines turning circle and footprint, with turning circle weighted more heavily.
Around 100% means in line with the class average; higher scores indicate better manoeuvrability relative to similar cars.
96%
4% less manoeuvrable than the average Crossover

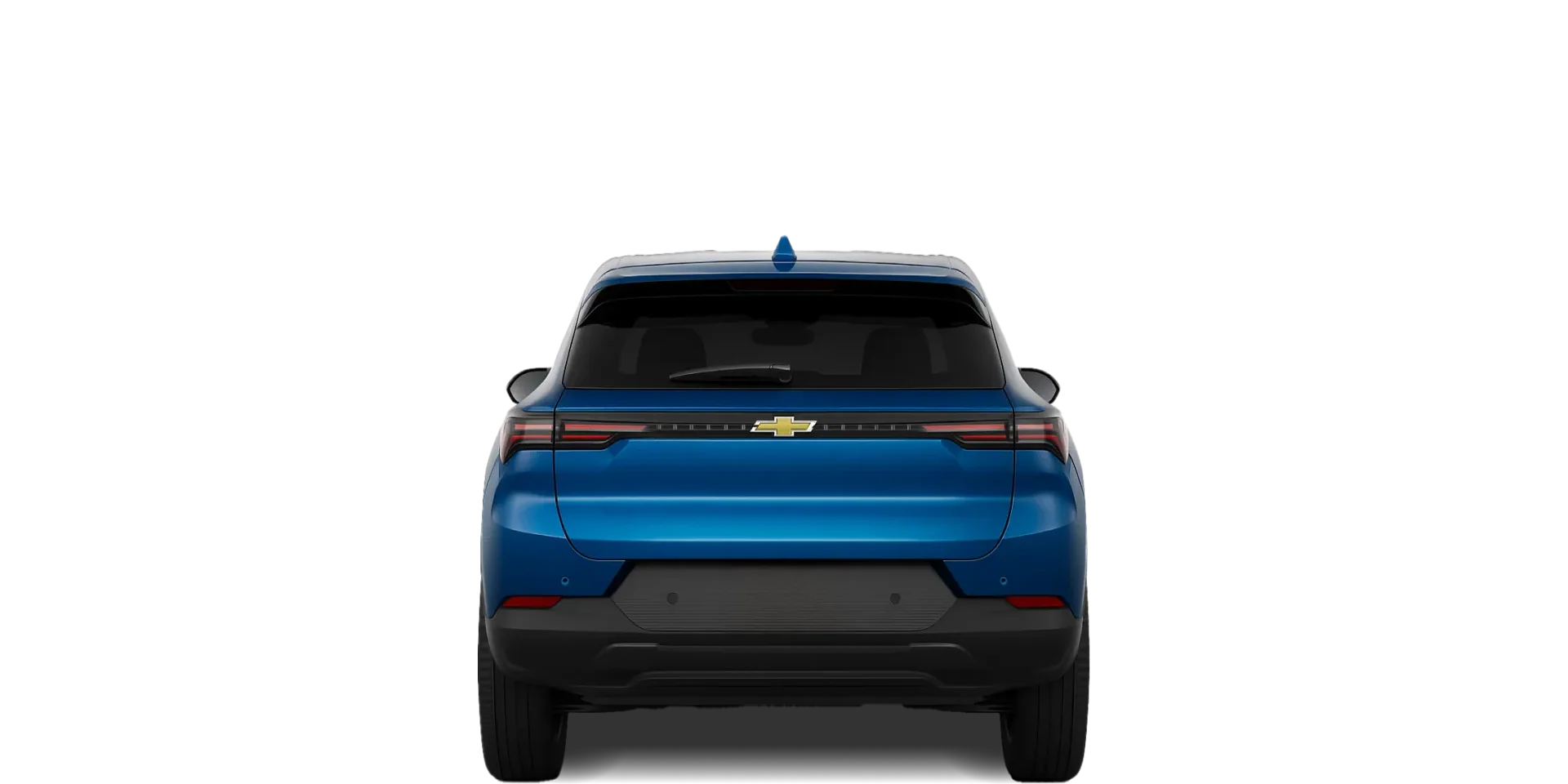

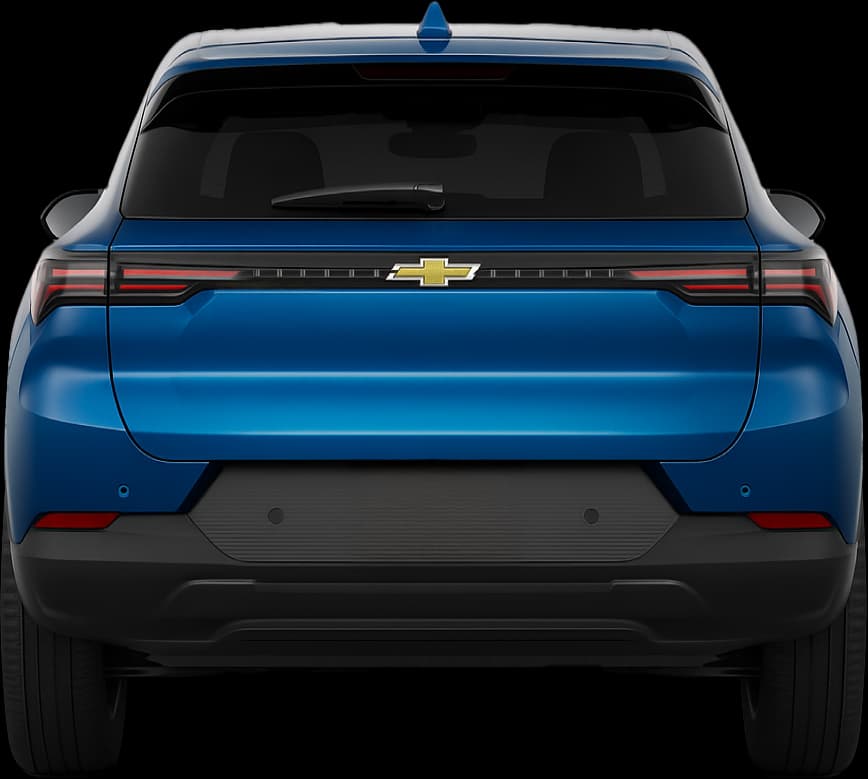

2024 Chevrolet Equinox EV rear view
DriveSize overview: 2024 Chevrolet Equinox EV
Drivers who regularly use narrow city bays should start with the Equinox EV's parking results, not its boot figure. Its body is 31cm longer than the average crossover, and none of the standard parking space sizes leaves a comfortable amount of room around it. That makes the car's exterior dimensions an important consideration for anyone who routinely parks in confined spaces.
With generous parking space, the balance becomes more favourable. The 748-litre seats-up boot is almost exactly average and combined cargo capacity per metre of vehicle length is 3% above average, although the 1,620-litre maximum is 13% below. Based on these dimensions, it may suit buyers who want useful five-seat cargo space and can accept a long exterior, rather than those seeking a compact car or the greatest folded-seat capacity.
