2021 Ford Mustang Mach‑E dimensions and size guide
2021 Ford Mustang Mach‑E
Add comparisonExterior dimensions
2021 Ford Mustang Mach‑E exterior dimensions
The 2021 Ford Mustang Mach‑E is longer than the average crossover, but only slightly wider and almost exactly the same height. Its 471.3cm length adds nearly 19cm, or 4%, so the extra space needed in front and behind is likely to be more noticeable than its 188.1cm body width, which is only around 3cm above average. Width reaches 209.7cm with the mirrors extended, again roughly 3cm more than the crossover norm. The 162.5cm height is almost exactly average, while its 298.4cm wheelbase is 26cm, or 10%, longer. Overall, the Mach‑E occupies about 8.9m² of ground space, around 6% more than the typical crossover.
Measurements
Length
471.3 cm
Width (excluding mirrors)
188.1 cm
Width (including mirrors)
209.7 cm
Height
162.5 cm
Wheelbase
298.4 cm
Ground clearance
14.5 cm
Footprint
DriveSize footprint is overall length multiplied by body width excluding mirrors.
8.9 m²
How the 2021 Ford Mustang Mach‑E's exterior dimensions compare with the average Crossover
Length
18.7 cm longer than the average Crossover
Width (excluding mirrors)
3.2 cm wider than the average Crossover
Width (including mirrors)
3.3 cm wider than the average Crossover
Height
0.3 cm shorter than the average Crossover
Wheelbase
26 cm longer wheelbase than the average Crossover
Ground clearance
3.6 cm less ground clearance than the average Crossover
DriveSize footprint score
DriveSize footprint score compares this car's footprint with the average footprint for the same class.
A score near 100% means it is close to class average size. Lower scores mean it sits further from that average, either smaller or larger.
94%
6% larger than the average Crossover
Fast facts
Fast facts
Nearly 19cm longer than average
At 471.3cm long, the Mach‑E is around 4% longer than the average crossover. This is the dimension most likely to need extra thought in a garage or shorter parking space.
It fits in eight regional parking spaces
All eight standard spaces tested by DriveSize can physically contain the Mach‑E, although only three leave a comfortable amount of room for getting in and out.
SAE seats-up capacity is 11% above average
Its 822-litre published SAE figure is around 83 litres more than the crossover norm, giving it an above-average result in this everyday cargo comparison.
An 81-litre frunk adds separate storage
The front compartment provides another 81 litres away from the main boot, which can be useful for keeping smaller items separate.

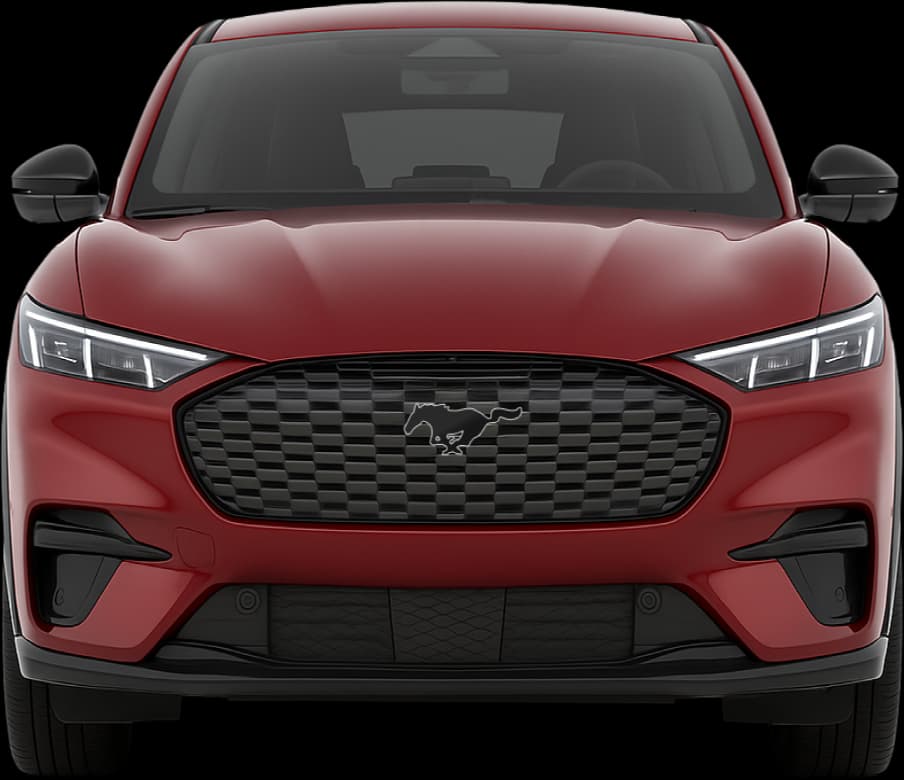

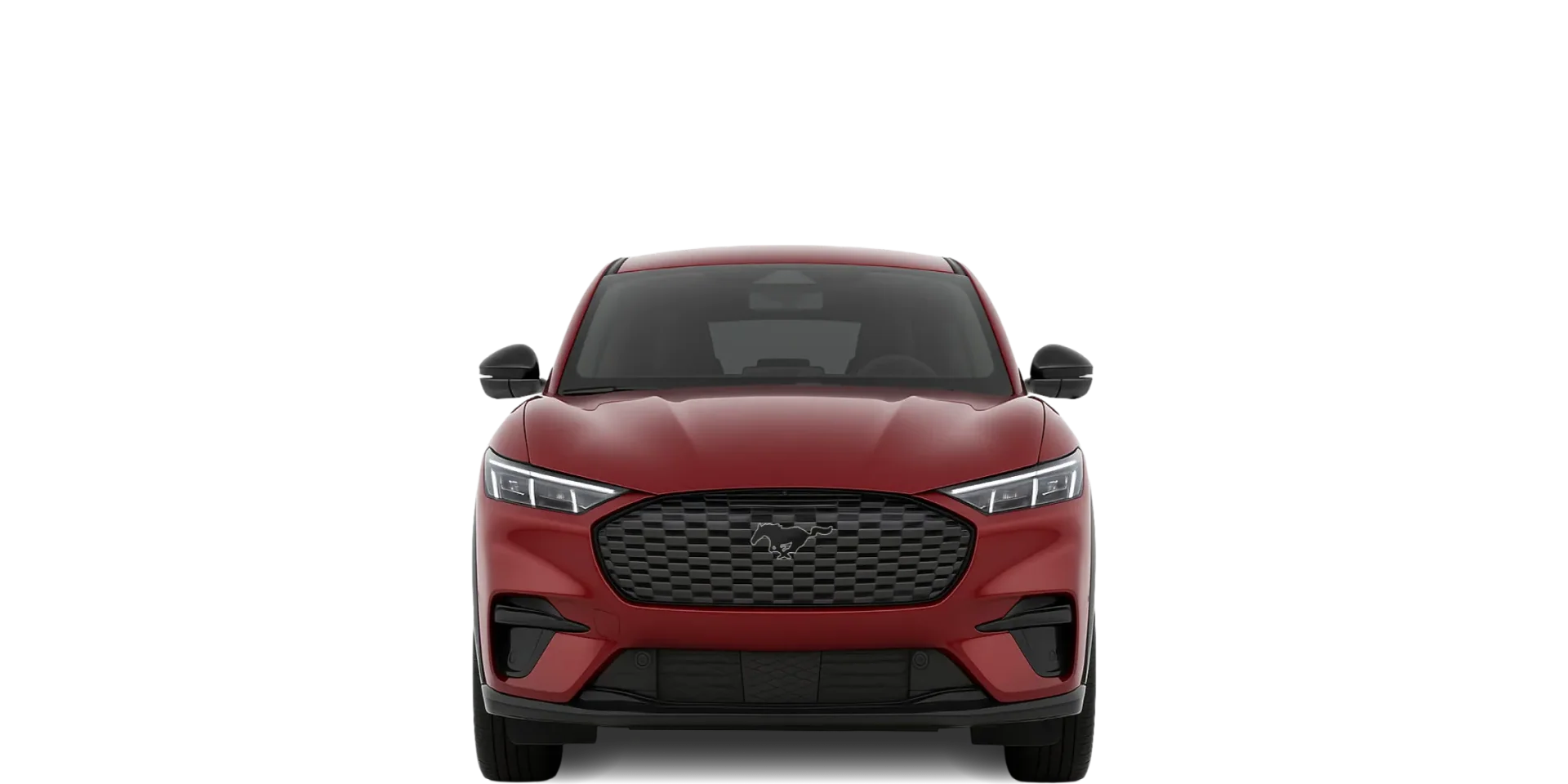

2021 Ford Mustang Mach‑E front view
Cargo space & efficiency
2021 Ford Mustang Mach‑E cargo capacity and space efficiency
Using the VDA standard, the Mach‑E provides 402 litres of cargo capacity with all five seats in use. That is around 43 litres, or 10%, below the crossover average. Fold the back seats and capacity rises to 1,420 litres, roughly 88 litres, or 6%, below average. Its published SAE figures tell a slightly different story. The 822-litre seats-up capacity is around 83 litres, or 11%, above the crossover norm, while the 1,689-litre maximum is roughly 182 litres, or 10%, below average. An additional 81-litre frunk provides separate storage at the front. Taking the seats-up and maximum figures into account, cargo capacity per square metre is around 13% below average using VDA and 3% below average using SAE. Across both published standards, its overall cargo-efficiency result is roughly 8% below the crossover norm.
Measurements
Standard cargo capacity (VDA)
The standard cargo capacity using VDA, the method commonly used globally.
This is the manufacturer's normal published figure; it does not imply a particular seat configuration.
402 L
Largest cargo capacity (VDA)
The largest cargo capacity using VDA, the method commonly used globally.
If only one VDA figure is published, the standard and largest values are the same.
1,420 L
Standard cargo capacity (SAE)
The standard cargo capacity using SAE, the method commonly used in the US.
This is the manufacturer's normal published figure; it does not imply a particular seat configuration.
822 L
Largest cargo capacity (SAE)
The largest cargo capacity using SAE, the method commonly used in the US.
If only one SAE figure is published, the standard and largest values are the same.
1,689 L
Frunk capacity
81 L
Cargo space vs length
This DriveSize metric divides blended cargo volume by overall vehicle length.
Blended cargo uses 65% of the standard figure and 35% of the largest figure, using VDA where available and SAE otherwise.
160.9 L per m
Cargo space vs footprint
This DriveSize metric divides blended cargo volume by footprint.
Blended cargo uses 65% of the standard figure and 35% of the largest figure, using VDA where available and SAE otherwise.
It helps show how efficiently a car turns exterior area into usable cargo space.
85.5 L per m²
How the 2021 Ford Mustang Mach‑E's cargo space and efficiency compare with the average Crossover
Standard cargo capacity (VDA)
The standard cargo capacity using VDA, the method commonly used globally.
This is the manufacturer's normal published figure; it does not imply a particular seat configuration.
43 L less cargo volume than the average Crossover
Largest cargo capacity (VDA)
The largest cargo capacity using VDA, the method commonly used globally.
If only one VDA figure is published, the standard and largest values are the same.
88 L less cargo volume than the average Crossover
Standard cargo capacity (SAE)
The standard cargo capacity using SAE, the method commonly used in the US.
This is the manufacturer's normal published figure; it does not imply a particular seat configuration.
83 L more cargo volume than the average Crossover
Largest cargo capacity (SAE)
The largest cargo capacity using SAE, the method commonly used in the US.
If only one SAE figure is published, the standard and largest values are the same.
182 L less cargo volume than the average Crossover
DriveSize space efficiency score (VDA)
DriveSize space efficiency compares blended cargo volume per square meter of footprint with the class average.
Blended cargo uses 65% of the standard figure and 35% of the largest figure within the selected cargo measurement method.
VDA scores compare with VDA class averages, and SAE scores compare with SAE class averages. Around 100% means in line with class average.
87%
Below class average (-13%)
Parking
Will the 2021 Ford Mustang Mach‑E fit in a standard parking space?
The Mach‑E physically fits within all eight standard regional parking spaces on DriveSize. This makes it broadly parkable, but only the spaces in China, USA/Canada and the Middle East leave a comfortable amount of surrounding room. The United Kingdom produces the tightest overall result, while the European Union, India, Japan and Australia also leave less room for opening the doors and getting in or out. Its extra length is likely to be more noticeable than its only slightly above-average width.
DriveSize parking fit score
DriveSize compares the car's width and length with typical parking-space sizes by region.
Vehicle dimensions are rounded up and available side or length clearance is rounded down.
Side clearance is based on body width excluding mirrors where available; real spaces can vary because of mirrors, walls, pillars, kerbs, bay markings, and nearby cars.
For an average USA / Canada space: body side clearance is 43 cm per side (excluding mirrors), and length clearance is 39 cm at each end.
Body side clearance (excluding mirrors)
43 cm
Length clearance (at each end)
39 cm
Usability
2021 Ford Mustang Mach‑E usability & manoeuvrability
The Mach‑E has an 11.6m turning circle, around 0.4m, or 3%, wider than the crossover average. Together with a wheelbase that is 26cm longer than usual, it may need a little more space for tight turns. At 1,969kg, it is around 337kg, or 21%, heavier than the average crossover. Its 14.5cm ground clearance is approximately 3.6cm, or 20%, lower, so there is less space beneath the car which is less ideal than average crossovers for driving over steep entrances and uneven ground.
Measurements
Doors
5
Max seats
5
Turning circle
11.6 m
Curb weight
1,969 kg
How the 2021 Ford Mustang Mach‑E's usability and manoeuvrability compare with the average Crossover
Turning circle
0.4 m larger turning circle than the average Crossover
Curb weight
337 kg heavier than the average Crossover
DriveSize manoeuvrability score
DriveSize manoeuvrability score combines turning circle and footprint, with turning circle weighted more heavily.
Around 100% means in line with the class average; higher scores indicate better manoeuvrability relative to similar cars.
96%
4% less manoeuvrable than the average Crossover

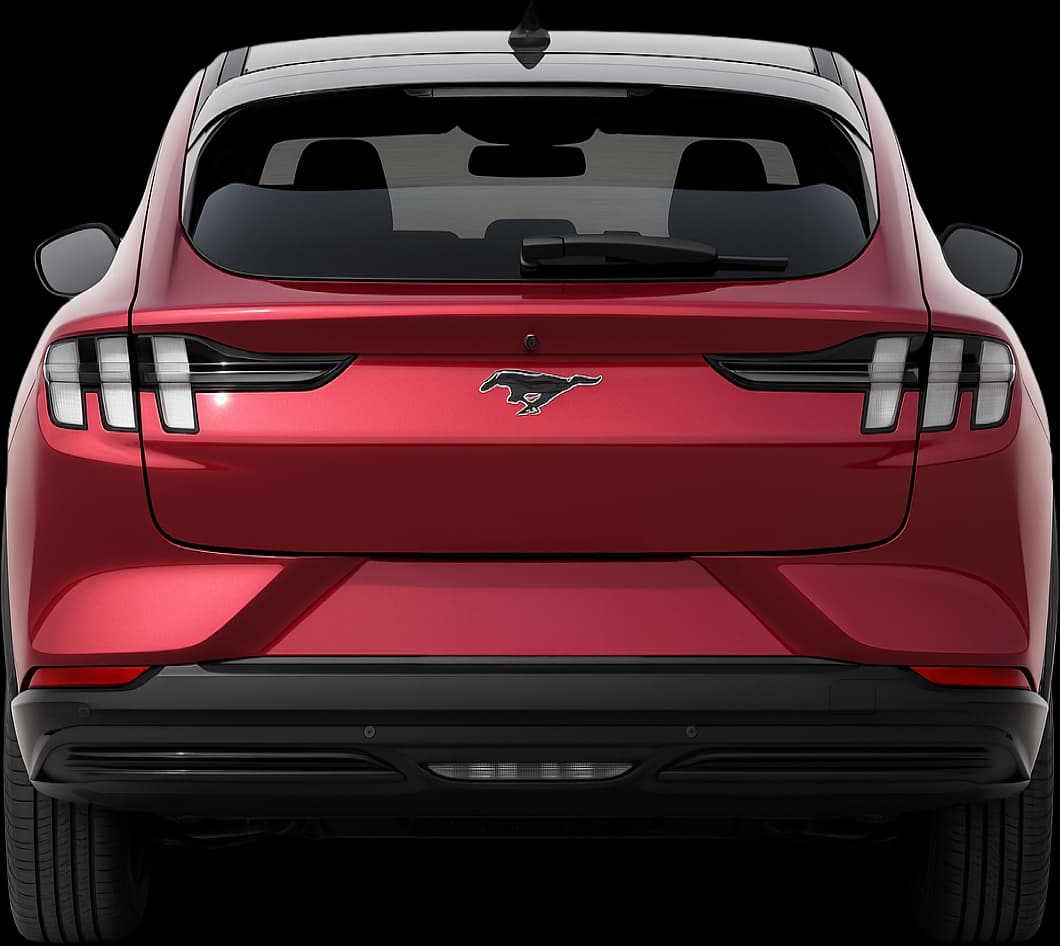

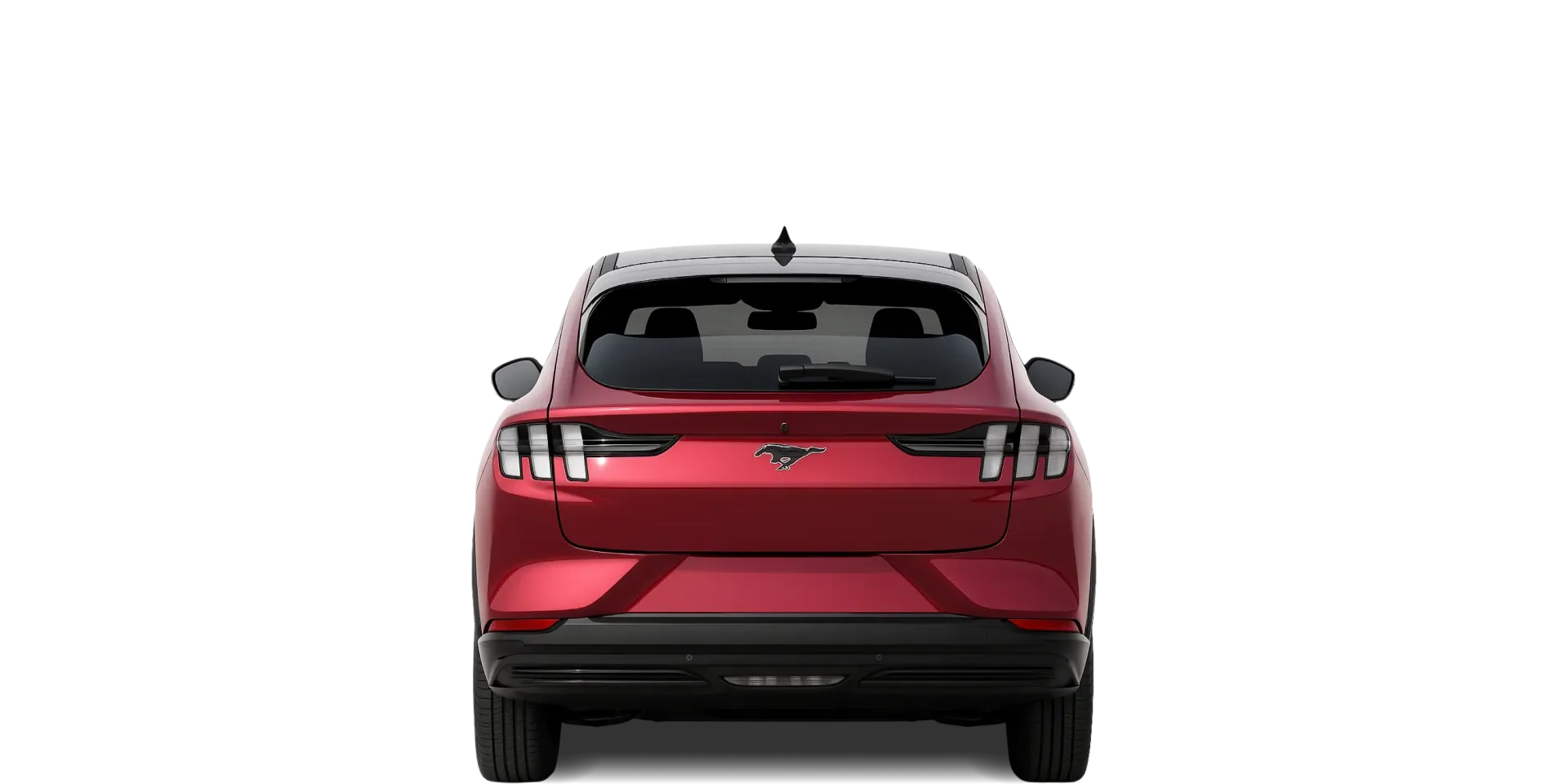

2021 Ford Mustang Mach‑E rear view
DriveSize overview: 2021 Ford Mustang Mach‑E
Looking at its dimensions and capacities, the Ford Mustang Mach‑E may suit drivers who want five seats, a separate 81-litre frunk and a crossover that can physically fit in most parking spaces. Its height is almost exactly average and its body is only slightly wider than the class norm.
The main size difference is length: it extends nearly 19cm beyond the average crossover and needs slightly more turning room. Cargo results vary by measurement standard, with above-average SAE seats-up capacity but below-average maximum figures and an overall cargo-efficiency result around 8% under the crossover norm.
A similarly sized electric crossover is the 2024 Chevrolet Equinox EV, which also has closely matched cargo capacity.
FAQs
Frequently asked questions
Vehicle specifications on this page are sourced from official Ford documentation. All DriveSize comparisons are calculated from manufacturer-published specifications.
