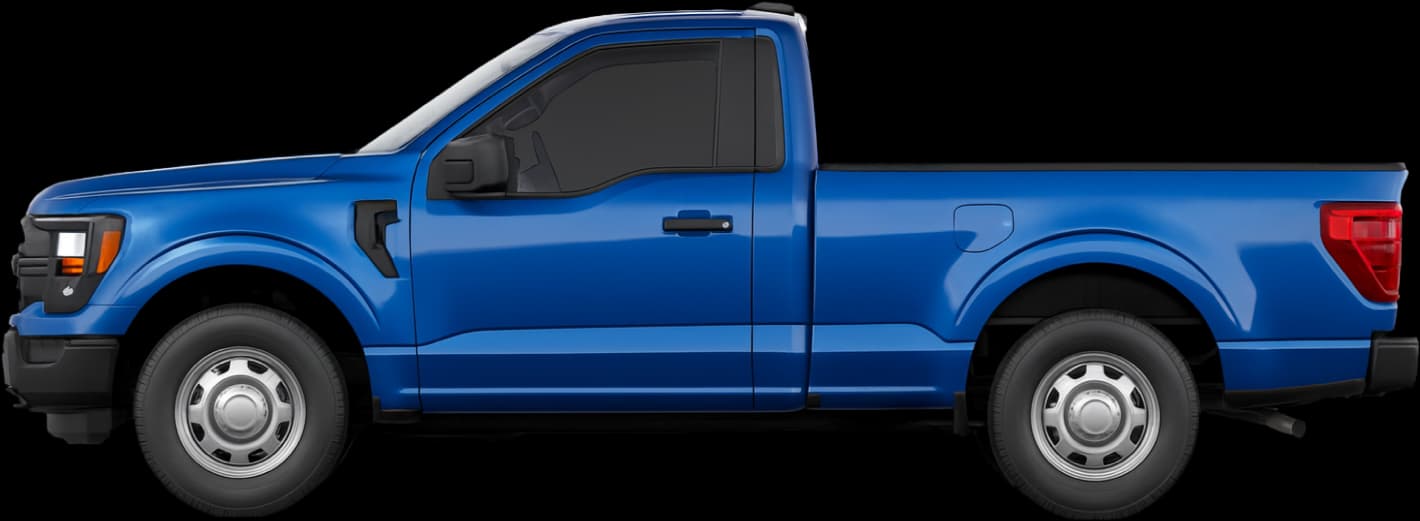

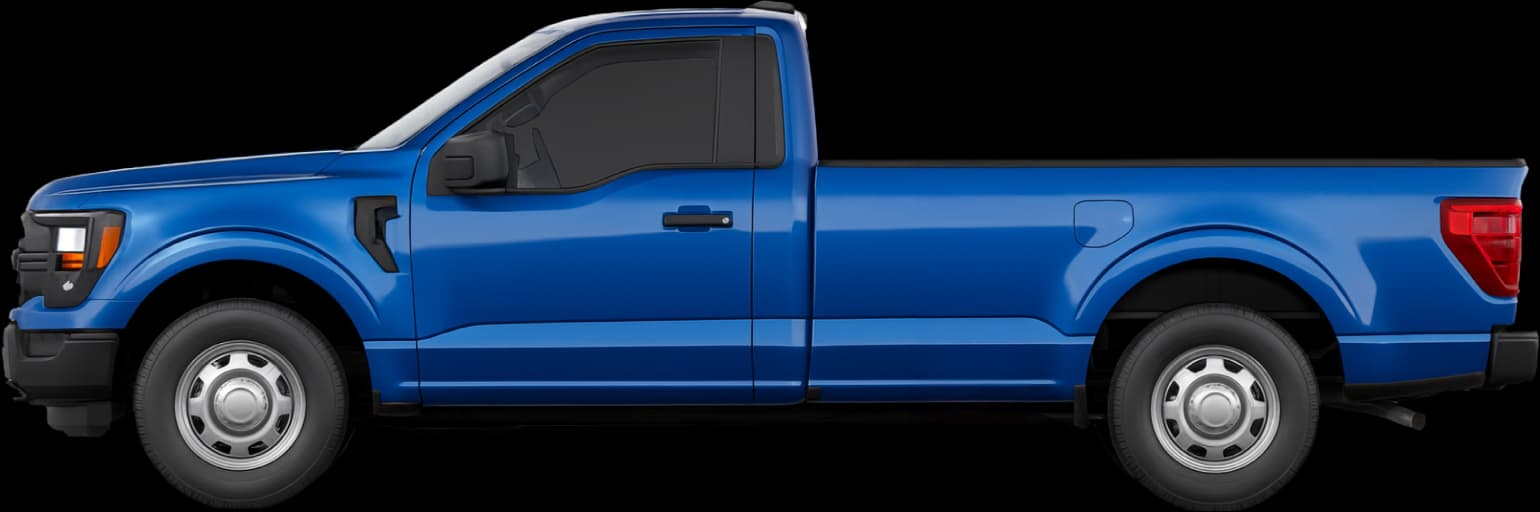

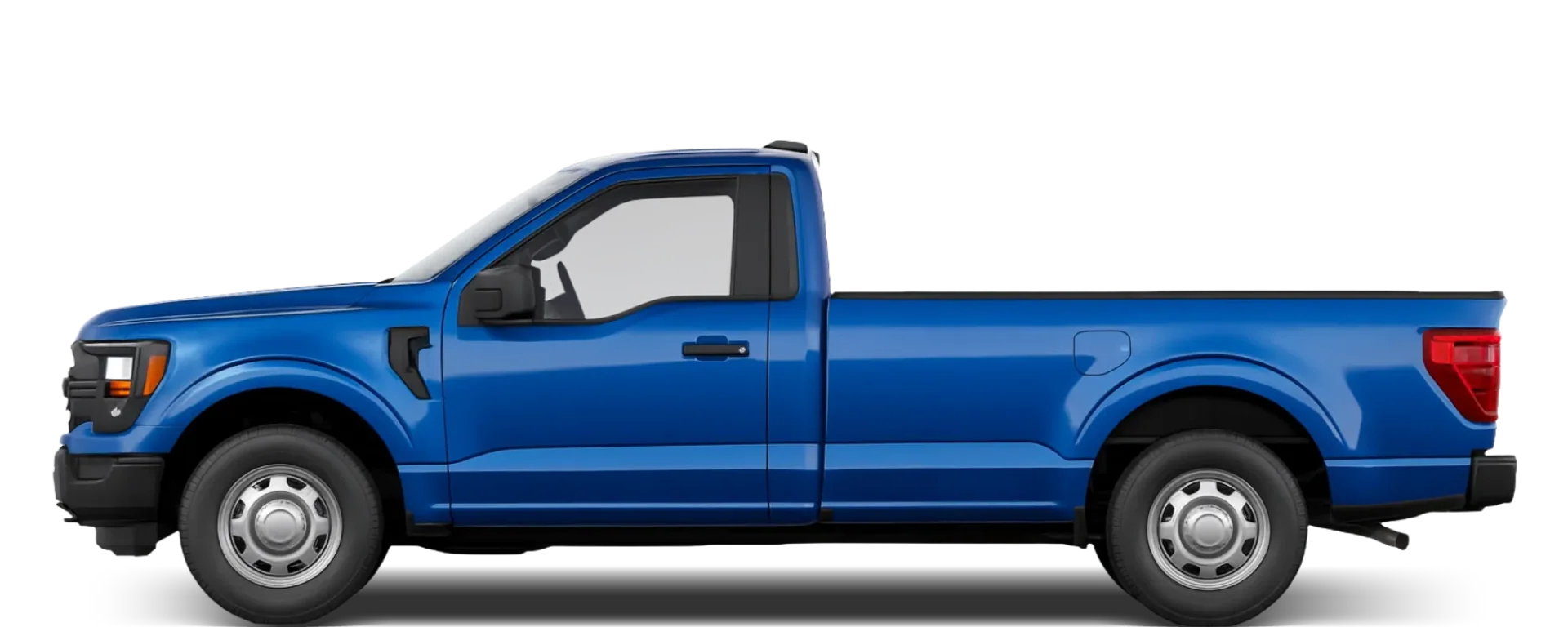

2024 Ford F‑150 Regular Cab 6.5ft bed 4x2 vs 2024 Ford F‑150 Regular Cab 8ft bed 4x2
Which is bigger, the 2024 Ford F‑150 Regular Cab 6.5ft bed 4x2 or 2024 Ford F‑150 Regular Cab 8ft bed 4x2?

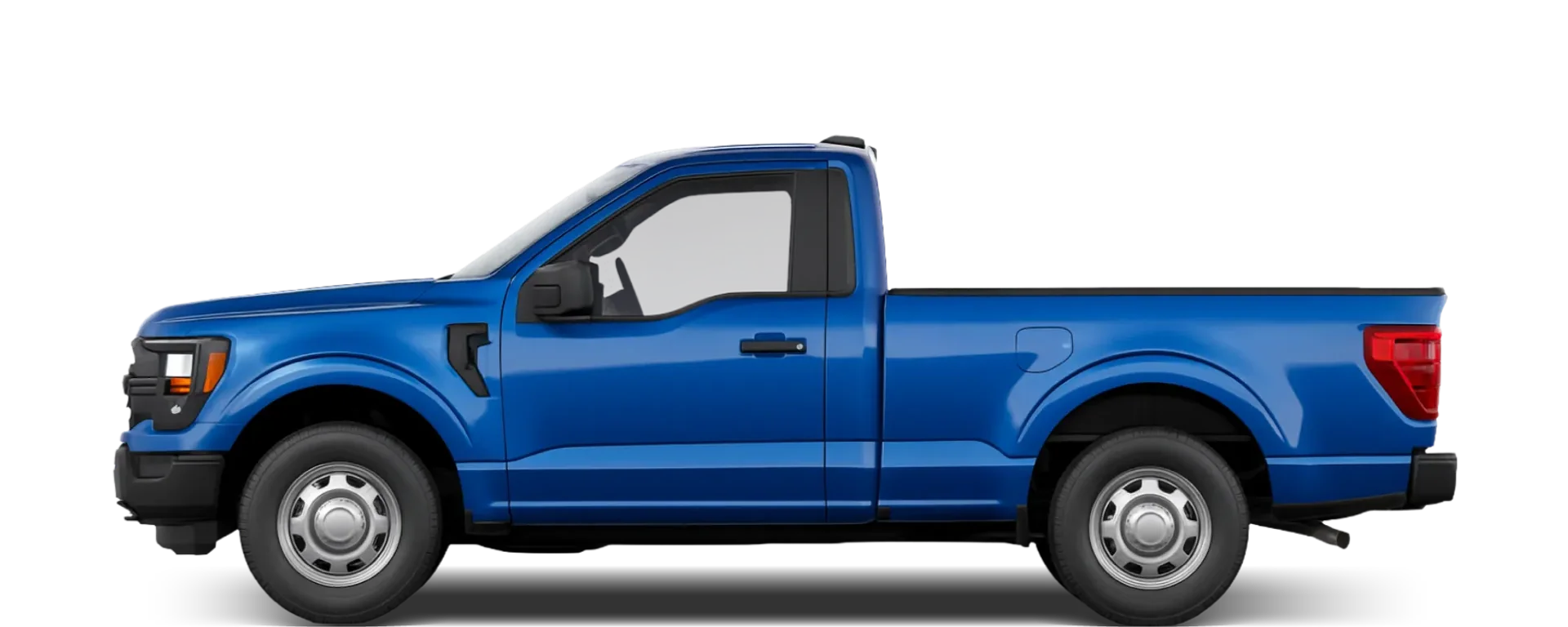

Key dimensions: length, width, height
The 47.5 cm length difference creates a clear divide in front-to-rear dimensions. Both cars have an identical width of 202.9 cm. The 2024 Ford F‑150 Regular Cab 6.5ft bed 4x2 is barely taller than the 2024 Ford F‑150 Regular Cab 8ft bed 4x2, with a tiny 1 cm gap that won't impact multi-storey car park access. For all practical purposes, the ground clearance is the same between the vehicles, with just a minor 0.3 cm advantage in the 2024 Ford F‑150 Regular Cab 6.5ft bed 4x2. The 2024 Ford F‑150 Regular Cab 8ft bed 4x2 is 47.5 cm longer in the wheelbase, putting it in a completely different category of ride and comfort when compared to the 2024 Ford F‑150 Regular Cab 6.5ft bed 4x2.
Measurements
Length
531.9 cm
579.4 cm (+47.5)
Height
191.5 cm (+1)
190.5 cm
Body width
202.9 cm
202.9 cm
Width including mirrors
243.1 cm
243.1 cm
Ground clearance
21.1 cm (+0.3)
20.8 cm
Wheelbase
311.9 cm
359.4 cm (+47.5)
Footprint
DriveSize footprint is overall length multiplied by body width.
10.8 m²
11.8 m² (+1)
How each car compares with its class average
Length
531.9 cm
10.8 cm shorter than the average Pickup
579.4 cm
36.7 cm longer than the average Pickup
Height
191.5 cm
4.7 cm taller than the average Pickup
190.5 cm
3.7 cm taller than the average Pickup
Body width
202.9 cm
8.5 cm wider than the average Pickup
202.9 cm
8.5 cm wider than the average Pickup
Width including mirrors
243.1 cm
20.2 cm wider than the average Pickup
243.1 cm
20.2 cm wider than the average Pickup
Ground clearance
21.1 cm
1.7 cm less ground clearance than the average Pickup
20.8 cm
2 cm less ground clearance than the average Pickup
Wheelbase
311.9 cm
19.1 cm shorter wheelbase than the average Pickup
359.4 cm
28.4 cm longer wheelbase than the average Pickup
Footprint
DriveSize footprint is overall length multiplied by body width.
10.8 m²
0.2 m² larger footprint than the average Pickup
11.8 m²
1.2 m² larger footprint than the average Pickup

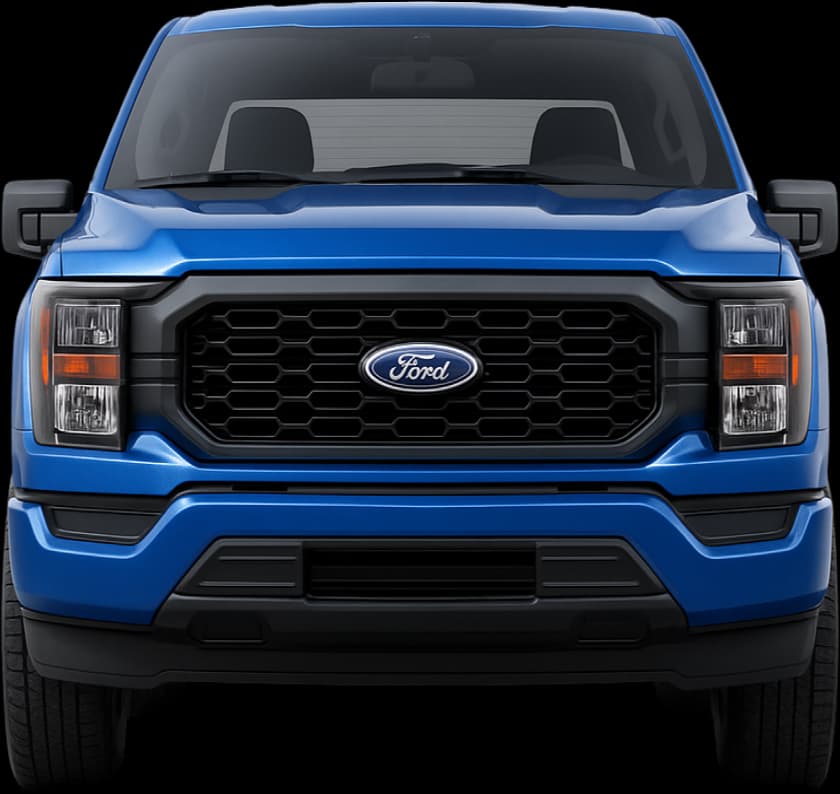

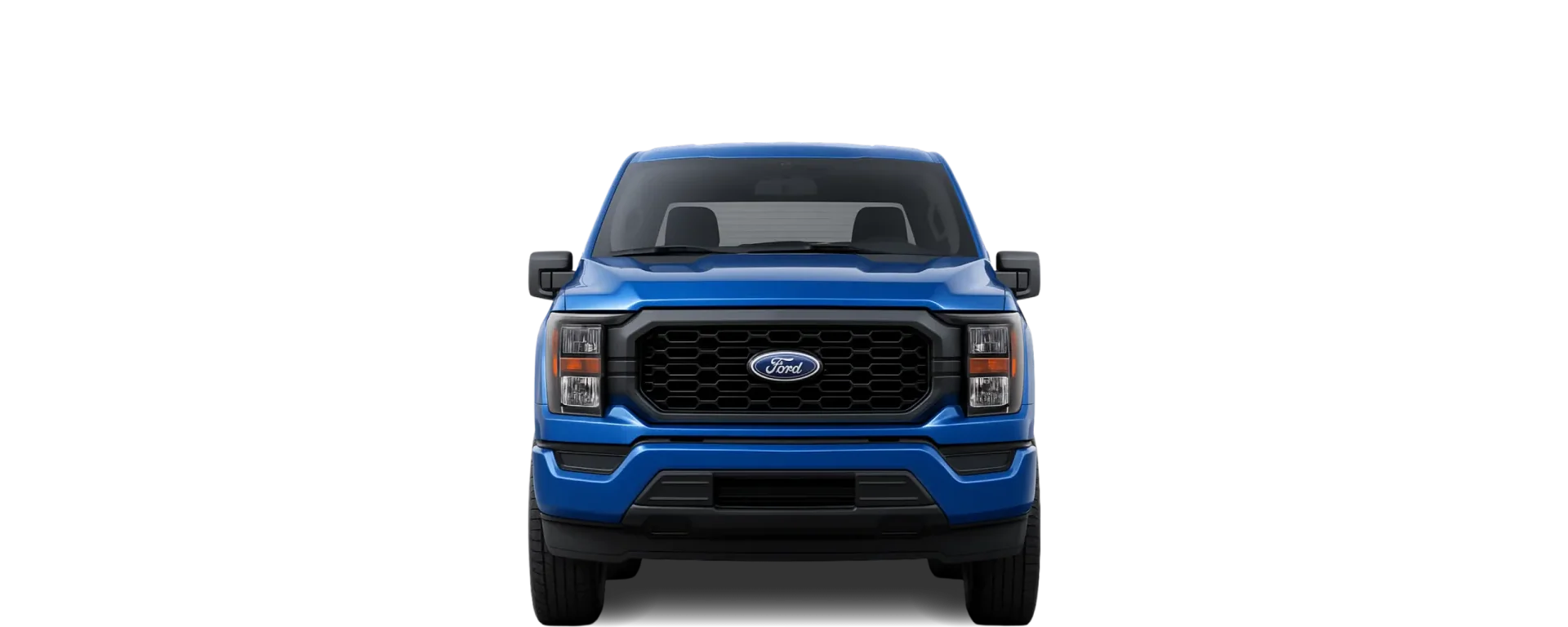

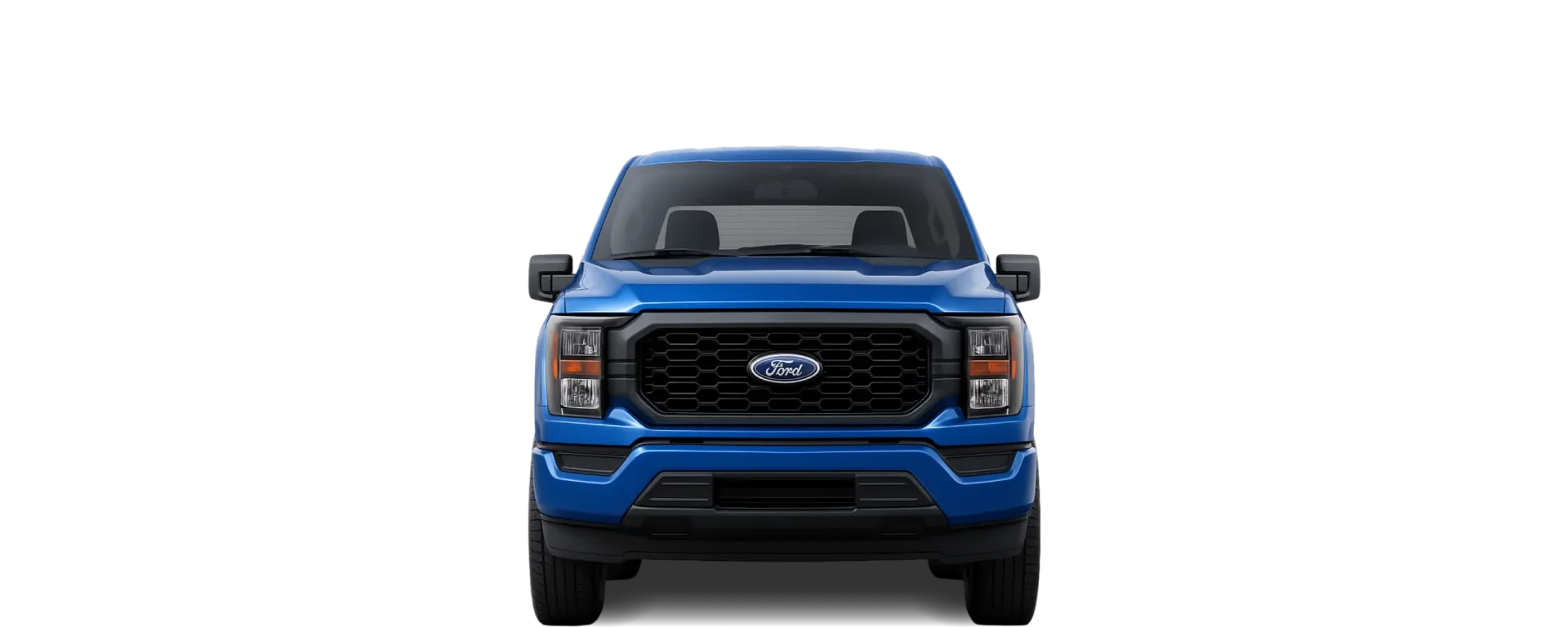

Front view
Cargo Capacity: which has more space?
Standard and largest cargo capacity
The 2024 Ford F‑150 Regular Cab 8ft bed 4x2 claims a double cargo victory, with a massive 428 L lead in the boot and a large 428 L (SAE) advantage with the seats down.
Measurements
Standard cargo capacity (SAE)
The standard cargo capacity using SAE, the method commonly used in the US.
This is the manufacturer's normal published figure; it does not imply a particular seat configuration.
1,764 L
2,192 L (+428)
Largest cargo capacity (SAE)
The largest cargo capacity using SAE, the method commonly used in the US.
If only one SAE figure is published, the standard and largest values are the same.
1,764 L
2,192 L (+428)
Cargo space vs length
This DriveSize metric divides blended cargo volume by overall vehicle length.
Blended cargo uses 65% of the standard figure and 35% of the largest figure, using VDA where available and SAE otherwise.
331.6 L per m
378.3 L per m (+46.7)
Cargo space vs footprint
This DriveSize metric divides blended cargo volume by footprint.
Blended cargo uses 65% of the standard figure and 35% of the largest figure, using VDA where available and SAE otherwise.
It helps show how efficiently a car turns exterior area into usable cargo space.
163.5 L per m²
186.5 L per m² (+23)
How each car compares with its class average
Standard cargo capacity (SAE)
The standard cargo capacity using SAE, the method commonly used in the US.
This is the manufacturer's normal published figure; it does not imply a particular seat configuration.
1,764 L
327 L more cargo volume than the average Pickup
2,192 L
755 L more cargo volume than the average Pickup
Largest cargo capacity (SAE)
The largest cargo capacity using SAE, the method commonly used in the US.
If only one SAE figure is published, the standard and largest values are the same.
1,764 L
237 L more cargo volume than the average Pickup
2,192 L
665 L more cargo volume than the average Pickup
DriveSize space efficiency
DriveSize space efficiency compares blended cargo volume per square meter of footprint with the class average.
Blended cargo uses 65% of the standard figure and 35% of the largest figure within the selected cargo measurement method.
VDA values compare with VDA class averages, and SAE values compare with SAE class averages. Positive percentages indicate more space efficiency and negative percentages indicate less.
+33%
SAE: More space efficient than the average Pickup
+51%
SAE: More space efficient than the average Pickup

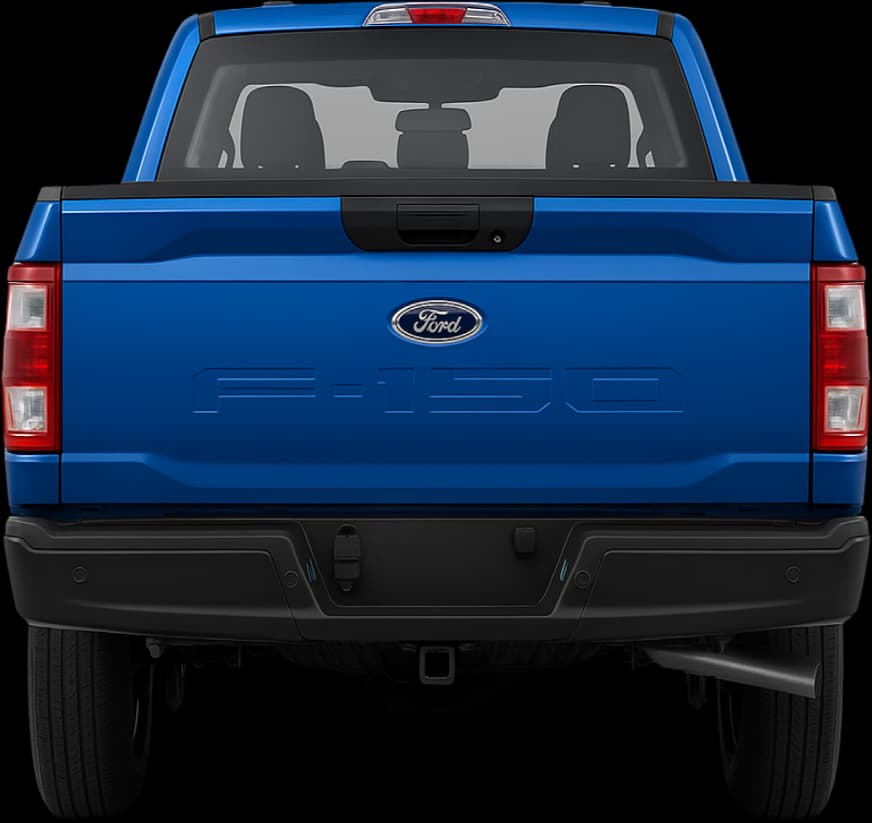

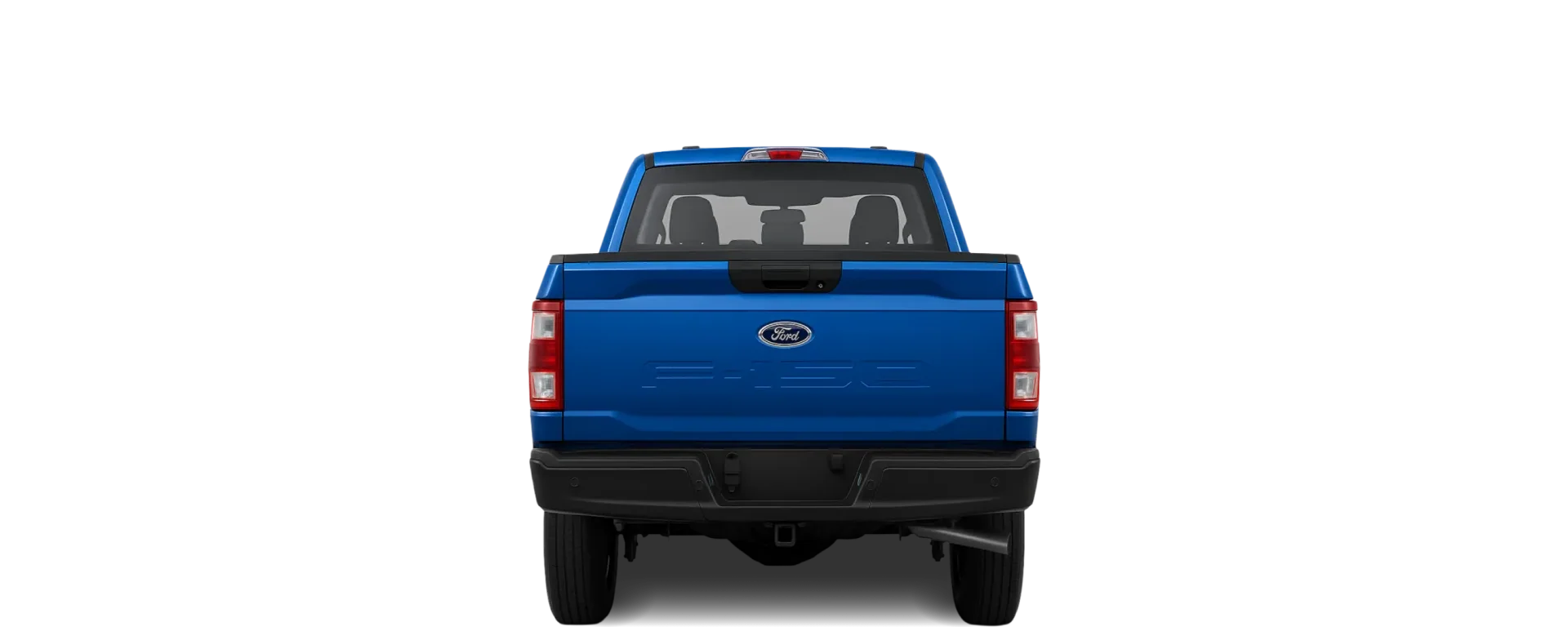

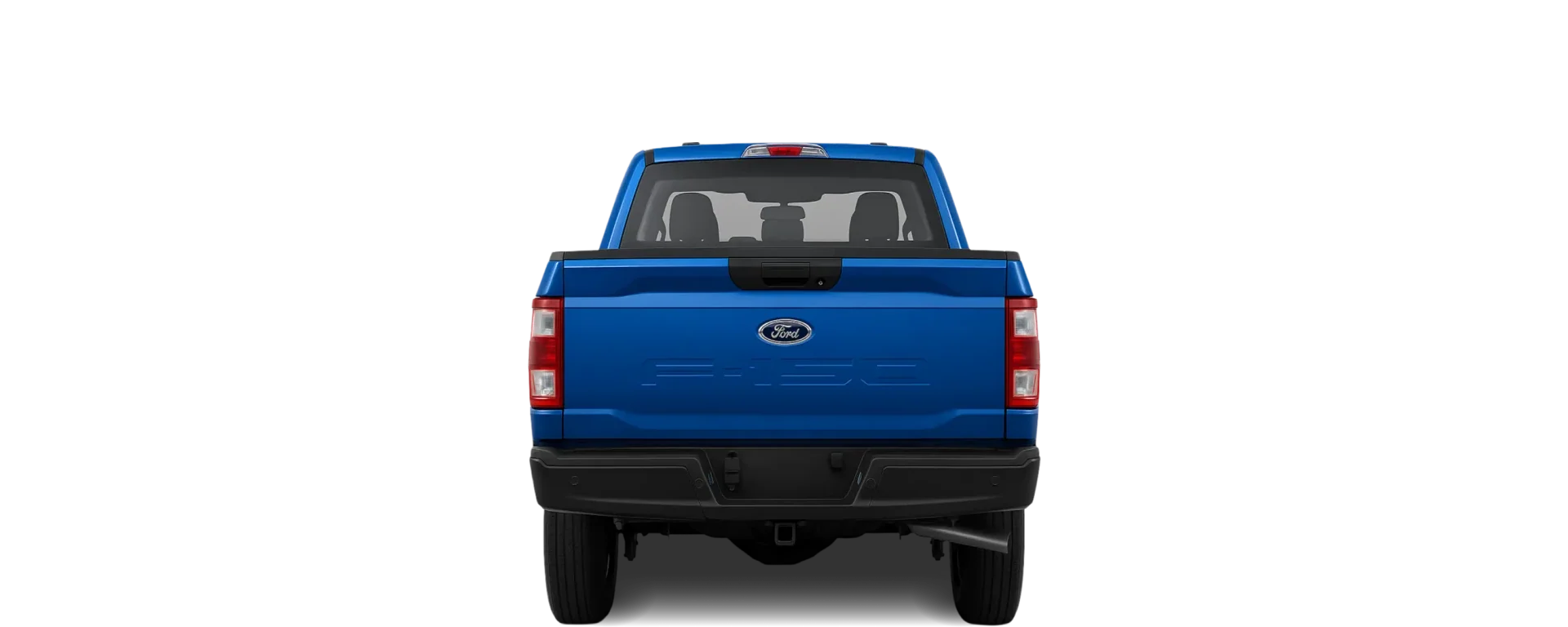

Rear view
Details
Doors, seats, weight, maneuverability
There is no difference in door count here, as both vehicles utilise a 2-door layout. You’ll find the same passenger limits in both models, as they each feature a 3-seat interior layout. Depending where you are, a 1.5 m increase in turning circle often marks the difference between a one-shot turn and a multi-point maneuver. Both vehicles offer a similar level of agility, as the 2024 Ford F‑150 Regular Cab 8ft bed 4x2 carries just 2 kg of extra weight over the 2024 Ford F‑150 Regular Cab 6.5ft bed 4x2.
Measurements
Doors
2
2
Max. seats
3
3
Turning circle
12.6 m
14.1 m (+1.5)
Curb weight
1,992 kg
1,994 kg (+2)
How each car compares with its class average
Turning circle
12.6 m
0.5 m smaller turning circle than the average Pickup
14.1 m
1 m larger turning circle than the average Pickup
Curb weight
1,992 kg
259 kg lighter than the average Pickup
1,994 kg
257 kg lighter than the average Pickup
DriveSize manoeuvrability
DriveSize manoeuvrability combines turning circle and footprint, with turning circle weighted more heavily.
A positive percentage means more manoeuvrable than the class average and a negative percentage means less manoeuvrable.
+1%
More manoeuvrable than the average Pickup
-9%
Less manoeuvrable than the average Pickup
Parking
Will the 2024 Ford F‑150 Regular Cab 6.5ft bed 4x2 or 2024 Ford F‑150 Regular Cab 8ft bed 4x2 fit in a standard parking space?
2024 Ford F‑150 Regular Cab 6.5ft bed 4x2 parking fit score
DriveSize compares the car's width and length with typical parking-space sizes by region.
Vehicle dimensions are rounded up and available side or length clearance is rounded down.
Side clearance is based on body width where available; real spaces can vary because of mirrors, walls, pillars, kerbs, bay markings, and nearby cars.
For an average USA / Canada space: body side clearance is 36 cm per side, and length clearance is 9 cm at each end. Primary constraint: length.
Body side clearance
36 cm
Length clearance (at each end)
9 cm
Primary constraint.
2024 Ford F‑150 Regular Cab 8ft bed 4x2 parking fit score
DriveSize compares the car's width and length with typical parking-space sizes by region.
Vehicle dimensions are rounded up and available side or length clearance is rounded down.
Side clearance is based on body width where available; real spaces can vary because of mirrors, walls, pillars, kerbs, bay markings, and nearby cars.
For an average USA / Canada space: exceeds the bay's length by 30 cm.
Body side clearance
36 cm
Length over bay
30 cm
Overall length. Primary constraint.
