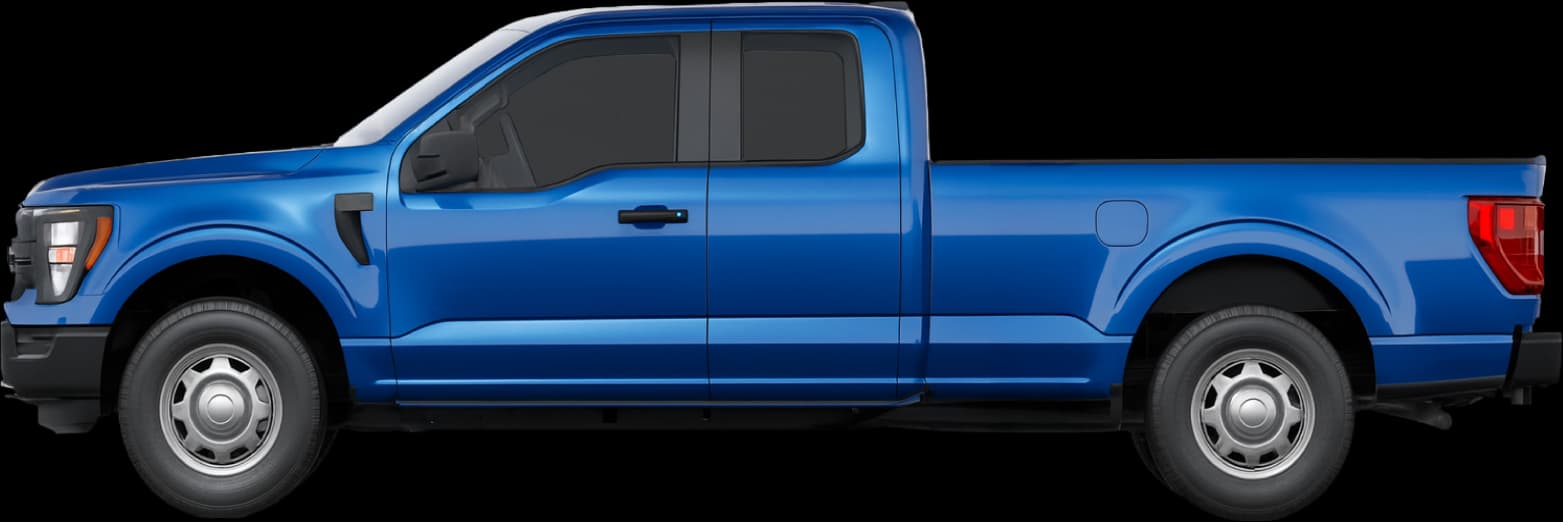

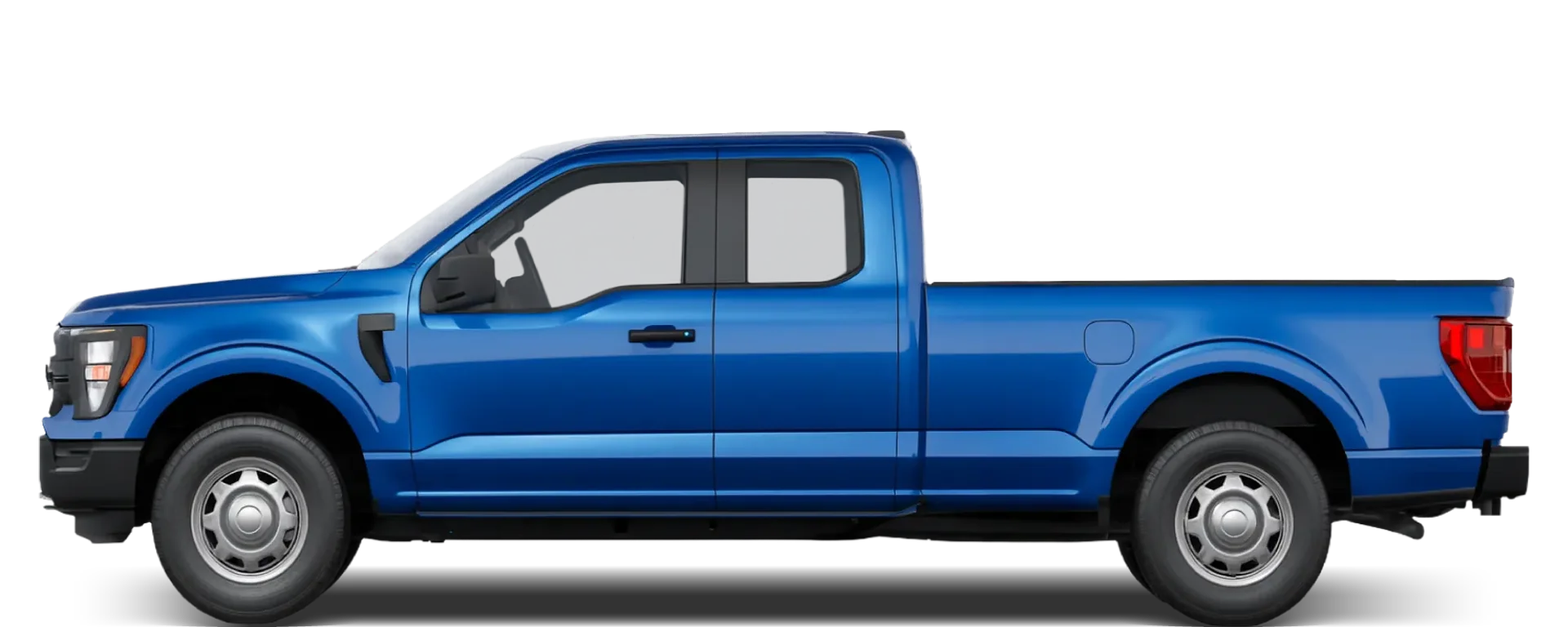

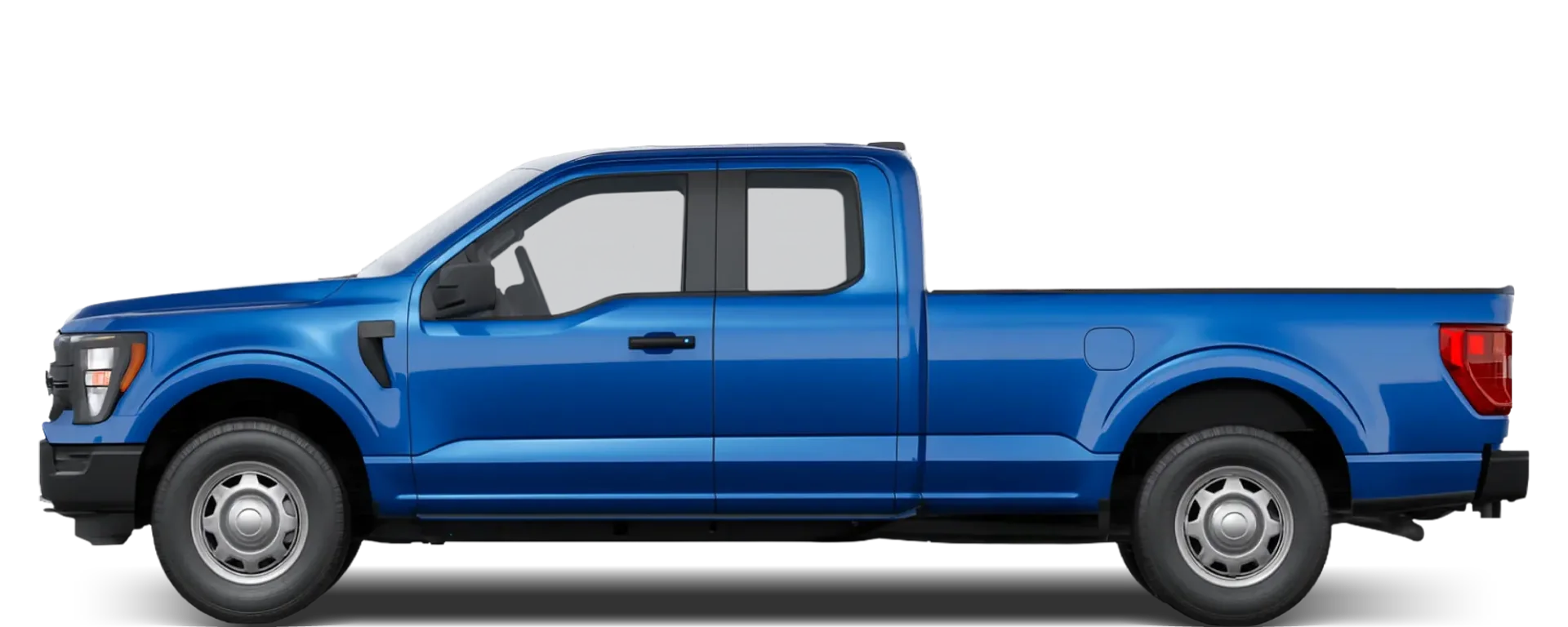

2024 Ford F‑150 SuperCab 6.5ft bed 4x2 vs 2024 Ford F‑150 SuperCab 6.5ft bed 4x4
Which is bigger, the 2024 Ford F‑150 SuperCab 6.5ft bed 4x2 or 2024 Ford F‑150 SuperCab 6.5ft bed 4x4?
Key dimensions: length, width, height
There is no difference in overall length between the 2024 Ford F‑150 SuperCab 6.5ft bed 4x2 and the 2024 Ford F‑150 SuperCab 6.5ft bed 4x4, with both measuring 589.3 cm. Neither vehicle has an advantage for body width, as both the 2024 Ford F‑150 SuperCab 6.5ft bed 4x2 and the 2024 Ford F‑150 SuperCab 6.5ft bed 4x4 measure 202.9 cm. In terms of height, the two are very closely matched, with the 2024 Ford F‑150 SuperCab 6.5ft bed 4x4 standing just 4.5 cm taller than the 2024 Ford F‑150 SuperCab 6.5ft bed 4x2. The 4.1 cm increase in ground clearance from the 2024 Ford F‑150 SuperCab 6.5ft bed 4x4 is just enough to make a positive difference on a gravel driveway vs the 2024 Ford F‑150 SuperCab 6.5ft bed 4x2. The distance between the front and rear wheels is exactly the same for both the 2024 Ford F‑150 SuperCab 6.5ft bed 4x2 and the 2024 Ford F‑150 SuperCab 6.5ft bed 4x4.
Measurements
Length
589.3 cm
589.3 cm
Height
191.3 cm
195.8 cm (+4.5)
Body width
202.9 cm
202.9 cm
Width including mirrors
243.1 cm
243.1 cm
Ground clearance
20.8 cm
24.9 cm (+4.1)
Wheelbase
369.3 cm
369.3 cm
Footprint
DriveSize footprint is overall length multiplied by body width.
12 m²
12 m²
How each car compares with its class average
Length
589.3 cm
46.6 cm longer than the average Pickup
589.3 cm
46.6 cm longer than the average Pickup
Height
191.3 cm
4.5 cm taller than the average Pickup
195.8 cm
9 cm taller than the average Pickup
Body width
202.9 cm
8.5 cm wider than the average Pickup
202.9 cm
8.5 cm wider than the average Pickup
Width including mirrors
243.1 cm
20.2 cm wider than the average Pickup
243.1 cm
20.2 cm wider than the average Pickup
Ground clearance
20.8 cm
2 cm less ground clearance than the average Pickup
24.9 cm
2.1 cm more ground clearance than the average Pickup
Wheelbase
369.3 cm
38.3 cm longer wheelbase than the average Pickup
369.3 cm
38.3 cm longer wheelbase than the average Pickup
Footprint
DriveSize footprint is overall length multiplied by body width.
12 m²
1.4 m² larger footprint than the average Pickup
12 m²
1.4 m² larger footprint than the average Pickup

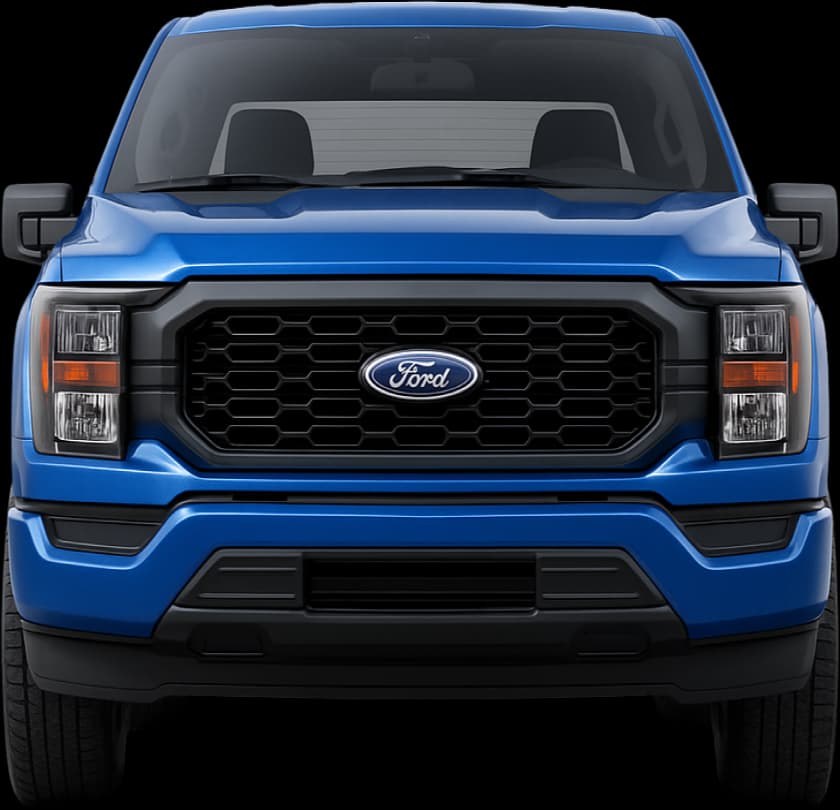

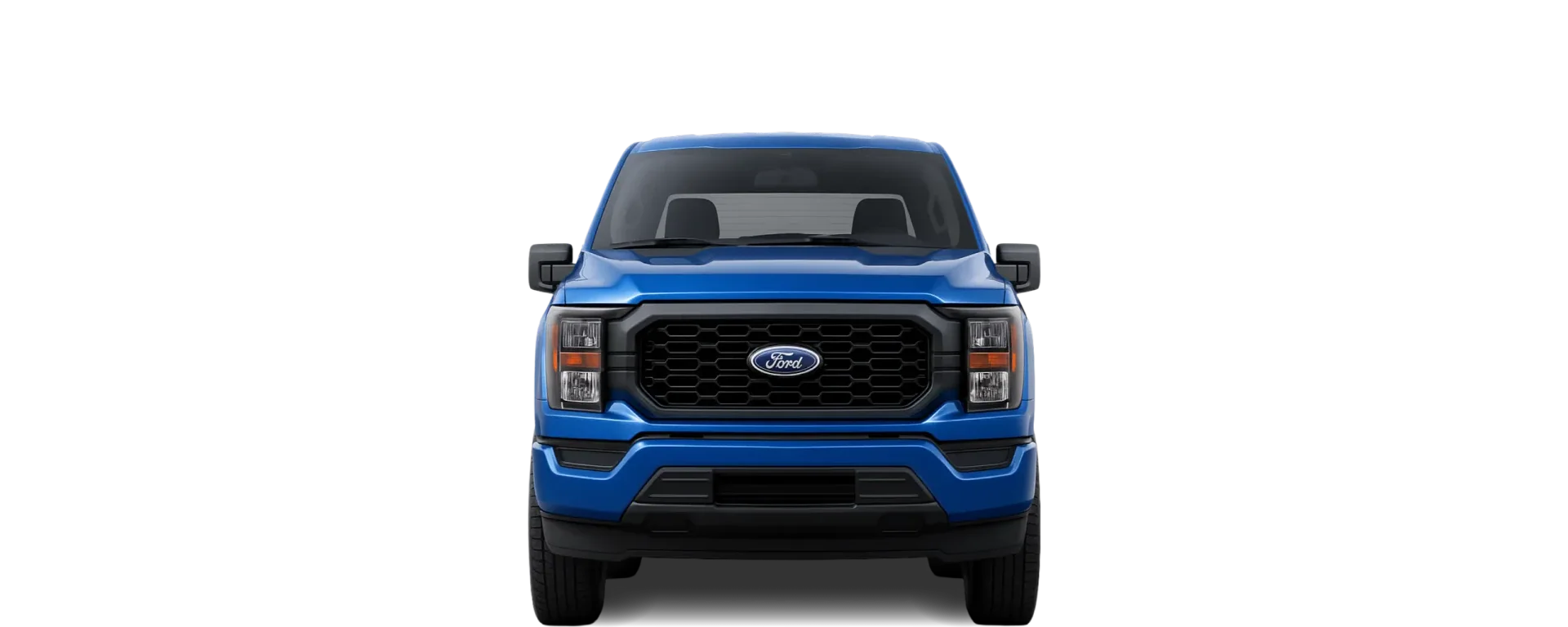

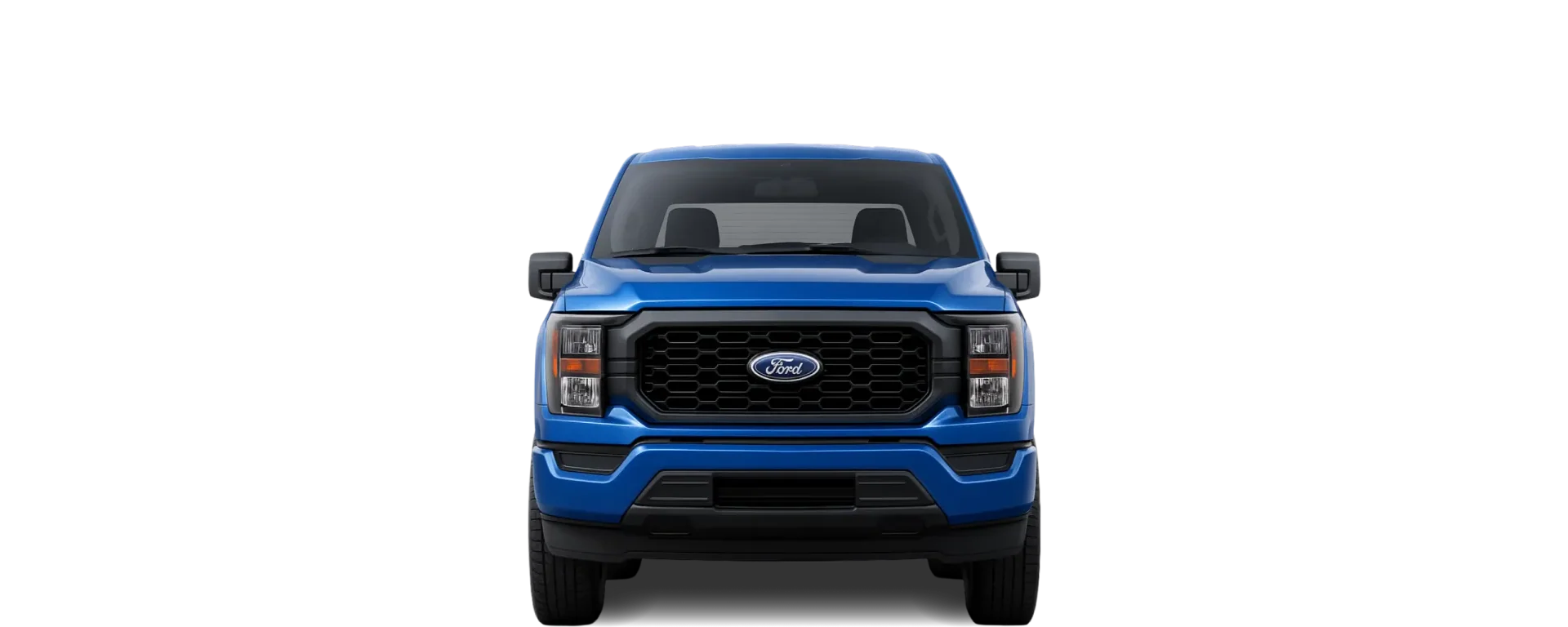

Front view
Cargo Capacity: which has more space?
Standard and largest cargo capacity
From grocery runs to furniture hauling, these two are spec-for-spec identical for cargo space, offering the same 1,764 / 1,764 L (SAE) volume.
Measurements
Standard cargo capacity (SAE)
The standard cargo capacity using SAE, the method commonly used in the US.
This is the manufacturer's normal published figure; it does not imply a particular seat configuration.
1,764 L
1,764 L
Largest cargo capacity (SAE)
The largest cargo capacity using SAE, the method commonly used in the US.
If only one SAE figure is published, the standard and largest values are the same.
1,764 L
1,764 L
Cargo space vs length
This DriveSize metric divides blended cargo volume by overall vehicle length.
Blended cargo uses 65% of the standard figure and 35% of the largest figure, using VDA where available and SAE otherwise.
299.3 L per m
299.3 L per m
Cargo space vs footprint
This DriveSize metric divides blended cargo volume by footprint.
Blended cargo uses 65% of the standard figure and 35% of the largest figure, using VDA where available and SAE otherwise.
It helps show how efficiently a car turns exterior area into usable cargo space.
147.5 L per m²
147.5 L per m²
How each car compares with its class average
Standard cargo capacity (SAE)
The standard cargo capacity using SAE, the method commonly used in the US.
This is the manufacturer's normal published figure; it does not imply a particular seat configuration.
1,764 L
327 L more cargo volume than the average Pickup
1,764 L
327 L more cargo volume than the average Pickup
Largest cargo capacity (SAE)
The largest cargo capacity using SAE, the method commonly used in the US.
If only one SAE figure is published, the standard and largest values are the same.
1,764 L
237 L more cargo volume than the average Pickup
1,764 L
237 L more cargo volume than the average Pickup
DriveSize space efficiency
DriveSize space efficiency compares blended cargo volume per square meter of footprint with the class average.
Blended cargo uses 65% of the standard figure and 35% of the largest figure within the selected cargo measurement method.
VDA values compare with VDA class averages, and SAE values compare with SAE class averages. Positive percentages indicate more space efficiency and negative percentages indicate less.
+20%
SAE: More space efficient than the average Pickup
+20%
SAE: More space efficient than the average Pickup

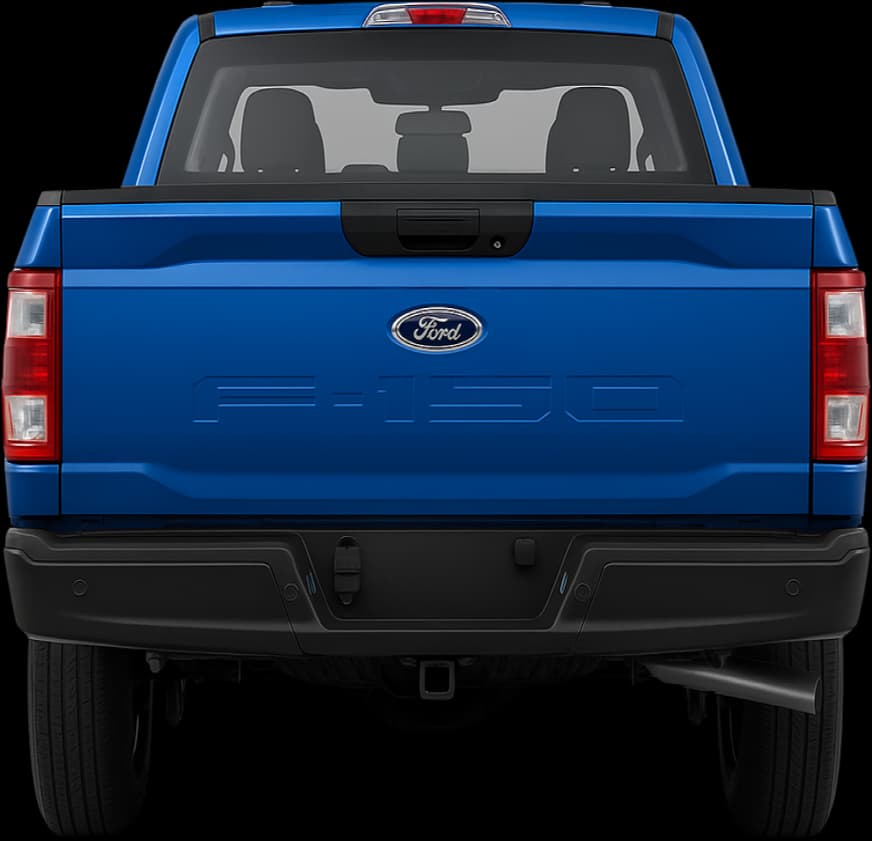

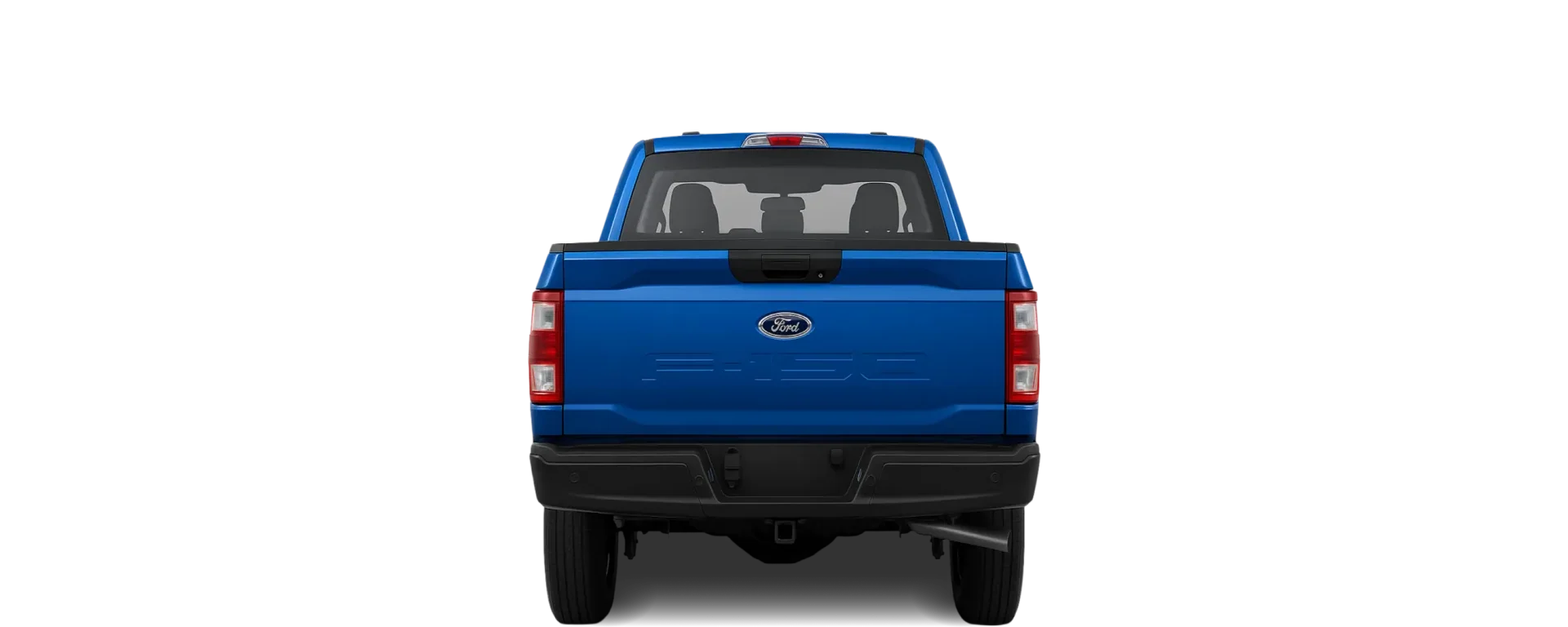

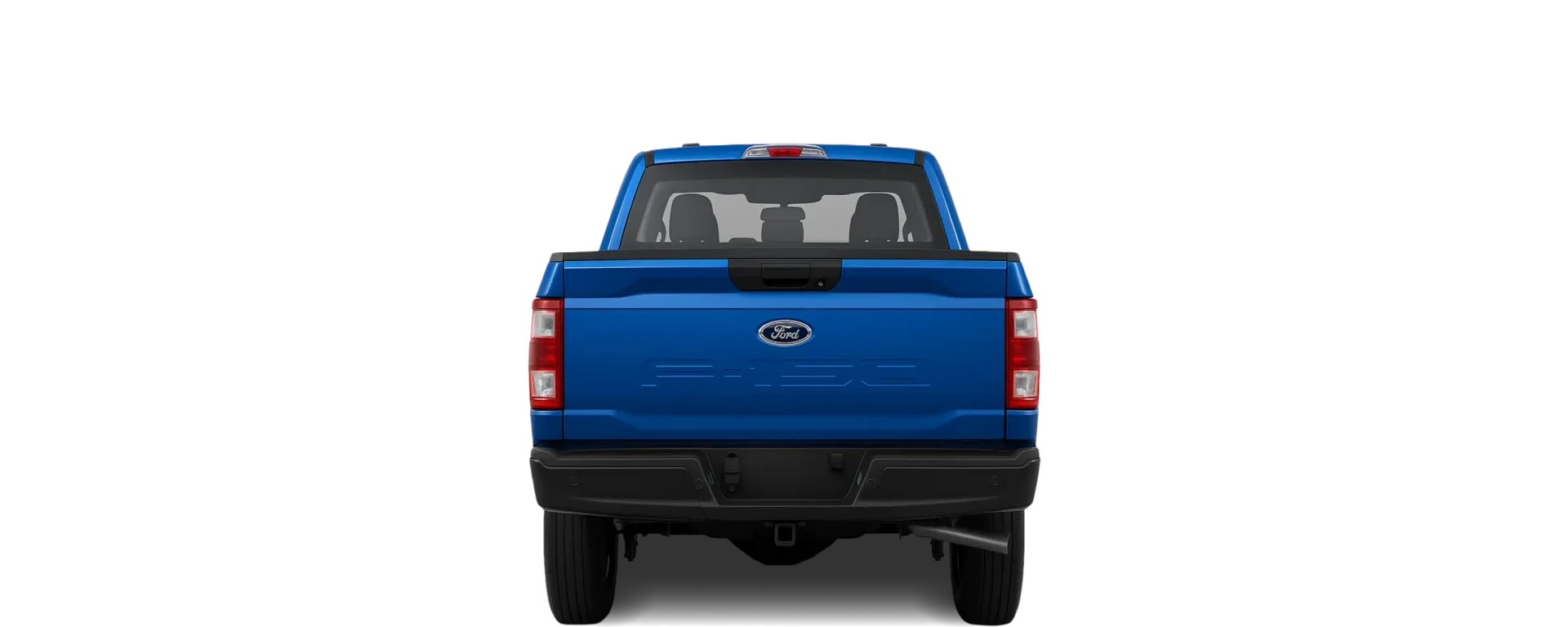

Rear view
Details
Doors, seats, weight, maneuverability
Both the 2024 Ford F‑150 SuperCab 6.5ft bed 4x2 and 2024 Ford F‑150 SuperCab 6.5ft bed 4x4 feature a 4-door configuration, offering the same level of accessibility for passengers. There is no advantage for either model when it comes to passenger numbers, since both offer a 6-seat configuration. You won't find an agility advantage in either of these models, as both have a turning circle 14.6 m. The 2024 Ford F‑150 SuperCab 6.5ft bed 4x4 is 115 kg heavier, which may give it a slightly more planted feel on the motorway compared to the 2024 Ford F‑150 SuperCab 6.5ft bed 4x2.
Measurements
Doors
4
4
Max. seats
6
6
Turning circle
14.6 m
14.6 m
Curb weight
2,105 kg
2,220 kg (+115)
How each car compares with its class average
Turning circle
14.6 m
1.5 m larger turning circle than the average Pickup
14.6 m
1.5 m larger turning circle than the average Pickup
Curb weight
2,105 kg
146 kg lighter than the average Pickup
2,220 kg
31 kg lighter than the average Pickup
DriveSize manoeuvrability
DriveSize manoeuvrability combines turning circle and footprint, with turning circle weighted more heavily.
A positive percentage means more manoeuvrable than the class average and a negative percentage means less manoeuvrable.
-12%
Less manoeuvrable than the average Pickup
-12%
Less manoeuvrable than the average Pickup
Parking
Will the 2024 Ford F‑150 SuperCab 6.5ft bed 4x2 or 2024 Ford F‑150 SuperCab 6.5ft bed 4x4 fit in a standard parking space?
2024 Ford F‑150 SuperCab 6.5ft bed 4x2 parking fit score
DriveSize compares the car's width and length with typical parking-space sizes by region.
Vehicle dimensions are rounded up and available side or length clearance is rounded down.
Side clearance is based on body width where available; real spaces can vary because of mirrors, walls, pillars, kerbs, bay markings, and nearby cars.
For an average USA / Canada space: exceeds the bay's length by 40 cm.
Body side clearance
36 cm
Length over bay
40 cm
Overall length. Primary constraint.
2024 Ford F‑150 SuperCab 6.5ft bed 4x4 parking fit score
DriveSize compares the car's width and length with typical parking-space sizes by region.
Vehicle dimensions are rounded up and available side or length clearance is rounded down.
Side clearance is based on body width where available; real spaces can vary because of mirrors, walls, pillars, kerbs, bay markings, and nearby cars.
For an average USA / Canada space: exceeds the bay's length by 40 cm.
Body side clearance
36 cm
Length over bay
40 cm
Overall length. Primary constraint.
