2018 Jeep Wrangler vs 2021 Tesla Model X
Which is bigger, the 2018 Jeep Wrangler or 2021 Tesla Model X?
Key dimensions: length, width, height
At 82 cm longer, 2021 Tesla Model X sits well ahead of 2018 Jeep Wrangler in terms of body length. The 2021 Tesla Model X gains you 12.4 cm in width, likely providing extra elbow room inside compared to the 2018 Jeep Wrangler, but you'll need more caution when navigating tight city streets. A 18.8 cm height difference means the 2018 Jeep Wrangler will feel much more substantial when you're behind the wheel compared to the 2021 Tesla Model X. With a 10 cm advantage in ground clearance, the 2018 Jeep Wrangler is better equipped for unpaved roads and snowy conditions when compared to the 2021 Tesla Model X. The 2021 Tesla Model X is 50.5 cm longer in the wheelbase, showing a big increase in chassis length and potential passenger volume.
Measurements
Length
423.7 cm
505.7 cm (+82)
Height
186.8 cm (+18.8)
168 cm
Body width
187.5 cm
199.9 cm (+12.4)
Width including mirrors
N/A
227.1 cm
Ground clearance
24.6 cm (+10)
14.6 cm
Wheelbase
246 cm
296.5 cm (+50.5)
Footprint
DriveSize footprint is overall length multiplied by body width.
7.9 m²
10.1 m² (+2.2)
How each car compares with its class average
Length
423.7 cm
71.7 cm shorter than the average SUV
505.7 cm
53.1 cm longer than the average Crossover
Height
186.8 cm
3.3 cm shorter than the average SUV
168 cm
5.2 cm taller than the average Crossover
Body width
187.5 cm
8.2 cm narrower than the average SUV
199.9 cm
15 cm wider than the average Crossover
Width including mirrors
N/A
227.1 cm
20.7 cm wider than the average Crossover
Ground clearance
24.6 cm
2.1 cm more ground clearance than the average SUV
14.6 cm
3.5 cm less ground clearance than the average Crossover
Wheelbase
246 cm
44.1 cm shorter wheelbase than the average SUV
296.5 cm
24.1 cm longer wheelbase than the average Crossover
Footprint
DriveSize footprint is overall length multiplied by body width.
7.9 m²
1.8 m² smaller footprint than the average SUV
10.1 m²
1.7 m² larger footprint than the average Crossover

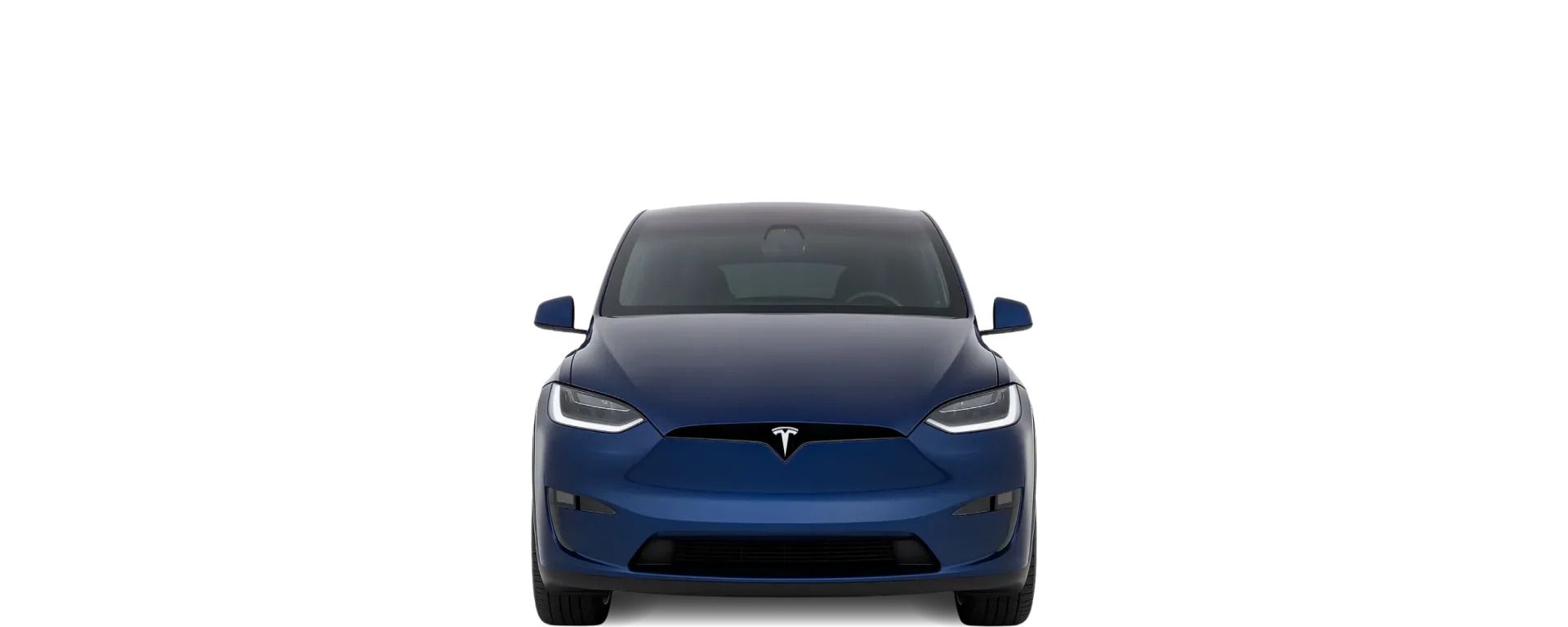

Front view
Cargo Capacity: which has more space?
Standard and largest cargo capacity
The 2021 Tesla Model X features a 1,111 L (SAE) boot with the seats up, which is way above average for its category. The 2021 Tesla Model X provides a way above average 2,471 L for the crossover segment for cargo space with the seats down.
Measurements
Standard cargo capacity (SAE)
The standard cargo capacity using SAE, the method commonly used in the US.
This is the manufacturer's normal published figure; it does not imply a particular seat configuration.
N/A
1,111 L
Largest cargo capacity (SAE)
The largest cargo capacity using SAE, the method commonly used in the US.
If only one SAE figure is published, the standard and largest values are the same.
N/A
2,471 L
Frunk capacity
N/A
183 L
Cargo space vs length
This DriveSize metric divides blended cargo volume by overall vehicle length.
Blended cargo uses 65% of the standard figure and 35% of the largest figure, using VDA where available and SAE otherwise.
N/A
313.8 L per m
Cargo space vs footprint
This DriveSize metric divides blended cargo volume by footprint.
Blended cargo uses 65% of the standard figure and 35% of the largest figure, using VDA where available and SAE otherwise.
It helps show how efficiently a car turns exterior area into usable cargo space.
N/A
157 L per m²
How each car compares with its class average
Standard cargo capacity (SAE)
The standard cargo capacity using SAE, the method commonly used in the US.
This is the manufacturer's normal published figure; it does not imply a particular seat configuration.
N/A
1,111 L
372 L more cargo volume than the average Crossover
Largest cargo capacity (SAE)
The largest cargo capacity using SAE, the method commonly used in the US.
If only one SAE figure is published, the standard and largest values are the same.
N/A
2,471 L
600 L more cargo volume than the average Crossover
DriveSize space efficiency
DriveSize space efficiency compares blended cargo volume per square meter of footprint with the class average.
Blended cargo uses 65% of the standard figure and 35% of the largest figure within the selected cargo measurement method.
VDA values compare with VDA class averages, and SAE values compare with SAE class averages. Positive percentages indicate more space efficiency and negative percentages indicate less.
+20%
SAE: More space efficient than the average Crossover

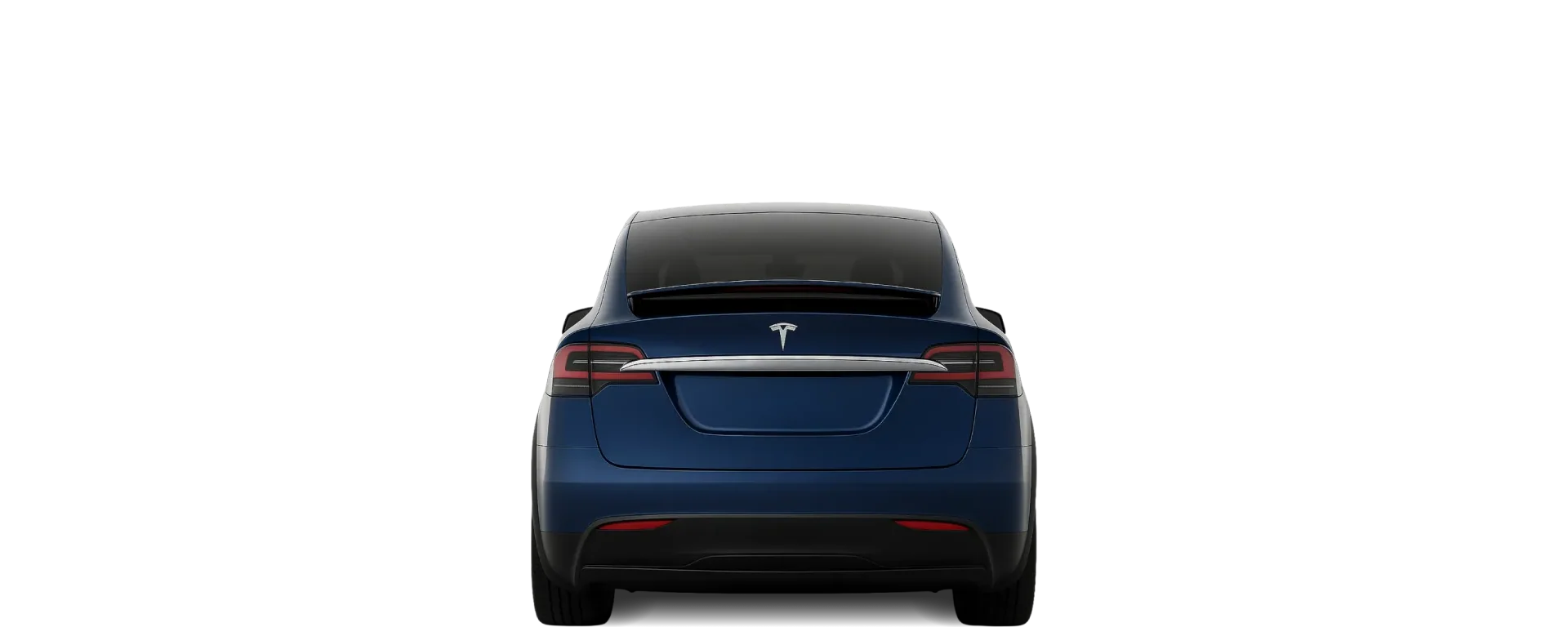

Rear view
Details
Doors, seats, weight, maneuverability
With 3 more door(s) than the 2018 Jeep Wrangler, the 2021 Tesla Model X should be more practical for those wanting to carry passengers or luggage. If you occasionally need to carry one more person, the 2021 Tesla Model X is better suited, offering an extra seat over the 2018 Jeep Wrangler. At 1.8 m wider, the 2021 Tesla Model X requires a much more deliberate approach to tight corners than the 2018 Jeep Wrangler. This 536 kg weight gap is massive, fundamentally changing everything from braking to suspension wear.
Measurements
Doors
2
5 (+3)
Max. seats
4
5 (+1)
Turning circle
10.5 m
12.3 m (+1.8)
Curb weight
1,801 kg
2,337 kg (+536)
How each car compares with its class average
Turning circle
10.5 m
1.5 m smaller turning circle than the average SUV
12.3 m
1.1 m larger turning circle than the average Crossover
Curb weight
1,801 kg
646 kg lighter than the average SUV
2,337 kg
705 kg heavier than the average Crossover
DriveSize manoeuvrability
DriveSize manoeuvrability combines turning circle and footprint, with turning circle weighted more heavily.
A positive percentage means more manoeuvrable than the class average and a negative percentage means less manoeuvrable.
+15%
More manoeuvrable than the average SUV
-11%
Less manoeuvrable than the average Crossover
Parking
Will the 2018 Jeep Wrangler or 2021 Tesla Model X fit in a standard parking space?
2018 Jeep Wrangler parking fit score
DriveSize compares the car's width and length with typical parking-space sizes by region.
Vehicle dimensions are rounded up and available side or length clearance is rounded down.
Side clearance is based on body width where available; real spaces can vary because of mirrors, walls, pillars, kerbs, bay markings, and nearby cars.
For an average USA / Canada space: body side clearance is 43.5 cm per side, and length clearance is 63 cm at each end.
Body side clearance
43.5 cm
Length clearance (at each end)
63 cm
2021 Tesla Model X parking fit score
DriveSize compares the car's width and length with typical parking-space sizes by region.
Vehicle dimensions are rounded up and available side or length clearance is rounded down.
Side clearance is based on body width where available; real spaces can vary because of mirrors, walls, pillars, kerbs, bay markings, and nearby cars.
For an average USA / Canada space: body side clearance is 37.5 cm per side, and length clearance is 22 cm at each end.
Body side clearance
37.5 cm
Length clearance (at each end)
22 cm
